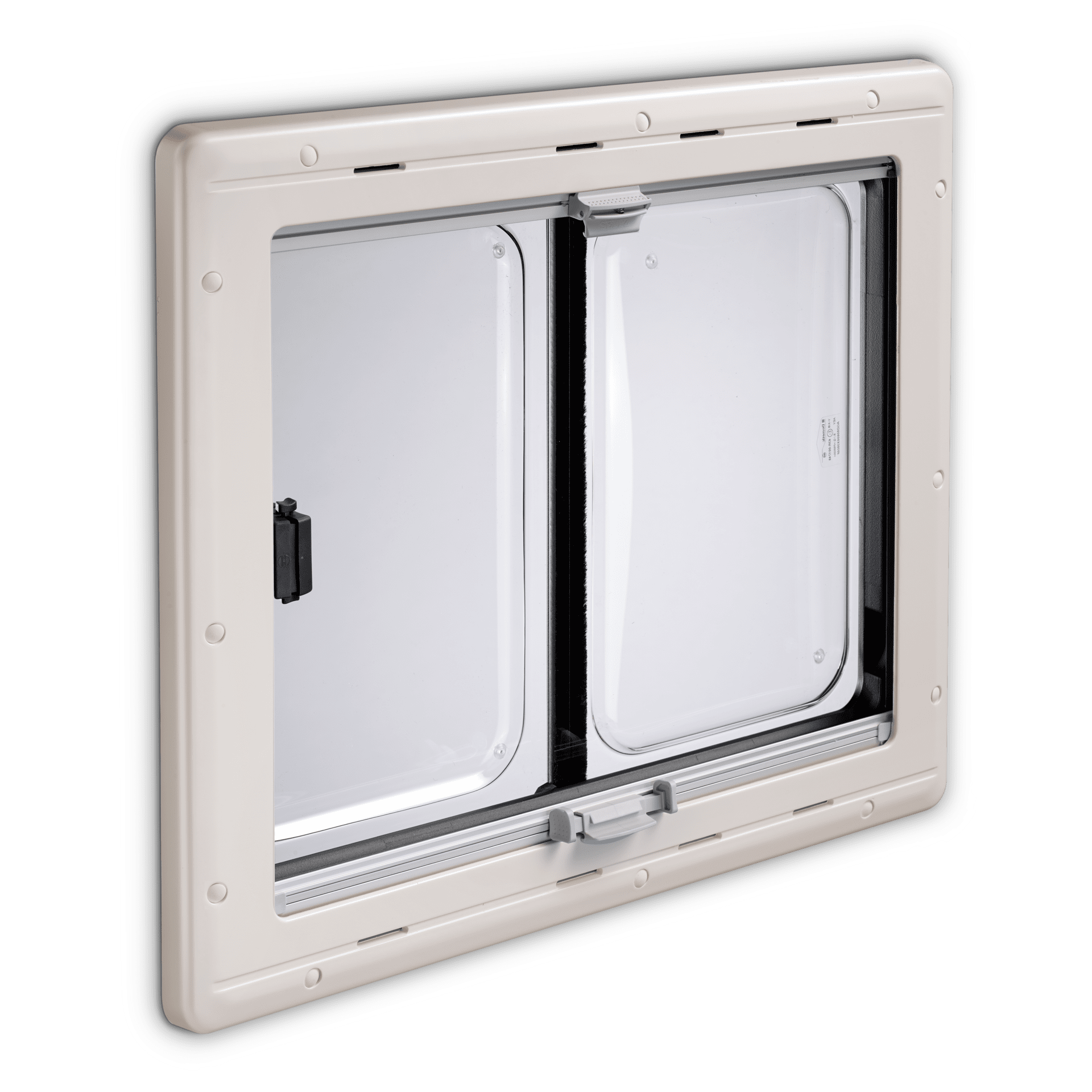

Dometic S4
Schiebefenster, 900 x 600
€ 859
SKU: 9104100179
Technische Informationen
Spezifikationen
- Allgemein
- Scope of delivery
- S4S Window with manual in box
- SKUCertificates
- ECE R43
- Product Description
- Schiebefenster, 900 x 600
- Abmessungen
- Dimensions product height, [mm]
- 631
- Dimensions product width, [mm]
- 948
- Dimensions product width, ["] - Display
- 37 5/16
- Dimensions ordered height, [mm]
- 600
- Dimensions ordered width, [mm]
- 900
- Net weight, [kg]
- 9.20
- Net weight, [lbs]
- 20.29
- Standard mount. material thickness 1 min, [mm]
- 26
- Standard mount. material thickness 1 max, [mm]
- 26
- Possible material thickness 1 min, [mm]
- 27
- Possible material thickness 1 max, [mm]
- 41
- Cut out height, [mm]
- 599.000000
- Cut out width, [mm]
- 902.000000
- Eigenschaften
- Hinge type
- Schiebescharnier
- Positions variable
- Variable
- Logistik
- Dimensions parcel depth, [mm]
- 720
- Dimensions parcel height, [mm]
- 185
- Dimensions parcel width, [mm]
- 1020
- Parcel weight, [kg]
- 10.72
- Parcel weight, [lbs]
- 23.64
