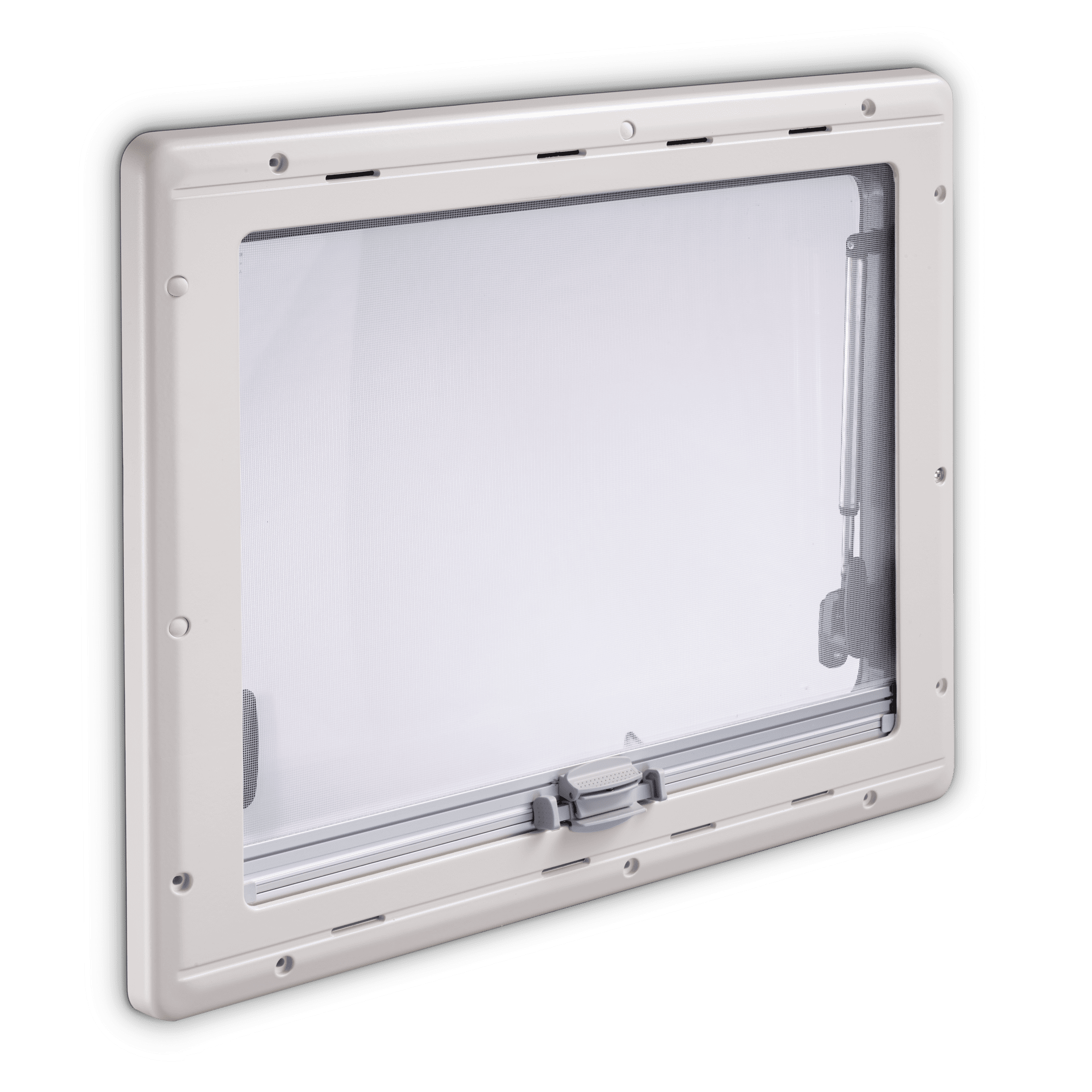

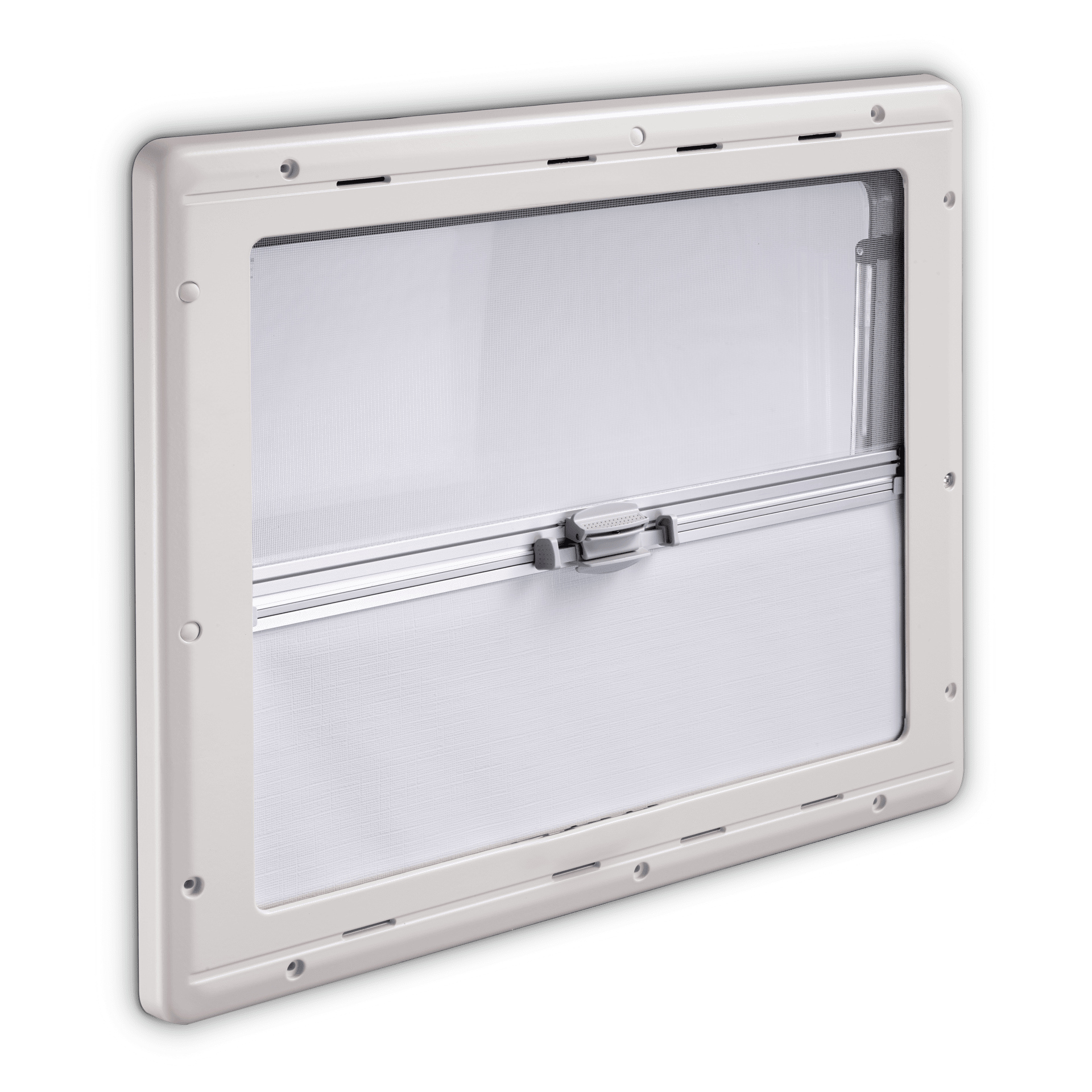

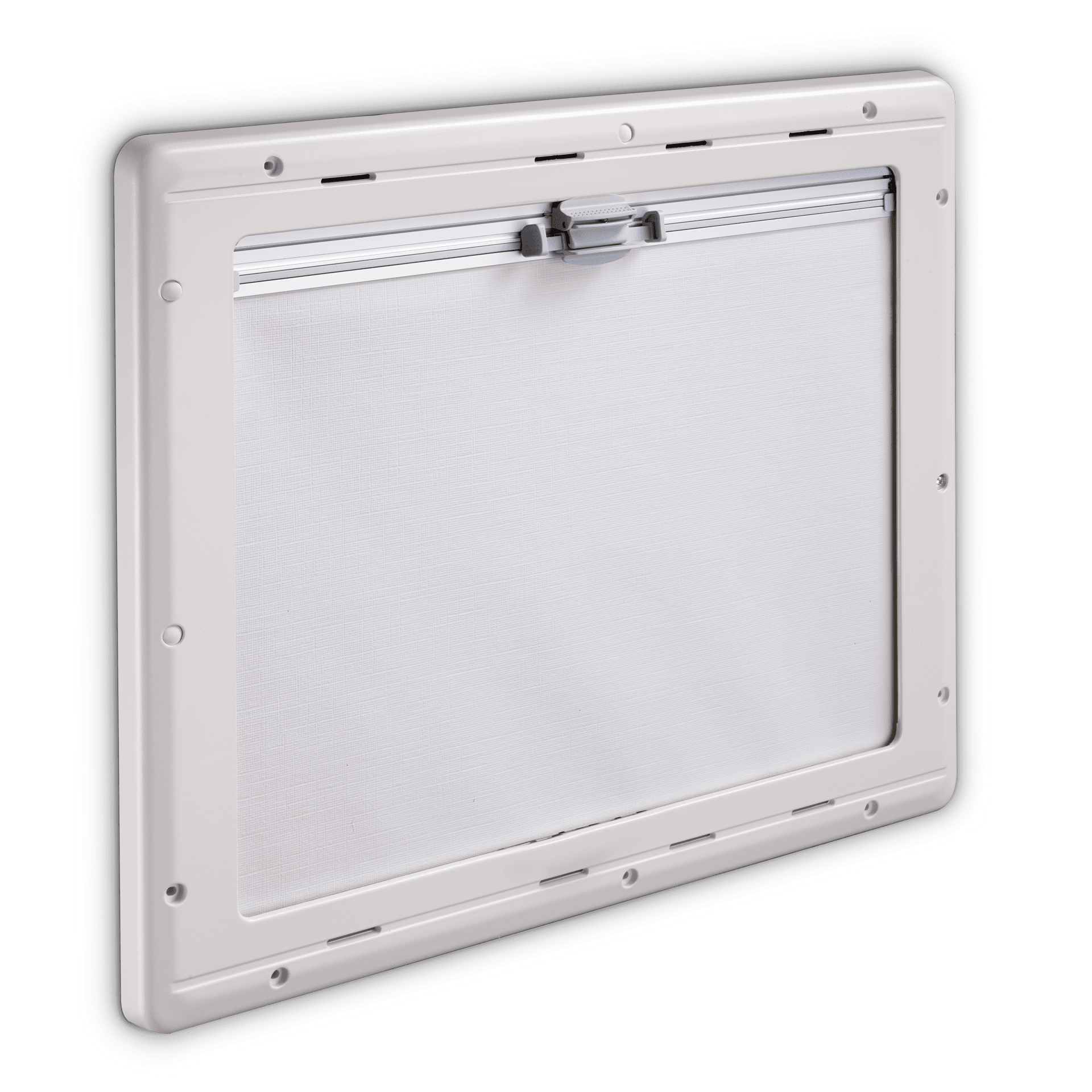

Dometic S4

Spezifikationen

Allgemein

Scope of delivery

S4S Top hung window with manual in box

SKUCertificates

ECE R43

Product Description

Ausstellfenster, 1000 x 450

Abmessungen

Dimensions product height, [mm]

481

Dimensions product width, [mm]

1048

Dimensions product width, ["] - Display

41 4/16

Dimensions ordered height, [mm]

450

Dimensions ordered width, [mm]

1000

Net weight, [kg]

8.60

Net weight, [lbs]

18.96

Standard mount. material thickness 1 min, [mm]

26

Standard mount. material thickness 1 max, [mm]

26

Possible material thickness 1 min, [mm]

27

Possible material thickness 1 max, [mm]

41

Cut out height, [mm]

448.000000

Cut out width, [mm]

1002.000000

Eigenschaften

Hinge type

Aufklappscharnier

Positions variable

Variable

Logistik

Dimensions parcel depth, [mm]

560

Dimensions parcel height, [mm]

185

Dimensions parcel width, [mm]

1120

Parcel weight, [kg]

11.79

Parcel weight, [lbs]

26
