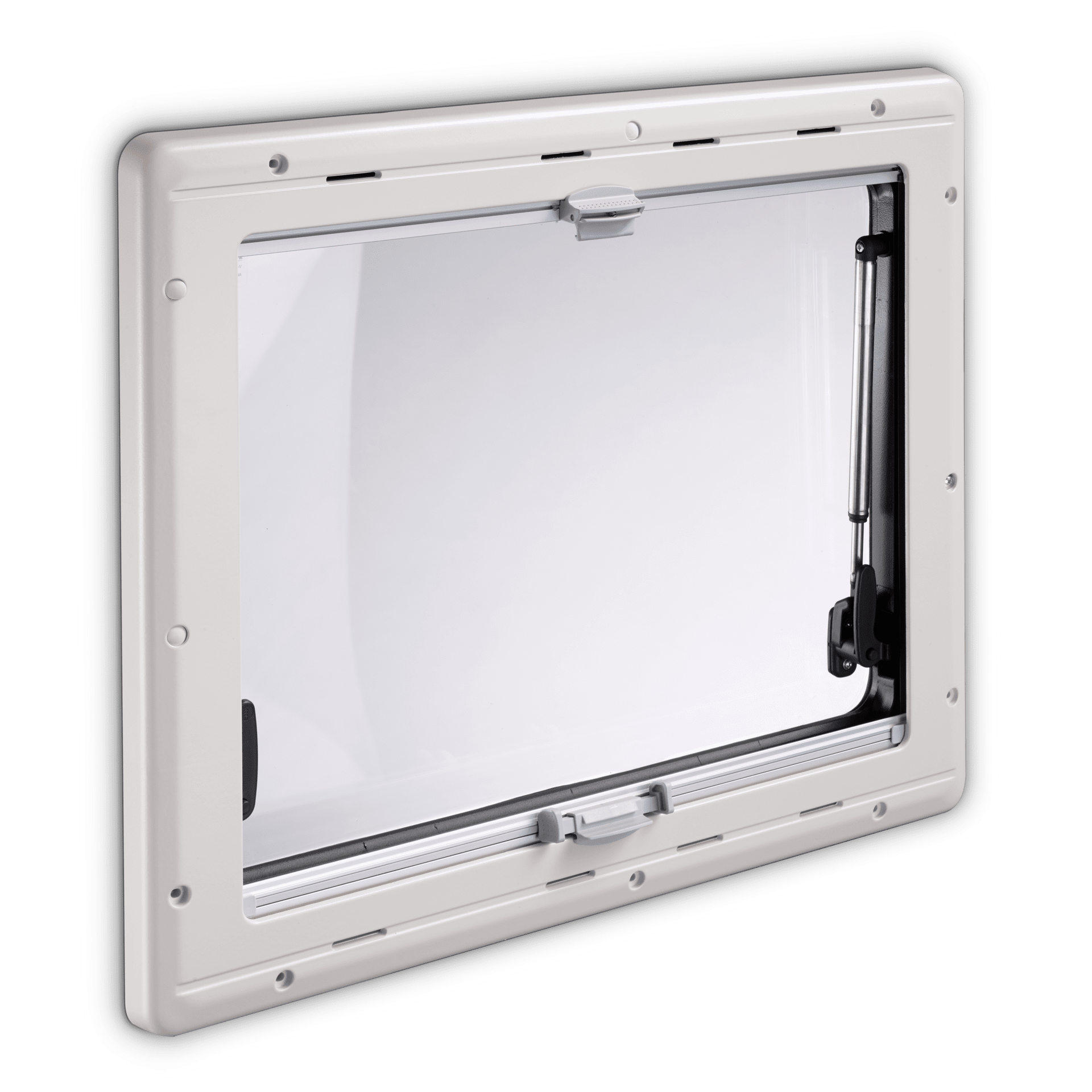

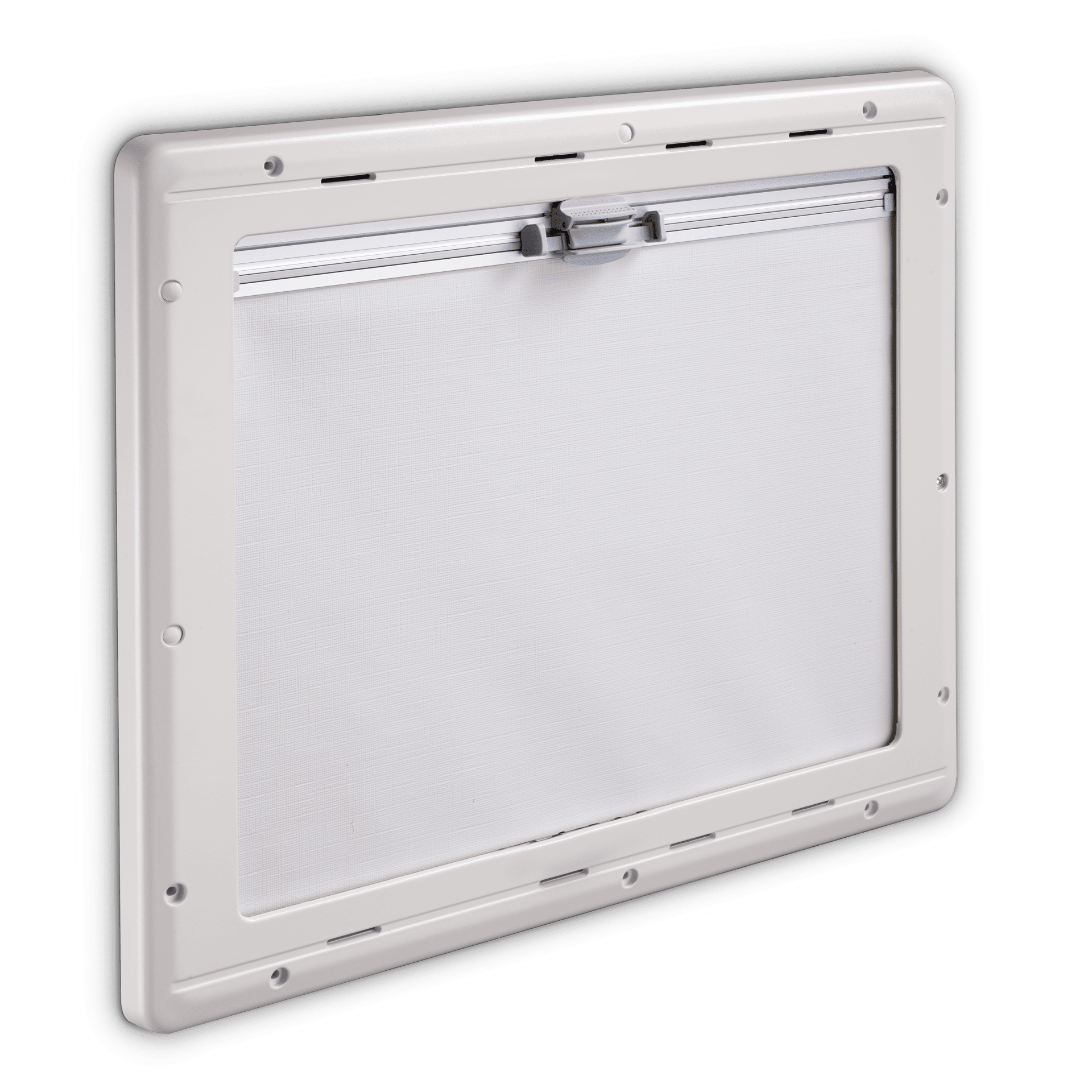

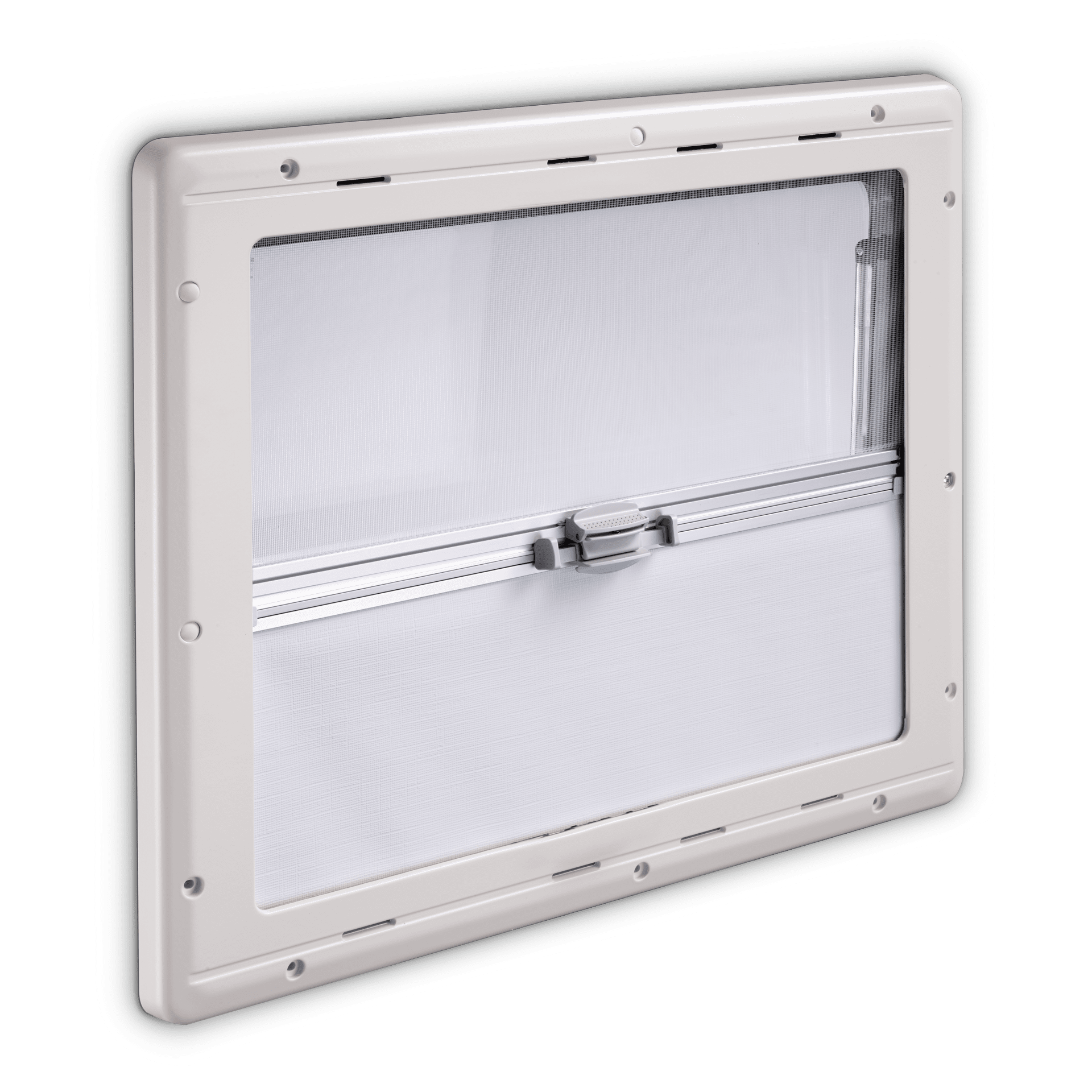

Dometic S4

Spezifikationen

Allgemein

Scope of delivery

S4S Top hung window with manual in box

SKUCertificates

ECE R43

Product Description

Ausstellfenster, 350 x 500

Abmessungen

Dimensions product height, [mm]

531

Dimensions product width, [mm]

393

Dimensions product width, ["] - Display

15 7/16

Dimensions ordered height, [mm]

500

Dimensions ordered width, [mm]

350

Net weight, [kg]

4.20

Net weight, [lbs]

9.26

Standard mount. material thickness 1 min, [mm]

26

Standard mount. material thickness 1 max, [mm]

26

Possible material thickness 1 min, [mm]

27

Possible material thickness 1 max, [mm]

41

Cut out height, [mm]

498.000000

Cut out width, [mm]

343.000000

Eigenschaften

Hinge type

Aufklappscharnier

Positions variable

Variable

Logistik

Dimensions parcel depth, [mm]

460

Dimensions parcel height, [mm]

185

Dimensions parcel width, [mm]

610

Parcel weight, [kg]

4.96

Parcel weight, [lbs]

10.94
