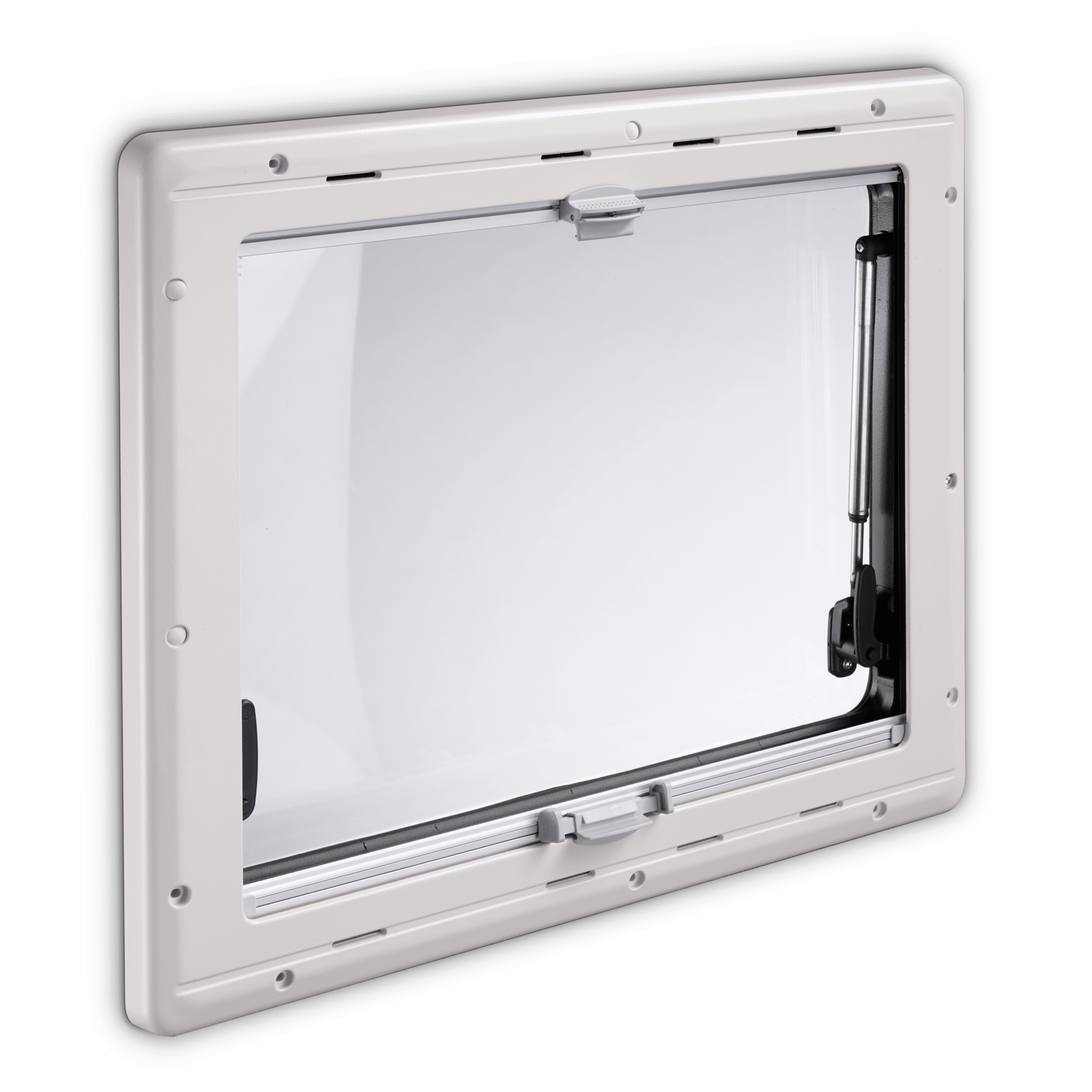

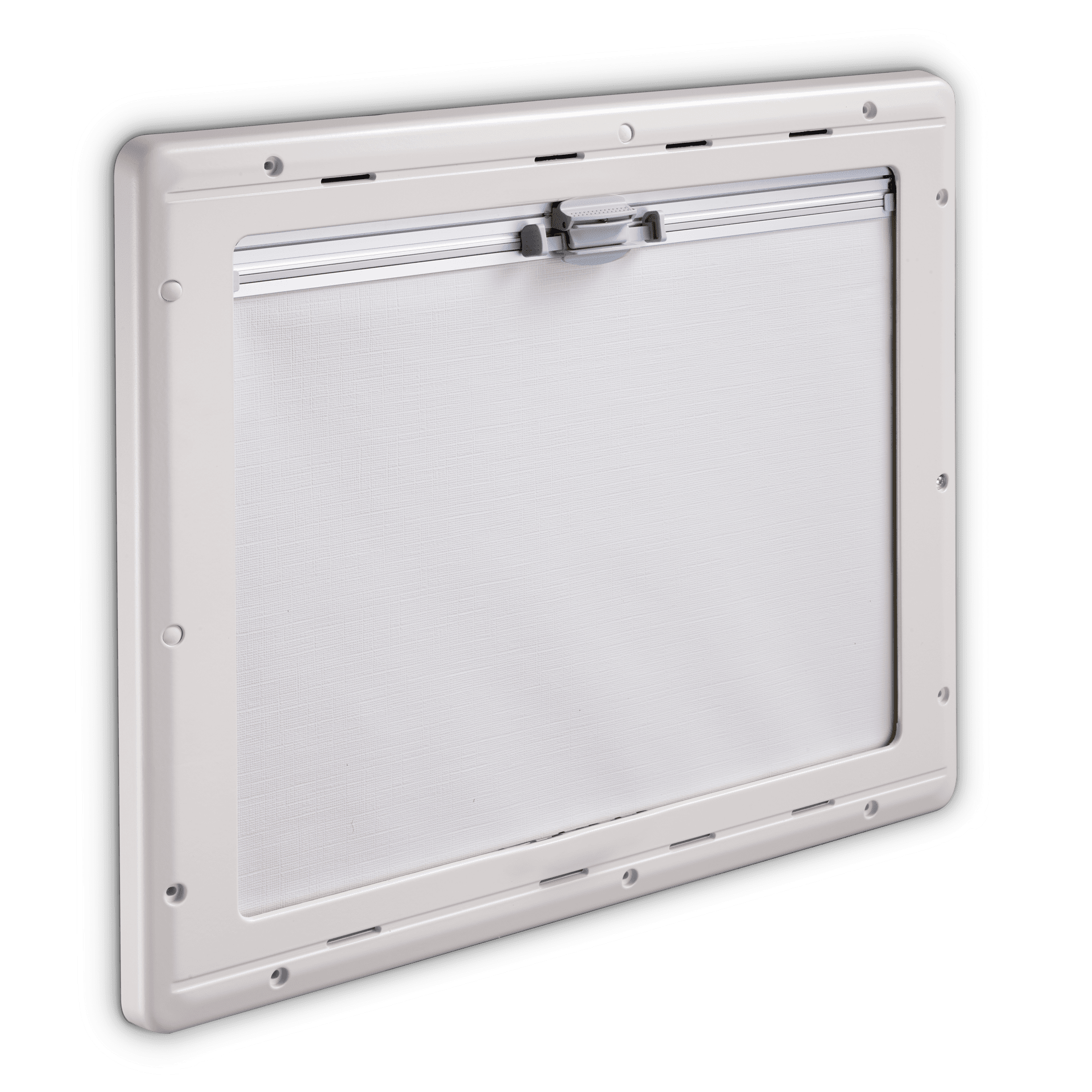

Dometic S4

Spezifikationen

Allgemein

Scope of delivery

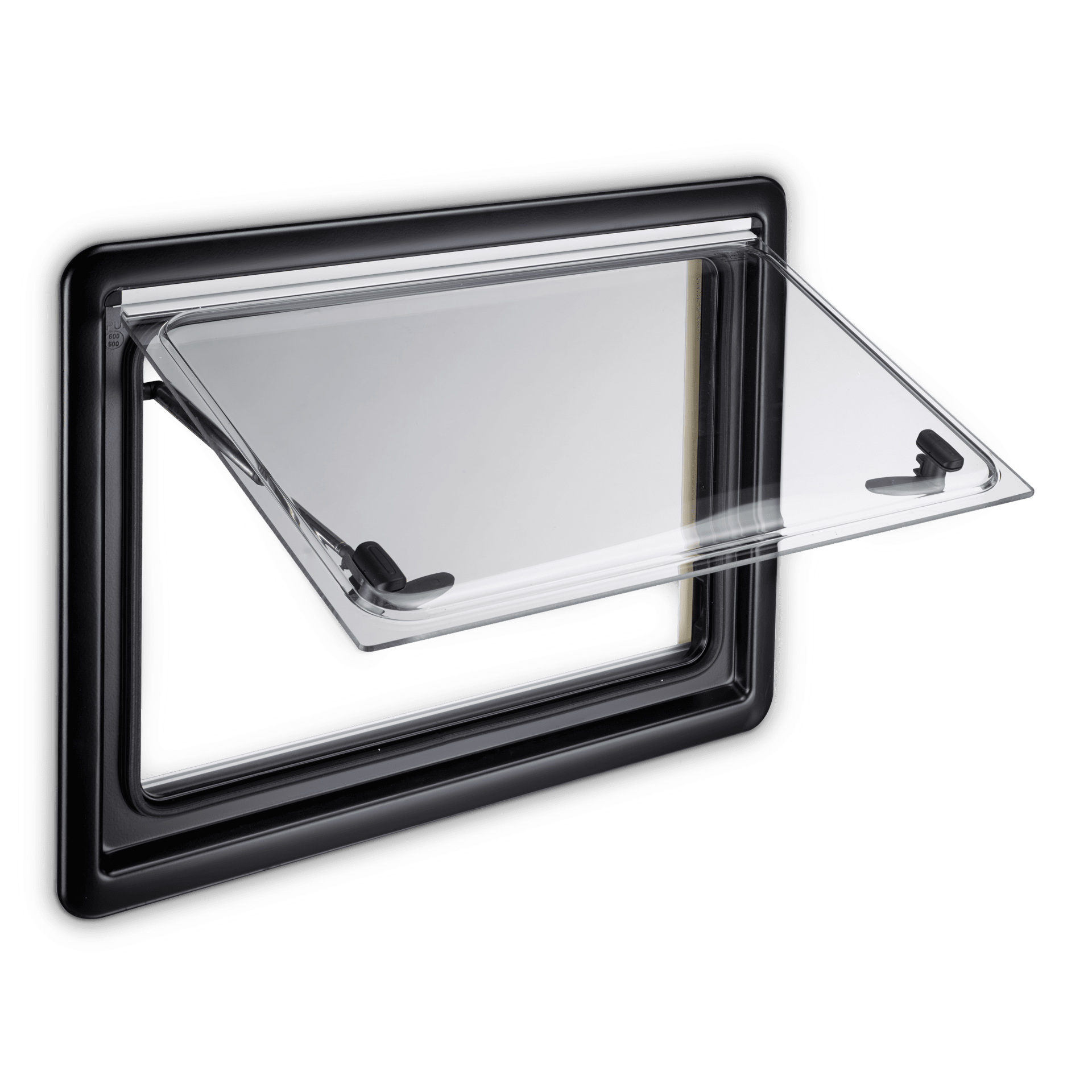

S4S Top hung window with manual in box

SKUCertificates

ECE R43

Product Description

Ausstellfenster, 1450 x 600

Abmessungen

Dimensions product height, [mm]

631

Dimensions product width, [mm]

1500

Dimensions product width, ["] - Display

59

Dimensions ordered height, [mm]

600

Dimensions ordered width, [mm]

1450

Net weight, [kg]

14.90

Net weight, [lbs]

32.85

Standard mount. material thickness 1 min, [mm]

26

Standard mount. material thickness 1 max, [mm]

26

Possible material thickness 1 min, [mm]

27

Possible material thickness 1 max, [mm]

41

Cut out height, [mm]

599.000000

Cut out width, [mm]

1454.000000

Eigenschaften

Hinge type

Aufklappscharnier

Positions variable

Variable

Logistik

Dimensions parcel depth, [mm]

720

Dimensions parcel height, [mm]

185

Dimensions parcel width, [mm]

1560

Parcel weight, [kg]

17.20

Parcel weight, [lbs]

37.93
