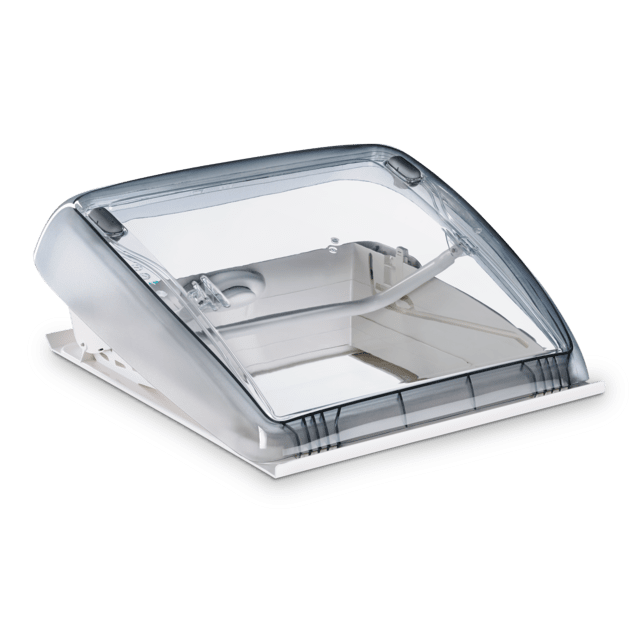

Dometic Mini Heki Plus

Roof light
Available at selected dealersArt nr: 9104119638

This sturdy, compact roof light can be opened to three different positions, allowing use even in bad weather! Includes optional forced ventilation for plenty of fresh air and separately adjustable fly and darkening screens to keep out unwanted sunlight and insects.

Using handles, it can be placed in three different positions: fully open, half-open, and bad weather

Separately adjustable darkening and fly screens keep light and insects out

Forced ventilation maximises intake of fresh air

400 x 400 mm

For roofs 43-60mm thick

Insulated dome with single acrylic glazing

SKU number

9104119638

Model

Mini Heki plus

Model on label

Mini Heki plus Art.1352

Scope of delivery

Rooflight

Product Description

Roof light

Dimensions product depth, [mm]

520

Dimensions product height, [mm]

520

Dimensions product width, [mm]

535

Dimensions ordered width, [mm]

400

Dimensions ordered height, [mm]

400

Net weight, [kg]

3,3

Dimensions opening width, [mm]

380

Dimensions opening height, [mm]

370

Standard mount. material thickness 1 min, [mm]

42

Standard mount. material thickness 1 max, [mm]

42

Possible material thickness 1 min, [mm]

25

Possible material thickness 1 max, [mm]

42

Ventilation opening, [cm<sup>2</sup>]

140

Cut out height, [mm]

400

Cut out width, [mm]

400

Opening angle max, [°]

50

Positions fixed

3

Certificates

ECE R43

EAN-13

0

Dometic Midi Heki B - Installation and Operating Manual EMEA16

Installation and Operating Manual

Download
