Dometic EBLE
16000
230
50/60
EBLE16-230V

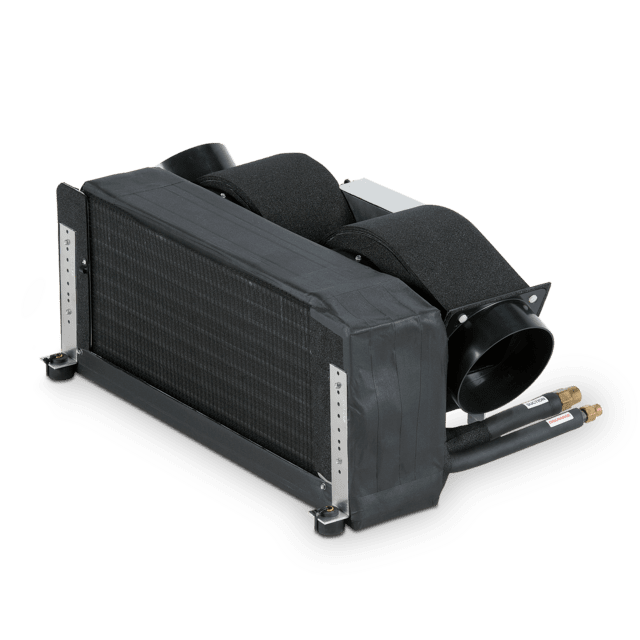

EBLE series low-profile evaporating units are ductable cooling/heating units. EBLE units are designed for installations where there is limited vertical space such as beneath a seat or bunk, or in overhead spaces. Ensure reliable onboard comfort.
Cools and heats for year-round comfort
Low-profile is ideal for height restricted installation
Rotatable blower allows air distribution exactly as you need it
Drain pan has anti-slosh, anti-fungal foam lining
Thermal expansion valve for optimal performance over a range of conditions
Available with electric heat (Dometic EBHLE models)
Designed to be used with Emerald series R410A condensers
SKU number
9108690429
Model
EVAPS EBLE Series
Model on label
215400416
Product Description
Evaporating Unit, 16,000BTU/H 230V
Dimensions product depth, [mm]
342.9
Dimensions product height, [mm]
287.02
Dimensions product width, [mm]
609.6
Net weight, [kg]
14.06
Input voltage (AC), [V]
230
Input frequency, [Hz]
50/60
Required AC circuit protection min, [A]
2
Required AC circuit protection max, [A]
5
Cooling capacity (ISO 5151), [W]
4689.14
Current consumption min cooling, [A]
1,44
Current consumption max cooling, [A]
1,44
EAN-13
7315091240086
Dimensions parcel depth, [mm]
759.46
Dimensions parcel height, [mm]
469.90
Dimensions parcel width, [mm]
457.20
Parcel weight, [kg]
17.75
Dometic (R410a) DEG, DEU, EBE, EBLE, DEUX, TVE (MVAC Split System "Emerald") - Installation and Operating Manual Marine INT24
Installation and Operating Manual
Download
