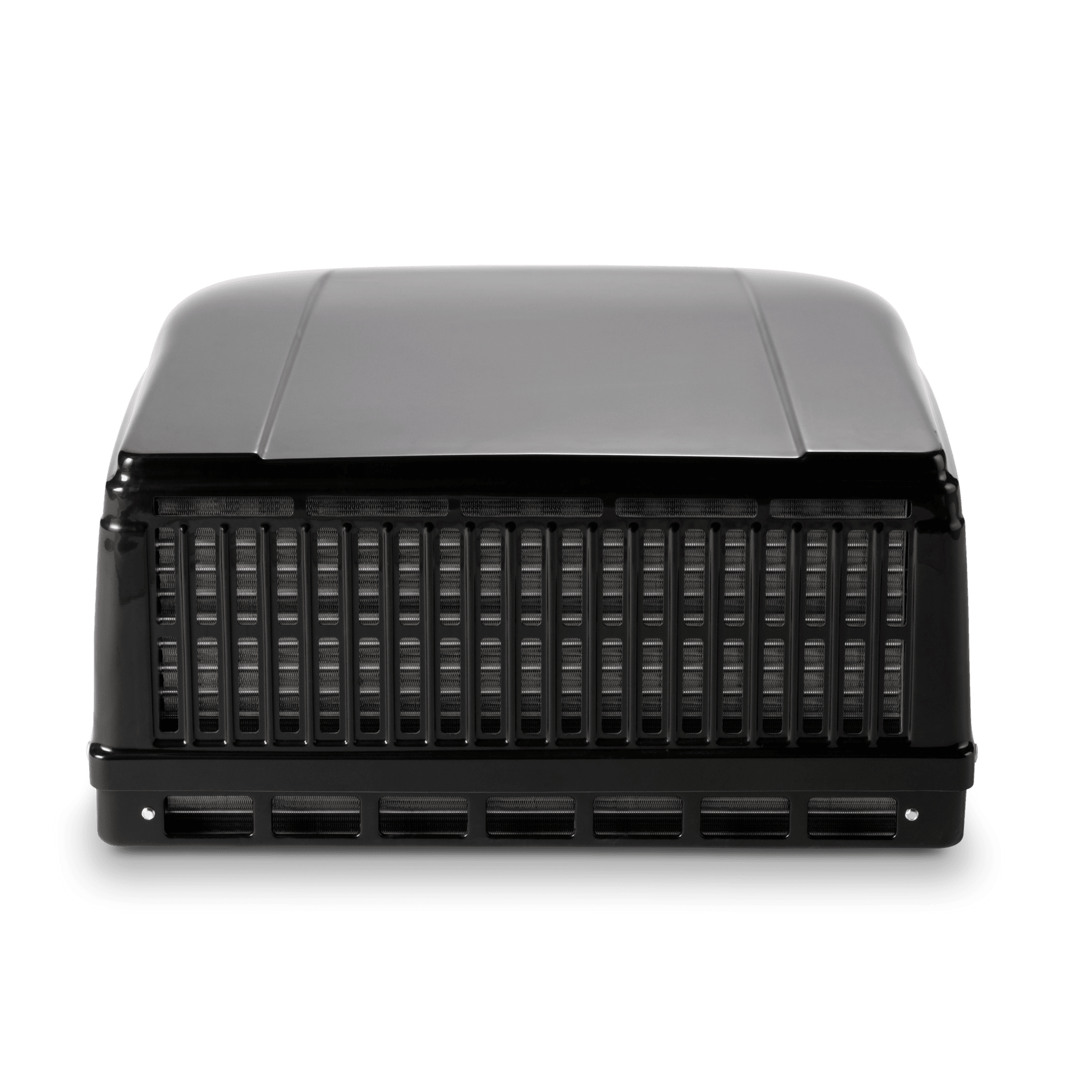

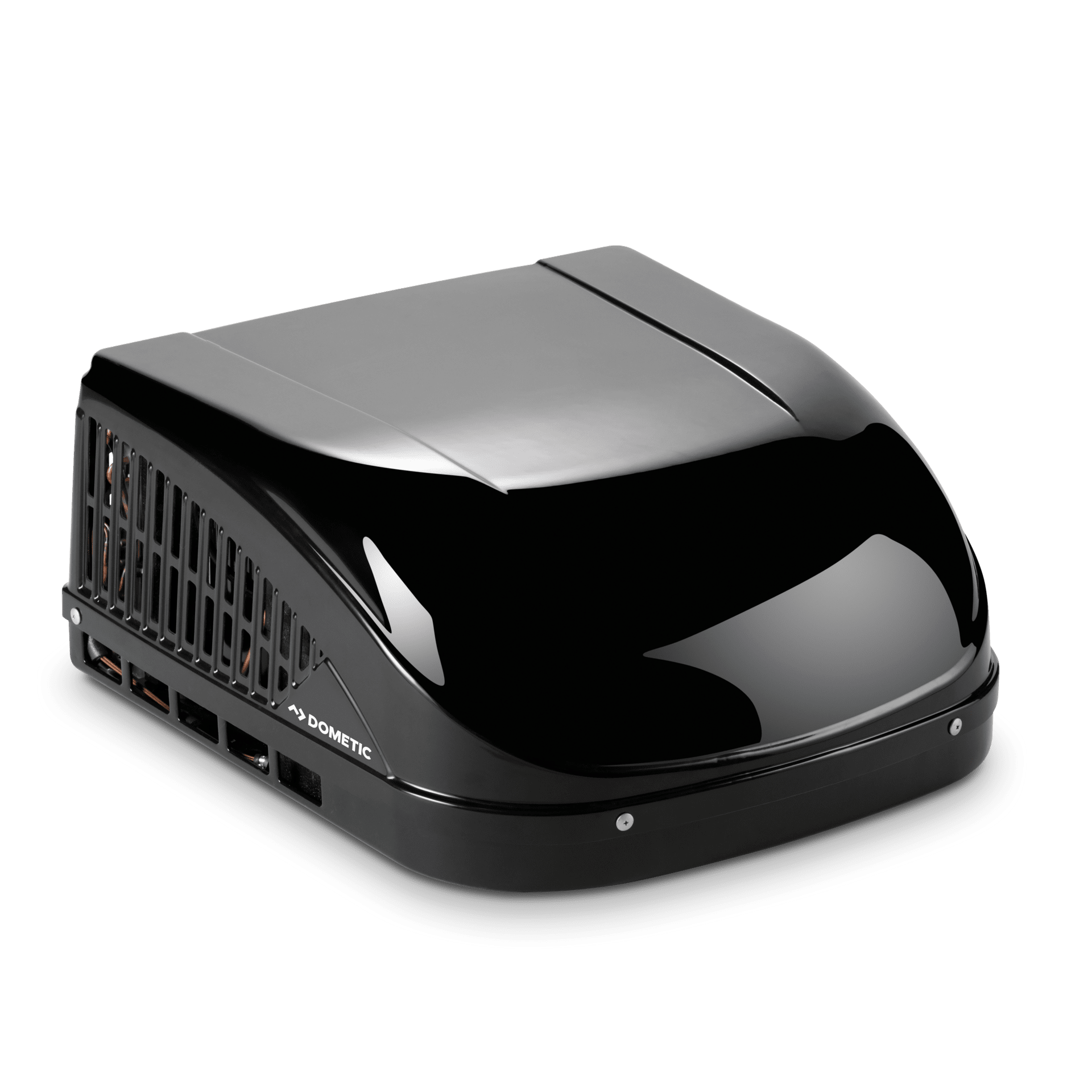

Dometic Brisk II - 13.5K BTU Air Conditioner - Black
13,500 BTU - Rooftop Standard Profile Air Conditioner - No Pre-installed controls - Non-Ducted application: air distribution box required - Ducted application: return air grille and control kit required - black
US$ 944.99
SKU: 9105304474
The Brisk II's smart design and improved materials combine to maximize air flow and performance. It is best-in-class of any standard RV rooftop air conditioner for weight, air flow and capacity. Tested for use in extreme conditions.
[]
High-performance design
[]
Lighter weight
[]
Lasting Design
[]

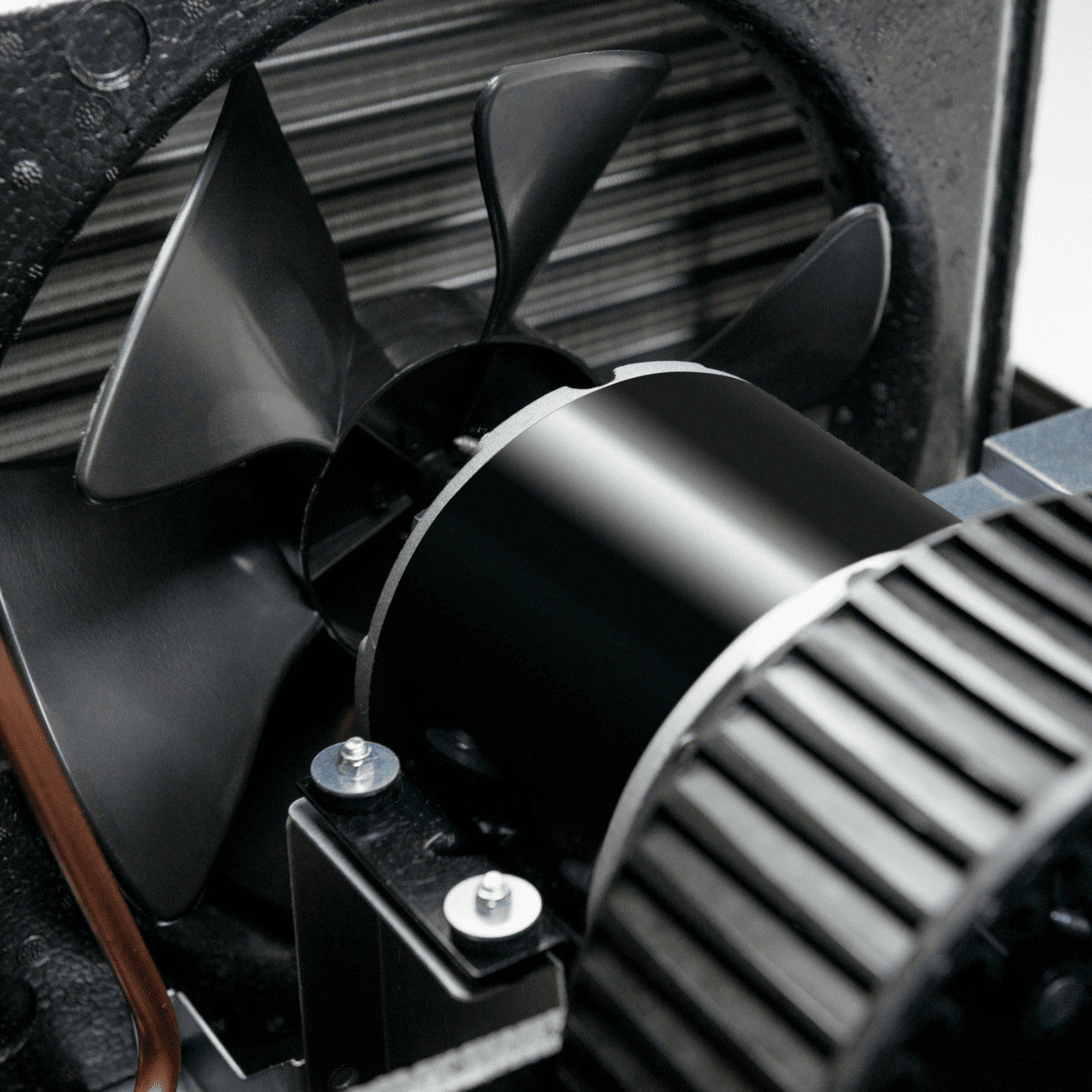

Quiet Operation
Technical Information
Technical Information
Color
Black
Brand
Dometic
Scope of delivery
1 Air conditioner, 1 Warranty card, 1 Registration card
EAN-13
0713814204761
Publication Model Name
Dometic Brisk II - 13.5K BTU Air Conditioner - Black
Product Description
13,500 BTU - Rooftop Standard Profile Air Conditioner - No Pre-installed controls - Non-Ducted application: air distribution box required - Ducted application: return air grille and control kit required - black
Dimensions product depth, [mm]
736.60
Dimensions product height, [mm]
381
Dimensions product width, [mm]
774.70
Net weight, [kg]
38.56
Net weight, [lbs]
85
Dimensions parcel depth, [mm]
736.6
Dimensions parcel height, [mm]
381
Dimensions parcel width, [mm]
774.7
Parcel weight, [kg]
38.56
Parcel weight, [lbs]
85
GWP
2088
CO2 equivalent, [t]
0,947
Model identifier
02 0206 020607 020607001
Thermostat control
Manual Thermostat
SKUCertificates
CSA
Hermetically Sealed
Yes
Refrigerant, type
R410A
Input voltage (AC), [V]
115
Input frequency, [Hz]
60
Required AC circuit protection min, [A]
20.000000
Required AC circuit protection max, [A]
20.000000
AirFlow, [m<sup>3</sup>h]
520.000000
Operating temperature min, [°C]
16.000000
Operating temperature max, [°C]
46.000000
Dimensions product width, ["] - Display
30 1/2
SKUSKUOptionalAccessories
9105305708
SKUSKURequiredAccessories
9105304487
Cooling Capacity Display
13500
Item Description
Roof Top Unit
Dimensions Product Width Metric Display
774.70
Marketing Product Description
13,500 BTU - Rooftop Standard Profile Air Conditioner - No Pre-installed controls - Non-Ducted application: air distribution box required - Ducted application: return air grille and control kit required - black
Dimensions Product Width Imperial Display
30 1/2
Legacy Item Number
B57915.XX1J0
Air Flow
520
Marketing Publication Model Name
Dometic Brisk II - 13.5K BTU Air Conditioner - Black
Net Weight Imperial Display
85
Technical Information
FAQ
Documentation & Downloads
Get the Highlights

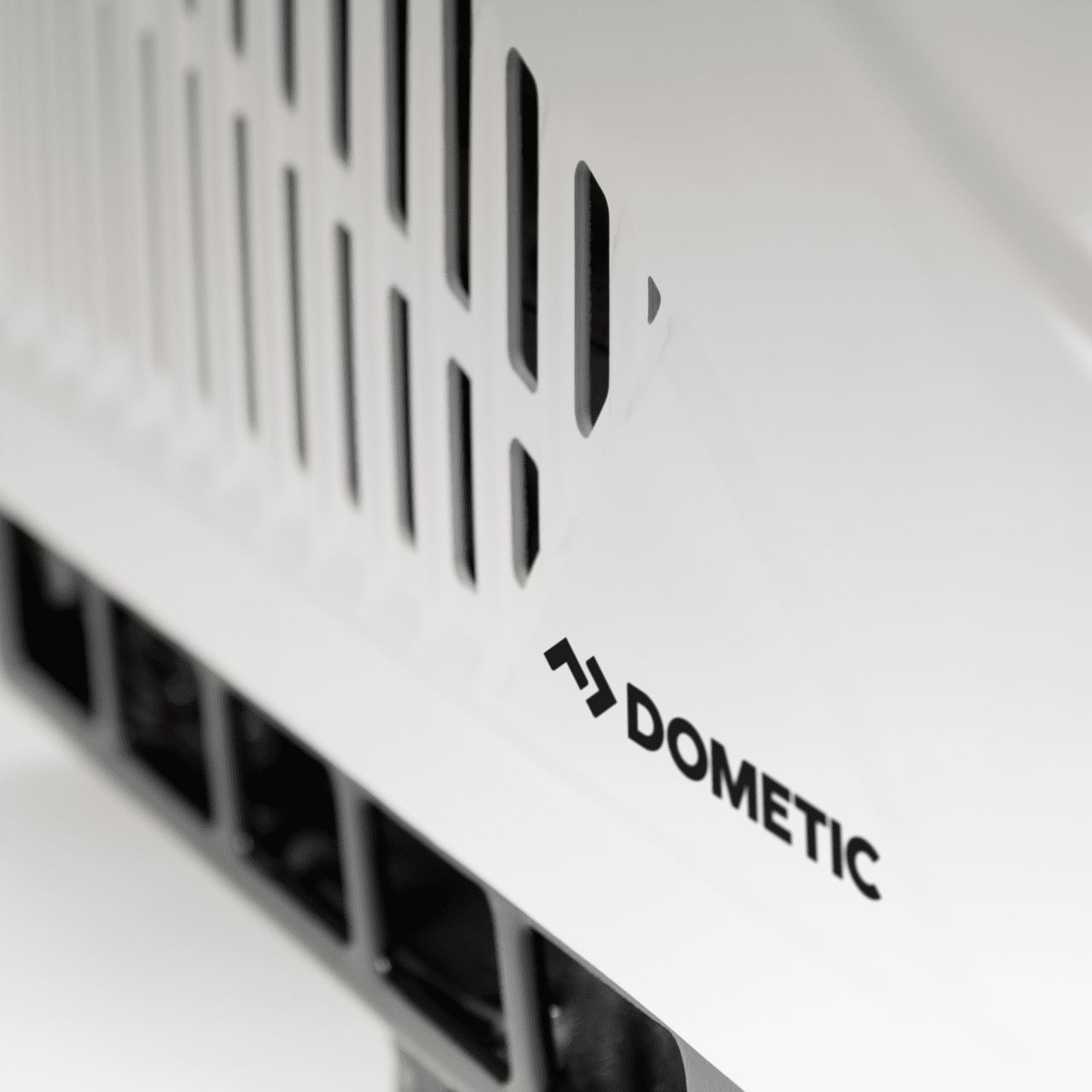

High-performance design
Larger air openings for improved air flow and cooling

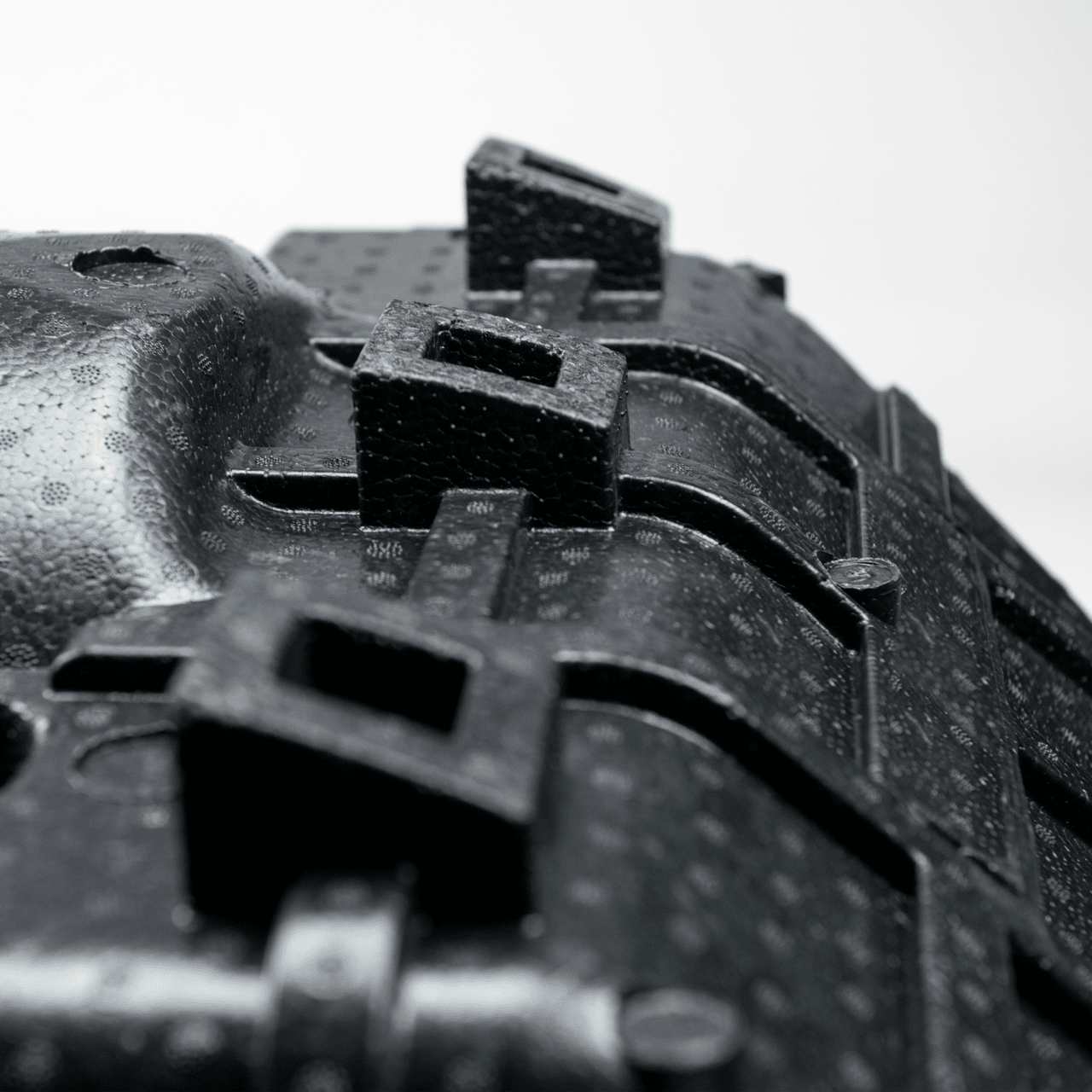

Lighter weight
EPP foam housing reduces weight and also improves cooling

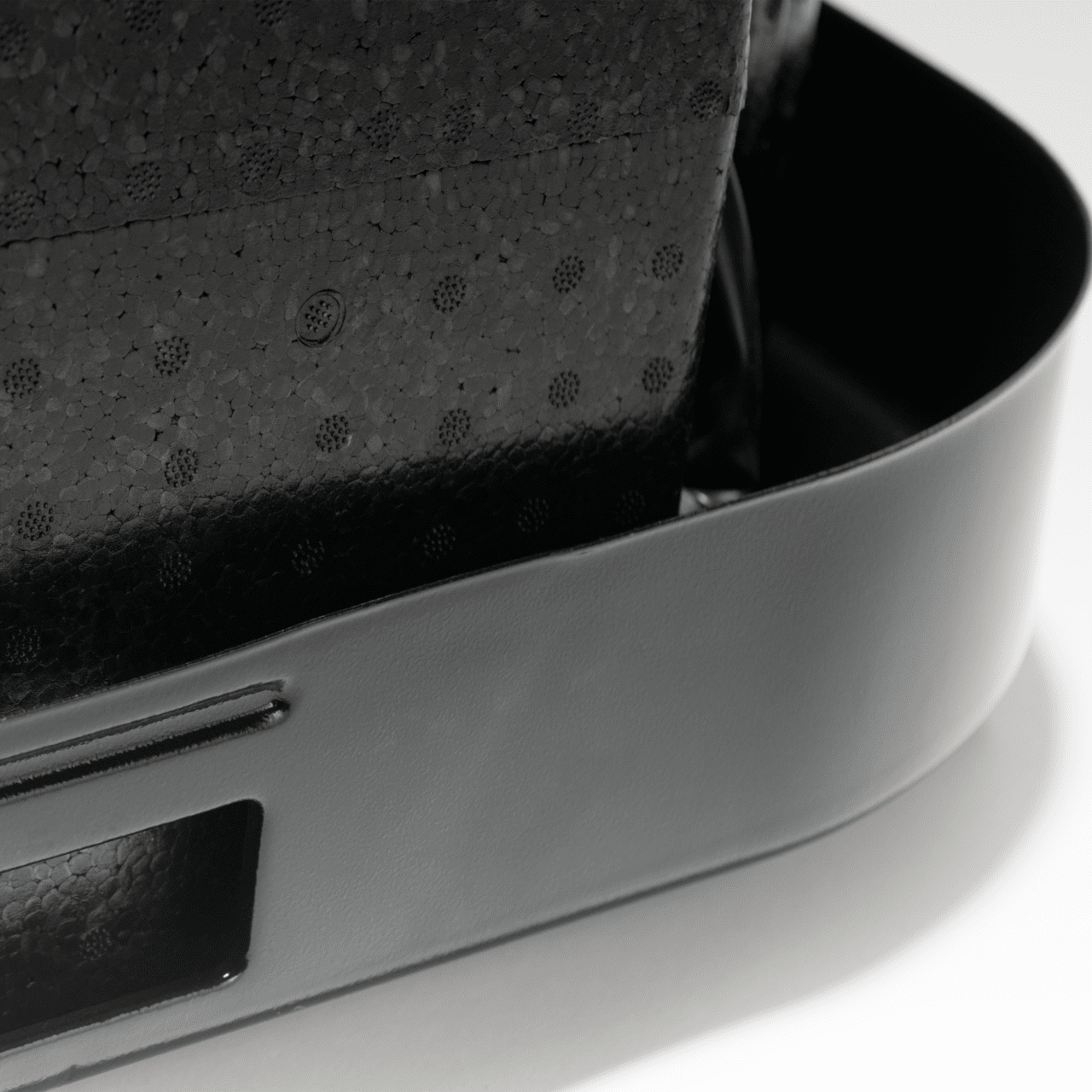

Lasting Design
Custom wrap-around shroud and carbon steel base add strength, protection and durability
