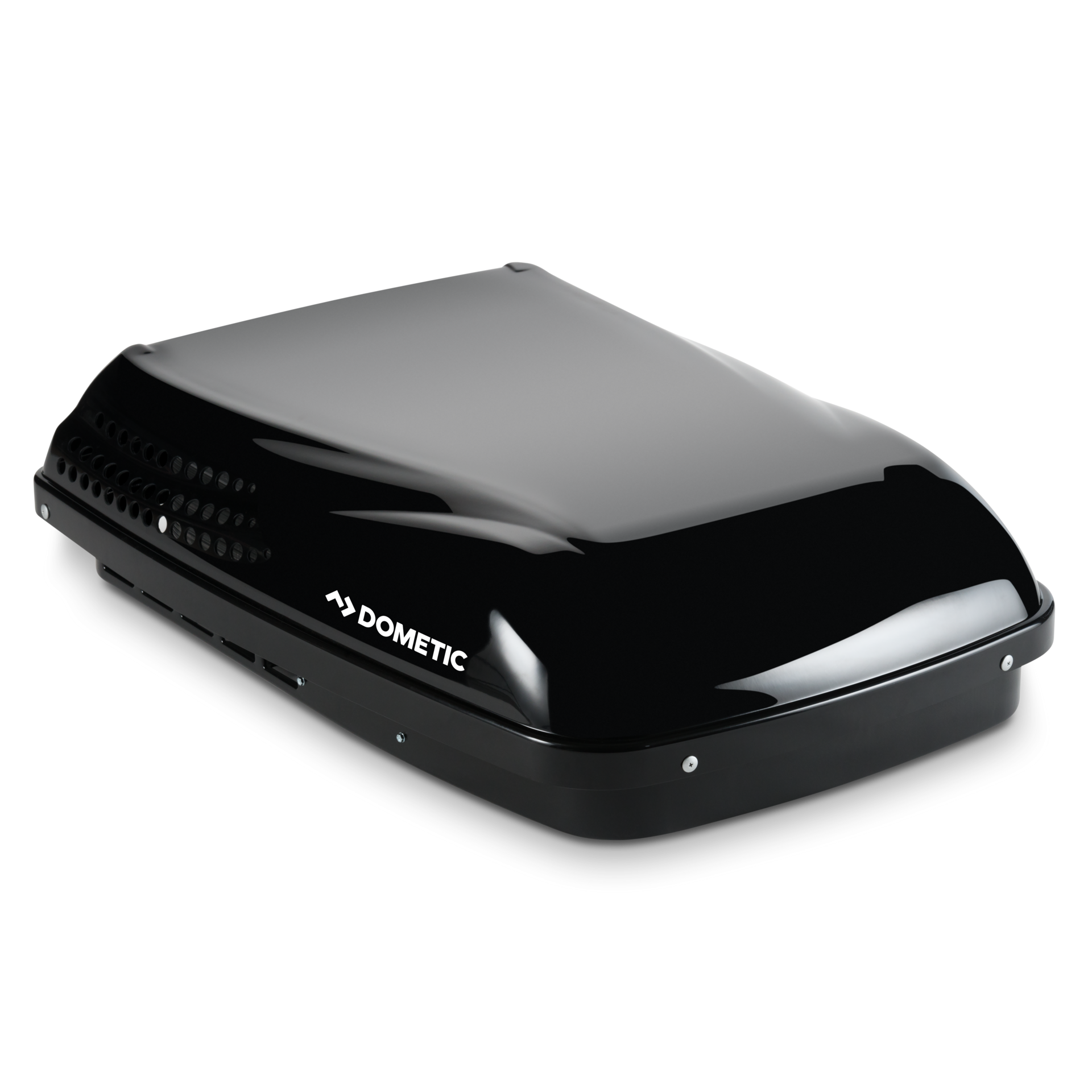

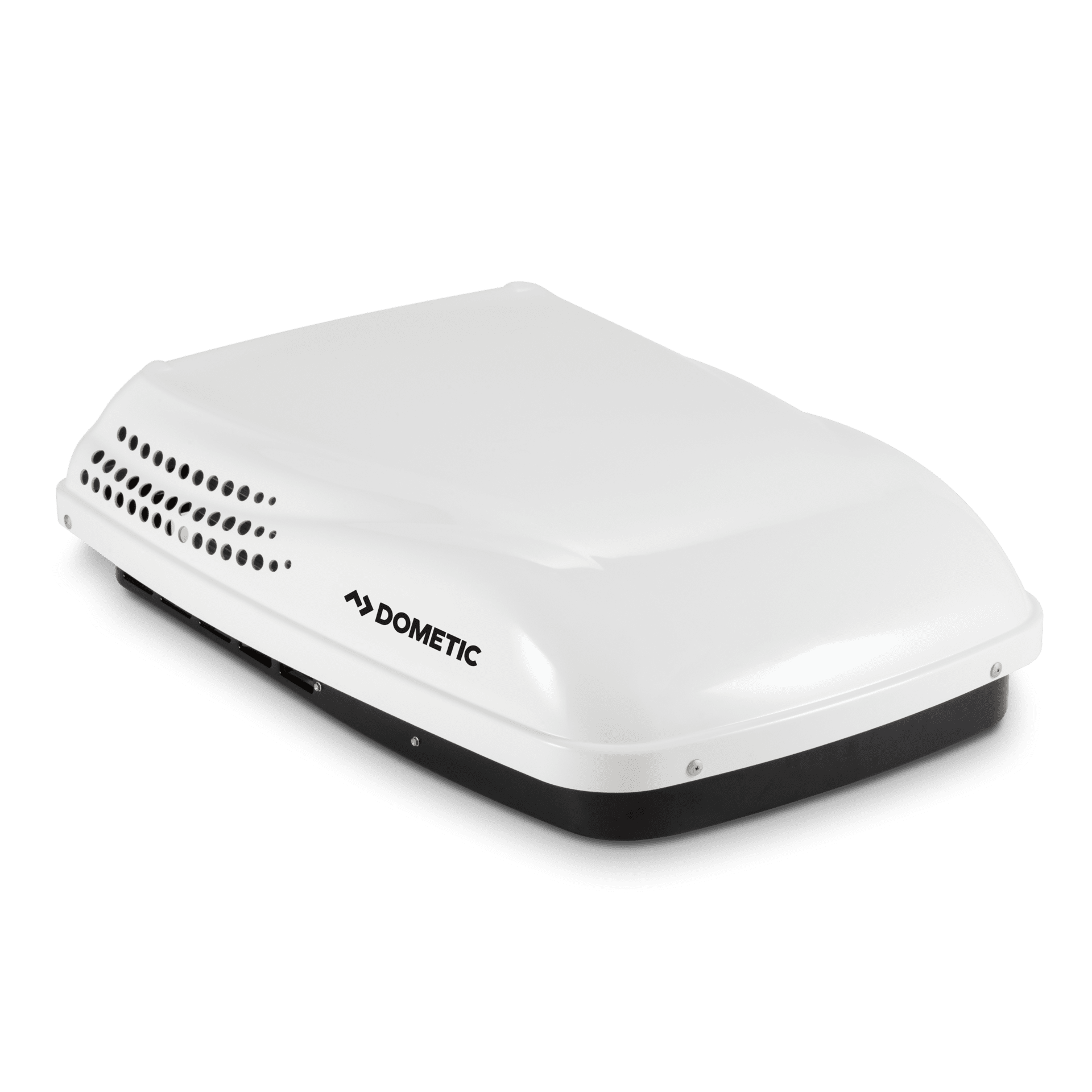

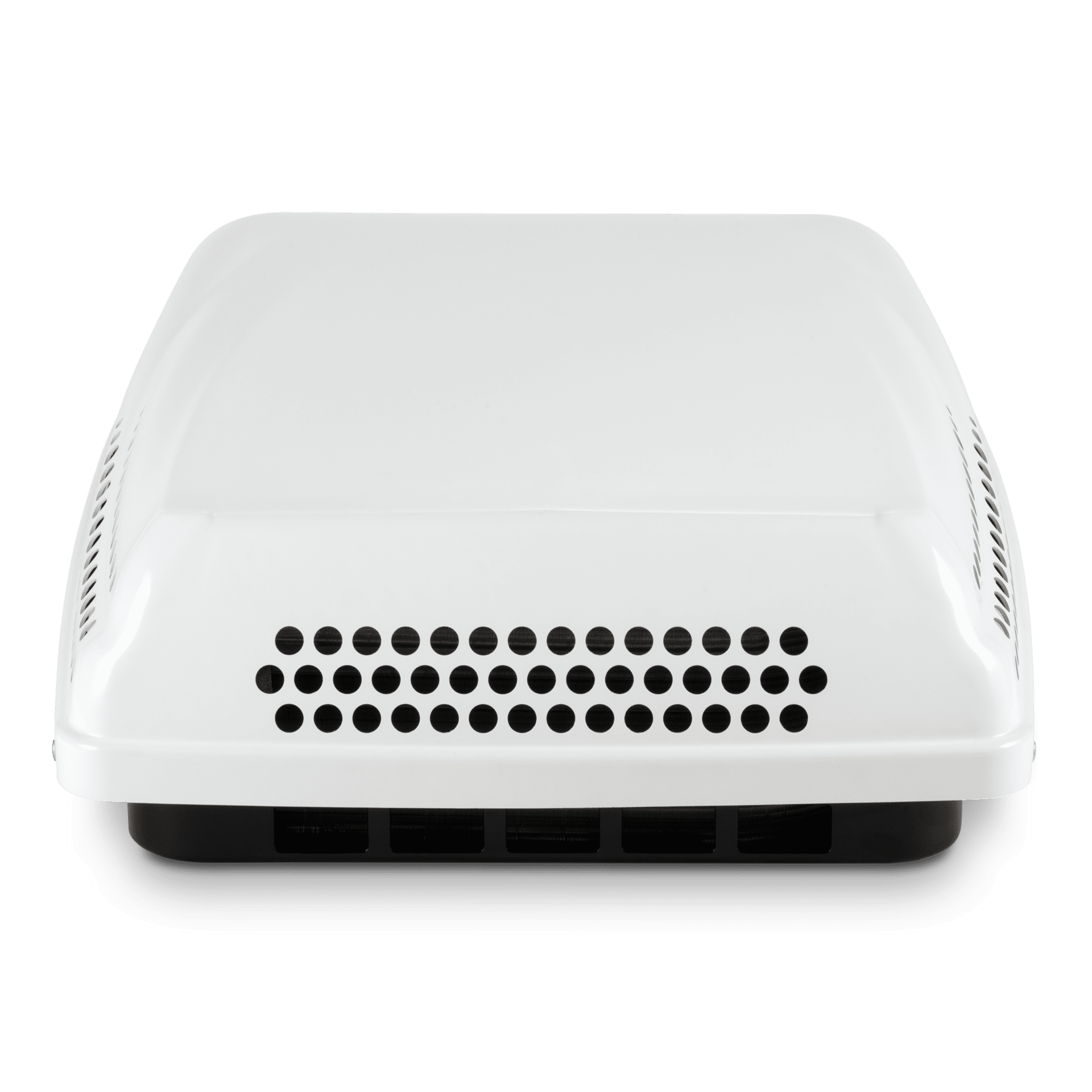

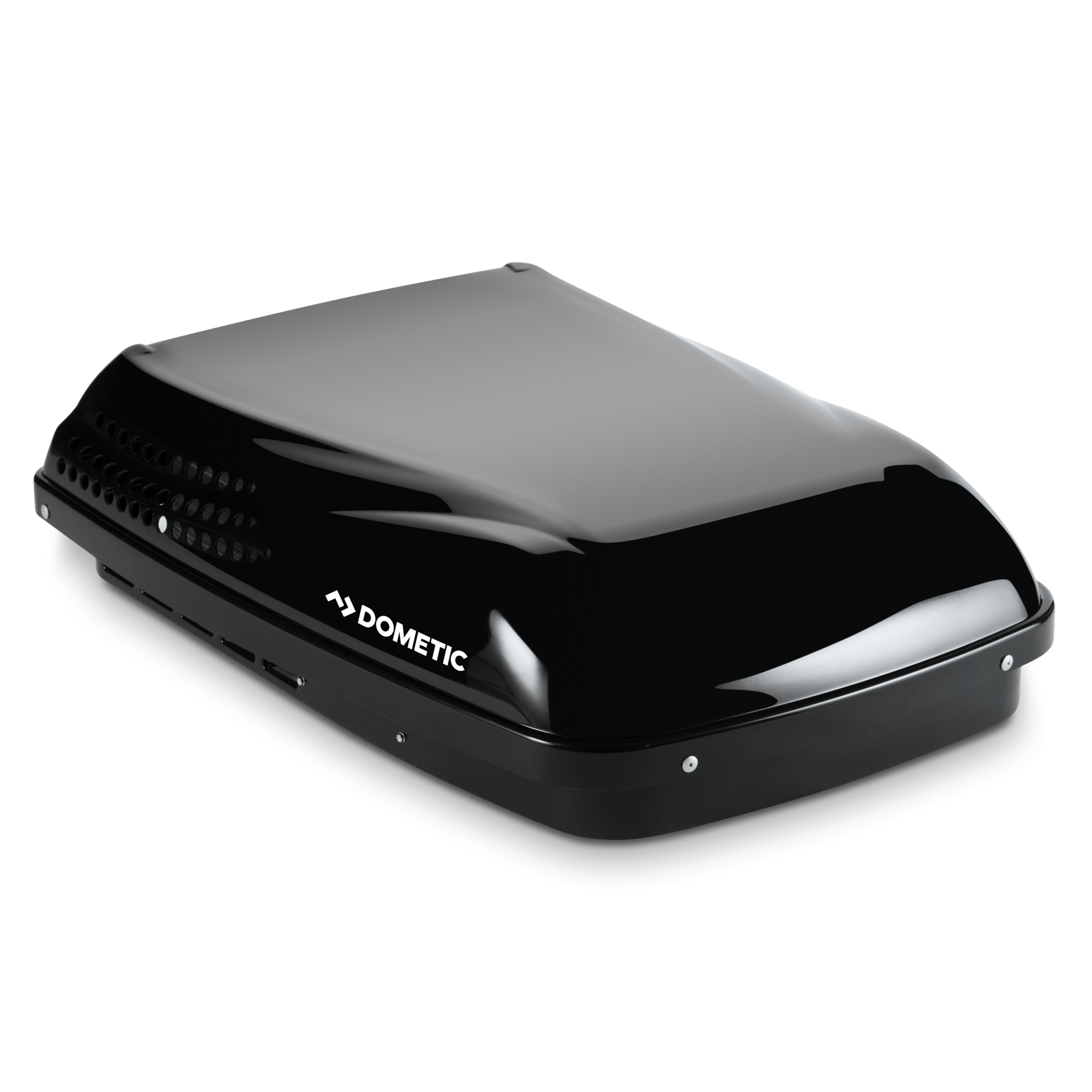

Dometic Penguin II 13.5K

Specifications

General

Scope of delivery

1 Air conditioner, 1 Warranty card

SKUCertificates

CSA

Product Description

13,500 BTU - Rooftop Low Profile Air Conditioner - No pre-installed controls - Non-Ducted application: air distribution box required - Ducted application: return air grille and control kit required - white

Dimensions

Dimensions product depth, [mm]

736.60

Dimensions product height, [mm]

285.75

Dimensions product width, [mm]

1028.70

Dimensions product width, ["] - Display

40 1/2

Net weight, [kg]

42

Net weight, [lbs]

92.61

Standard mount. material thickness 1 min, [mm]

25

Standard mount. material thickness 1 max, [mm]

150

Cut out depth, [mm]

360.000000

Cut out width, [mm]

360.000000

Electrical

Input voltage (AC), [V]

115

Input frequency, [Hz]

60

Performance

Hermetically Sealed

Yes

Refrigerant, type

R410A

GWP

2088

CO2 equivalent, [t]

0,886

AirFlow, [m³h]

253.000000

Operating temperature min, [°C]

16.000000

Operating temperature max, [°C]

52.000000

Properties

Thermostat control

Manual Thermostat

Logistics

Dimensions parcel depth, [mm]

755

Dimensions parcel height, [mm]

310

Dimensions parcel width, [mm]

1055

Parcel weight, [kg]

47.60

Parcel weight, [lbs]

104.96
