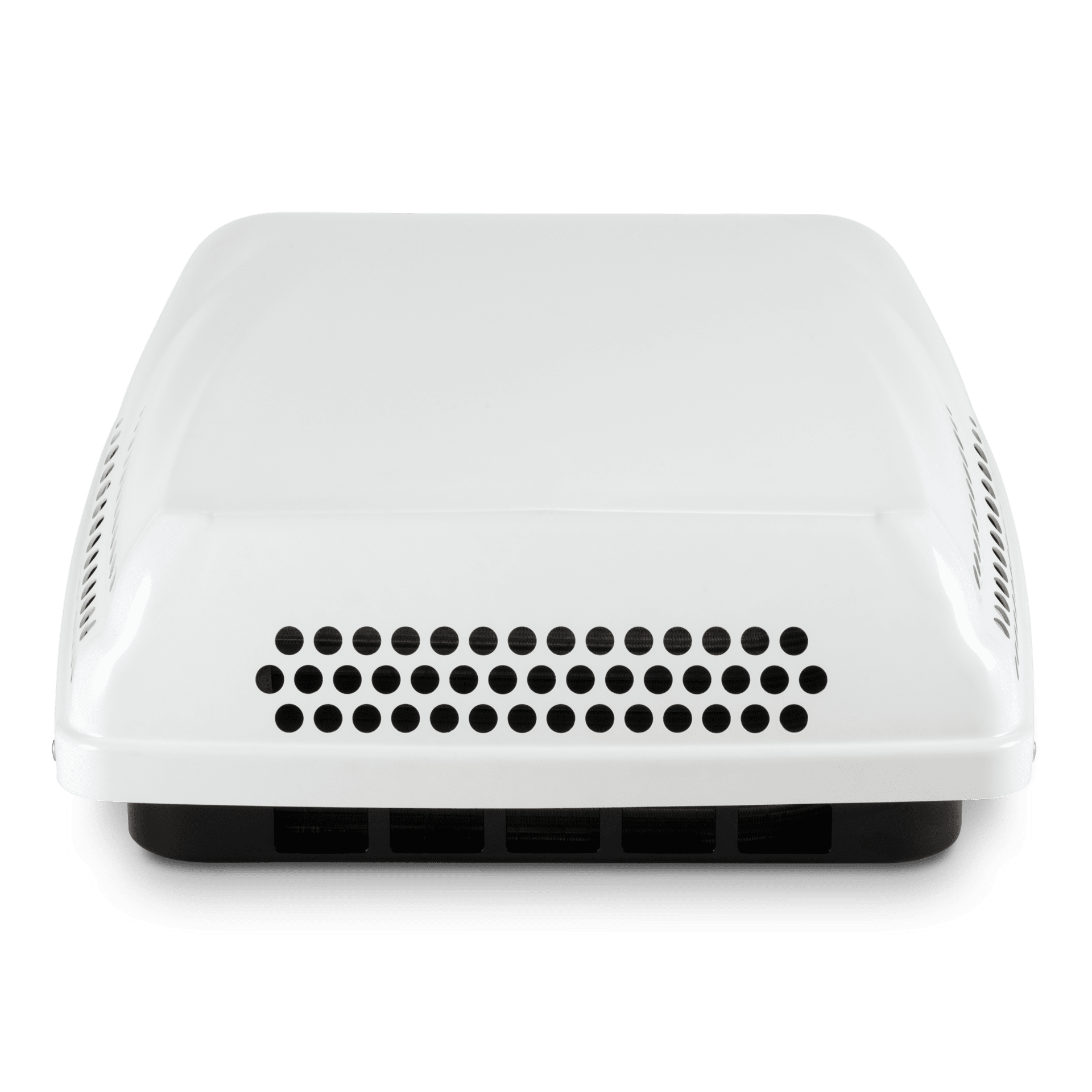

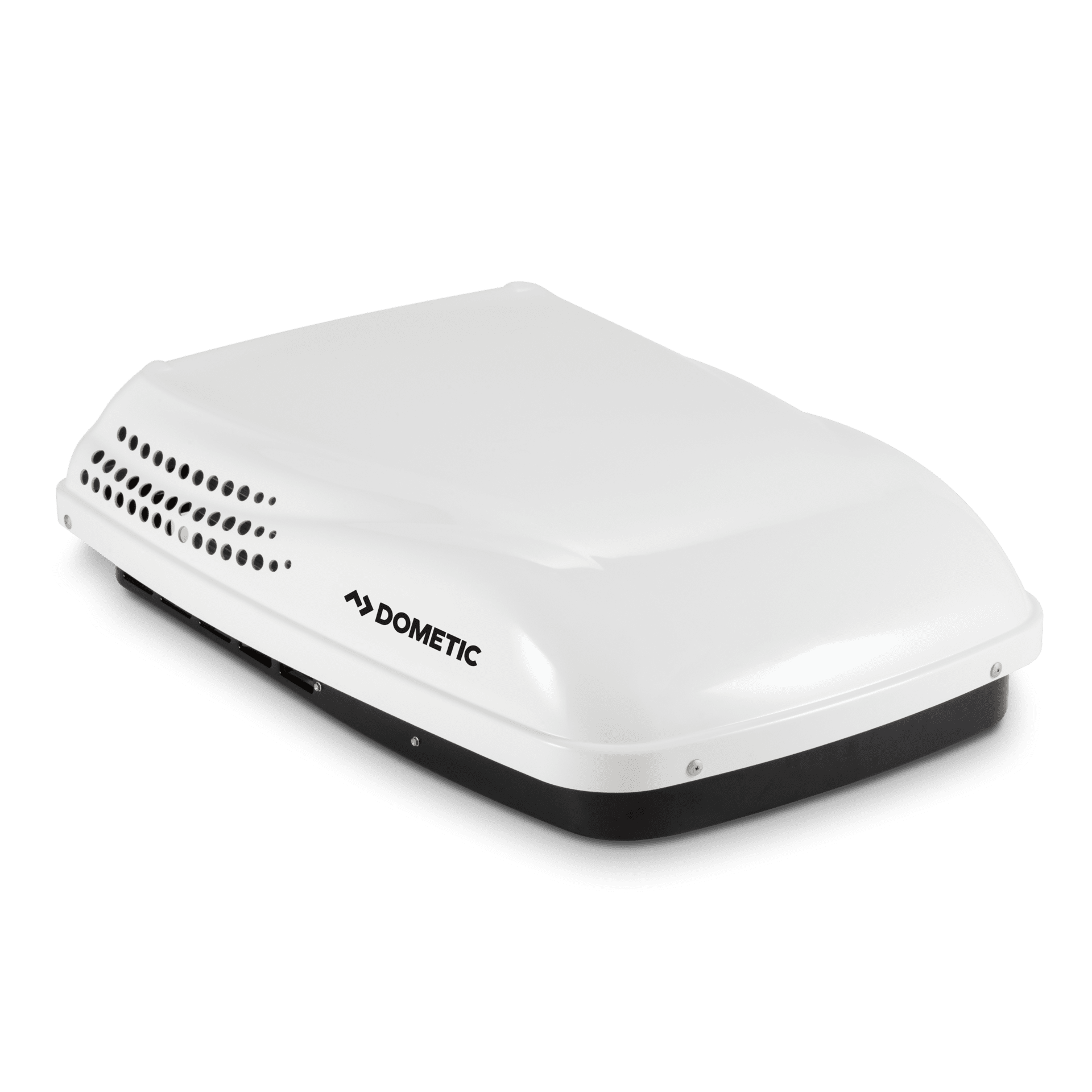

Dometic Penguin II - 13.5K BTU Air Conditioner - White
13,500 BTU - Rooftop Low Profile Air Conditioner - No pre-installed controls - Non-Ducted application: air distribution box required - Ducted application: return air grille and control kit required - white
US$ 1,325.99
SKU: 9105304179
This low-profile rooftop air conditioner with sleek, futuristic styling offers premium comfort control and improved aerodynamics. A high-performance motor and fan deliver superb cooling performance. The return air grill is sold separately.
Technical Information
Technical Information
Color
Black
Brand
Dometic
Scope of delivery
1 Air conditioner, 1 Warranty card
EAN-13
0713814200480
Publication Model Name
Dometic Penguin II - 13.5K BTU Air Conditioner - White
Product Description
13,500 BTU - Rooftop Low Profile Air Conditioner - No pre-installed controls - Non-Ducted application: air distribution box required - Ducted application: return air grille and control kit required - white
Dimensions product depth, [mm]
736.60
Dimensions product height, [mm]
285.75
Dimensions product width, [mm]
1028.70
Net weight, [kg]
42
Net weight, [lbs]
92.61
Dimensions parcel depth, [mm]
755
Dimensions parcel height, [mm]
310
Dimensions parcel width, [mm]
1055
Parcel weight, [kg]
47.60
Parcel weight, [lbs]
104.96
GWP
2088
CO2 equivalent, [t]
0,886
Model identifier
02 0206 020623 020623002
Thermostat control
Manual Thermostat
SKUCertificates
CSA
Standard mount. material thickness 1 min, [mm]
25
Standard mount. material thickness 1 max, [mm]
150
Hermetically Sealed
Yes
Refrigerant, type
R410A
Input voltage (AC), [V]
115
Input frequency, [Hz]
60
AirFlow, [m<sup>3</sup>h]
253.000000
Operating temperature min, [°C]
16.000000
Operating temperature max, [°C]
52.000000
Cut out depth, [mm]
360.000000
Cut out width, [mm]
360.000000
Dimensions product width, ["] - Display
40 1/2
SKUSKURequiredAccessories
9105304487
Cooling Capacity Display
13500
Item Description
Dometic,PENGUIN AC PW 410A
Dimensions Product Width Metric Display
1028.70
Pack Size
Yes
Marketing Product Description
13,500 BTU - Rooftop Low Profile Air Conditioner - No pre-installed controls - Non-Ducted application: air distribution box required - Ducted application: return air grille and control kit required - white
Dimensions Product Width Imperial Display
40 1/2
Legacy Item Number
640315CXX1C0
Air Flow
253
Marketing Publication Model Name
Dometic Penguin II - 13.5K BTU Air Conditioner - White
