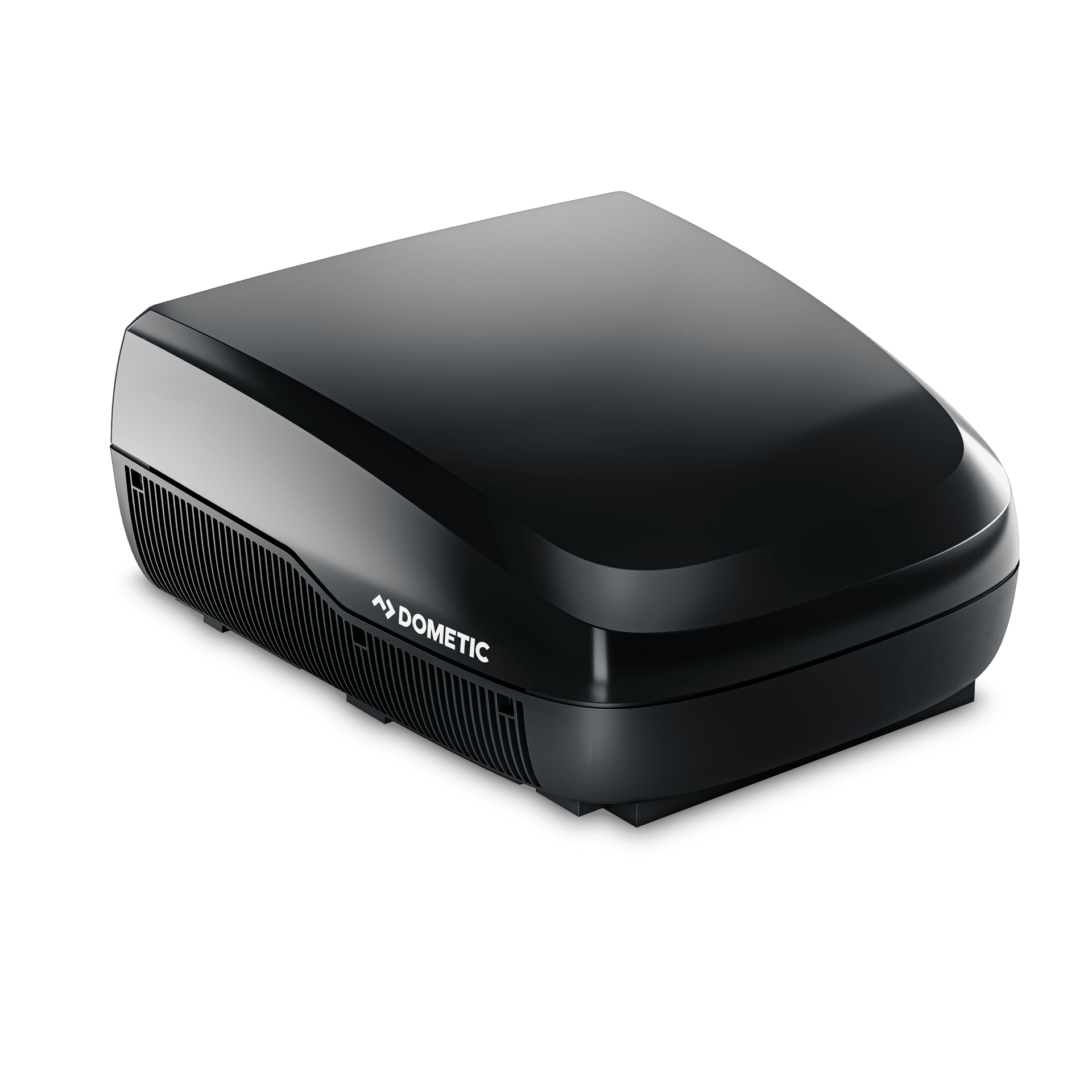

Dometic FreshJet 3 Series Mechanical 13.5K BTU Air Conditioner - Black

Technical Information

Colour

Black

Brand

Dometic

Model

FJX3473M

Scope of delivery

1 Air-conditioner, 1 warranty card

EAN-13

6951218422051

Publication Model Name

Dometic FreshJet 3 Series Mechanical 13.5K BTU Air Conditioner - Black

Product Description

13,500 BTU - Rooftop Standard Profile Air Conditioner - No Pre-installed controls - Non-Ducted application: air distribution box required - Ducted application: return air grille and control kit required (PACKAGE CANNOT BE SHIPPED VIA PARCEL) - Black

Dimensions product depth, [mm]

750

Dimensions product height, [mm]

355

Dimensions product width, [mm]

700

Net weight, [kg]

29.20

Net weight, [lbs]

64.37

Dimensions parcel depth, [mm]

820

Dimensions parcel height, [mm]

400

Dimensions parcel width, [mm]

760

Parcel weight, [kg]

34.20

Parcel weight, [lbs]

75.41

GWP

2088

CO2 equivalent, [t]

0.752

Thermostat control

Manual Thermostat

SKUCertificates

CSA

Standard mount. material thickness 1 min, [mm]

25

Standard mount. material thickness 1 max, [mm]

140

Hermetically Sealed

Yes

Refrigerant, type

R410A

Input voltage (AC), [V]

115

Input frequency, [Hz]

60

Required AC circuit protection min, [A]

23.000000

Required AC circuit protection max, [A]

38.600000

AirFlow, [m³h]

579.000000

Current consumption min cooling, [A]

15.450000

Current consumption max cooling, [A]

18.560000

Operating temperature min, [°C]

16.000000

Operating temperature max, [°C]

46.000000

Cut out depth, [mm]

360.000000

Cut out width, [mm]

360.000000

Dimensions product width, ["] - Display

27.56

SKUSKURequiredAccessories

9105304486

Item Description

Dometic, FJX Value Mech A/C 13.5K BLK
