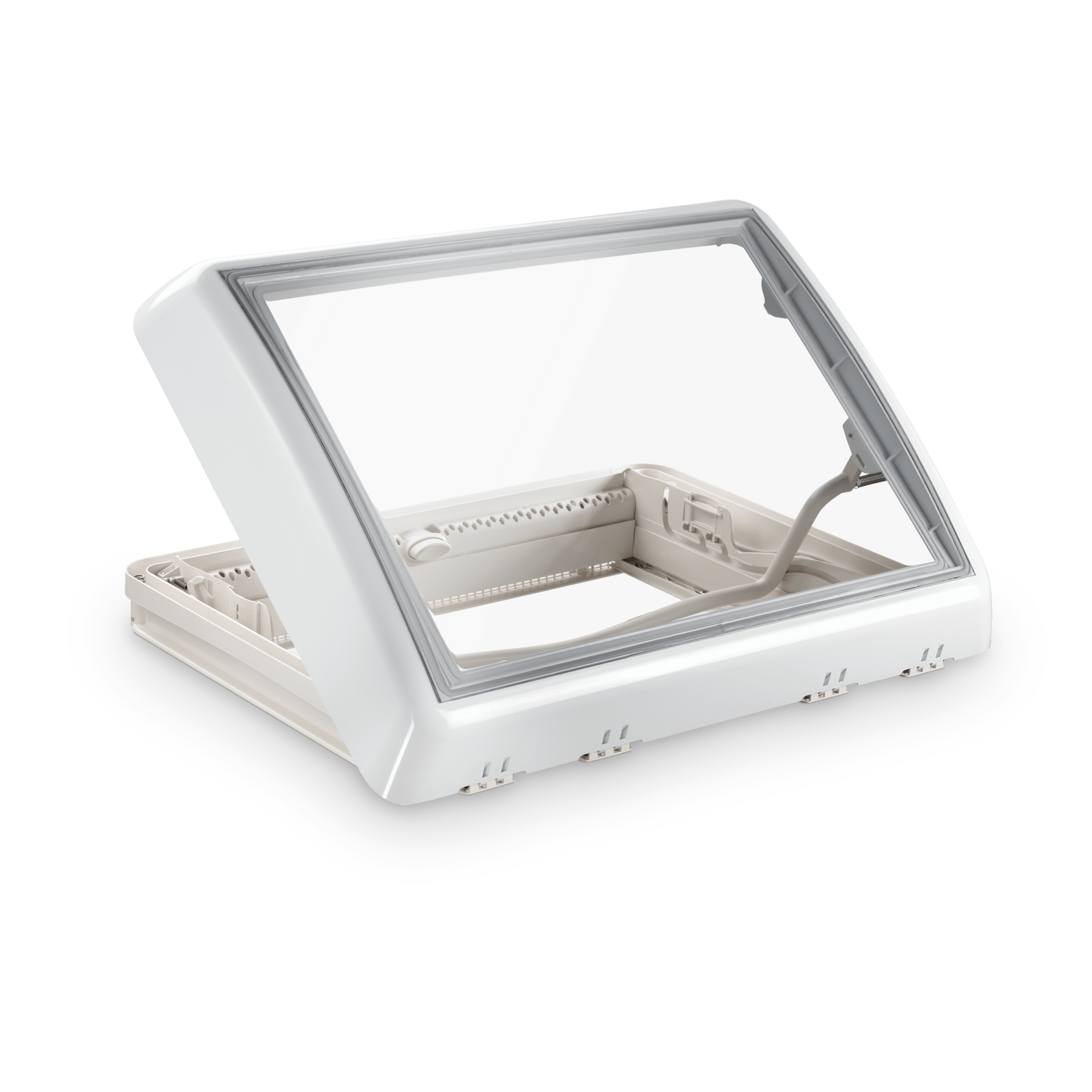

Dometic Midi Heki Manual Skylight Window 27.56" x 19.69" x 1.69"

Technical Information

Colour

Black

Brand

Dometic

Model

Midi Heki GD

Scope of delivery

Midi Heki GD Art.1492 lever model in box

EAN-13

7315091006330

Publication Model Name

Dometic Midi Heki Manual Skylight Window 27.56" x 19.69" x 1.69"

Product Description

Midi Heki Manual Skylight Window with Operator Bar. Glazing Dome with White Sides, Interior color Cream, Exterior color Cream, No Vent and Built in Blind and Flynet (27.56" x 19.69" x 1.69"-2.05") Mounting thickness of the walls are 43-52mm.

Dimensions product depth, [mm]

617

Dimensions product height, [mm]

617

Dimensions product width, [mm]

846

Net weight, [kg]

8

Net weight, [lbs]

17.64

Dimensions parcel depth, [mm]

700

Dimensions parcel height, [mm]

230

Dimensions parcel width, [mm]

910

Parcel weight, [kg]

10.80

Parcel weight, [lbs]

23.81

Opening angle max, [°]

45.000000

Positions fixed

3

SKUCertificates

ECE R43

Dimensions ordered height, [mm]

500

Dimensions ordered width, [mm]

700

Standard mount. material thickness 1 min, [mm]

43

Standard mount. material thickness 1 max, [mm]

52

Possible material thickness 1 min, [mm]

25

Possible material thickness 1 max, [mm]

42

Cut out height, [mm]

500.000000

Cut out width, [mm]

700.000000

Dimensions product width, ["] - Display

33.31

Item Description

Midi Heki GD Art.1492
