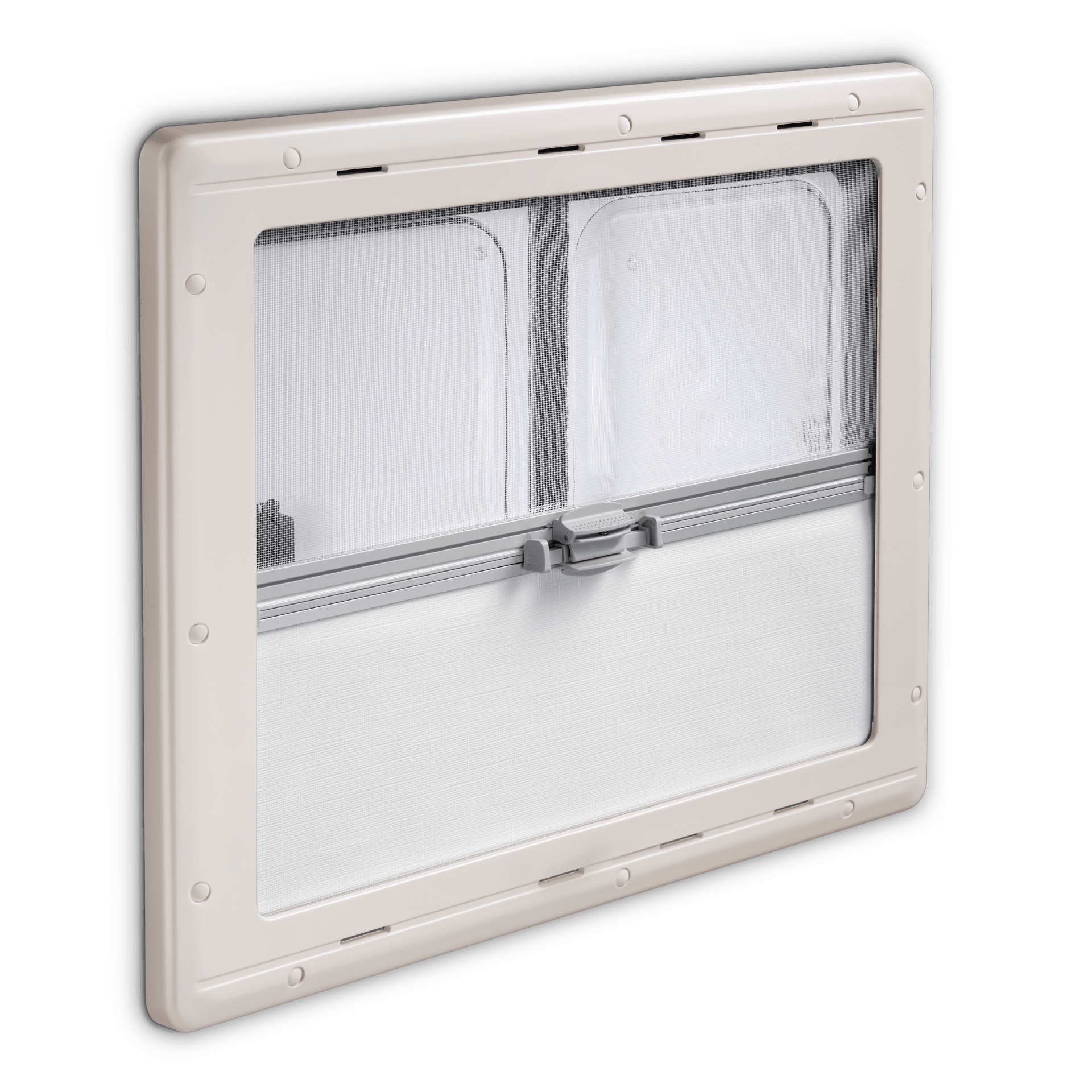

Dometic S4
Sliding window, 900 x 500
SKU: 9104100175
Technical Information
Specifications
- General
- Scope of delivery
- S4S Window with manual in box
- SKUCertificates
- ECE R43
- Product Description
- Sliding window, 900 x 500
- Dimensions
- Dimensions product height, [mm]
- 531
- Dimensions product width, [mm]
- 948
- Dimensions product width, ["] - Display
- 37 5/16
- Dimensions ordered height, [mm]
- 500
- Dimensions ordered width, [mm]
- 900
- Net weight, [kg]
- 8.40
- Net weight, [lbs]
- 18.52
- Standard mount. material thickness 1 min, [mm]
- 26
- Standard mount. material thickness 1 max, [mm]
- 26
- Possible material thickness 1 min, [mm]
- 27
- Possible material thickness 1 max, [mm]
- 41
- Cut out height, [mm]
- 499.000000
- Cut out width, [mm]
- 902.000000
- Properties
- Hinge type
- Sliding
- Positions variable
- Variable
- Logistics
- Dimensions parcel depth, [mm]
- 620
- Dimensions parcel height, [mm]
- 185
- Dimensions parcel width, [mm]
- 1020
- Parcel weight, [kg]
- 10.20
- Parcel weight, [lbs]
- 22.49
