Dometic S4

Specifications

General

Scope of delivery

S4S Top hung window with manual in box

SKUCertificates

ECE R43

Product Description

Top-hung hinged window, 500 x 500 mm

Dimensions

Dimensions product height, [mm]

534

Dimensions product width, [mm]

548

Dimensions product width, ["] - Display

21.57

Dimensions ordered height, [mm]

500

Dimensions ordered width, [mm]

500

Net weight, [kg]

5.20

Net weight, [lbs]

11.47

Standard mount. material thickness 1 min, [mm]

26

Standard mount. material thickness 1 max, [mm]

26

Possible material thickness 1 min, [mm]

27

Possible material thickness 1 max, [mm]

41

Cut out height, [mm]

499.000000

Cut out width, [mm]

500.000000

Properties

Hinge type

Top-hung

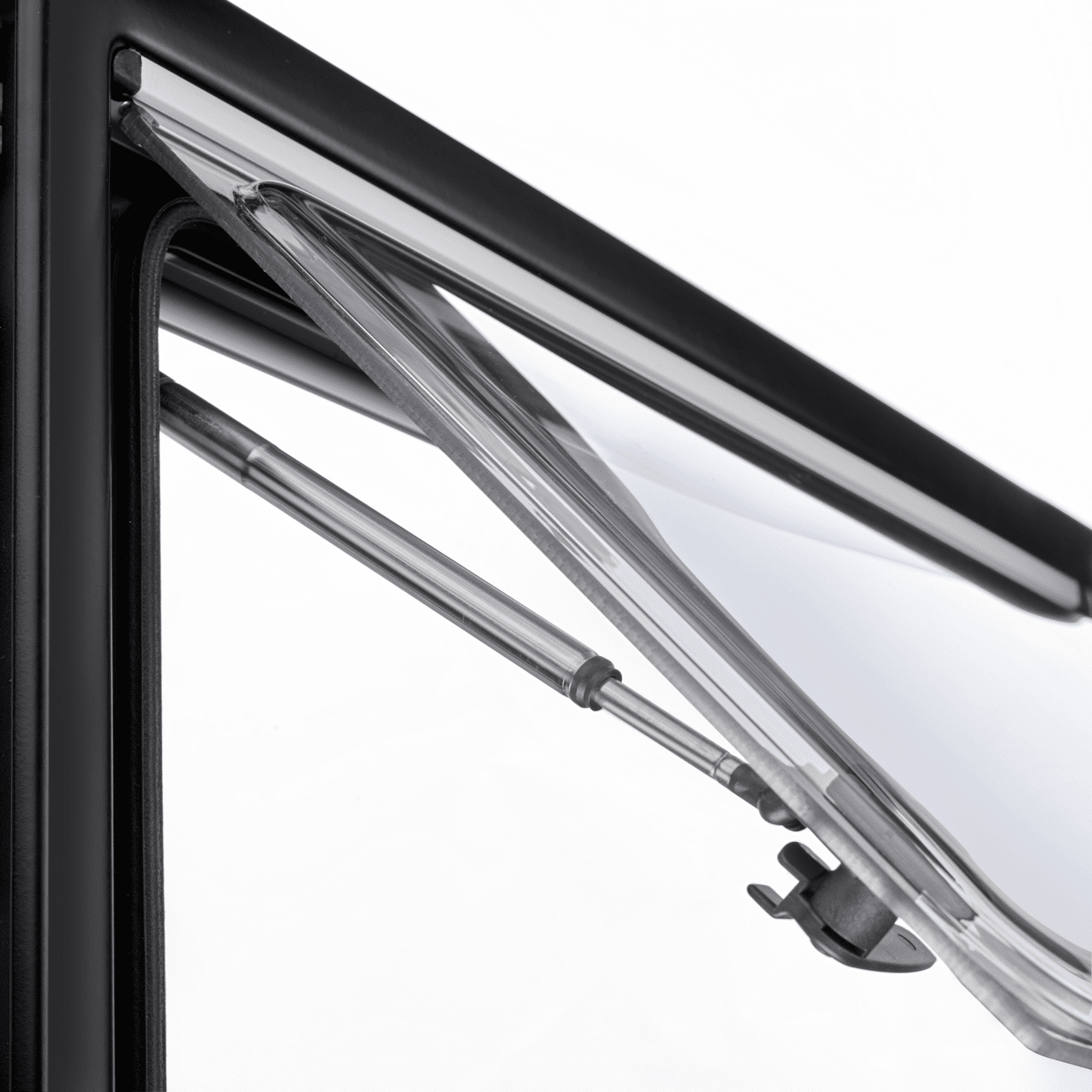

Positions variable

Variable

Logistics

Dimensions parcel depth, [mm]

610

Dimensions parcel height, [mm]

185

Dimensions parcel width, [mm]

610

Parcel weight, [kg]

6.29

Parcel weight, [lbs]

13.87
