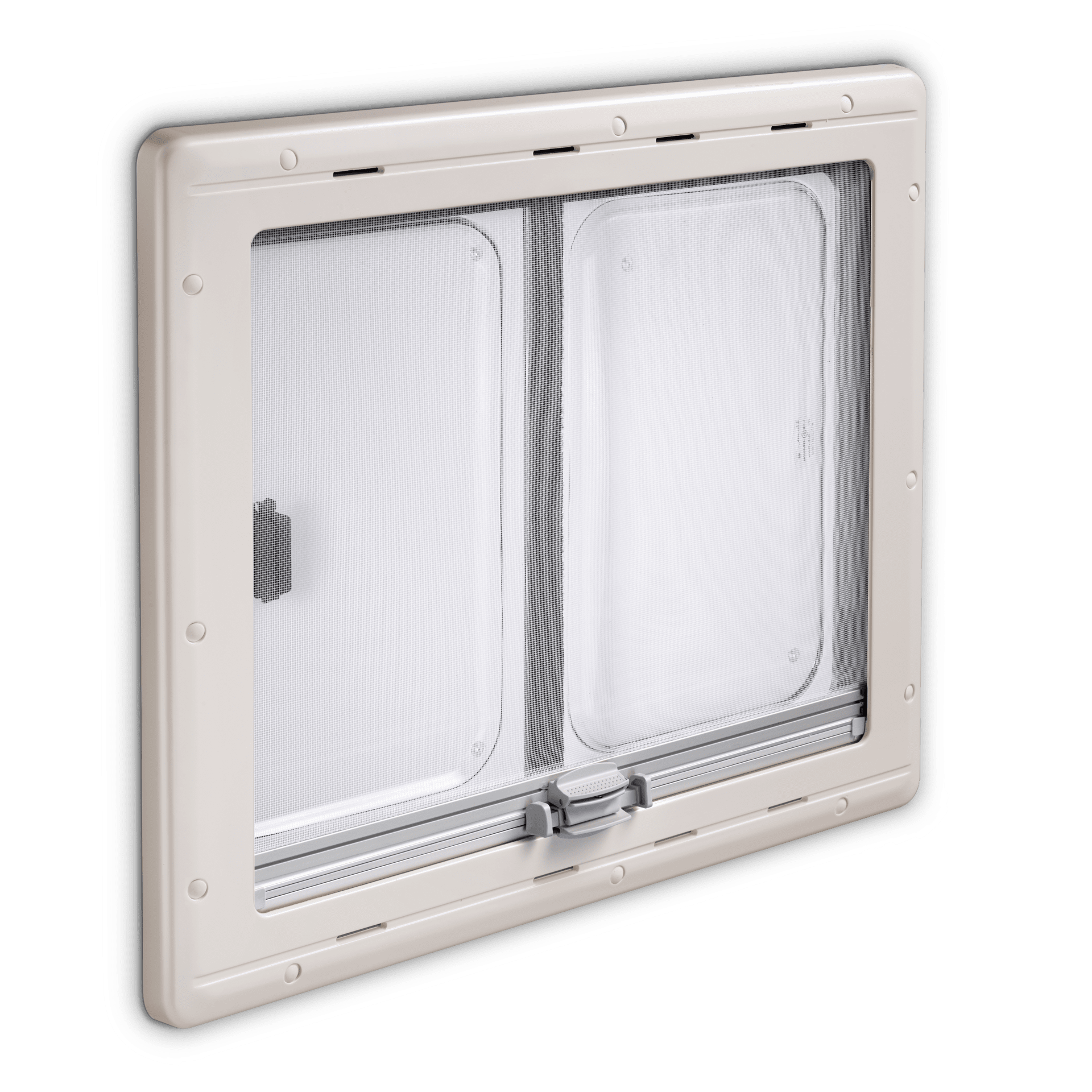

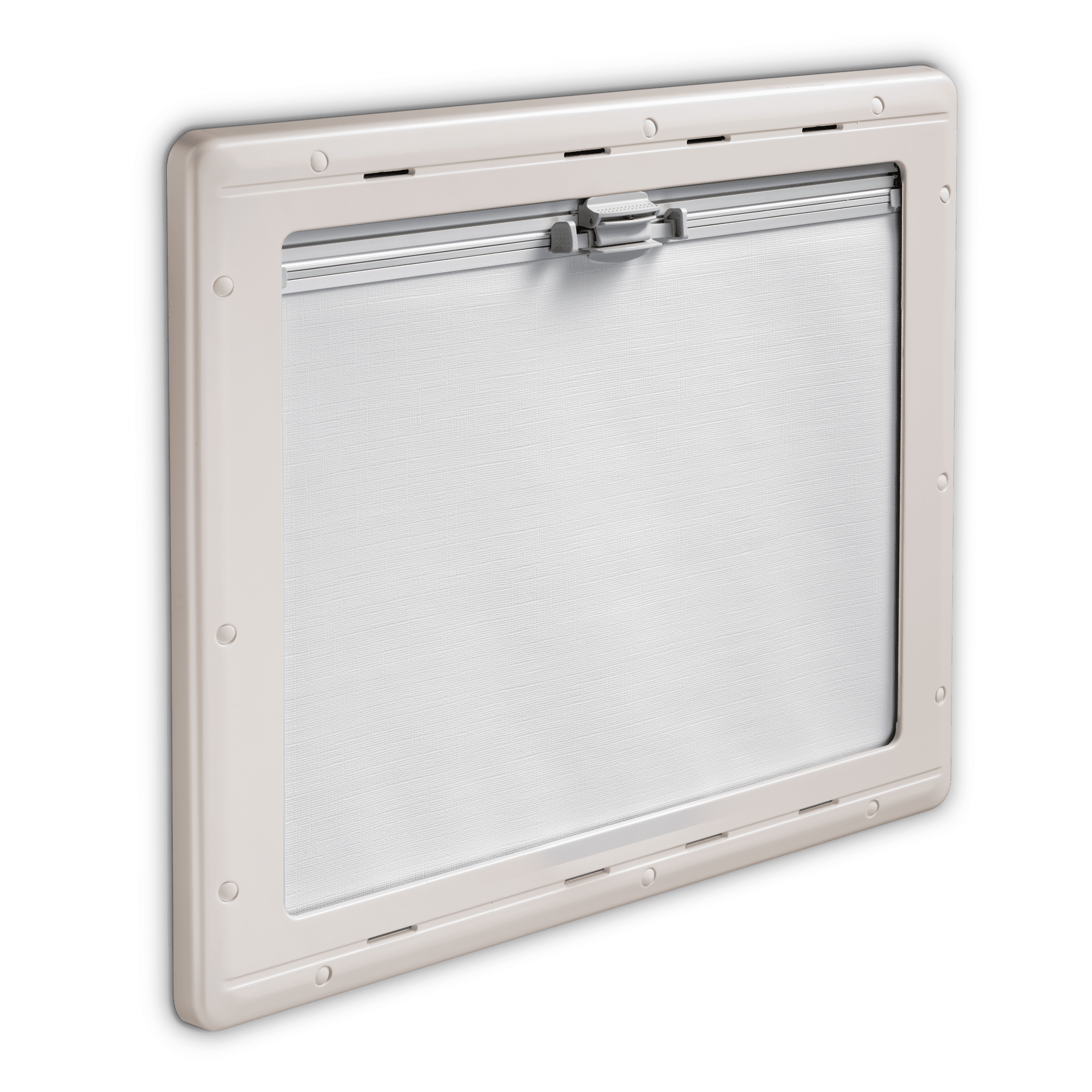

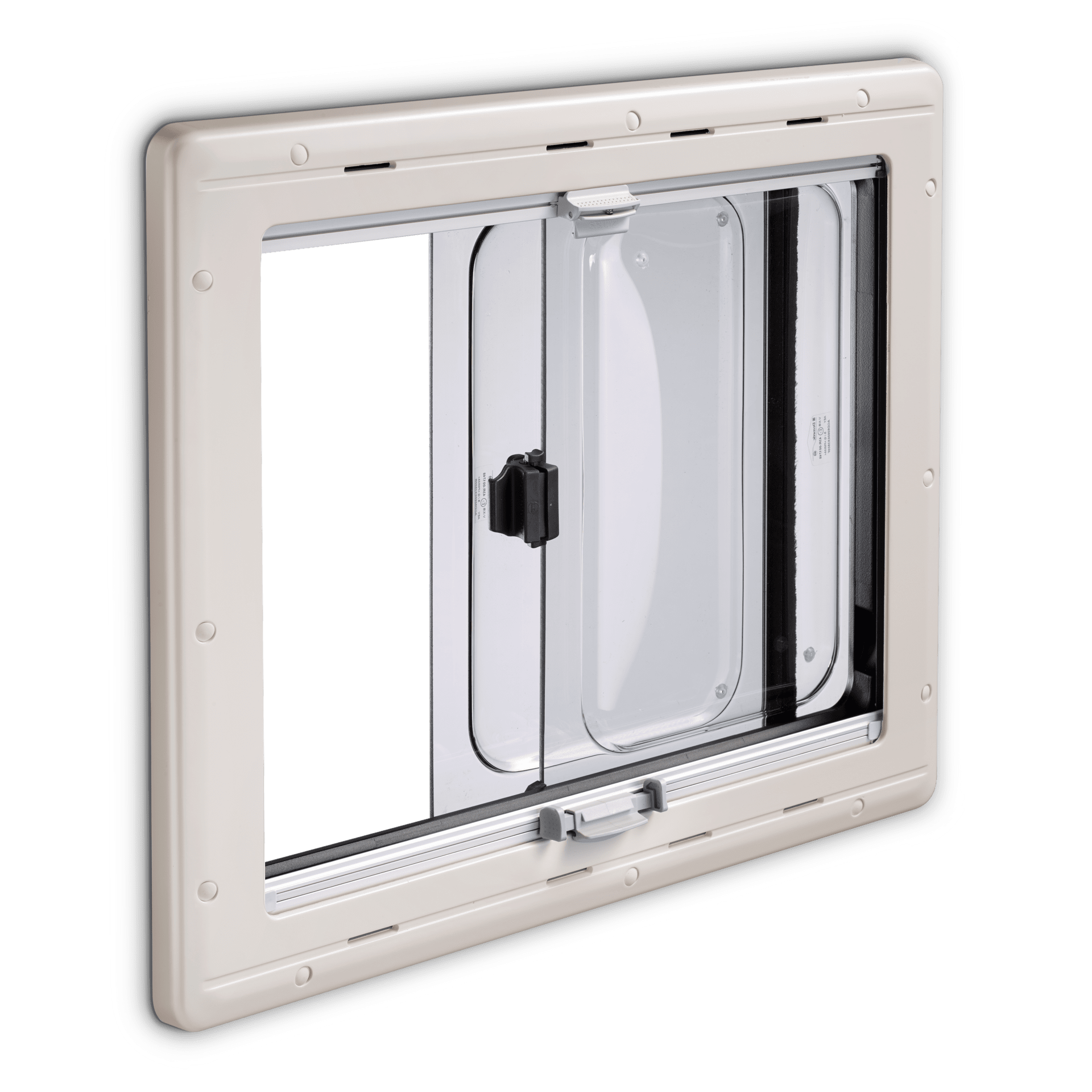

Dometic S4
Ventana corrediza, 1200x600
1.029 €
SKU: 9104100189
Información técnica
Especificaciones
- General
- Scope of delivery
- S4S Window with manual in box
- SKUCertificates
- ECE R43
- Product Description
- Ventana corrediza, 1200x600
- Dimensiones
- Dimensions product height, [mm]
- 631
- Dimensions product width, [mm]
- 1249
- Dimensions product width, ["] - Display
- 49 2/16
- Dimensions ordered height, [mm]
- 600
- Dimensions ordered width, [mm]
- 1200
- Net weight, [kg]
- 12.50
- Net weight, [lbs]
- 27.56
- Standard mount. material thickness 1 min, [mm]
- 26
- Standard mount. material thickness 1 max, [mm]
- 26
- Possible material thickness 1 min, [mm]
- 27
- Possible material thickness 1 max, [mm]
- 41
- Cut out height, [mm]
- 599.000000
- Cut out width, [mm]
- 1201.000000
- Propiedades
- Hinge type
- Corredera
- Positions variable
- Variable
- Logística
- Dimensions parcel depth, [mm]
- 710
- Dimensions parcel height, [mm]
- 185
- Dimensions parcel width, [mm]
- 1320
- Parcel weight, [kg]
- 14.40
- Parcel weight, [lbs]
- 31.75
