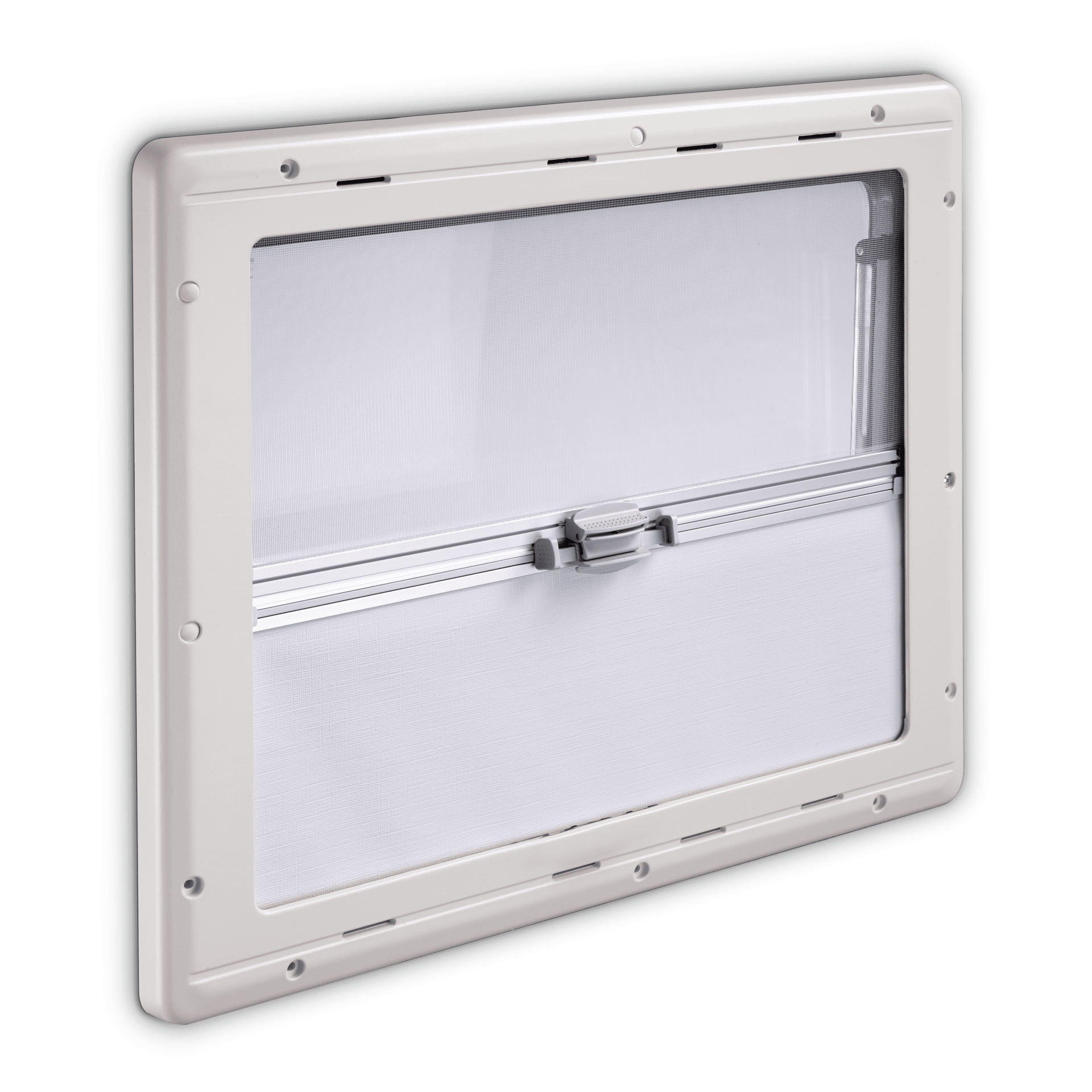

Dometic S4

Especificaciones

General

Scope of delivery

S4S Top hung window with manual in box

SKUCertificates

ECE R43

Product Description

Ventana abatible, 1000x600

Dimensiones

Dimensions product height, [mm]

631

Dimensions product width, [mm]

1048

Dimensions product width, ["] - Display

41 4/16

Dimensions ordered height, [mm]

600

Dimensions ordered width, [mm]

1000

Net weight, [kg]

11

Net weight, [lbs]

24.26

Standard mount. material thickness 1 min, [mm]

26

Standard mount. material thickness 1 max, [mm]

26

Possible material thickness 1 min, [mm]

27

Possible material thickness 1 max, [mm]

41

Cut out height, [mm]

599.000000

Cut out width, [mm]

1002.000000

Propiedades

Hinge type

Abatible

Positions variable

Variable

Logística

Dimensions parcel depth, [mm]

715

Dimensions parcel height, [mm]

185

Dimensions parcel width, [mm]

1130

Parcel weight, [kg]

12.27

Parcel weight, [lbs]

27.06
