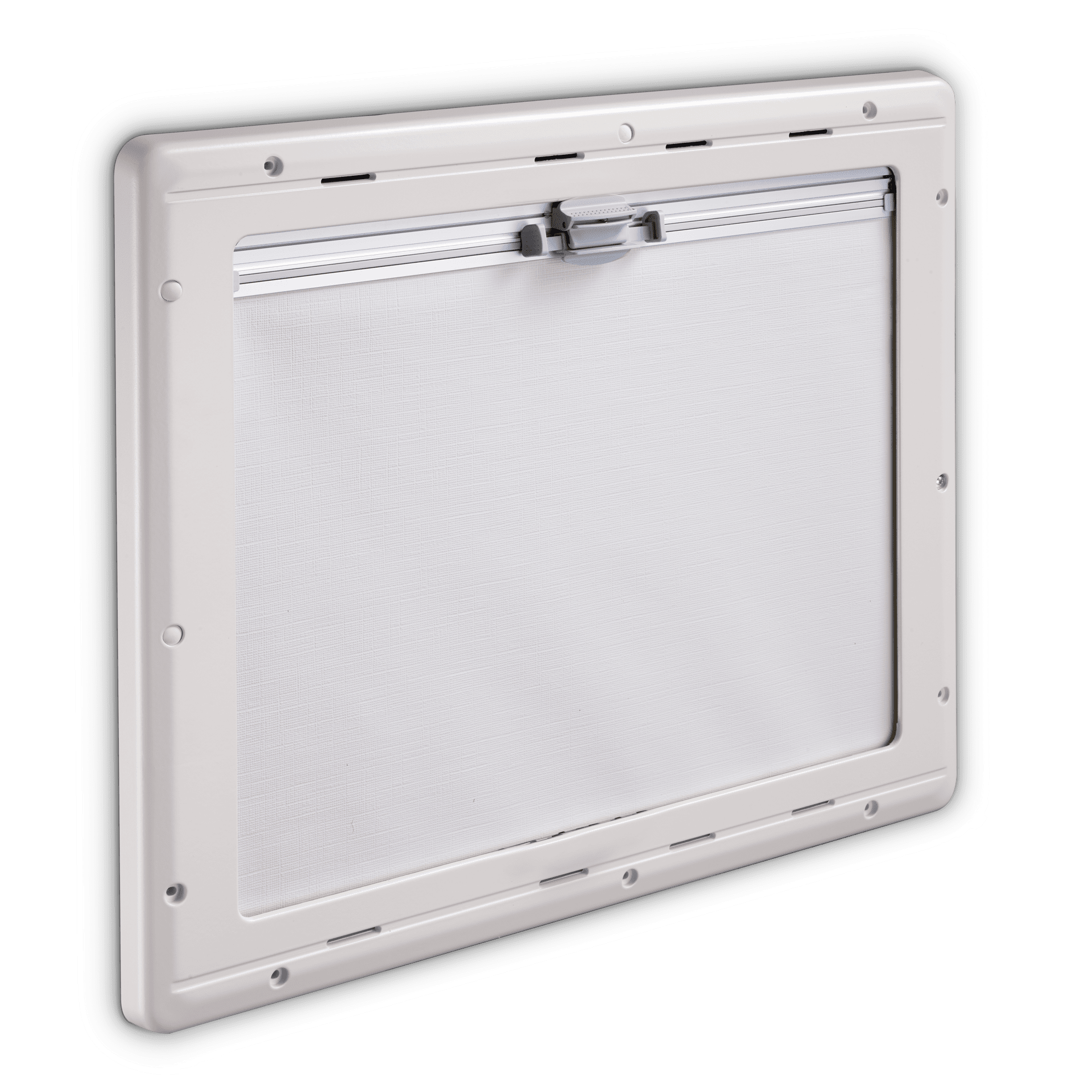

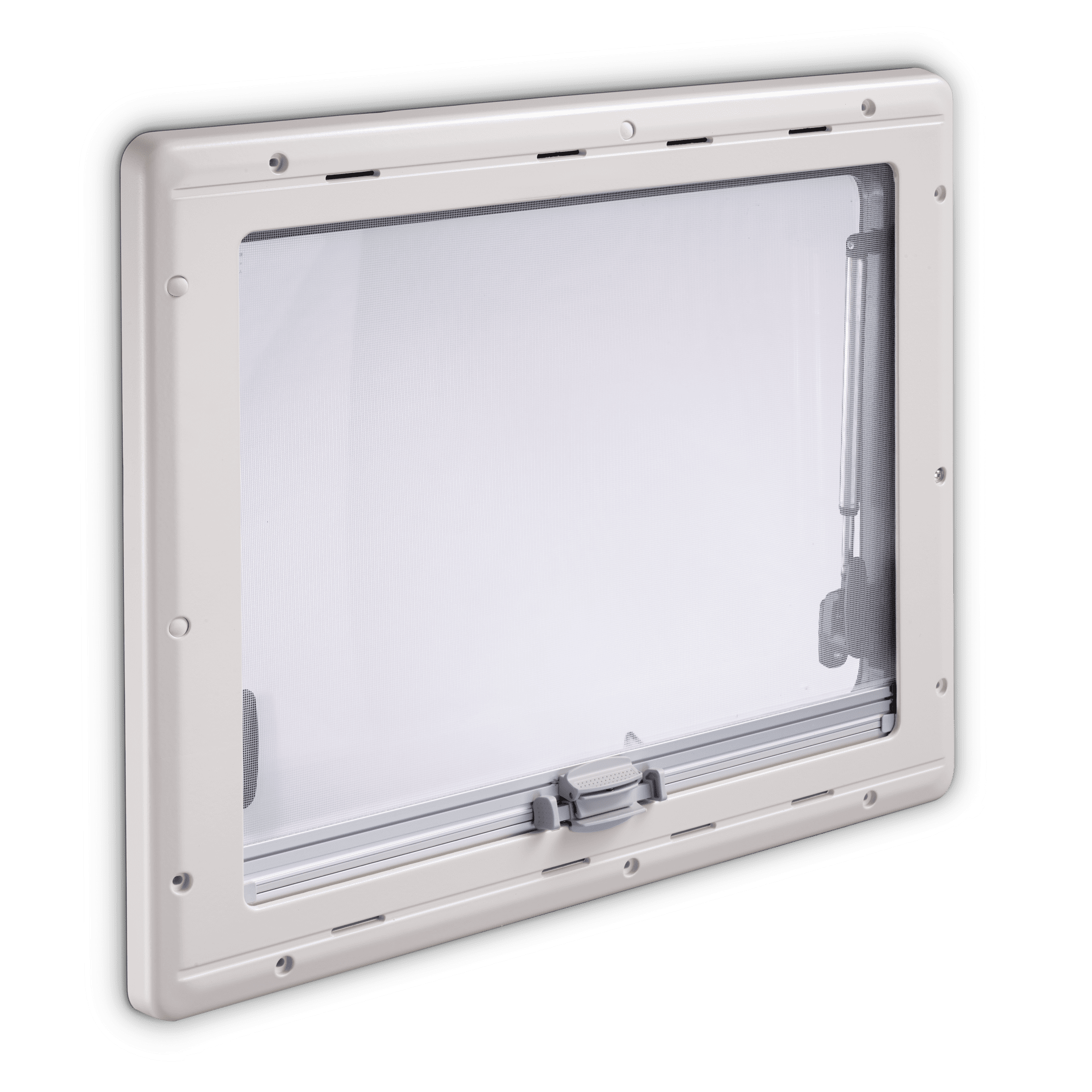

Dometic S4

Especificaciones

General

Scope of delivery

S4S Top hung window with manual in box

SKUCertificates

ECE R43

Product Description

Ventana abatible, 1100x550

Dimensiones

Dimensions product height, [mm]

581

Dimensions product width, [mm]

1148

Dimensions product width, ["] - Display

45 3/16

Dimensions ordered height, [mm]

550

Dimensions ordered width, [mm]

1100

Net weight, [kg]

10.10

Net weight, [lbs]

22.27

Standard mount. material thickness 1 min, [mm]

26

Standard mount. material thickness 1 max, [mm]

26

Possible material thickness 1 min, [mm]

27

Possible material thickness 1 max, [mm]

41

Cut out height, [mm]

549.000000

Cut out width, [mm]

1102.000000

Propiedades

Hinge type

Abatible

Positions variable

Variable

Logística

Dimensions parcel depth, [mm]

660

Dimensions parcel height, [mm]

185

Dimensions parcel width, [mm]

1220

Parcel weight, [kg]

12.40

Parcel weight, [lbs]

27.34
