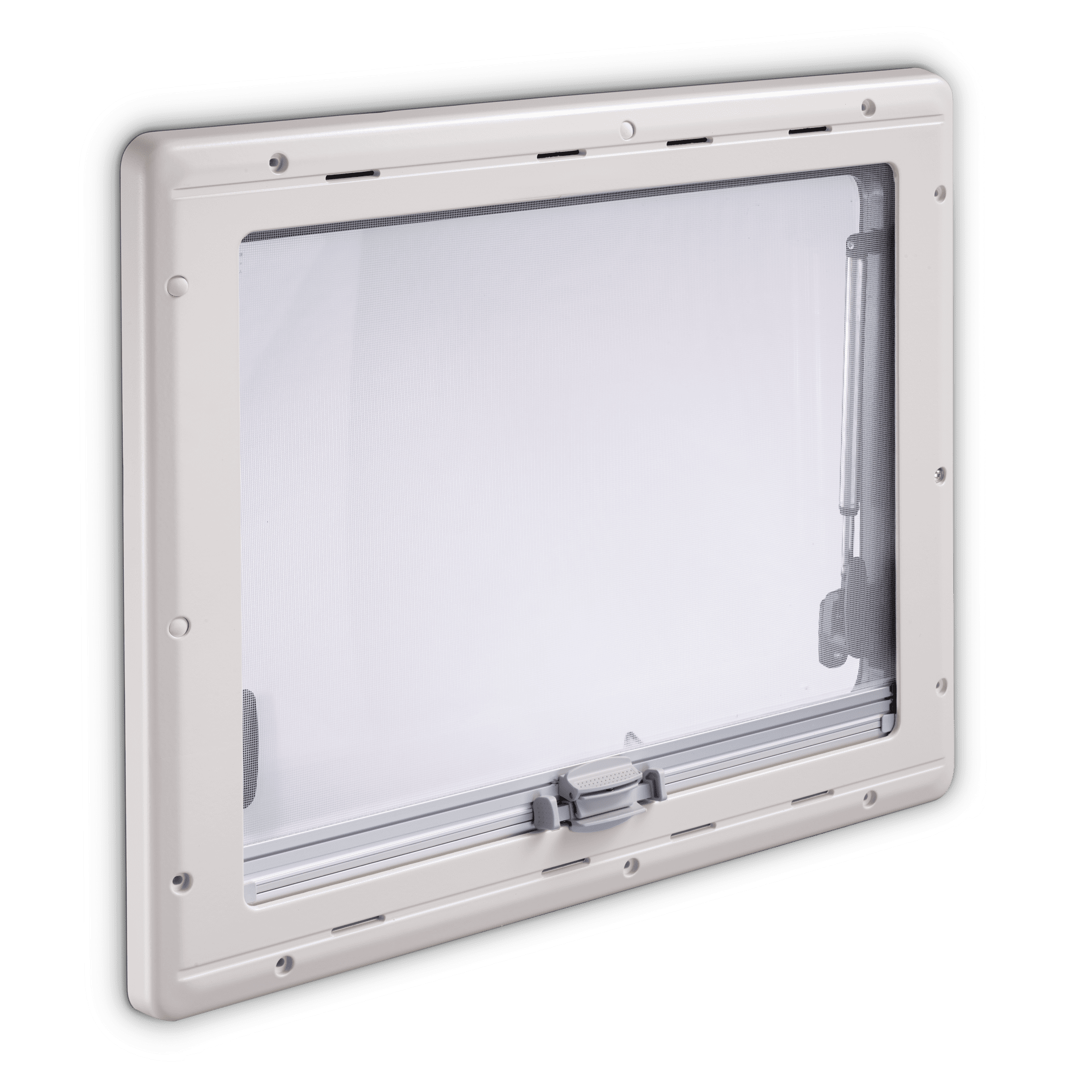

Dometic S4

Spécifications

Général

Scope of delivery

S4S Top hung window with manual in box

SKUCertificates

ECE R43

Product Description

Baie à charnières projetable, 700 x 500

Dimensions

Dimensions product height, [mm]

531

Dimensions product width, [mm]

745

Dimensions product width, ["] - Display

29 5/16

Dimensions ordered height, [mm]

500

Dimensions ordered width, [mm]

700

Net weight, [kg]

7

Net weight, [lbs]

15.44

Standard mount. material thickness 1 min, [mm]

26

Standard mount. material thickness 1 max, [mm]

26

Possible material thickness 1 min, [mm]

27

Possible material thickness 1 max, [mm]

41

Cut out height, [mm]

498.000000

Cut out width, [mm]

700.000000

Propriétés

Hinge type

Projetable

Positions variable

Variable

Logistique

Dimensions parcel depth, [mm]

560

Dimensions parcel height, [mm]

185

Dimensions parcel width, [mm]

830

Parcel weight, [kg]

7.96

Parcel weight, [lbs]

17.55
