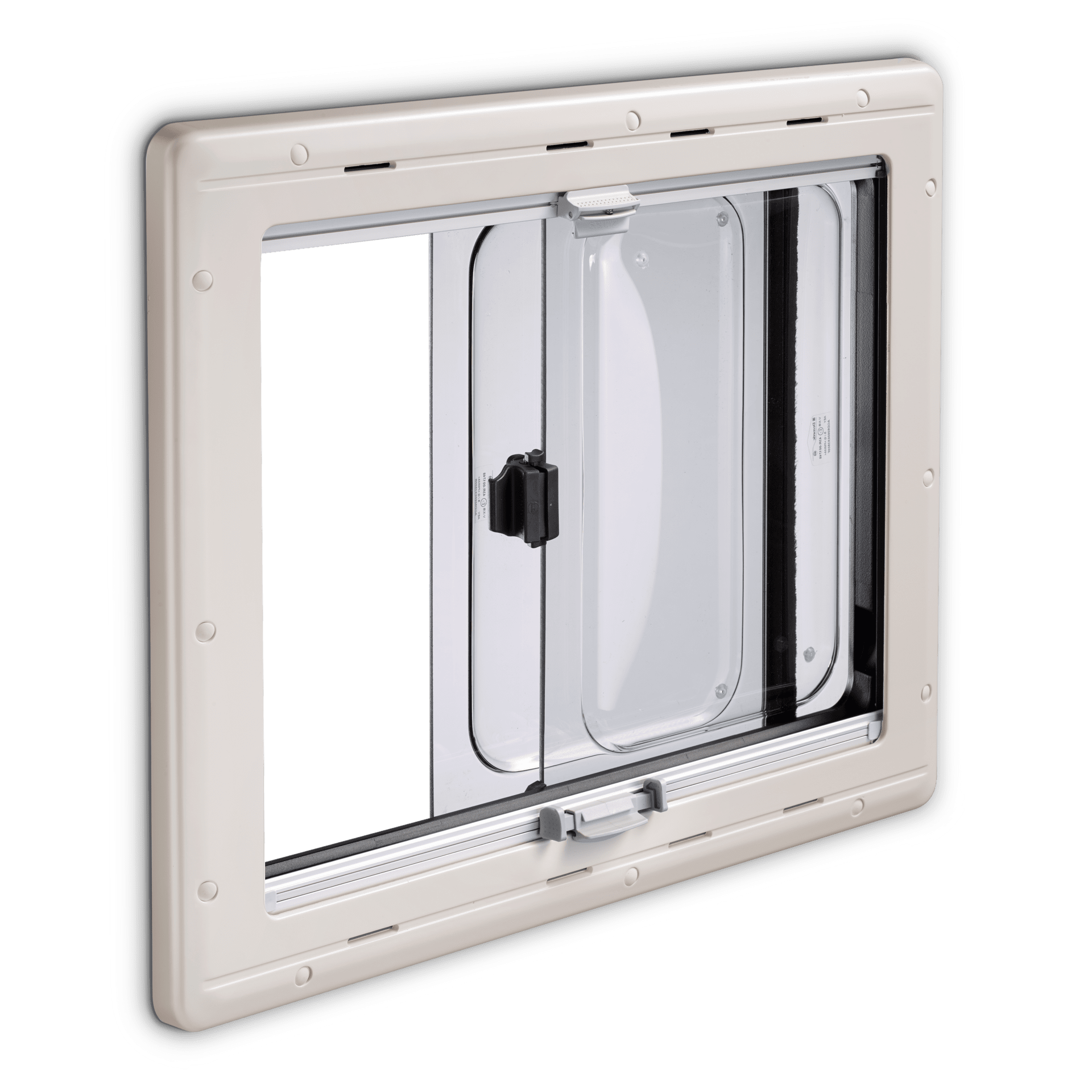

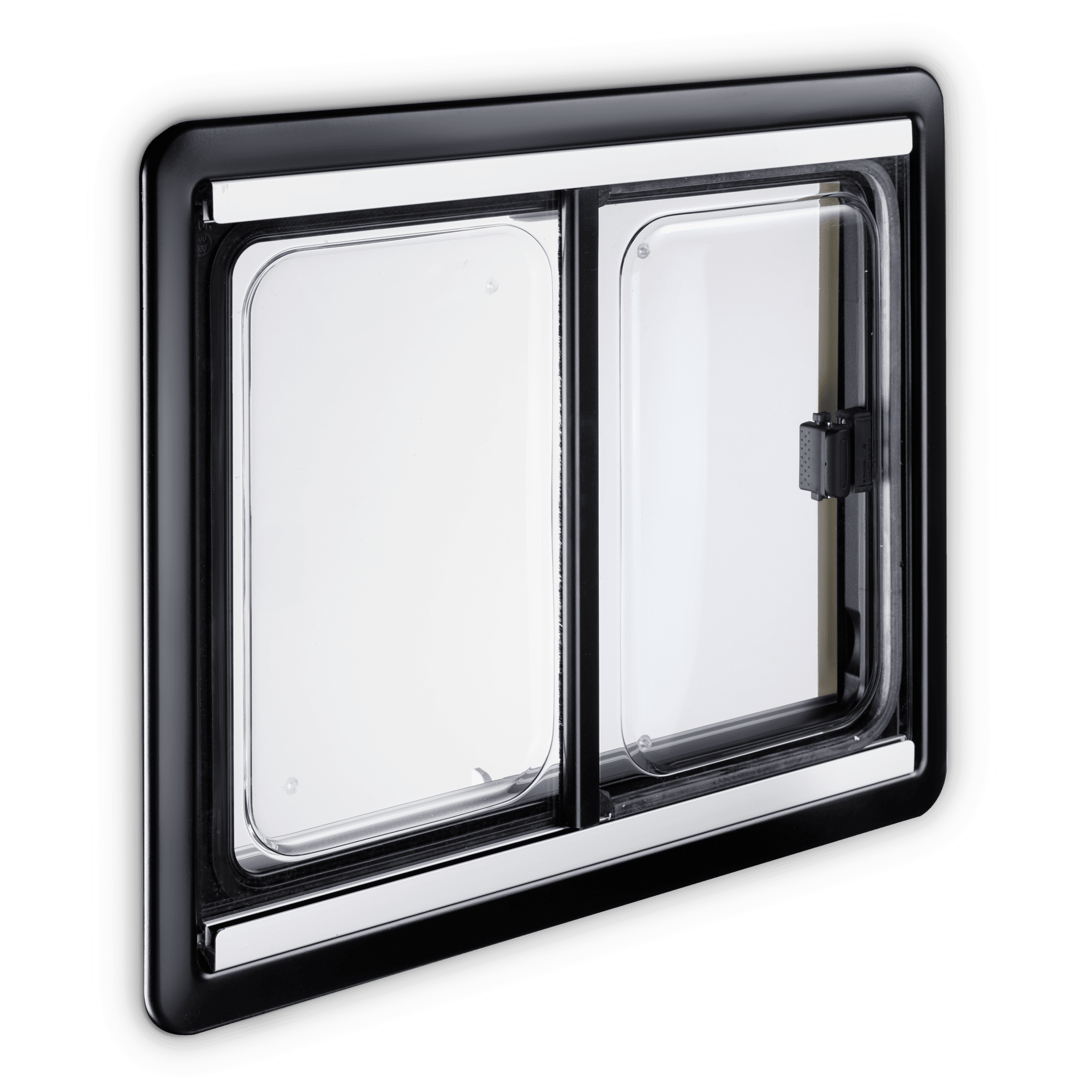

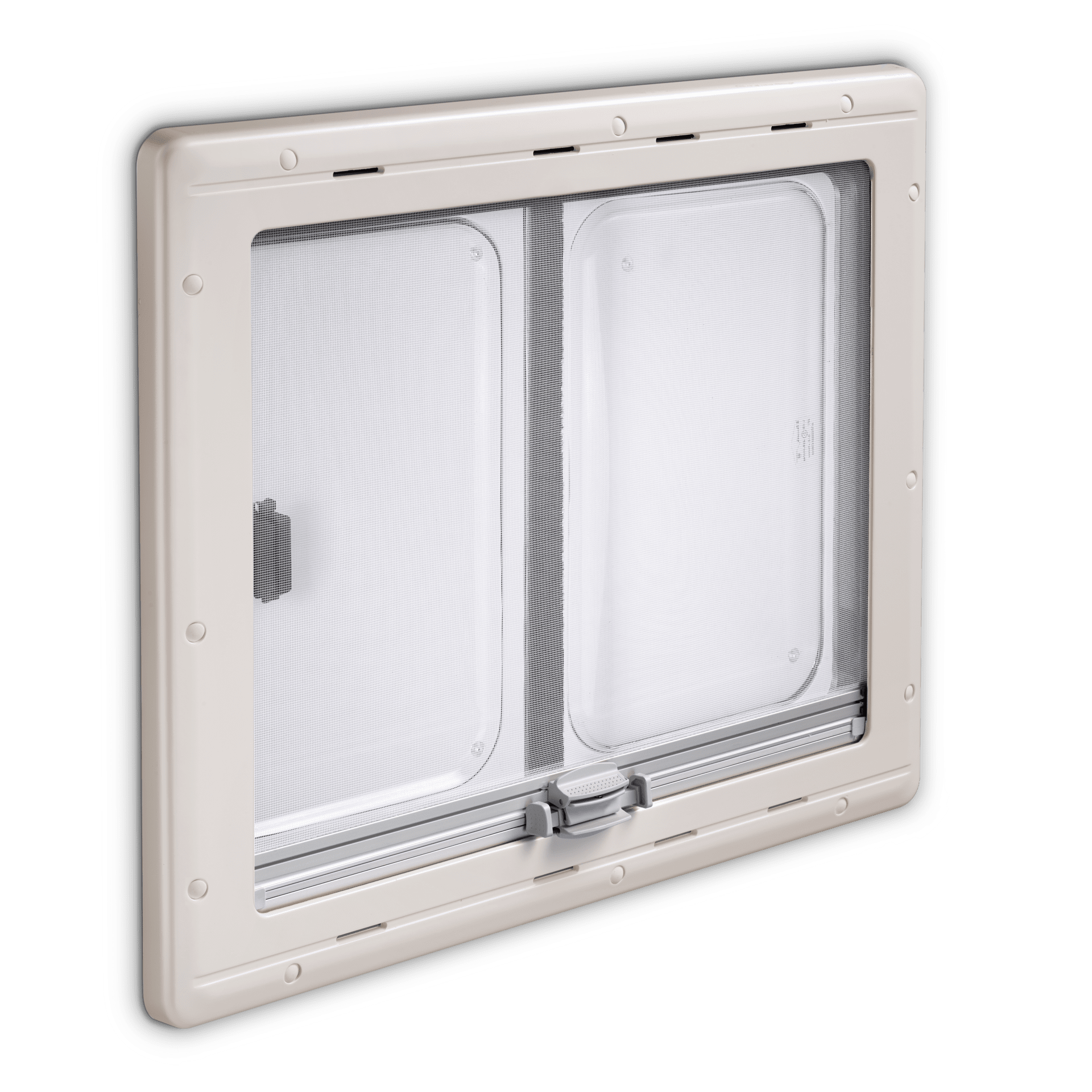

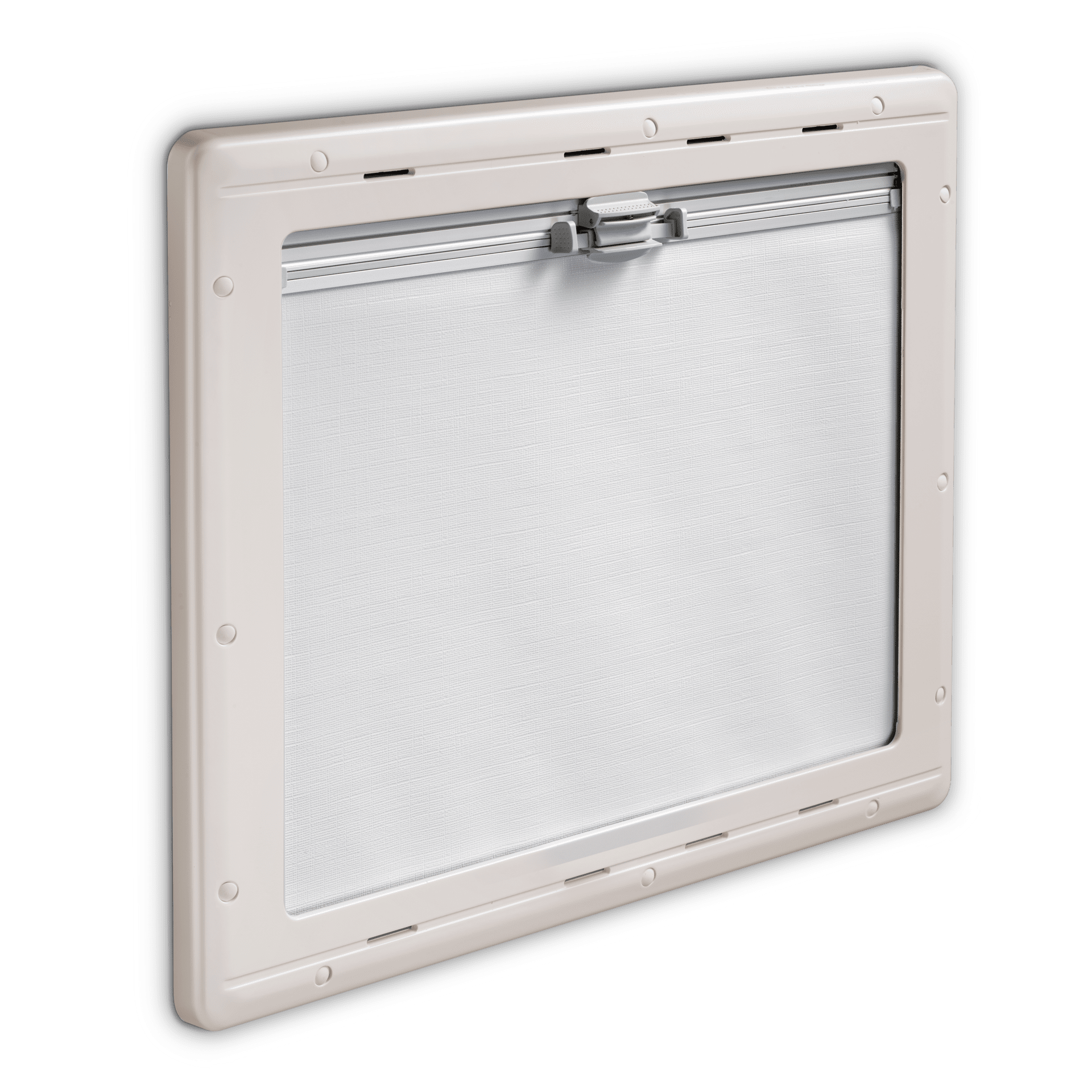

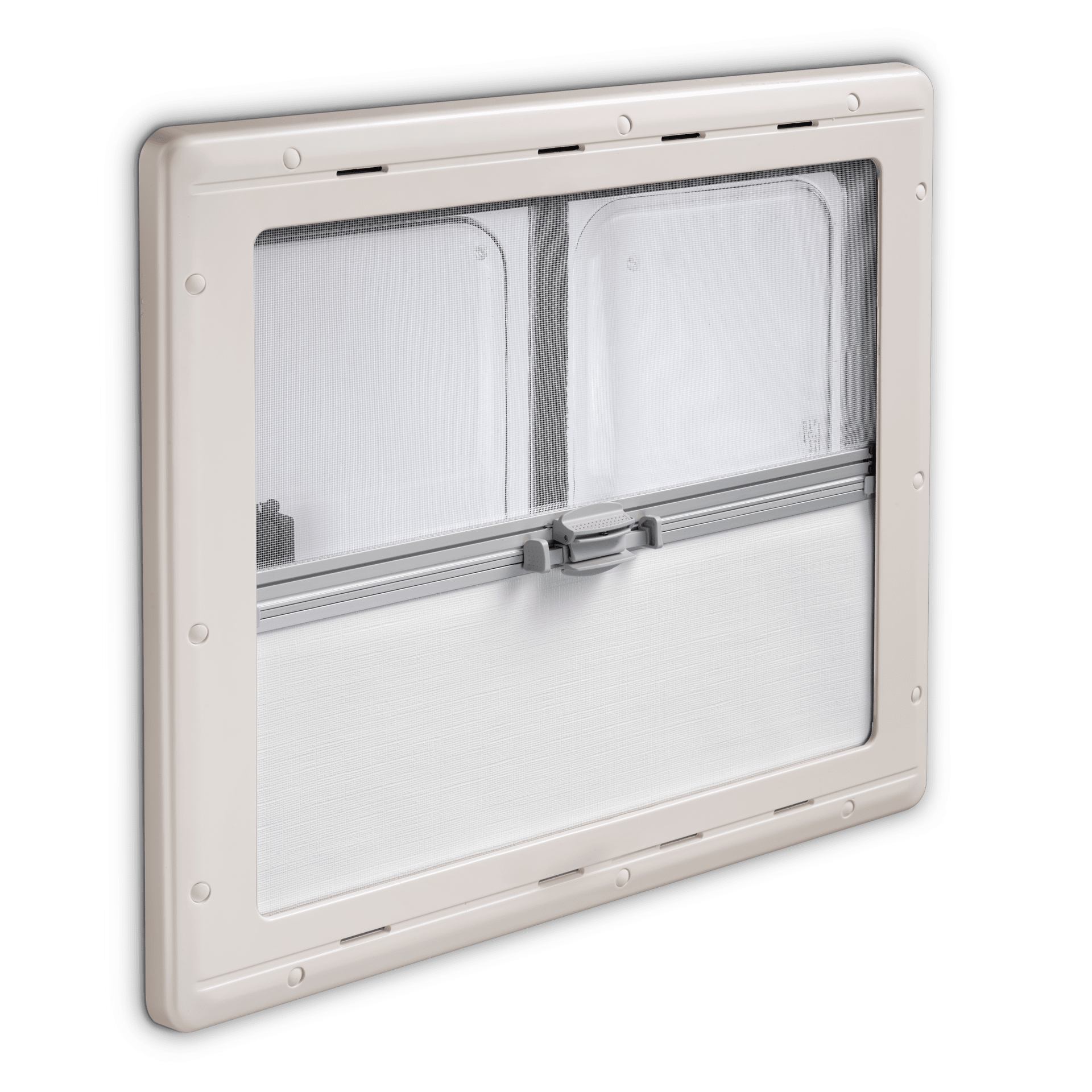

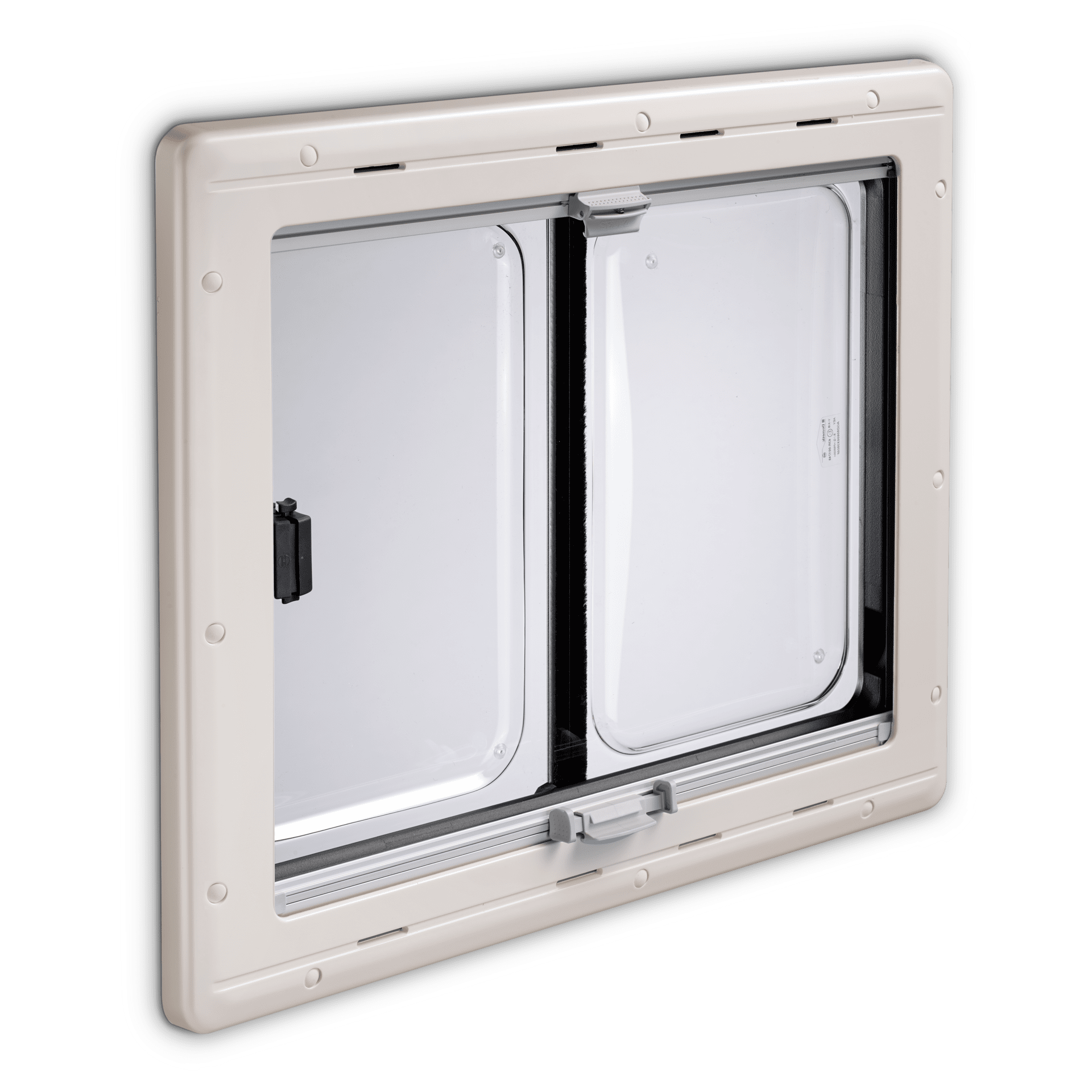

Dometic S4
Baie coulissante, 600 x 500
579 €
SKU: 9104100147
Informations techniques
Spécifications
- Général
- Scope of delivery
- S4S Window with manual in box
- SKUCertificates
- ECE R43
- Product Description
- Baie coulissante, 600 x 500
- Dimensions
- Dimensions product height, [mm]
- 531
- Dimensions product width, [mm]
- 644
- Dimensions product width, ["] - Display
- 25 5/16
- Dimensions ordered height, [mm]
- 500
- Dimensions ordered width, [mm]
- 600
- Net weight, [kg]
- 6.10
- Net weight, [lbs]
- 13.45
- Standard mount. material thickness 1 min, [mm]
- 26
- Standard mount. material thickness 1 max, [mm]
- 26
- Possible material thickness 1 min, [mm]
- 27
- Possible material thickness 1 max, [mm]
- 41
- Cut out height, [mm]
- 498.000000
- Cut out width, [mm]
- 599.000000
- Propriétés
- Hinge type
- Coulissant
- Positions variable
- Variable
- Logistique
- Dimensions parcel depth, [mm]
- 700
- Dimensions parcel height, [mm]
- 185
- Dimensions parcel width, [mm]
- 610
- Parcel weight, [kg]
- 7.70
- Parcel weight, [lbs]
- 16.98
