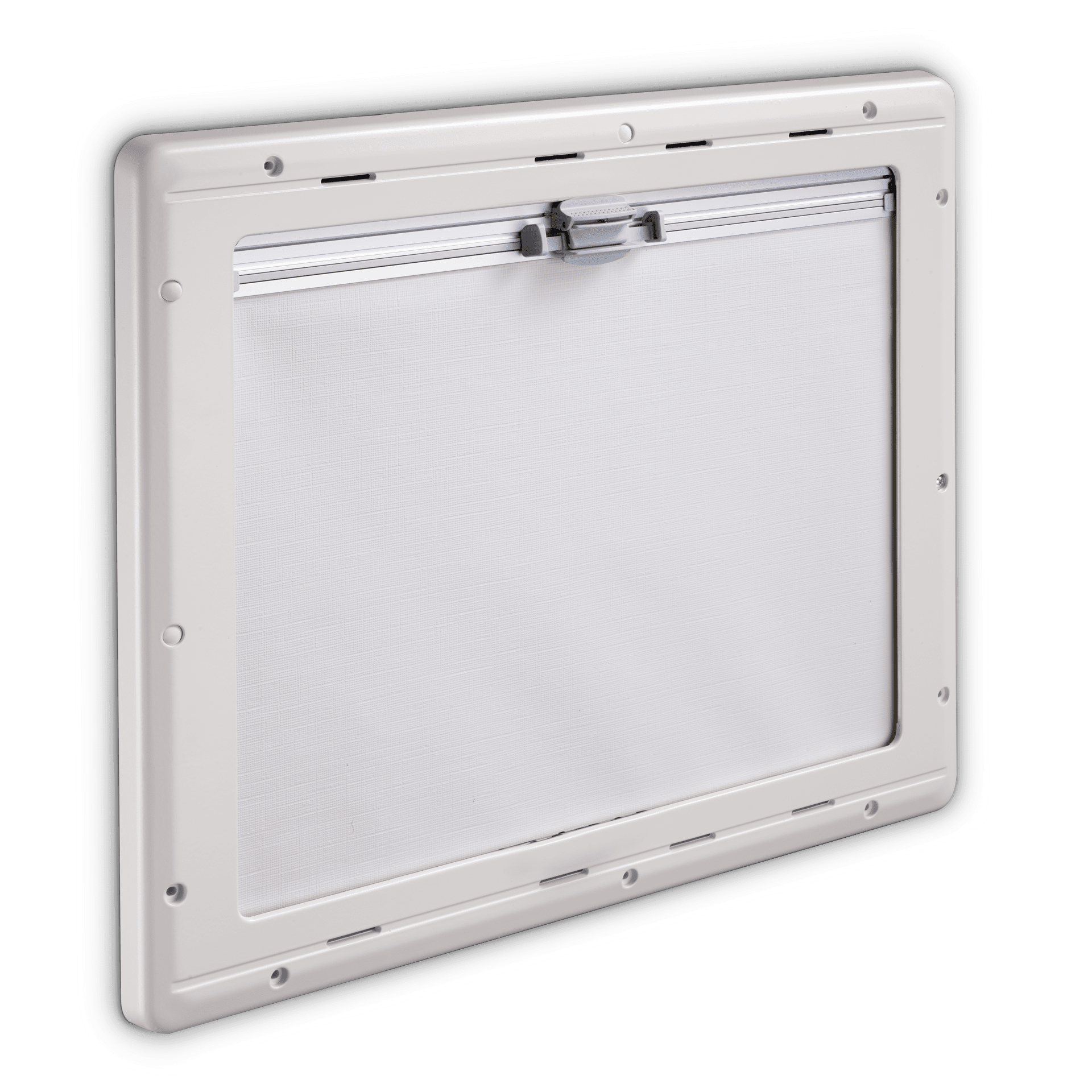

Dometic S4

Spécifications

Général

Scope of delivery

S4S Top hung window with manual in box

SKUCertificates

ECE R43

Product Description

Baie à charnières projetable, 900 x 600

Dimensions

Dimensions product height, [mm]

631

Dimensions product width, [mm]

948

Dimensions product width, ["] - Display

37 5/16

Dimensions ordered height, [mm]

600

Dimensions ordered width, [mm]

900

Net weight, [kg]

9.20

Net weight, [lbs]

20.29

Standard mount. material thickness 1 min, [mm]

26

Standard mount. material thickness 1 max, [mm]

26

Possible material thickness 1 min, [mm]

27

Possible material thickness 1 max, [mm]

41

Cut out height, [mm]

599.000000

Cut out width, [mm]

902.000000

Propriétés

Hinge type

Projetable

Positions variable

Variable

Logistique

Dimensions parcel depth, [mm]

720

Dimensions parcel height, [mm]

185

Dimensions parcel width, [mm]

1020

Parcel weight, [kg]

11.04

Parcel weight, [lbs]

24.35
