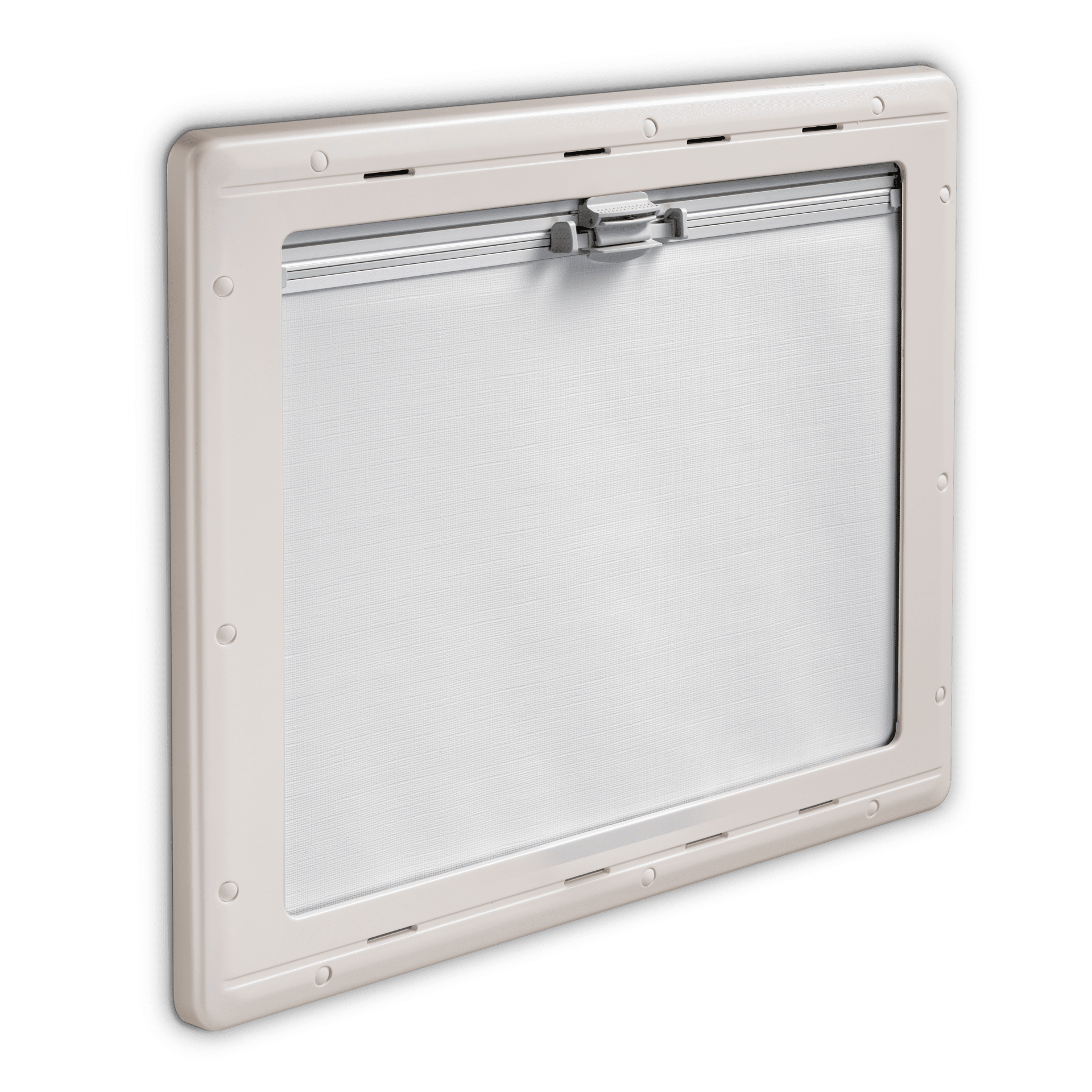

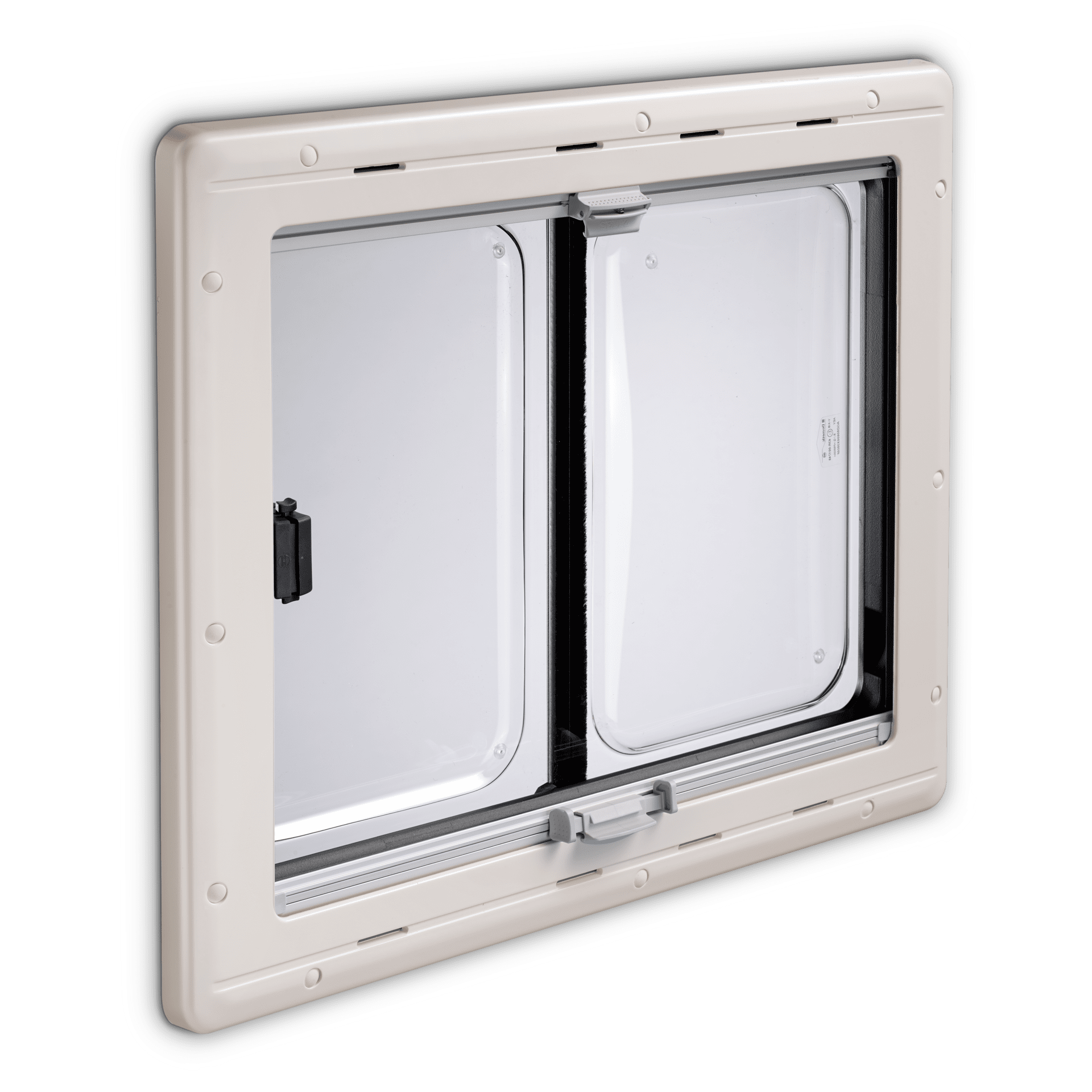

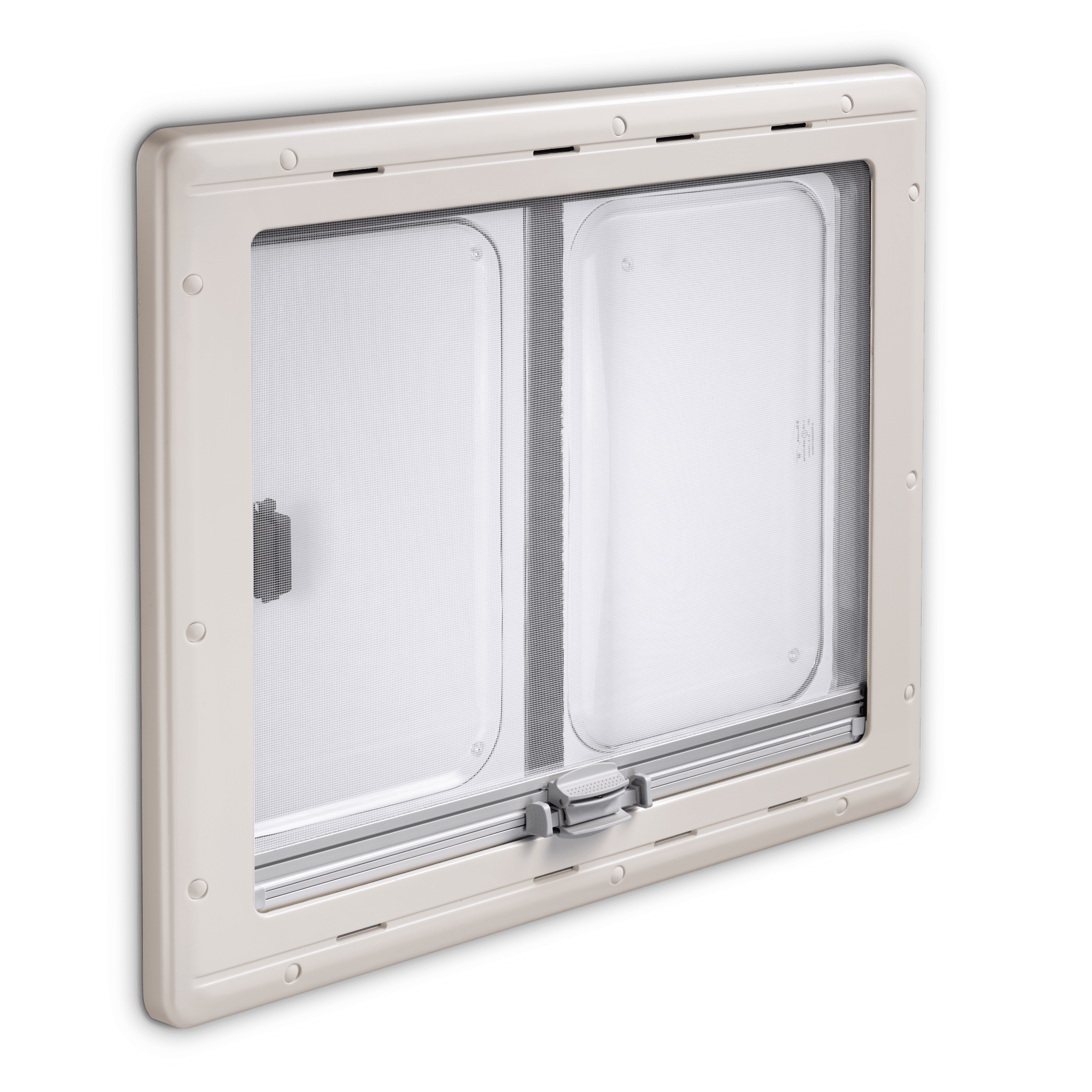

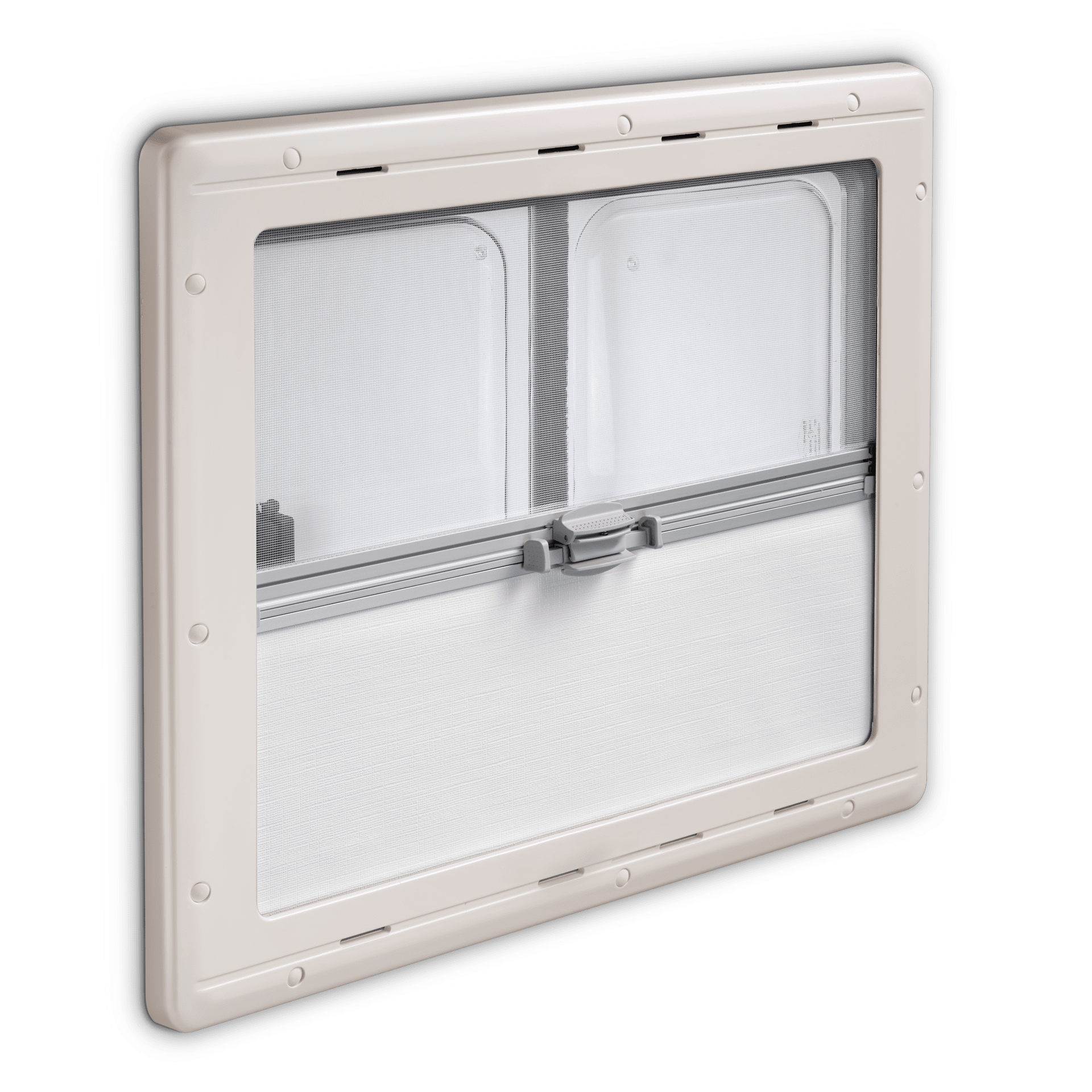

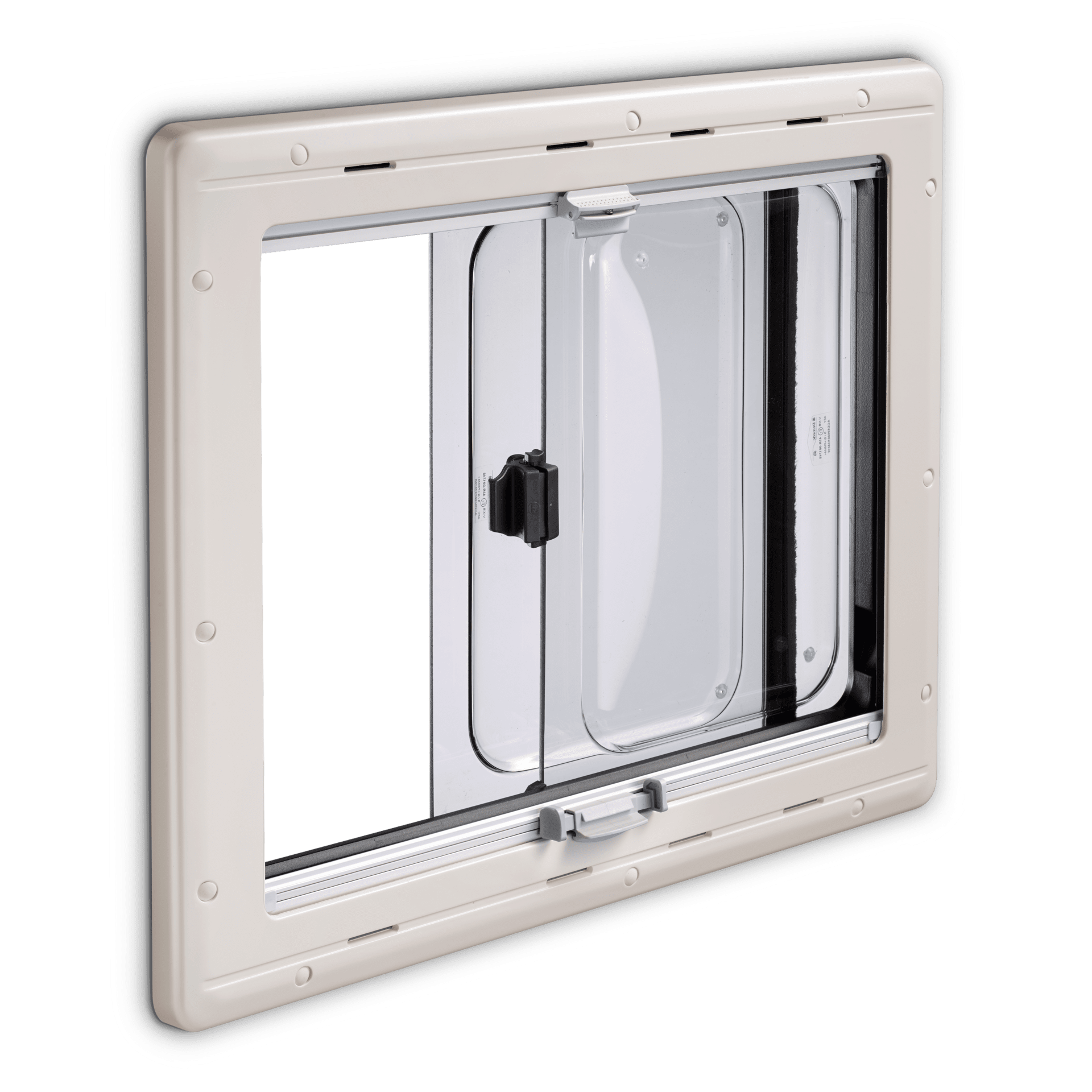

Dometic S4
Schuifraam, 900x550
€ 799
SKU: 9104100177
Technische informatie
Specificaties
- Algemeen
- Scope of delivery
- S4S Window with manual in box
- SKUCertificates
- ECE R43
- Product Description
- Schuifraam, 900x550
- Afmetingen
- Dimensions product height, [mm]
- 581
- Dimensions product width, [mm]
- 948
- Dimensions product width, ["] - Display
- 37 5/16
- Dimensions ordered height, [mm]
- 550
- Dimensions ordered width, [mm]
- 900
- Net weight, [kg]
- 8.60
- Net weight, [lbs]
- 18.96
- Standard mount. material thickness 1 min, [mm]
- 26
- Standard mount. material thickness 1 max, [mm]
- 26
- Possible material thickness 1 min, [mm]
- 27
- Possible material thickness 1 max, [mm]
- 41
- Cut out height, [mm]
- 549.000000
- Cut out width, [mm]
- 902.000000
- Eigenschappen
- Hinge type
- Schuif
- Positions variable
- Variable
- Logistiek
- Dimensions parcel depth, [mm]
- 660
- Dimensions parcel height, [mm]
- 185
- Dimensions parcel width, [mm]
- 1020
- Parcel weight, [kg]
- 11
- Parcel weight, [lbs]
- 24.26
