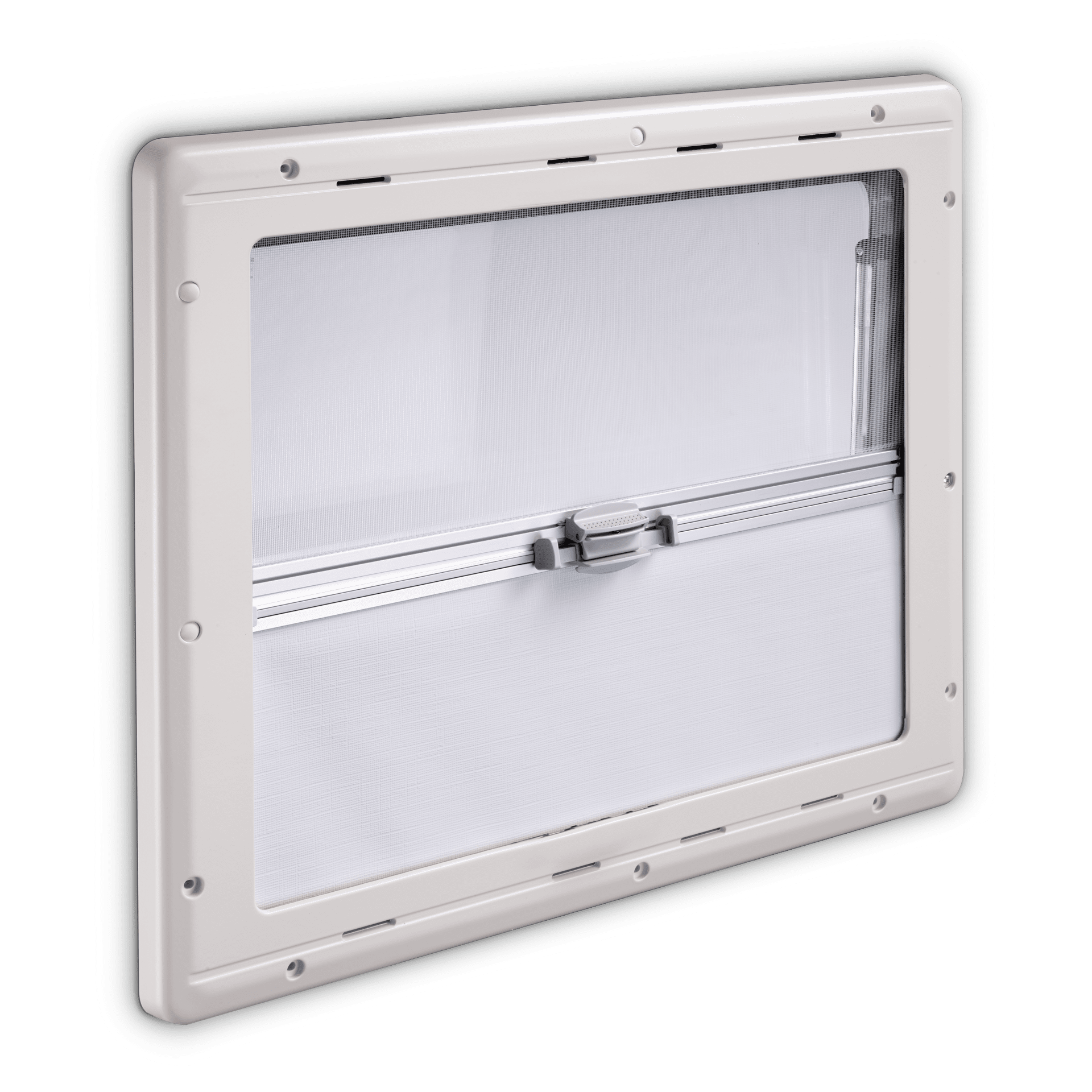

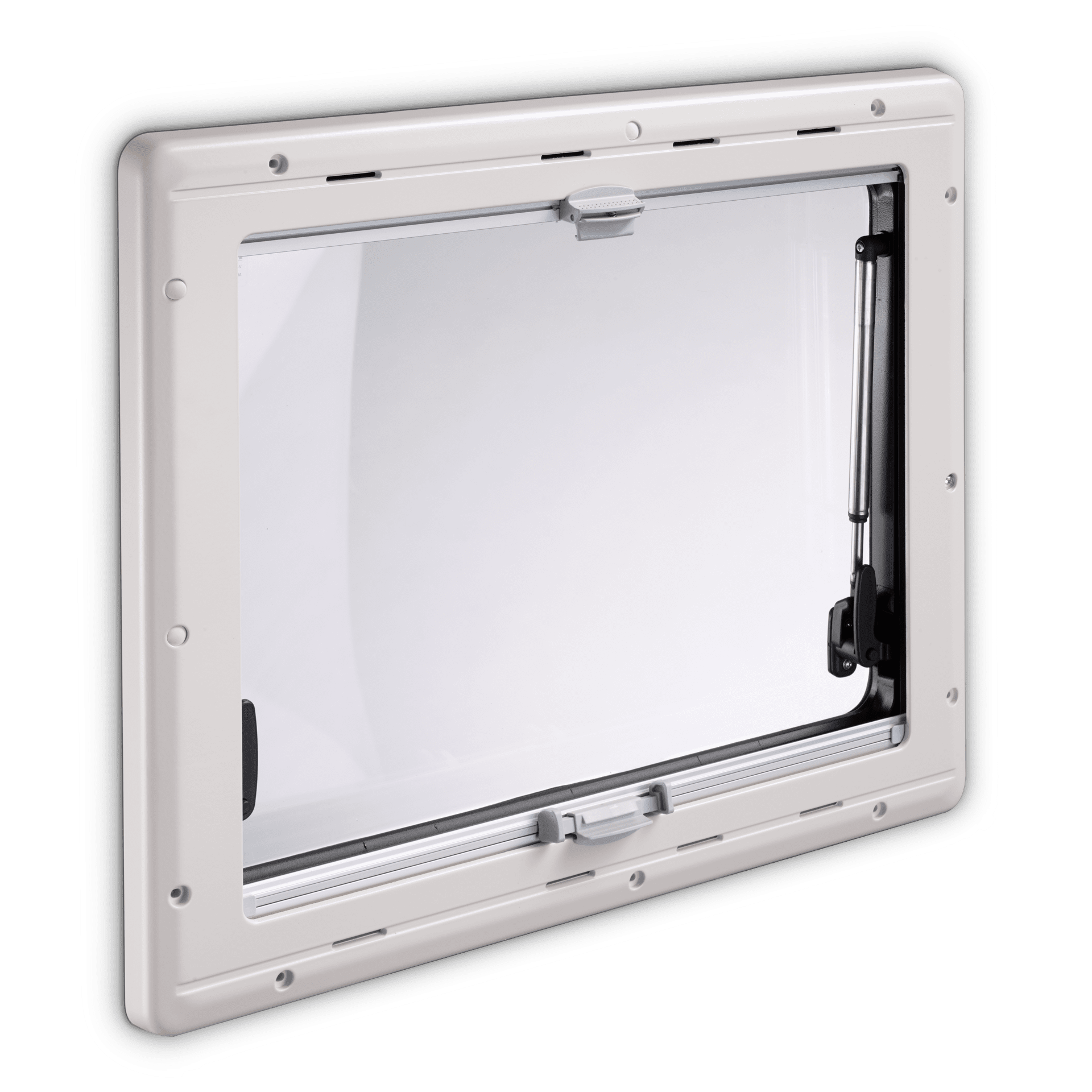

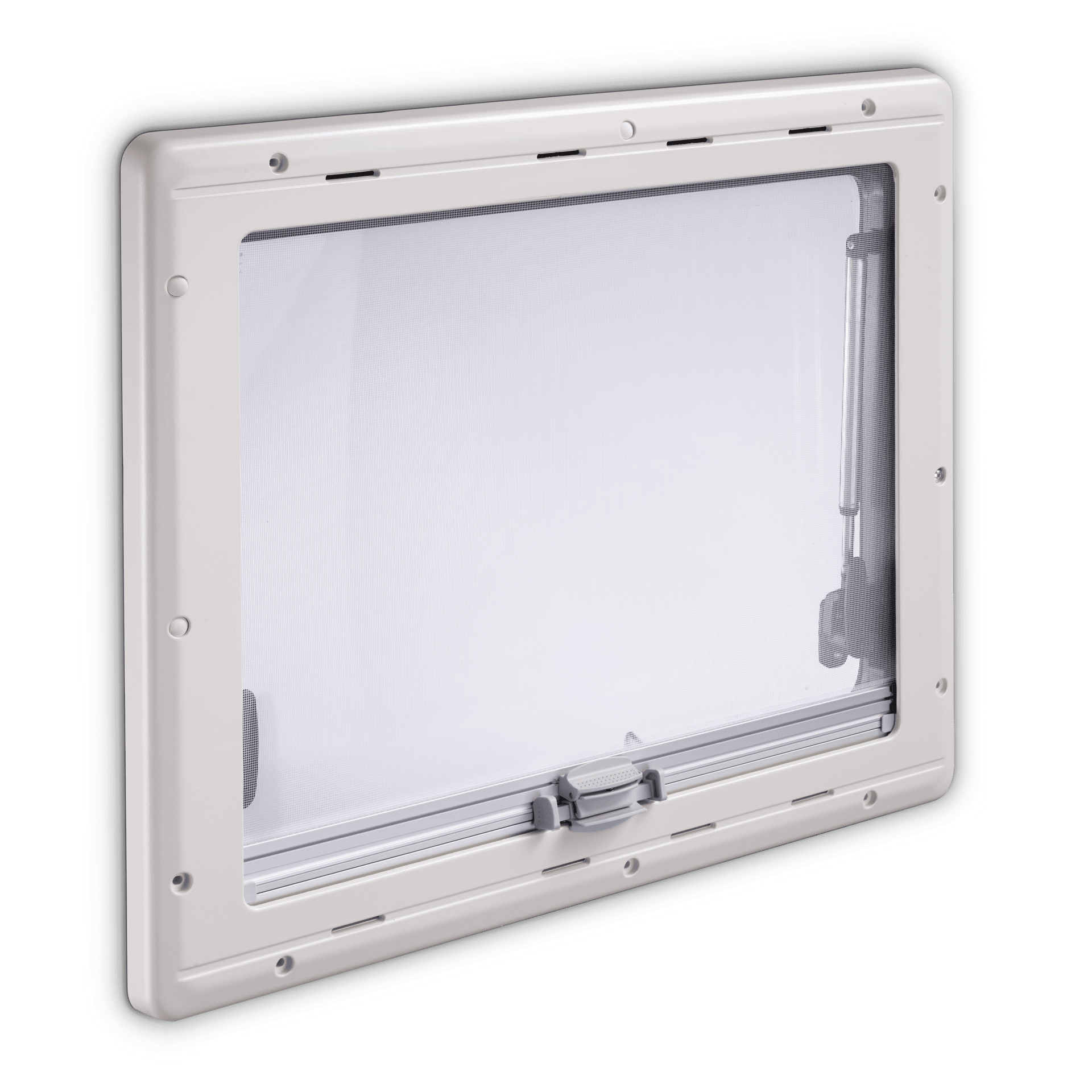

Dometic S4

Specificaties

Algemeen

Scope of delivery

S4S Top hung window with manual in box

SKUCertificates

ECE R43

Product Description

Klapraam, 500x450

Afmetingen

Dimensions product height, [mm]

480

Dimensions product width, [mm]

544

Dimensions product width, ["] - Display

21 6/16

Dimensions ordered height, [mm]

450

Dimensions ordered width, [mm]

500

Net weight, [kg]

4.80

Net weight, [lbs]

10.58

Standard mount. material thickness 1 min, [mm]

26

Standard mount. material thickness 1 max, [mm]

26

Possible material thickness 1 min, [mm]

27

Possible material thickness 1 max, [mm]

41

Cut out height, [mm]

488.000000

Cut out width, [mm]

500.000000

Eigenschappen

Hinge type

Bovenscharnierend

Positions variable

Variable

Logistiek

Dimensions parcel depth, [mm]

560

Dimensions parcel height, [mm]

185

Dimensions parcel width, [mm]

640

Parcel weight, [kg]

5.89

Parcel weight, [lbs]

12.99
