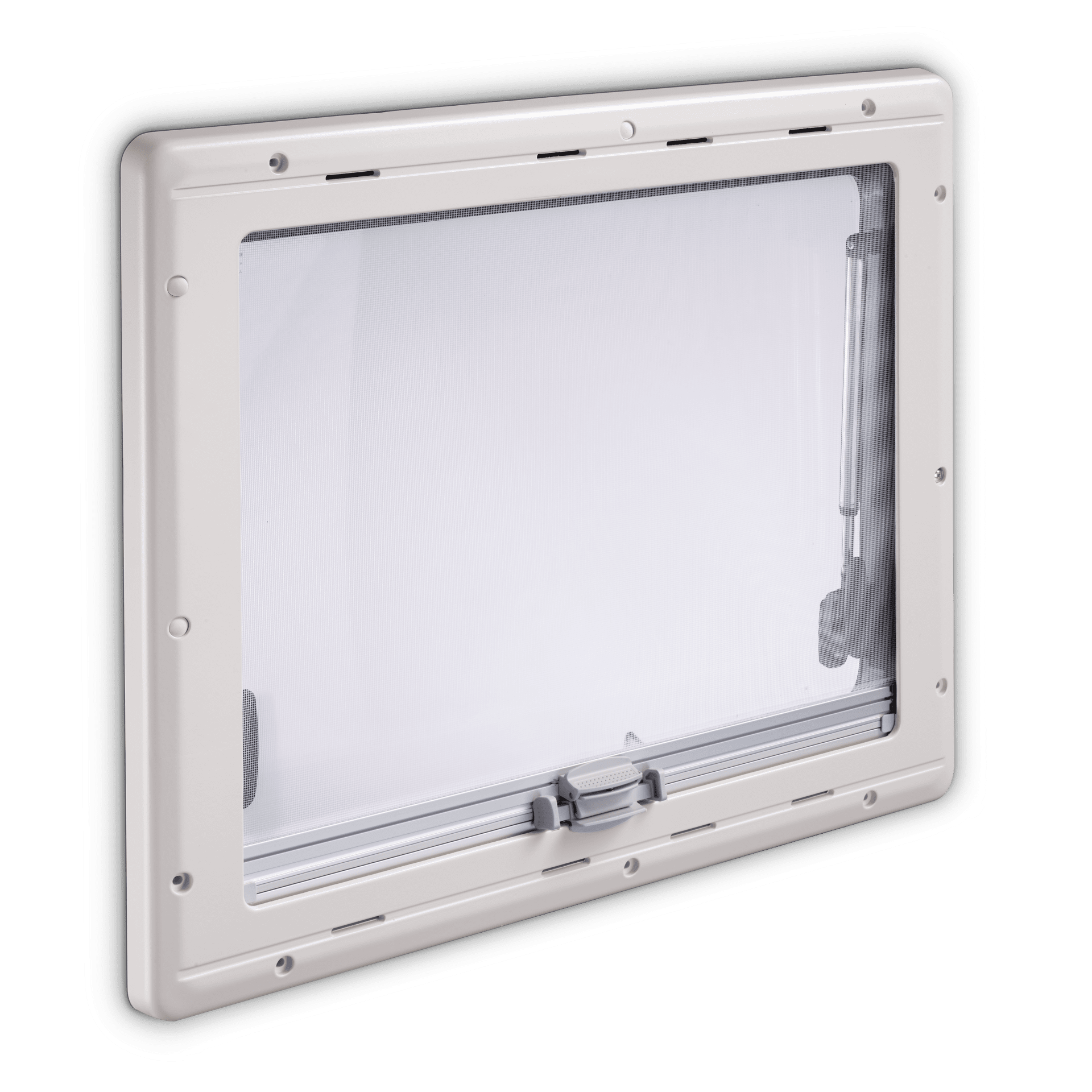

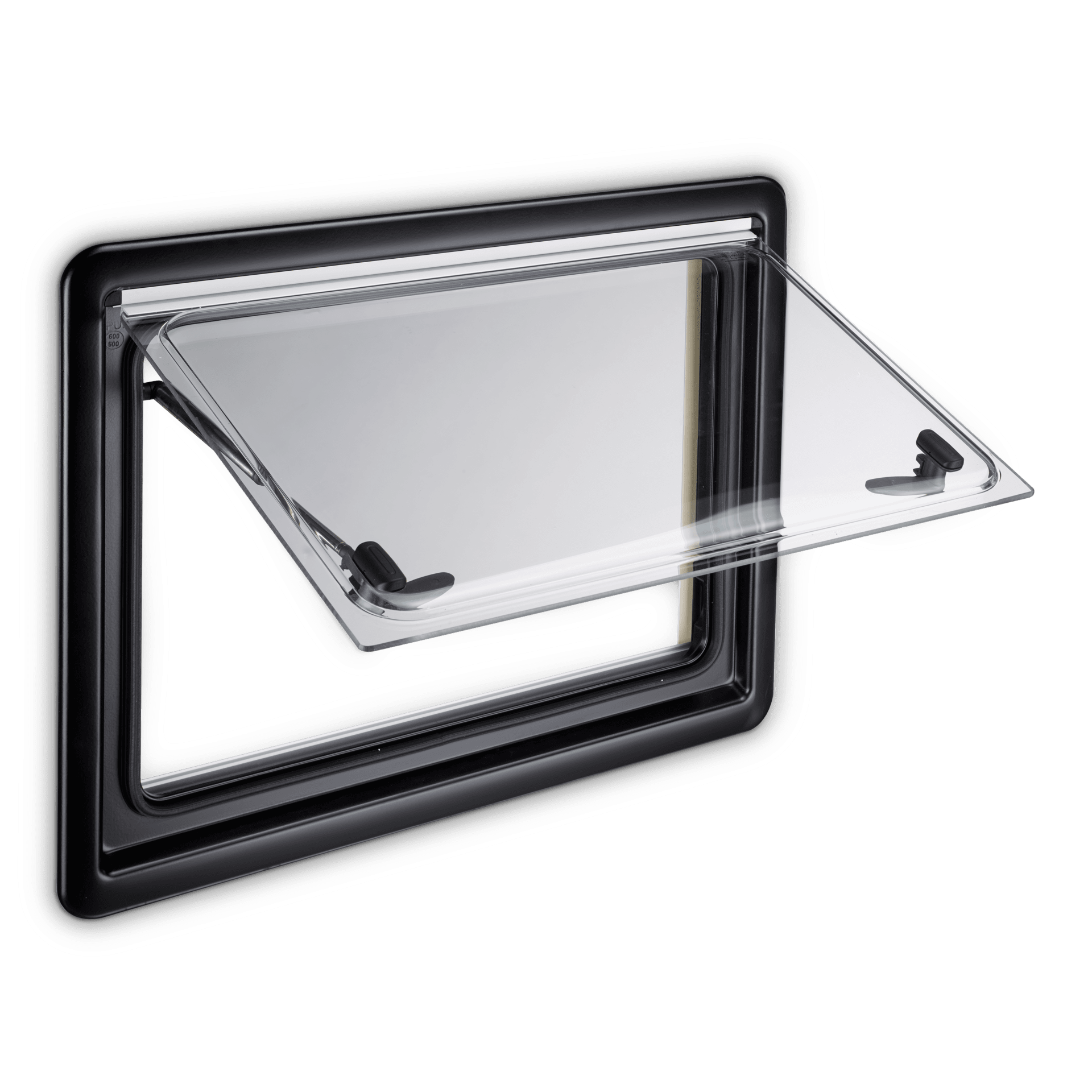

Dometic S4

Specificaties

Algemeen

Scope of delivery

S4S Top hung window with manual in box

SKUCertificates

ECE R43

Product Description

Klapraam, 1200x600

Afmetingen

Dimensions product height, [mm]

631

Dimensions product width, [mm]

1249

Dimensions product width, ["] - Display

49 2/16

Dimensions ordered height, [mm]

600

Dimensions ordered width, [mm]

1200

Net weight, [kg]

12.50

Net weight, [lbs]

27.56

Standard mount. material thickness 1 min, [mm]

26

Standard mount. material thickness 1 max, [mm]

26

Possible material thickness 1 min, [mm]

27

Possible material thickness 1 max, [mm]

41

Cut out height, [mm]

599.000000

Cut out width, [mm]

1201.000000

Eigenschappen

Hinge type

Bovenscharnierend

Positions variable

Variable

Logistiek

Dimensions parcel depth, [mm]

710

Dimensions parcel height, [mm]

185

Dimensions parcel width, [mm]

1320

Parcel weight, [kg]

14.50

Parcel weight, [lbs]

31.97
