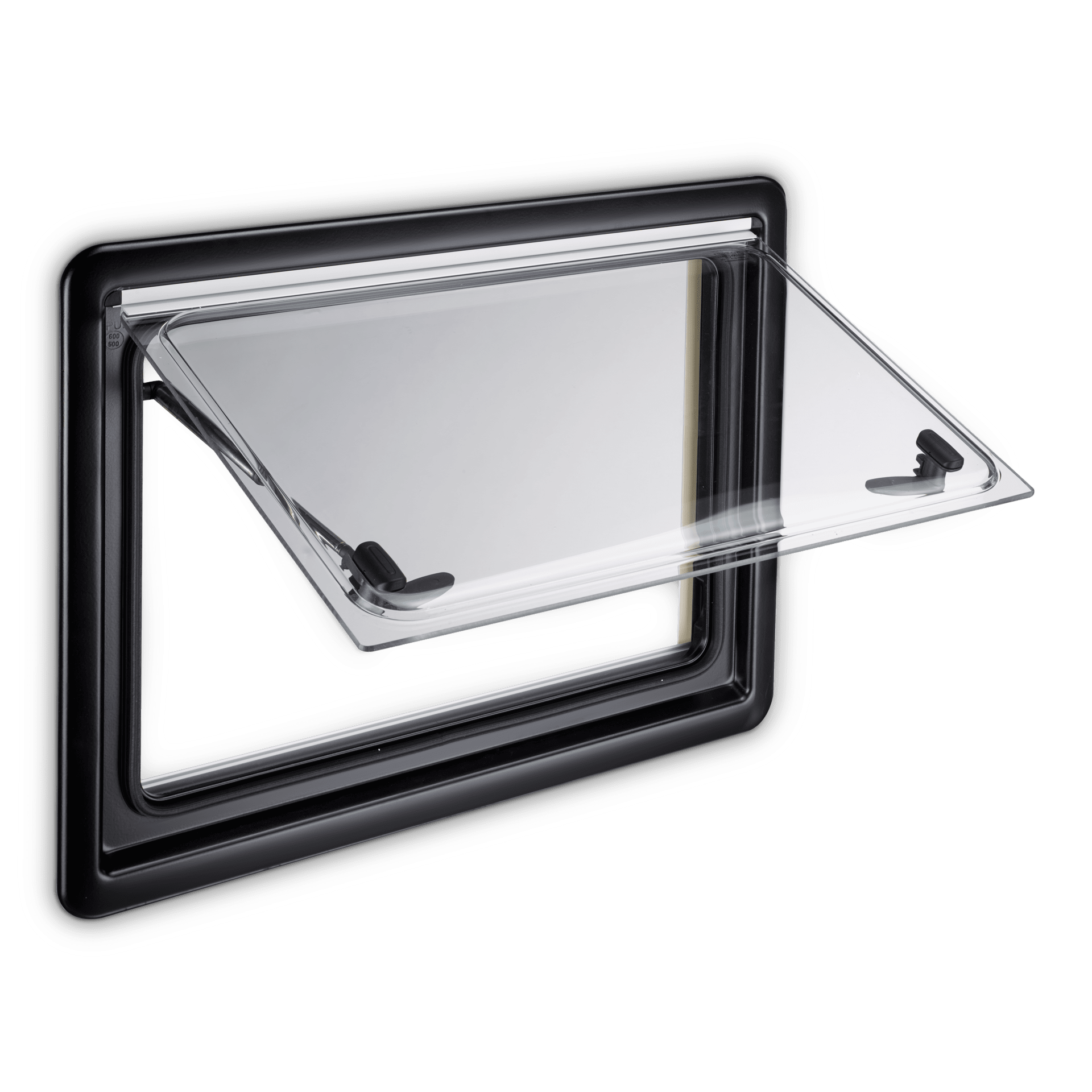

Dometic S4

Specificaties

Algemeen

Scope of delivery

S4S Top hung window with manual in box

SKUCertificates

ECE R43

Product Description

Klapraam, 900x500

Afmetingen

Dimensions product height, [mm]

531

Dimensions product width, [mm]

948

Dimensions product width, ["] - Display

37 5/16

Dimensions ordered height, [mm]

500

Dimensions ordered width, [mm]

900

Net weight, [kg]

8.40

Net weight, [lbs]

18.52

Standard mount. material thickness 1 min, [mm]

26

Standard mount. material thickness 1 max, [mm]

26

Possible material thickness 1 min, [mm]

27

Possible material thickness 1 max, [mm]

41

Cut out height, [mm]

499.000000

Cut out width, [mm]

902.000000

Eigenschappen

Hinge type

Bovenscharnierend

Positions variable

Variable

Logistiek

Dimensions parcel depth, [mm]

620

Dimensions parcel height, [mm]

185

Dimensions parcel width, [mm]

1020

Parcel weight, [kg]

9.80

Parcel weight, [lbs]

21.61
