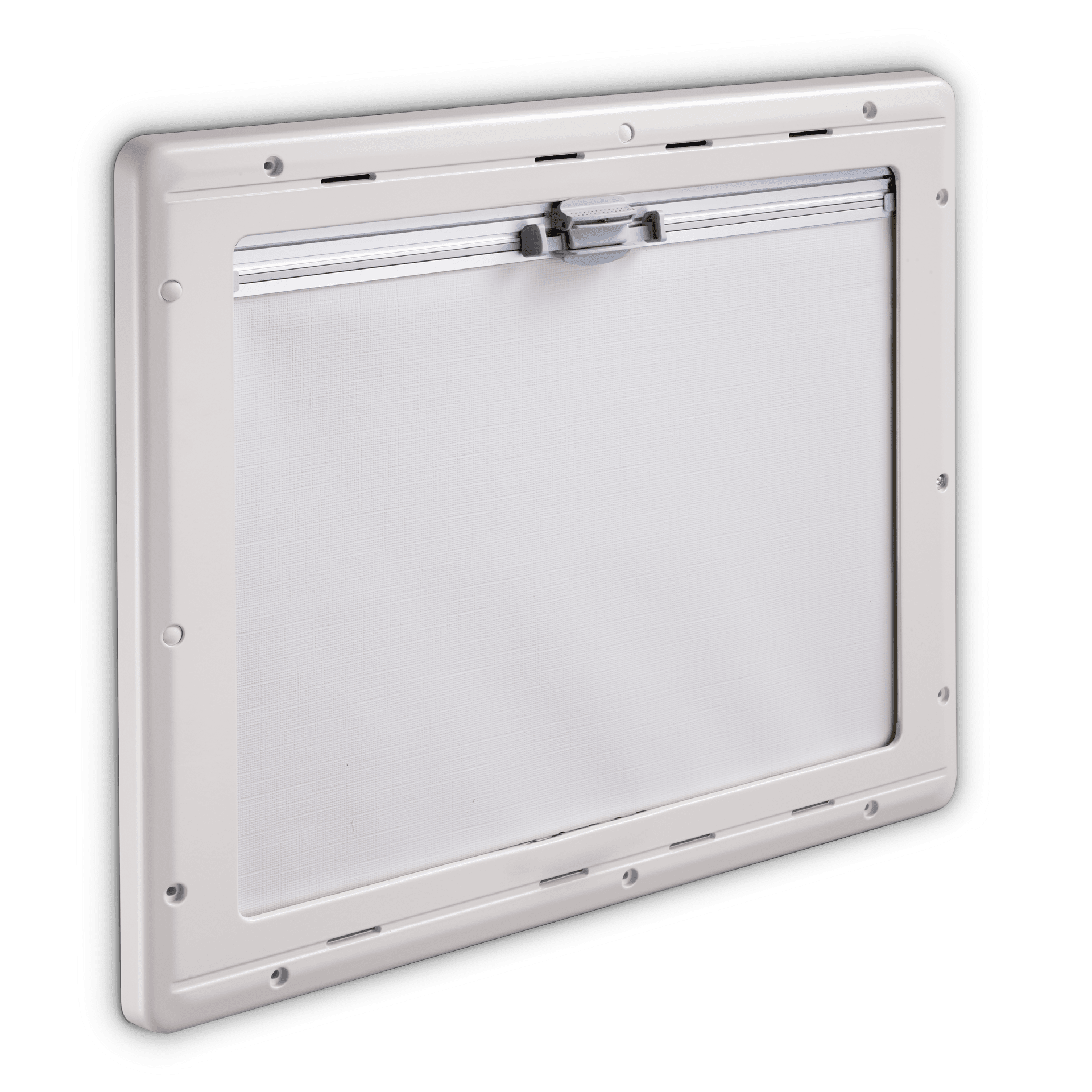

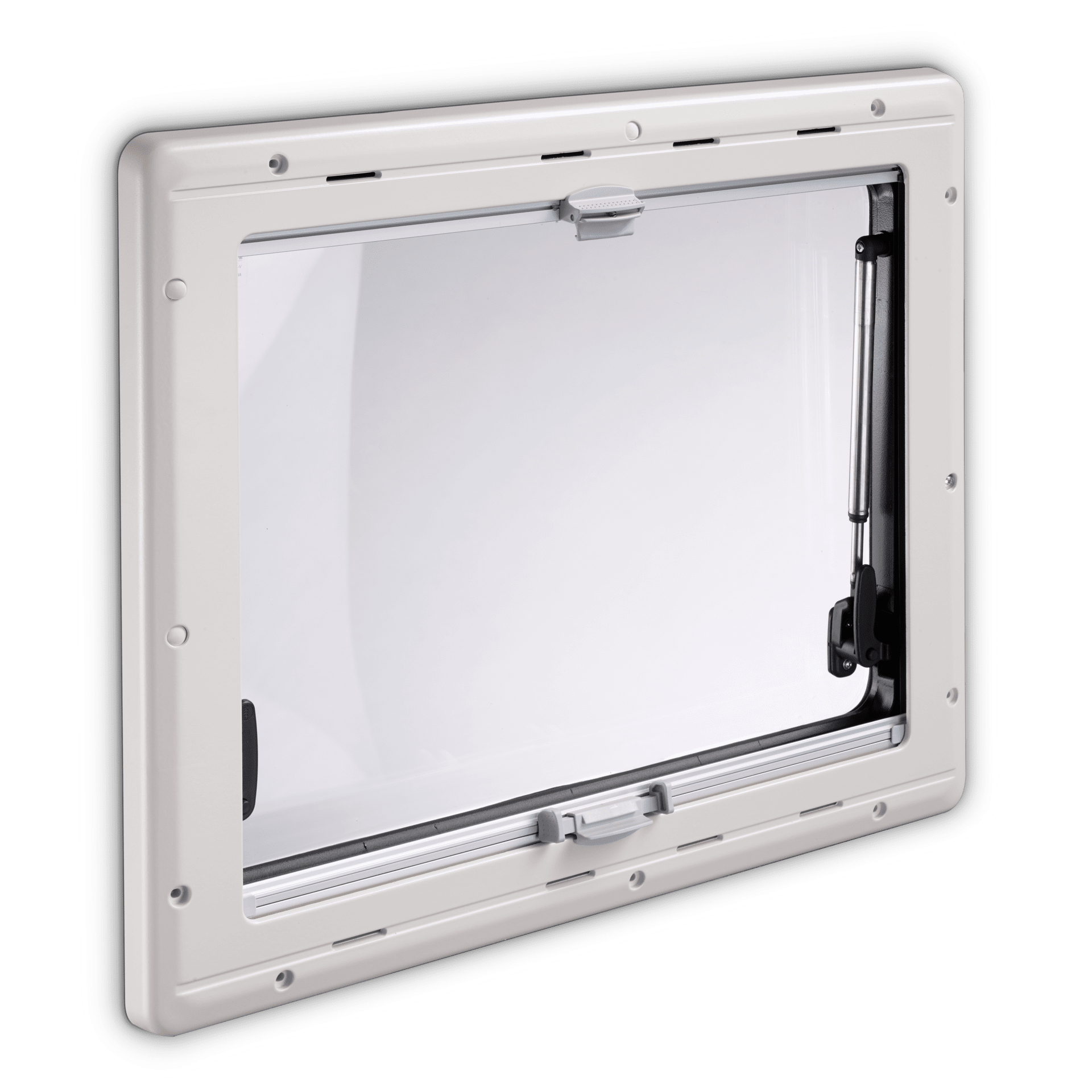

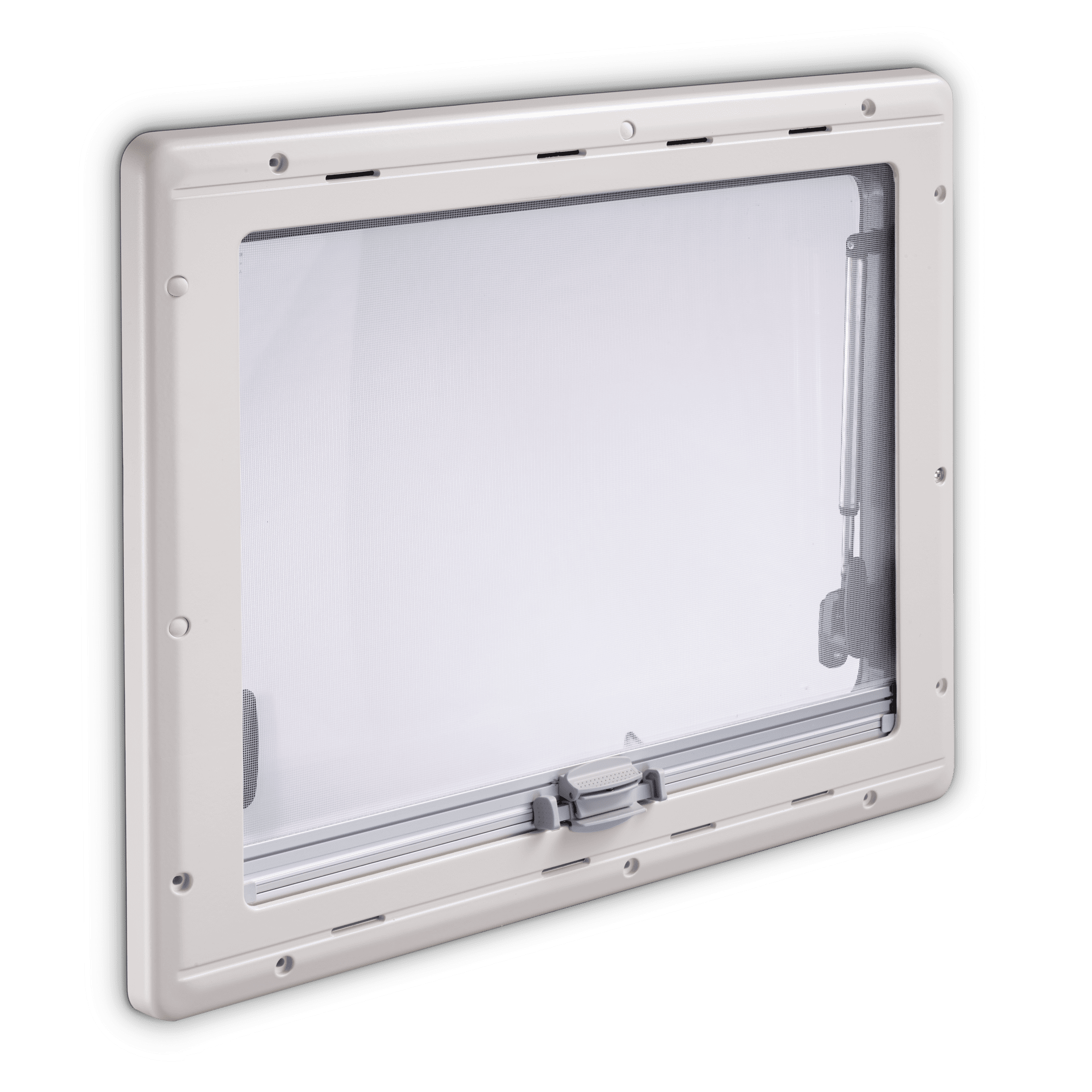

Dometic S4

Specyfikacje

Ogólne

Scope of delivery

S4S Top hung window with manual in box

SKUCertificates

ECE R43

Product Description

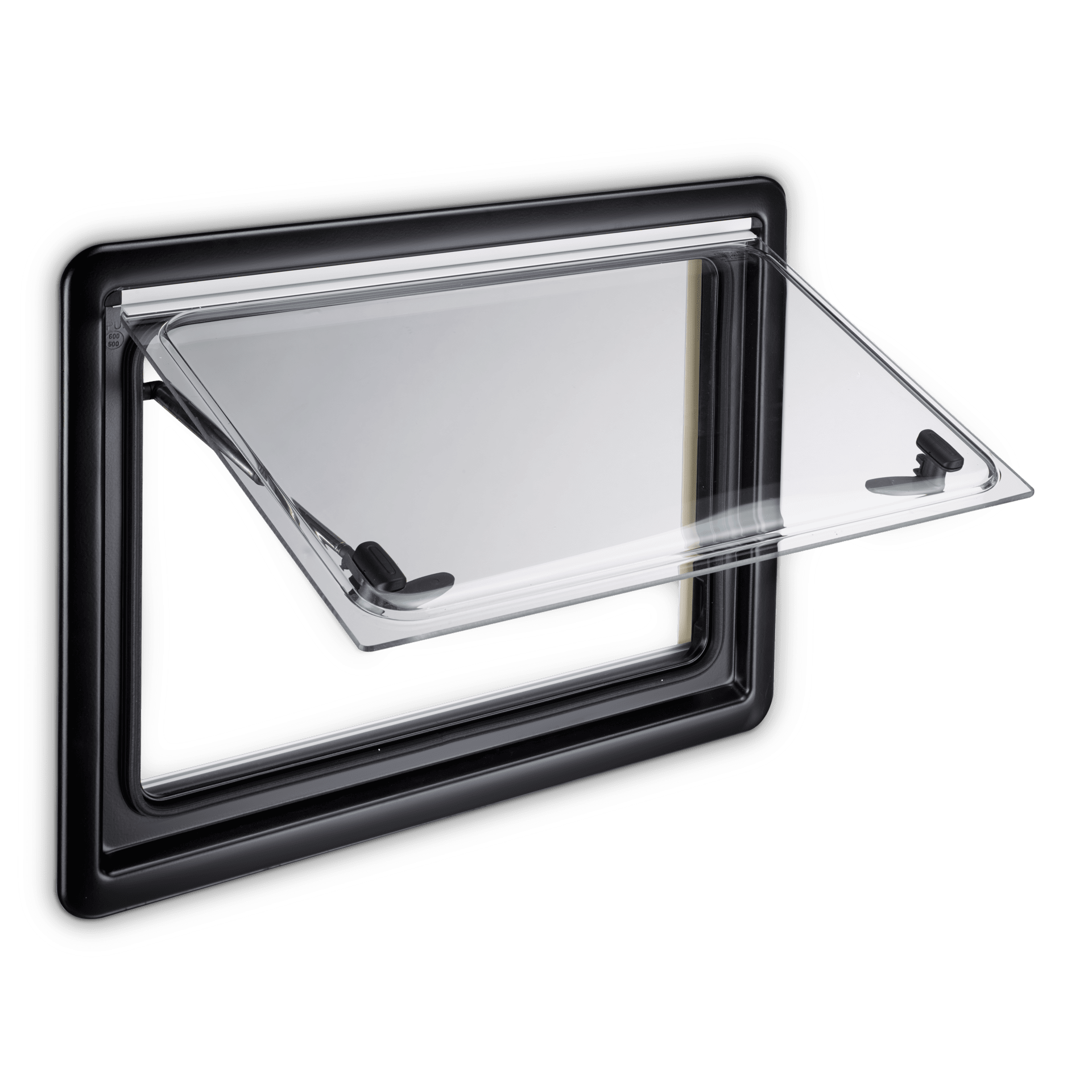

Okno uchylne z mocowaniem u góry, 1000x500

Wymiary

Dimensions product height, [mm]

531

Dimensions product width, [mm]

1048

Dimensions product width, ["] - Display

41 4/16

Dimensions ordered height, [mm]

500

Dimensions ordered width, [mm]

1000

Net weight, [kg]

9.30

Net weight, [lbs]

20.51

Standard mount. material thickness 1 min, [mm]

26

Standard mount. material thickness 1 max, [mm]

26

Possible material thickness 1 min, [mm]

27

Possible material thickness 1 max, [mm]

41

Cut out height, [mm]

499.000000

Cut out width, [mm]

1002.000000

Właściwości

Hinge type

Z mocowaniem u góry

Positions variable

Variable

Logistyka

Dimensions parcel depth, [mm]

610

Dimensions parcel height, [mm]

185

Dimensions parcel width, [mm]

1120

Parcel weight, [kg]

10.73

Parcel weight, [lbs]

23.67
