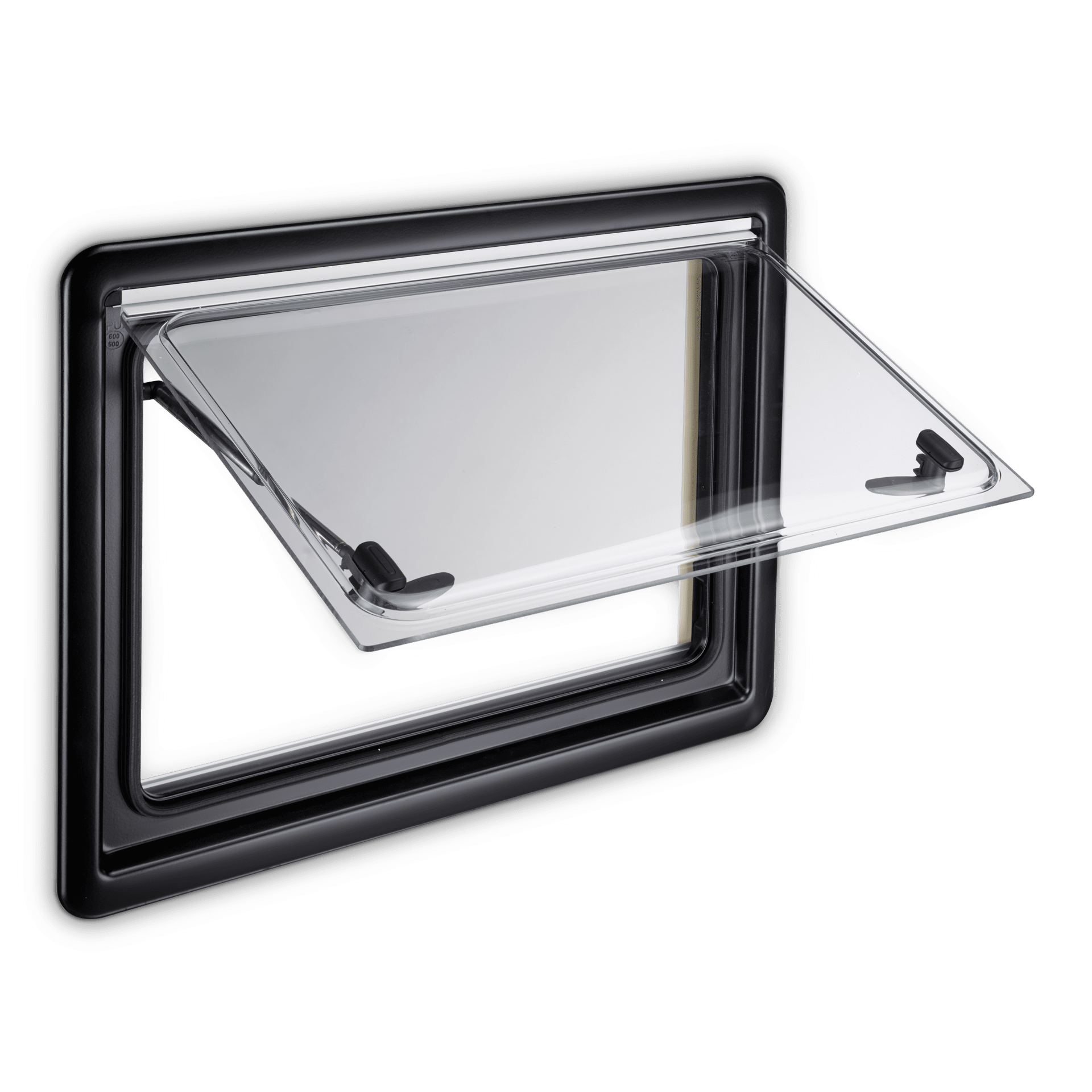

Dometic S4

Specifikationer

Allmänt

Scope of delivery

S4S Top hung window with manual in box

SKUCertificates

ECE R43

Product Description

Topphängt fönster, 900x450

Mått

Dimensions product height, [mm]

481

Dimensions product width, [mm]

948

Dimensions product width, ["] - Display

37 5/16

Dimensions ordered height, [mm]

450

Dimensions ordered width, [mm]

900

Net weight, [kg]

8

Net weight, [lbs]

17.64

Standard mount. material thickness 1 min, [mm]

26

Standard mount. material thickness 1 max, [mm]

26

Possible material thickness 1 min, [mm]

27

Possible material thickness 1 max, [mm]

41

Cut out height, [mm]

448.000000

Cut out width, [mm]

902.000000

Egenskaper

Hinge type

Topphängd

Positions variable

Variable

Logistik

Dimensions parcel depth, [mm]

570

Dimensions parcel height, [mm]

185

Dimensions parcel width, [mm]

1040

Parcel weight, [kg]

9.32

Parcel weight, [lbs]

20.54
