Description
- Variable capacity through unit's BTU range as thermal load changes
- Compact footprint
- Select from three user-adjustable amp limits: Econo, Standard, or Boost
- Electronic expansion valve for precise control of superheat
- Operates steadily at lower speeds to provide maximum efficiency
- Easy, flexible plumbing configurations with less depth needed
- Works with Dometic STIIC software to provide interactive management via smart phone, tablet, or computer, as well as secure access from Dometic global technical support

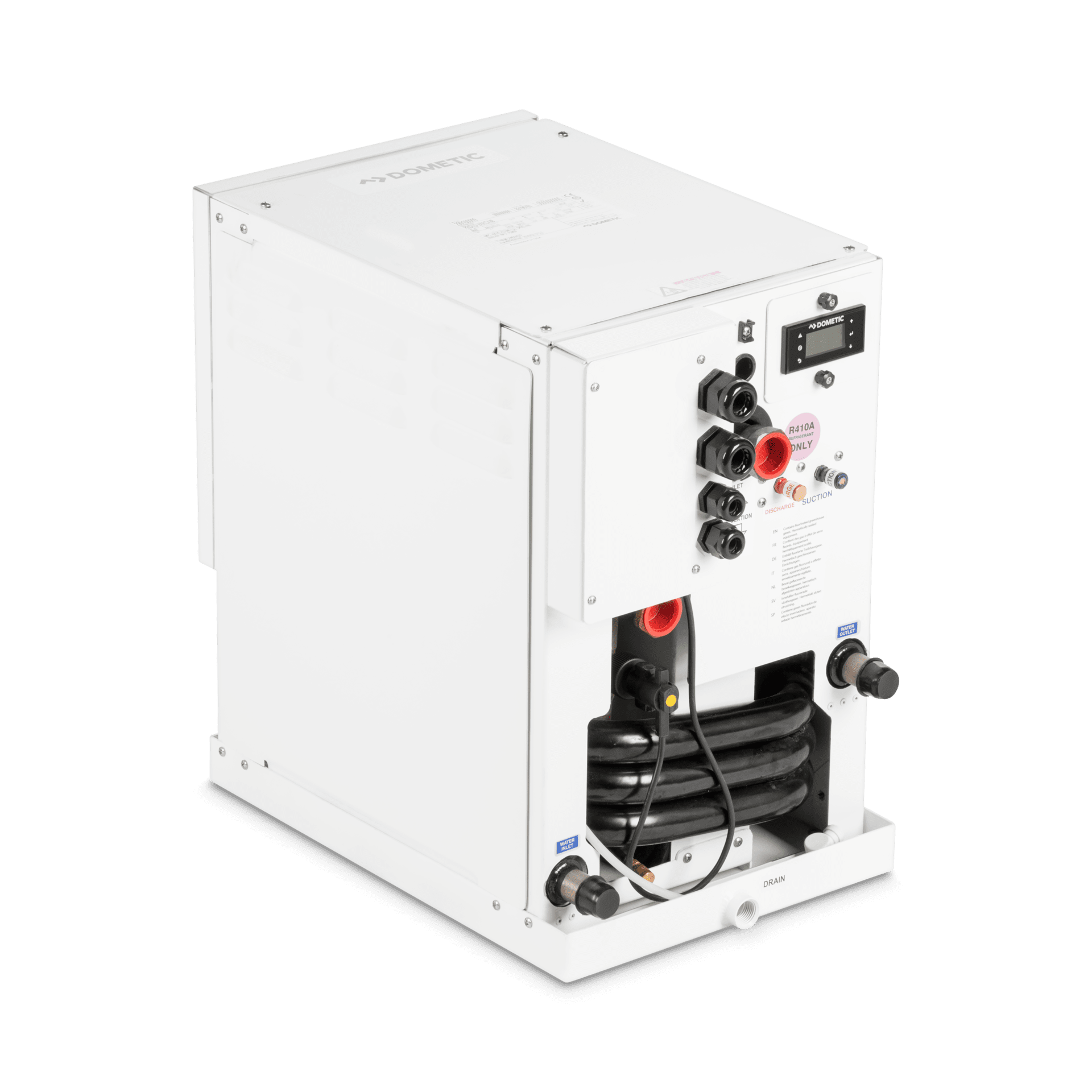

Maximize chiller efficiency and reduce electrical load fluctuations with Dometic’s innovative Variable Capacity Chiller (VARCX). Now with titanium condensers!
Specifications
SKU: 9610002667
| Model | Chiller Cond VARCX |
|---|---|
| Product Description | Variable Capacity Titanium Chiller, 72 000 BTU/h |
| Input voltage (AC), [V] | 230 |
|---|---|
| Input frequency, [Hz] | 50/60 |
| Required AC circuit protection min, [A] | 27 |
| Required AC circuit protection max, [A] | 32 |
| Hermetically Sealed | Yes |
|---|---|
| Refrigerant, type | R410A |
| GWP | 2088 |
| CO2 equivalent, [t] | 3.55 |
| Cooling Capacity ISO5151 Display | 21101 |
| Cooling Capacity Display | 72000 |
| Current consumption min cooling, [A] | 15.9 |
| Current consumption max cooling, [A] | 15.9 |
| Dimensions parcel depth, [mm] | 942.34 |
|---|---|
| Dimensions parcel height, [mm] | 889 |
| Dimensions parcel width, [mm] | 787.4 |
| Parcel weight, [kg] | 118.99 |
