Description

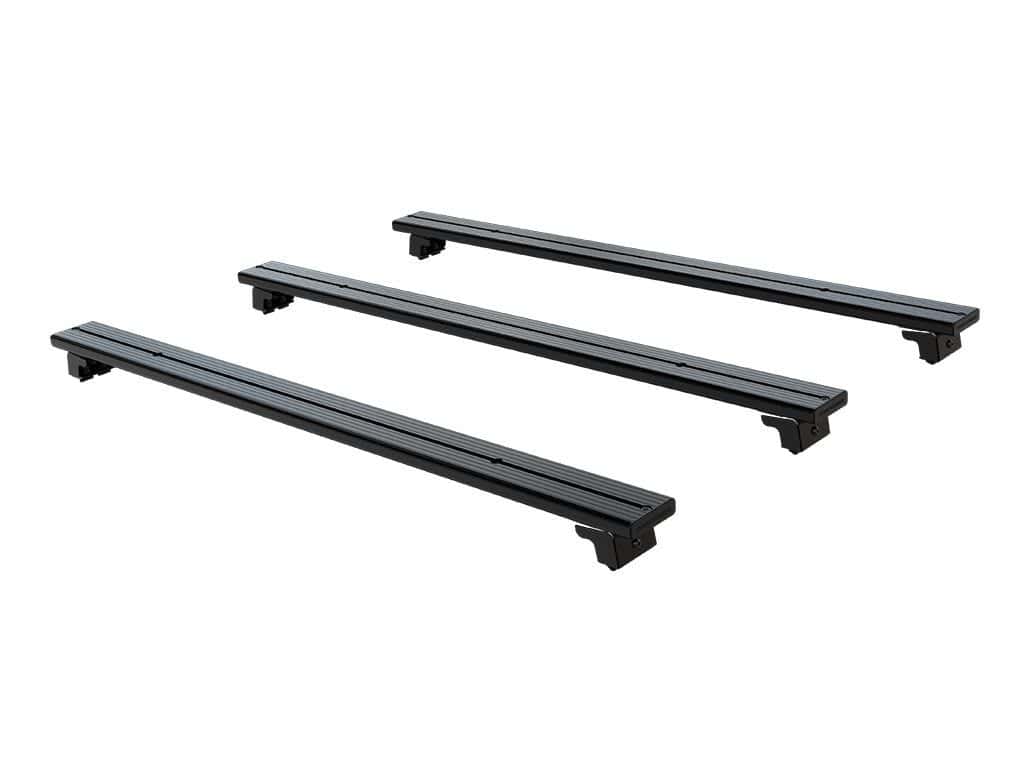

- Comes with all hardware and components needed to fit load bars on your canopy, including six (6) mounting feet, three (3) 1255mm load bars, an installation kit and fitting instructions.

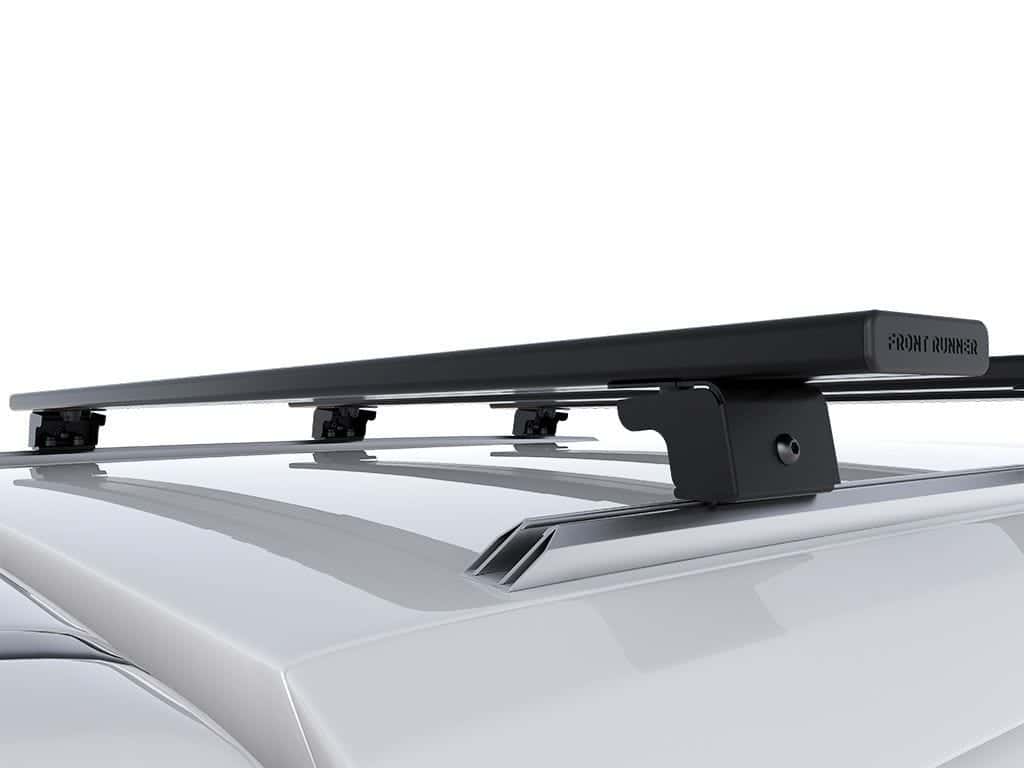

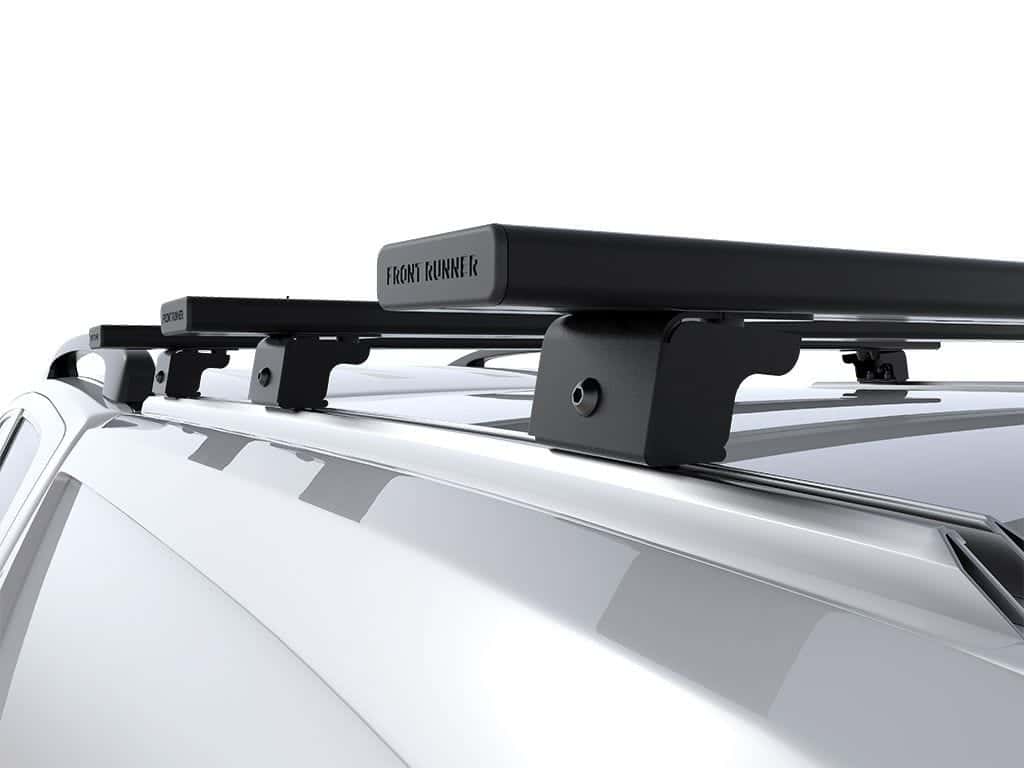

- These load bars are mounted to your canopy via a set of supplied mounted feet.
- Uses the same strong, corrosion-free aluminum slats found in Dometic Front Runner Series Racks.

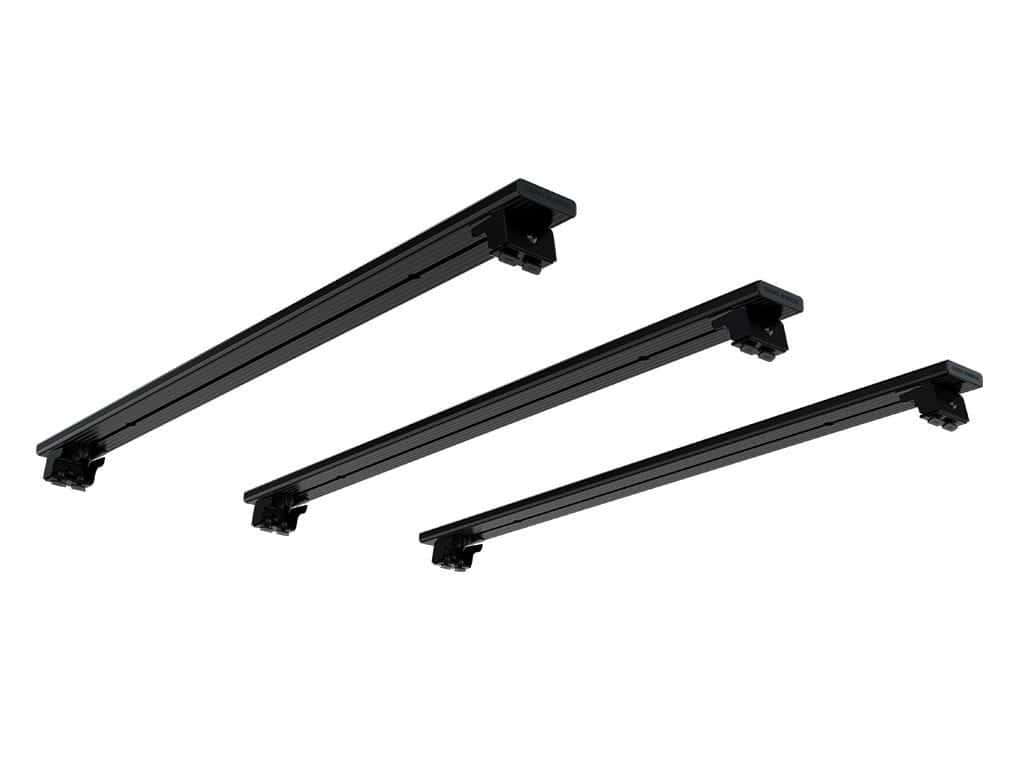

- The sliding nut t-slots allow for quick fitting and removal of accessories and equipment on both the top and bottom of the slats.
- The load bars and mounting system can be used in the future as components to build a complete Dometic Front Runner Series roof rack.
- Made from steel and durable, weather-resistant black powder-coated aluminum.

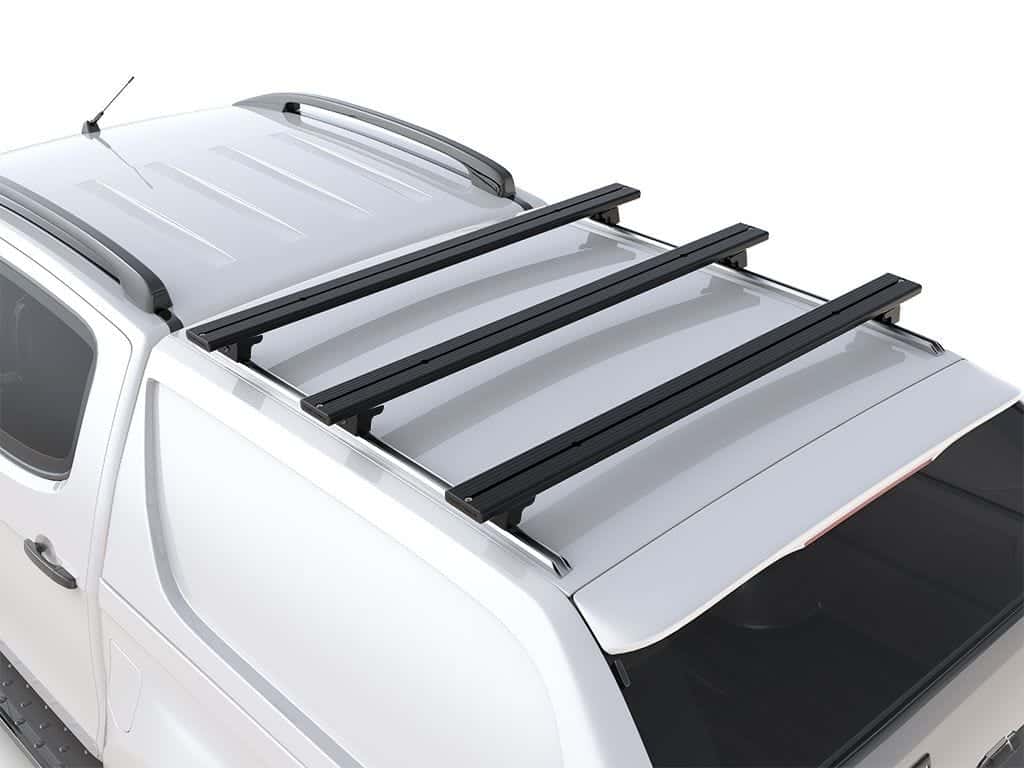

- This Canopy Kit is compatible with RSI, RLD, AluCab, OVS, Westin, LEER, ARE, SnugTop Canopies and more.
Note: The load per Load Bars must not exceed 55lbs or 25kg, and ensure the load is distributed evenly. For larger loads, additional Load Bars may be needed, please contact Customer Service for any enquiries.
Specifications
SKU: KRCA017
KRCA017 - Canopy Trip Load Bar Kit / 1255mm
Consisting of:
3x FASS024 - Foot Set / 50mm - 60mm
1x LBSK021 - Roof Load Bar Set 1255mm(W)
3x RRAC921 - Canopy Rack Kit Installation Set
Material Used:
Black epoxy powder - coated T6 aluminium
Approximate Installed Weight: 8kg (17.64lbs)
The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.
To determine the approximate height from your vehicle’s roof to the top of your Load Bar Kit, add the height of the Load Bar (22mm/ 7/8") to the height of the Foot, Grab-On Foot, or Strap-On Foot listed above.
If your Load Bar kit uses Legs, add the height of the Load Bar (22mm/ 7/8") to the height of the Legs listed above to determine the height of the rack from your vehicle's rain gutters.
If your Load Bar kit uses Foot Rails, add the height of the Load Bar (22mm/ 7/8") to the height of the Foot Rails listed above to determine the height of the rack from the crown (highest point) of the vehicles roof.
Shipping Dimensions:
Width: 130mm (5")
Length: 1375mm (54")
Height: 200mm (8")
Shipping Weight:
Weight: 8kg (18lbs)
