Dometic MO 9722R

Technical Information

Color

Black

Brand

Dometic

Model

Slimline

Scope of delivery

AM version with double-colored top-lid, RH sink, 12V ignition, EN30-1-1 compliant (gas shut-off + soft close hinges)

EAN-13

7392991002600

Publication Model Name

Dometic MO 9722R

Product Description

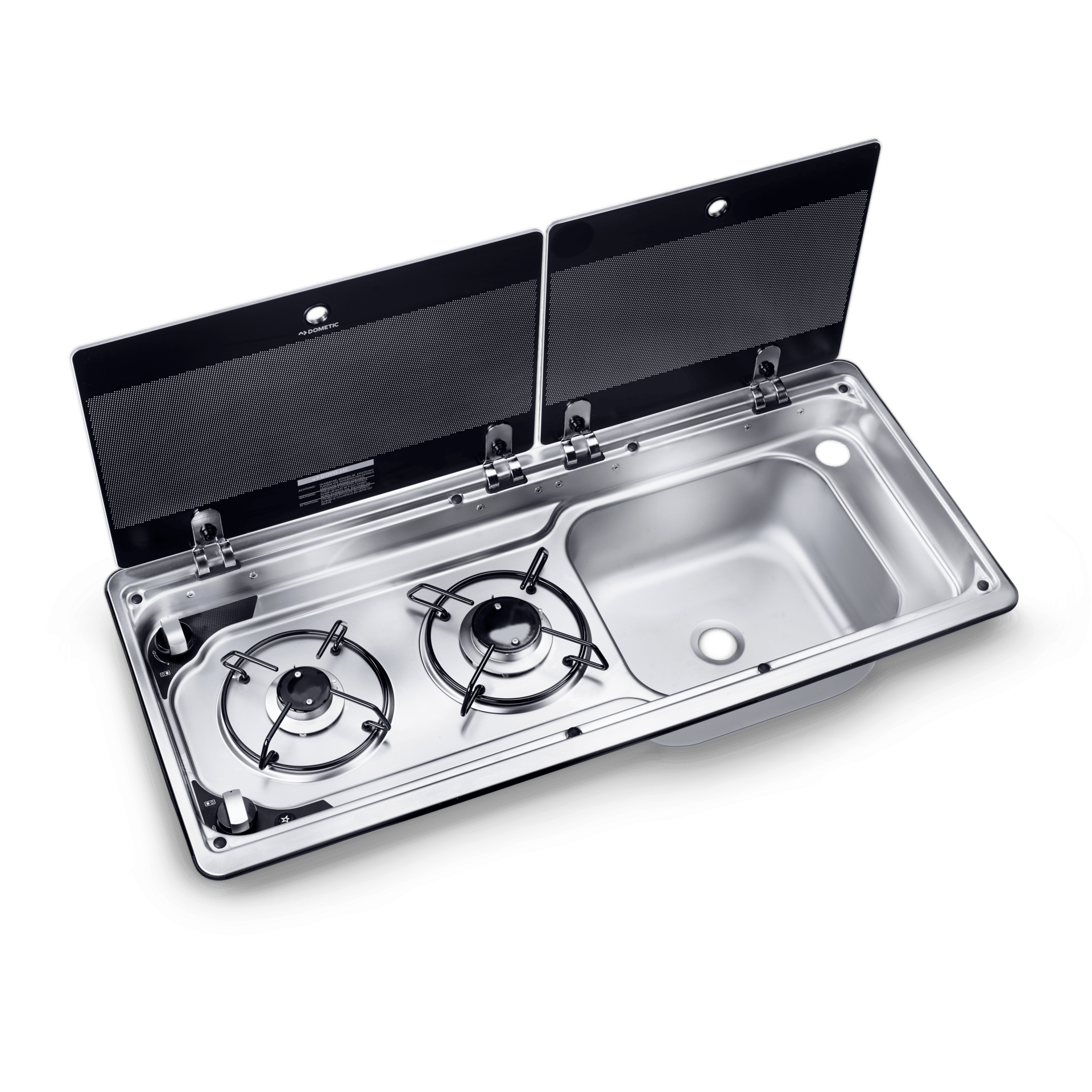

Two-burner hob and sink combination with glass lid, 760 x 325 mm, 12 V ignition

Dimensions product depth, [mm]

325

Dimensions product height, [mm]

175

Dimensions product width, [mm]

760

Net weight, [kg]

5.30

Net weight, [lbs]

11.69

Dimensions parcel depth, [mm]

415

Dimensions parcel height, [mm]

240

Dimensions parcel width, [mm]

832

Parcel weight, [kg]

7.60

Parcel weight, [lbs]

16.76

SKUCertificates

CE

Input voltage (DC), [V]

12

Output cooker plate 1, [kW]

1.100000

Output cooker plate 2, [kW]

1.800000

Gas consumption grill, [g/h]

204.000000

Number of burners

2

Operating pressure, [mbar]

30.000000

Gas pressure (DIN732), [mbar]

30

Gas category

Butane (G30, EU), Propane (G31, EU)

Cut out depth, [mm]

312.500000

Cut out height, [mm]

178.000000

Cut out width, [mm]

742.000000

Dimensions product width, ["] - Display

29.92

Item Description

MO9722R AM 2-burners combination - 2 glass lids, 12V ignition
