Description
- Double acrylic glazing and polyurethane frame for excellent insulation
- Built-in aluminum-coated darkening blind
- Practical fly screen keeps insects out
- Quick and easy installation
- Friction hinges allow opening to any position (top-hung version)

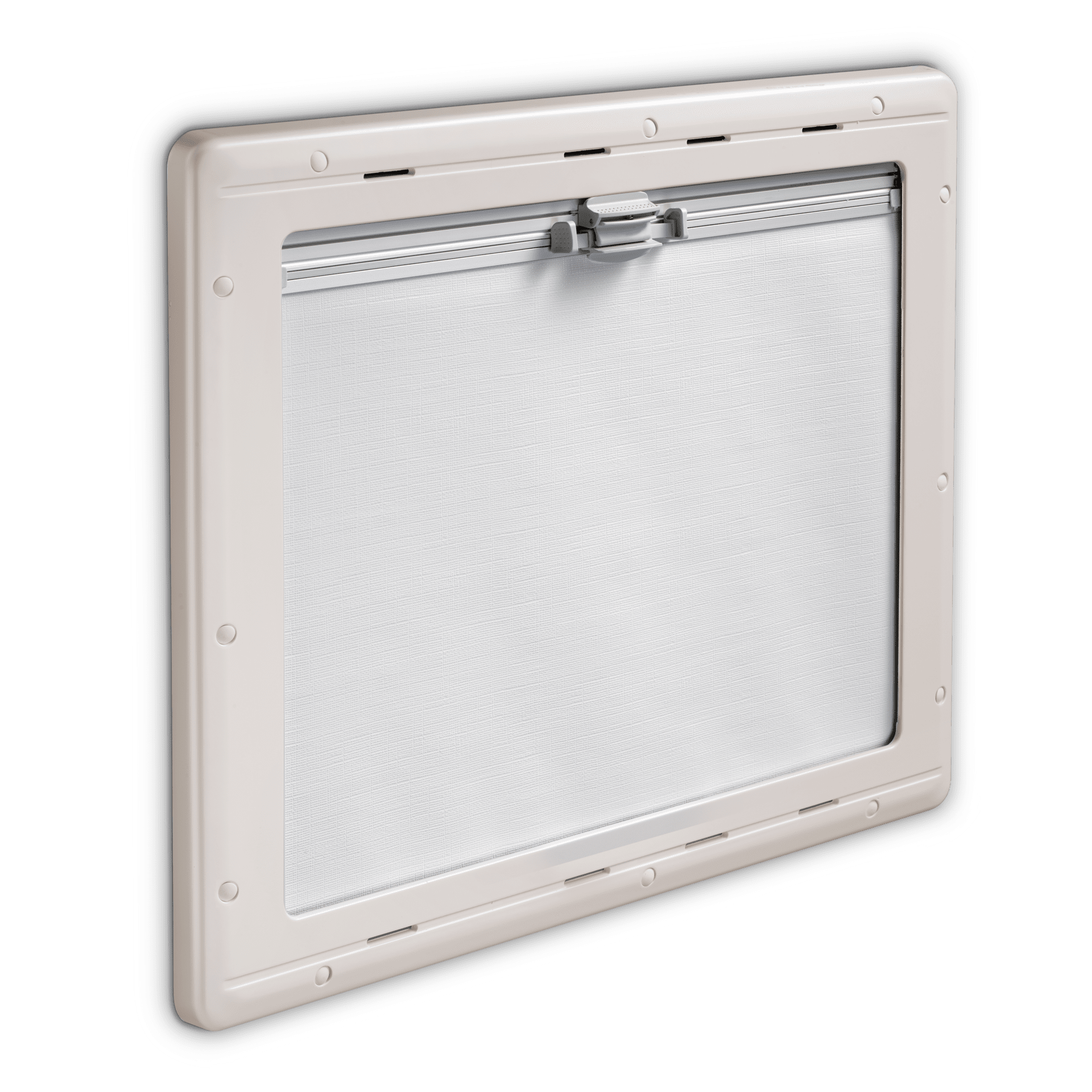

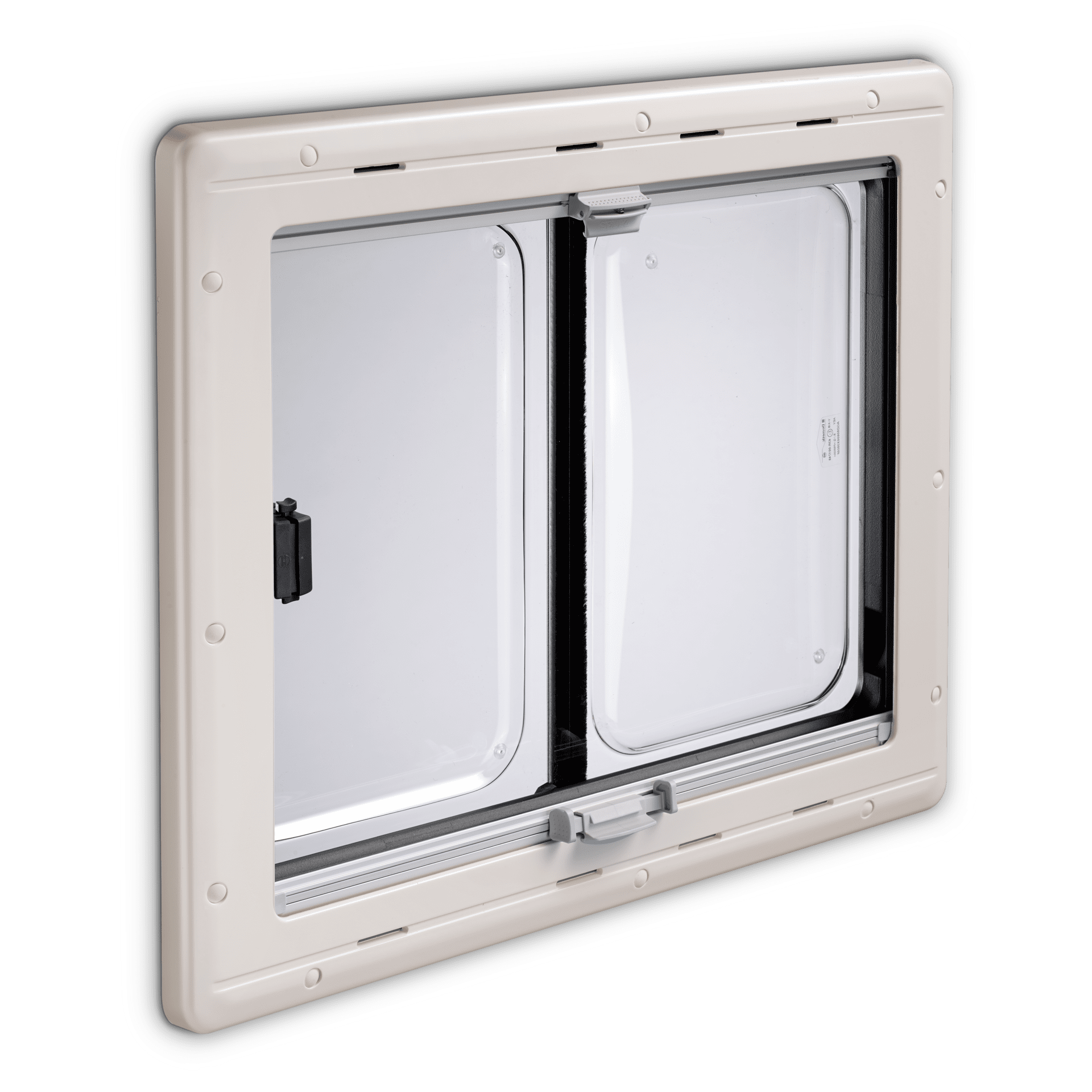

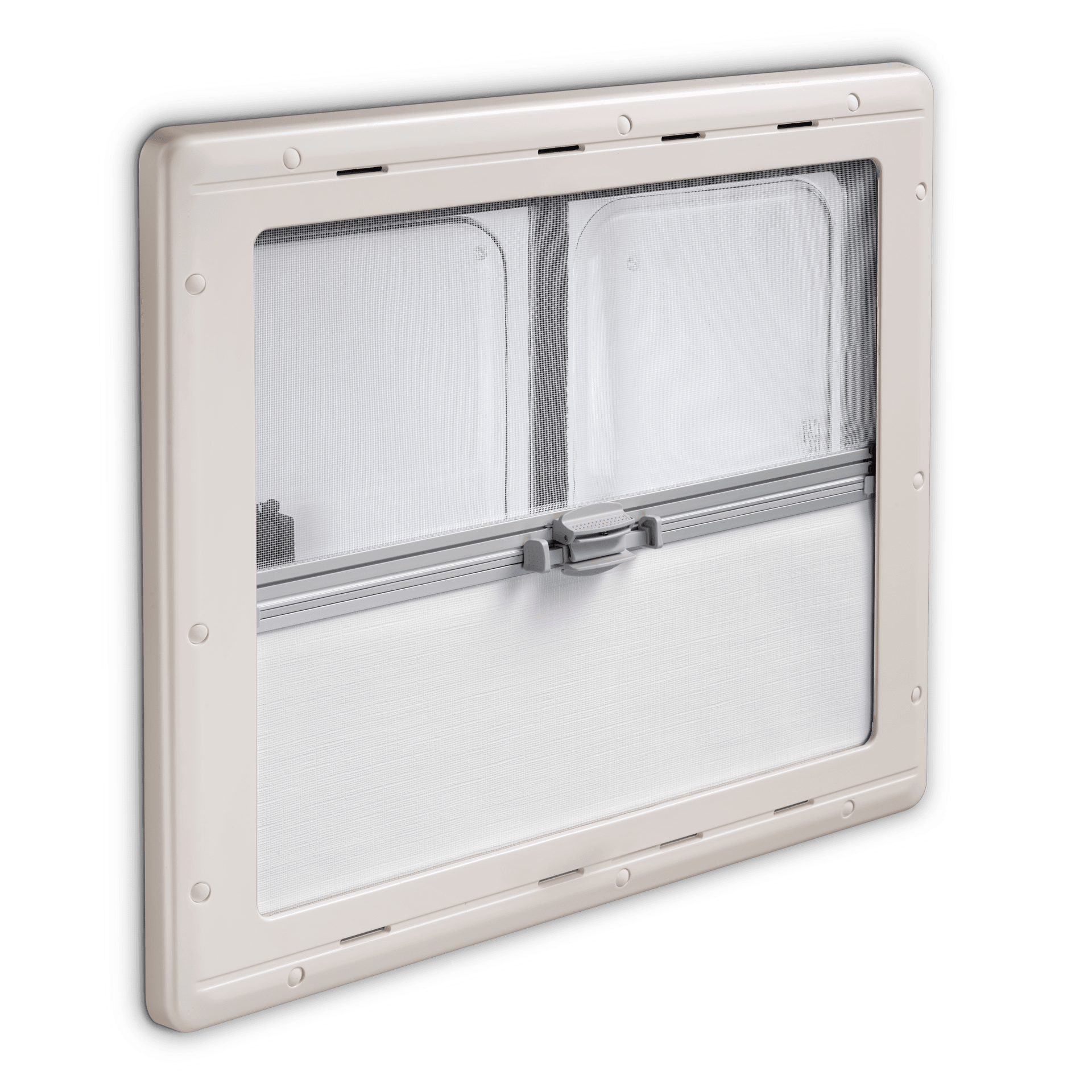

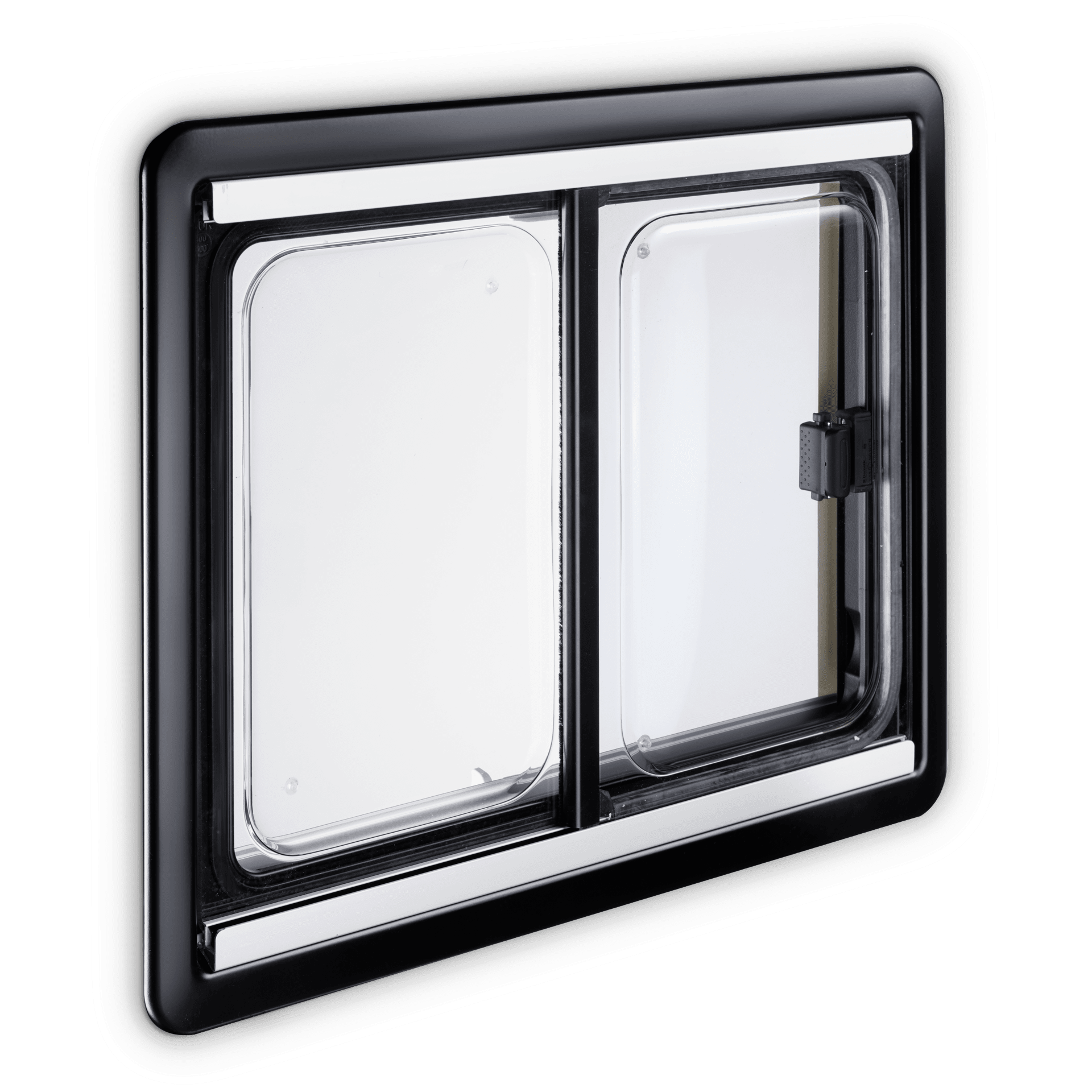

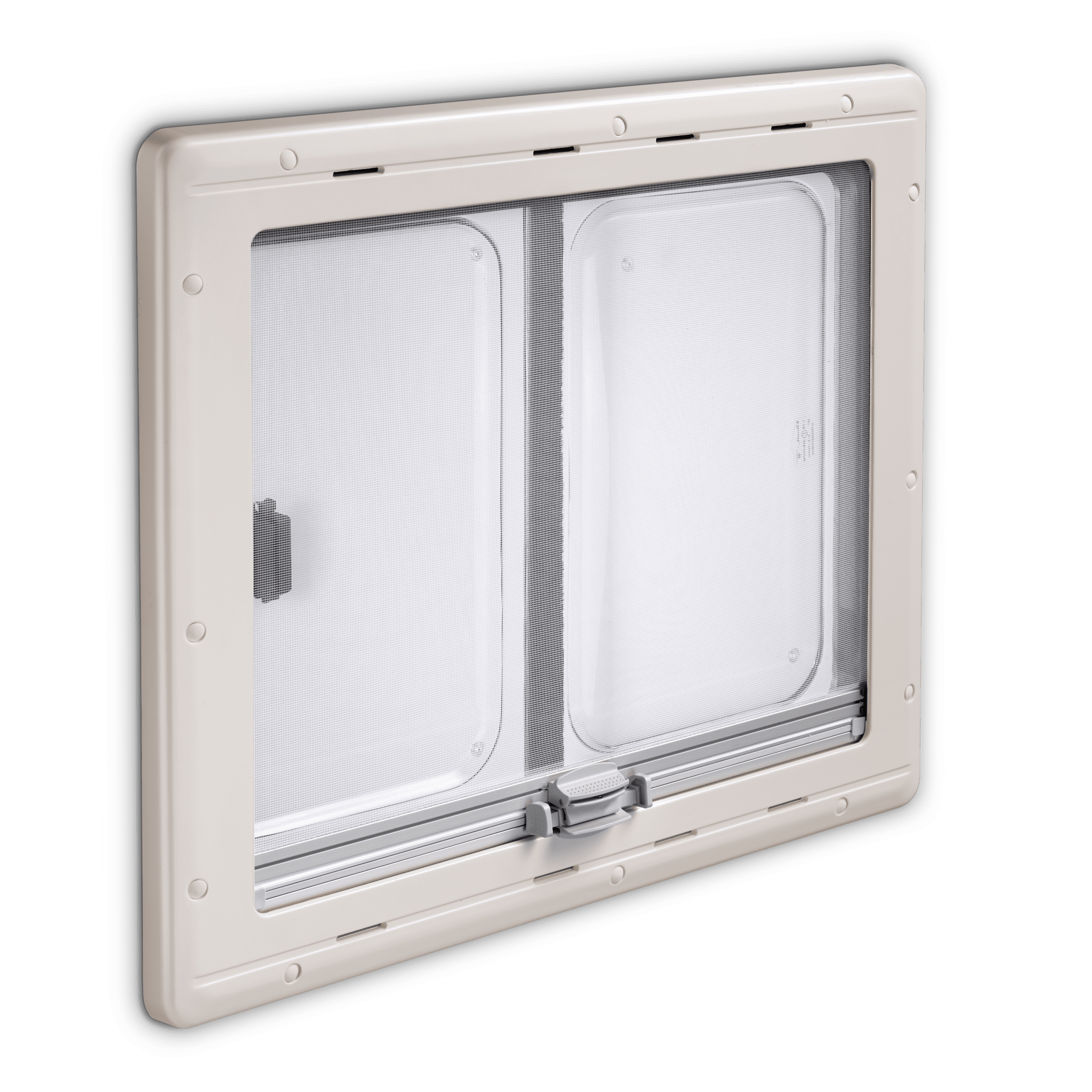

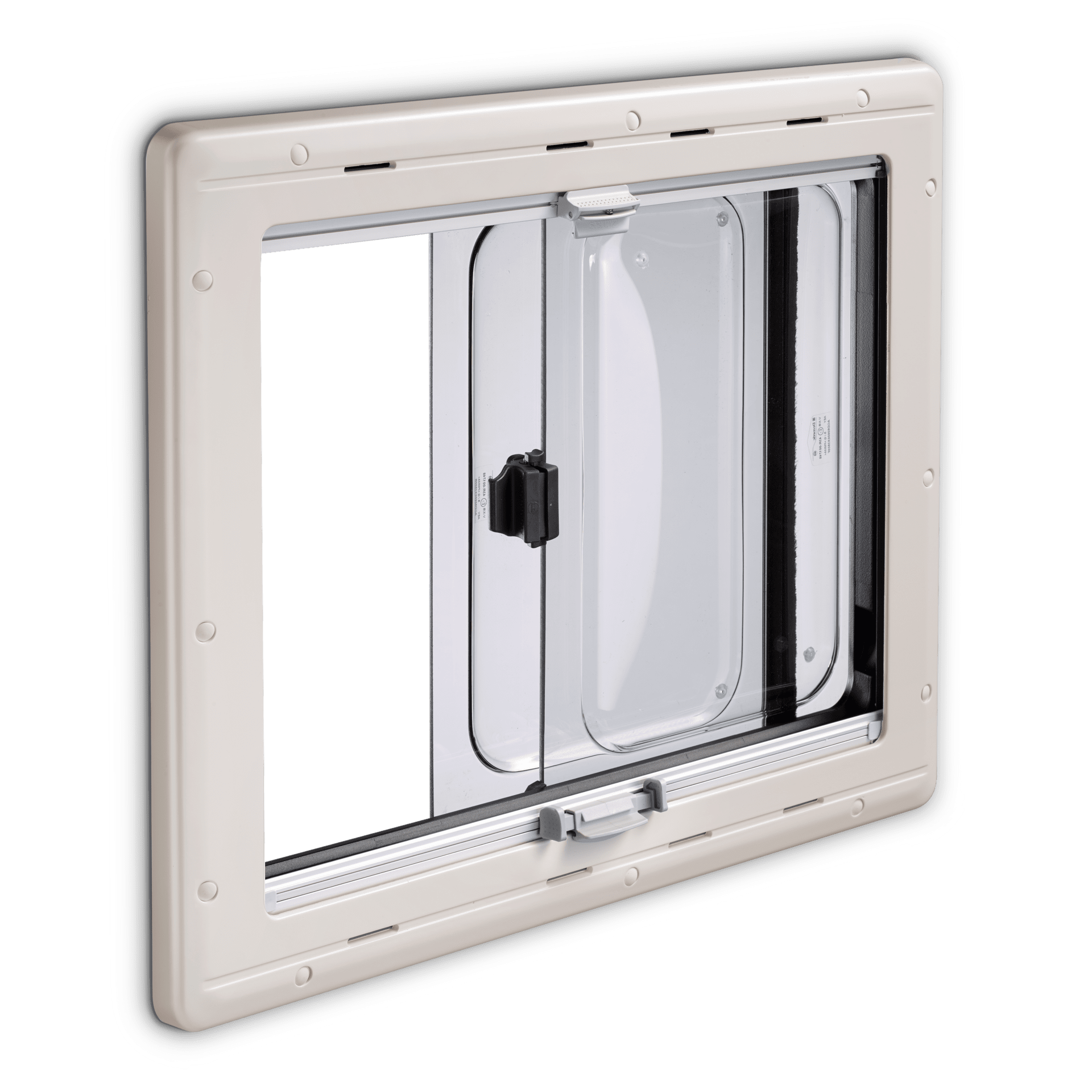

Looking for a top-quality, attractive window to enhance the side of your motorhome or caravan? This model boasts superb workmanship, materials, and operating convenience.
Specifications
SKU: 9104100141
| Model | S4S |
|---|---|
| Scope of delivery | S4S Window with manual in box |
| SKUCertificates | ECE R43 |
| Product Description | Sliding window, 500 x 450 |
| Dimensions product height, [mm] | 480 |
|---|---|
| Dimensions product width, [mm] | 544 |
| Dimensions ordered height, [mm] | 450 |
| Dimensions ordered width, [mm] | 500 |
| Net weight, [kg] | 5 |
| Standard mount. material thickness 1 min, [mm] | 26 |
| Standard mount. material thickness 1 max, [mm] | 26 |
| Possible material thickness 1 min, [mm] | 27 |
| Possible material thickness 1 max, [mm] | 41 |
| Cut out height, [mm] | 448 |
| Cut out width, [mm] | 500 |
| Positions variable | Variable |
|---|
| Dimensions parcel depth, [mm] | 560 |
|---|---|
| Dimensions parcel height, [mm] | 185 |
| Dimensions parcel width, [mm] | 640 |
| Parcel weight, [kg] | 6 |
