Description

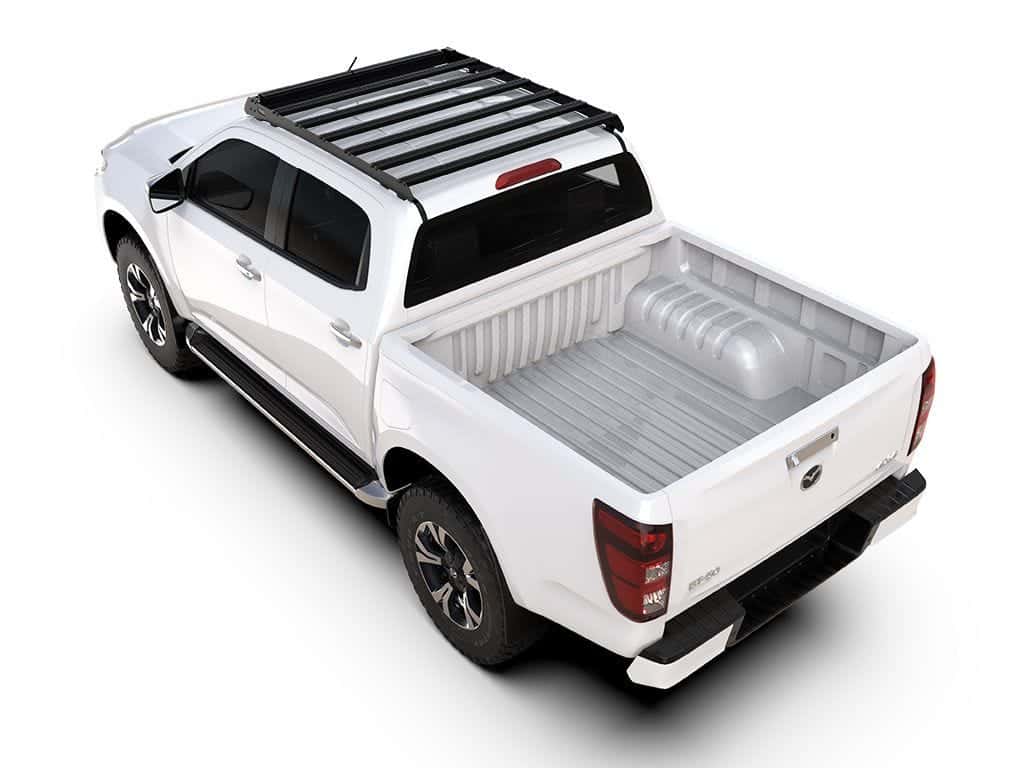

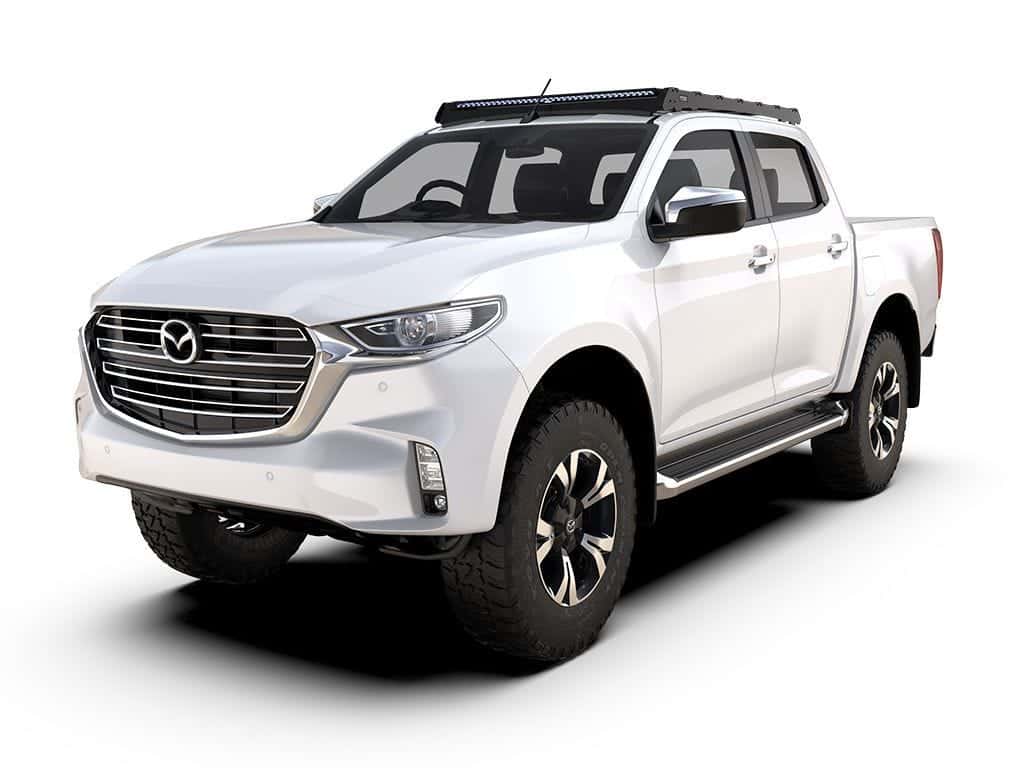

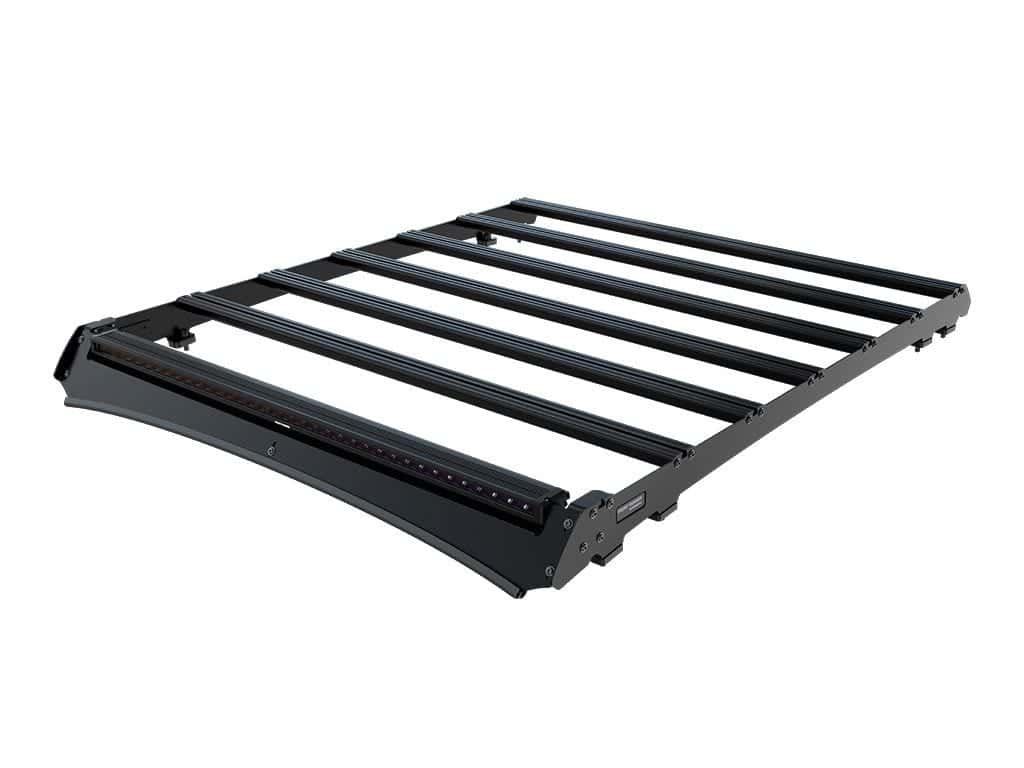

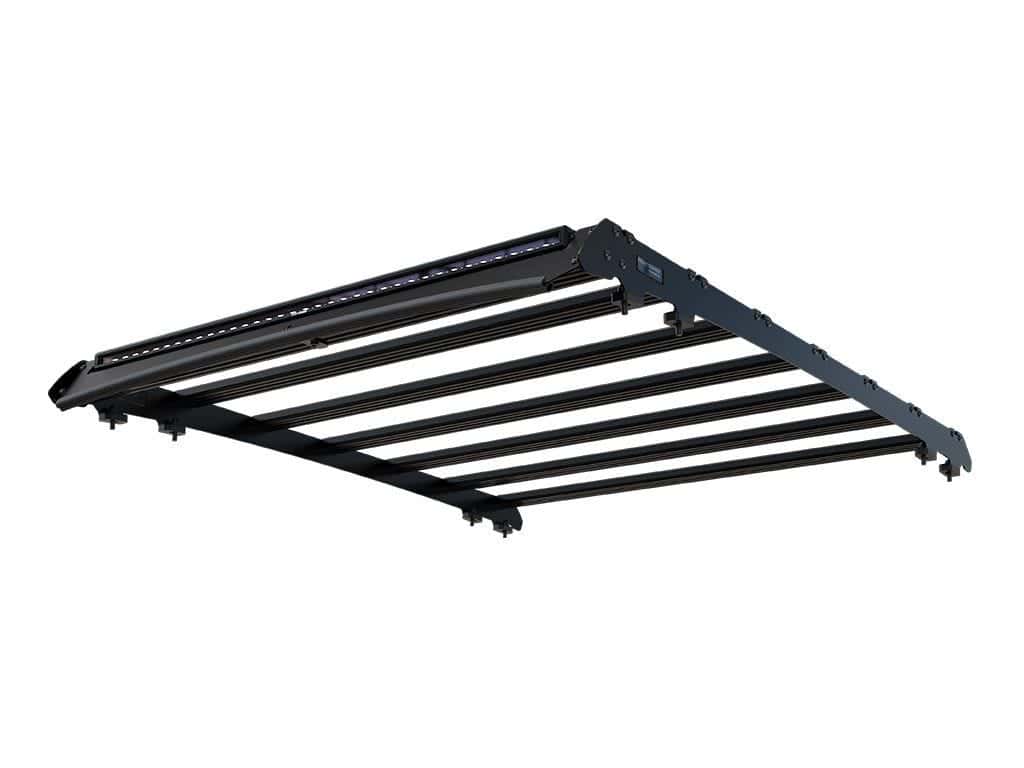

- This low-profile flat deck Slimsport rack has a load carrying area of 1384mm (54.5") x 1141mm (44.9").
- The top of the Slimsport rack is only 50mm (2") above the crown of the roof.
- The sleek side rails have integrated mounting feet. The mounting feet also have additional brace brackets for added strength.
- The high-strength aluminum slats have T-slots suitable for all Front Runner top mount accessories.
- Easily add on the Slimsport Side Mount Accessory Bracket / Small for most Front Runner side mount accessories (sold separately).

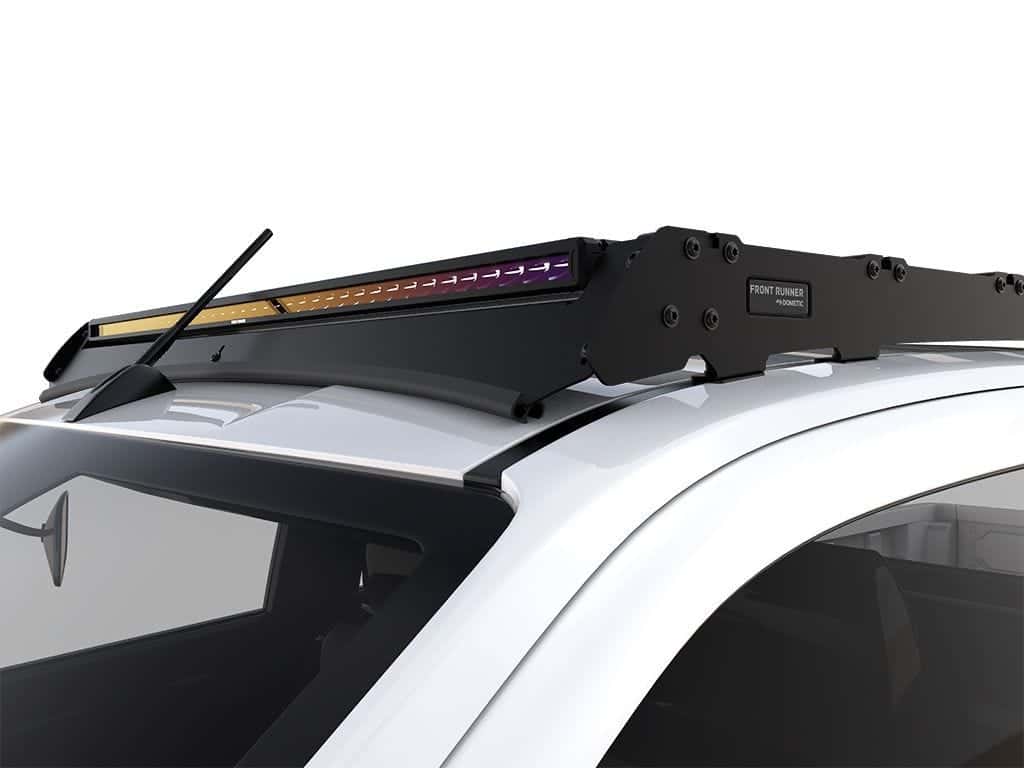

- Included in the Mazda BT50 (2020-Current) Slimsport Rack is the Isuzu D-Max / Mazda BT50 (2020-Current) Slimsport Rack 40" Light Bar Wind Fairing that has a 40" cutout to allow the use of the 40" LED Slim Light Bar VX1000-CB SM / 12V/24V / Single Mount (sold separately).
- Fitment guide and all mounting hardware included.
- Note: Drilling maybe required for some models.
- Note: Under Rack Tables and some side mount accessories such as Hi-Lift Jack Bracket and Recovery Device & Gear Holding Side Brackets are not compatible with the Slimsport rack kit range.
- All Dometic Front Runner Series racks are backed by a 5‑year warranty*
Specifications
SKU: KSMB002T
KSMB002T - Mazda BT50 (2020-Cur) Ssport RRack Kit/LB Ready
Consisting of:
1x KSID001 - Isuzu Dmax / Mazda BT50 (2020-Current) Slimsport Tray
1x RRAC309 - Isuzu D-Max / Mazda BT50 (2020-current) Light bar Windfairing
Material Used:
Black epoxy powder - coated T6 aluminium
High strength steel
Assembled Kit Dimensions:
1384mm (54.5") L x 1141mm (44.9") W x 118mm (4.7") H
Approximate Installed Weight: 23kg (50.71lbs)
The top of the Slimsport rack is only 50mm (2") above the crown of the roof.
The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.
To determine the approximate height from your vehicle’s roof to the top of your Slimsport Rack add 50mm (2") to the highest point of your roof.
Shipping Dimensions:
Width: 325mm (13")
Length: 1700mm (67")
Height: 225mm (9")
Shipping Weight:
Weight: 23kg (51lbs)
