Description

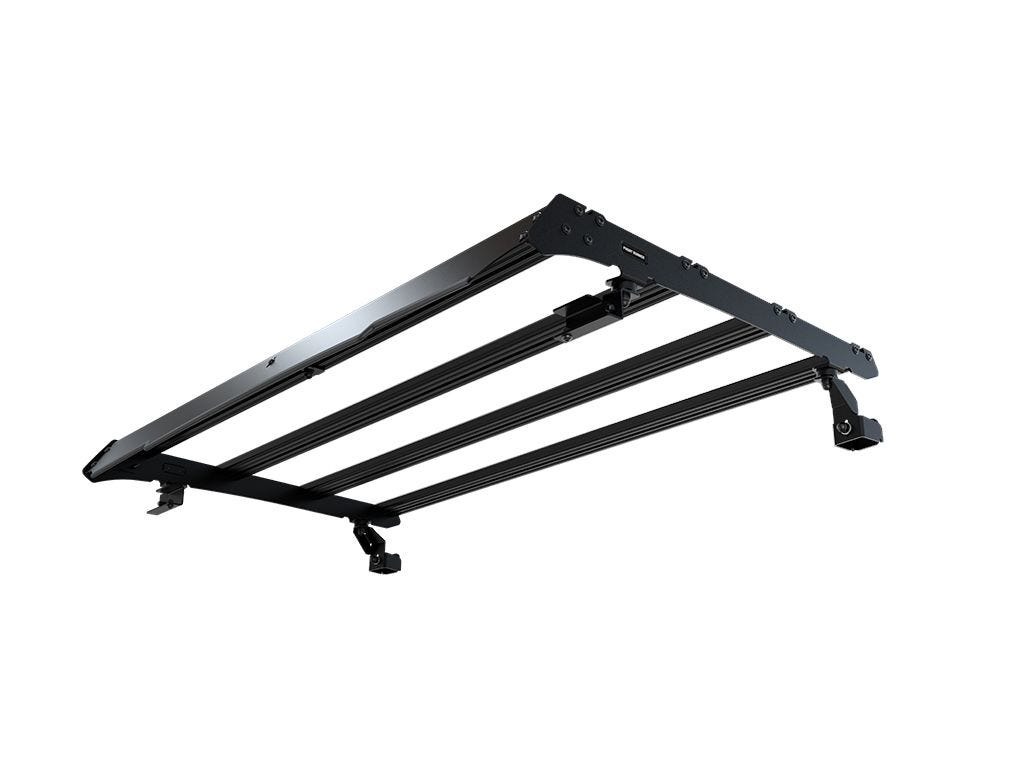

- This low-profile flat deck Slimsport rack has a load-carrying area of 749mm (29.5") x 1238mm (48.7").

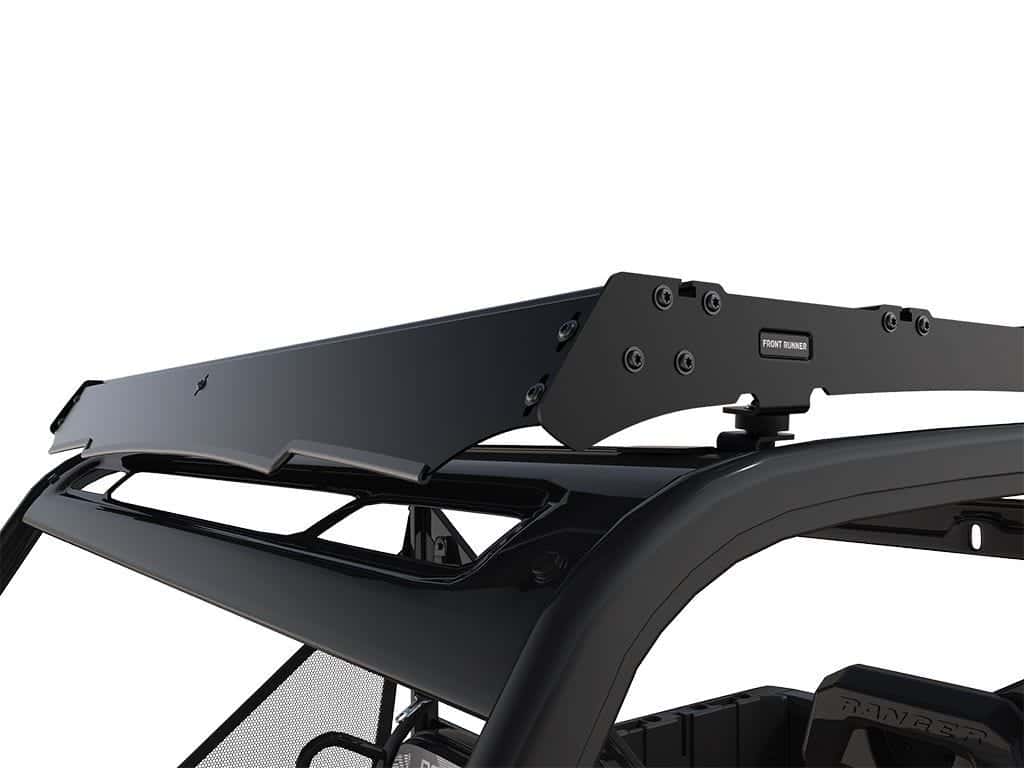

- The sleek side rails have integrated mounting feet. The mounting feet also have additional brace brackets for added strength.
- The high-strength aluminum slats have T-slots suitable for all Front Runner top mount accessories.
- Easily add on the Slimsport Side Mount Accessory Bracket / Small for most Front Runner side mount accessories (sold separately).

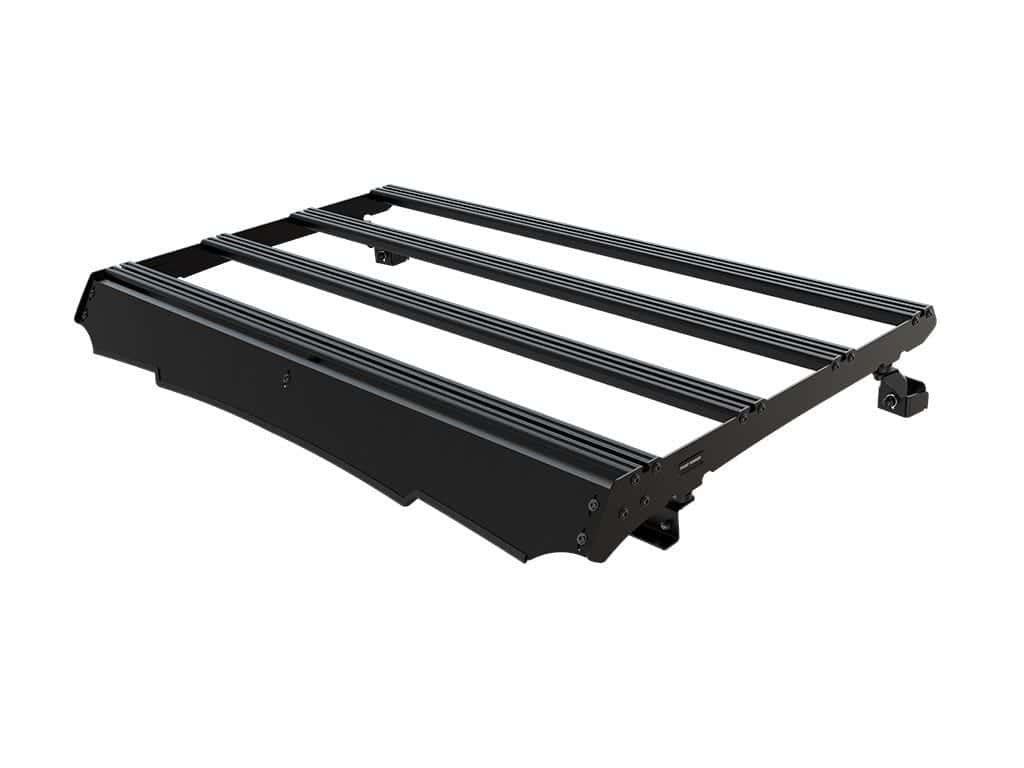

- The included standard full fairing with rubber edge trim makes the rack ultra-quiet.
- Need a lightbar? The optional lightbar fairing Polaris Ranger UTV (2018-Current) Slimsport Rack 40" Light Bar Wind Fairing (sold separately) has a 40" cutout to allow use of 40" LED Slim Light Bar VX1000-CB SM / 12V/24V / Single Mount (sold separately).
- Fitment guide and all mounting hardware included.
- 6"/T30 Torx Allen Key for Slimsport Rack is required for installation.
- Note: Drilling required.
- Note: Under Rack Tables are not compatible with the Slimsport rack kit range
- Note: Some side mount accessories are not suited for low profile foot rails such as Hi-Lift Jack Bracket and Recovery Device & Gear Holding Side Brackets.
Specifications
SKU: KSPR001T
KSPR001T - Polaris Ranger UTV (2018-Current) Slimsport Roof Rack Kit
Consisting of:
1x KSPR001 - Polaris Ranger UTV (2018-Current) Slimsport Roof R
1x RRAC243 - Polaris Ranger Crew Cab(18-Curr)Ssport WindFairing
1x RRAC971 - Protection Strip
Material Used:
Black epoxy powder - coated T6 aluminium
High strength steel
Assembled Rack Dimensions:
749mm (29.5") L x 1238mm (48.7") W x 157mm (6.2") H
Approximate Installed Weight: 15.84kg (34.92lbs)
The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.
To determine the approximate height from your vehicle’s roof to the top of your Slimsport Rack add 60mm-70mm (2.4"-2.8") to the highest point of your roof.
Shipping Dimensions:
Width: 250mm (10")
Length: 1560mm (61")
Height: 140mm (6")
Shipping Weight:
Weight: 15.6kg (34lbs)
