Description

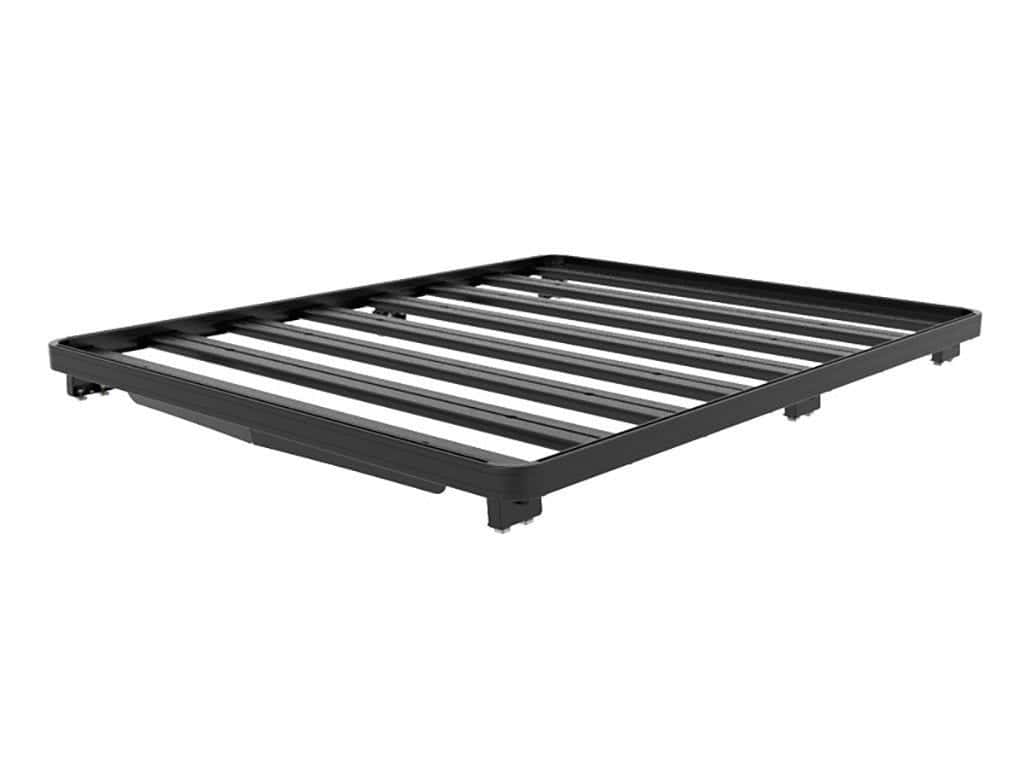

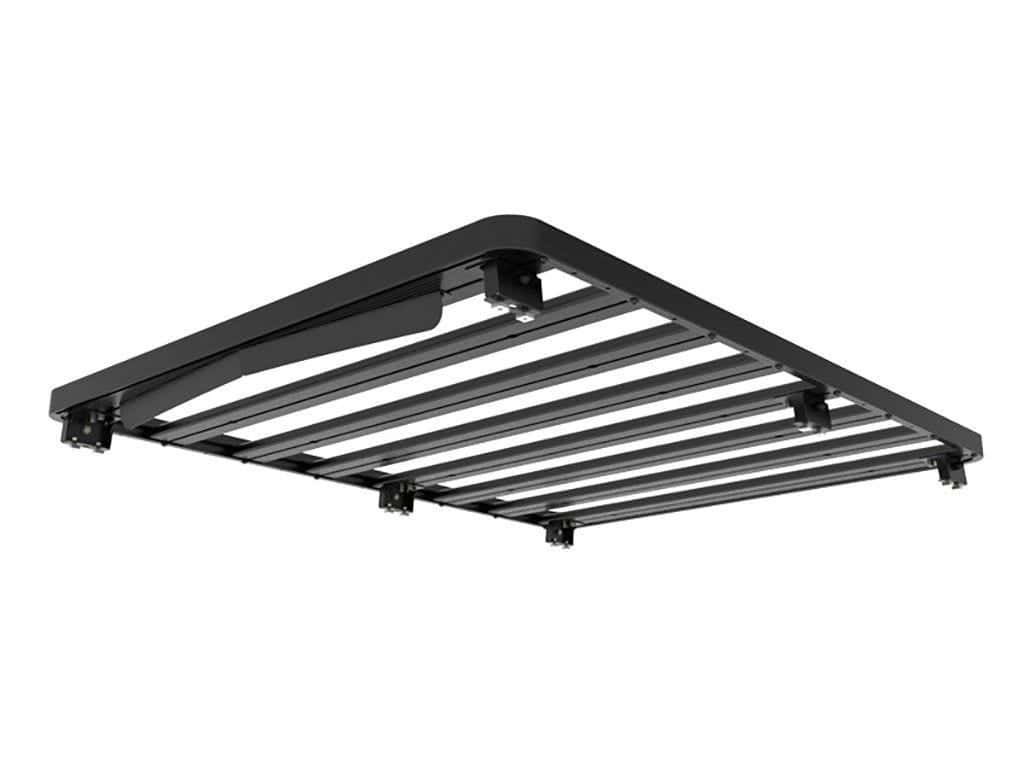

This 1560mm/61.4" long full-size Slimline II cargo carrying roof rack kit for the Volkswagen Touareg contains Slimline II Tray, Wind Deflector and 6 Feet. It installs easily to factory mounting points with no drilling required.
All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.
All Dometic Front Runner Series racks are backed by a 5‑year warranty*
Specifications
SKU: KRVT005T
KRVT005T - Volkswagen Touareg (2002-2010) Slimline II Roof Rack Kit
Consisting of:
1x FASS024 - Foot Set / 50mm - 60mm
2x FASS025 - Foot Set / 70mm - 80mm
1x RRSTD08 - SLII Tray - 1255mm(W)X1560mm(L)
Material Used:
Black epoxy powder - coated T6 aluminium
High strength steel
Approximate Installed Weight: 22.45kg (49.49lbs)
The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.
To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2") to the height of the Foot or Grab-on Foot listed above.
If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2") to the height of the Legs to determine the height of the rack from your vehicle's rain gutters.
If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.
Shipping Dimensions:
Width: 450mm (18")
Length: 1730mm (68")
Height: 140mm (6")
Shipping Weight:
Weight: 29.28kg (64lbs)
