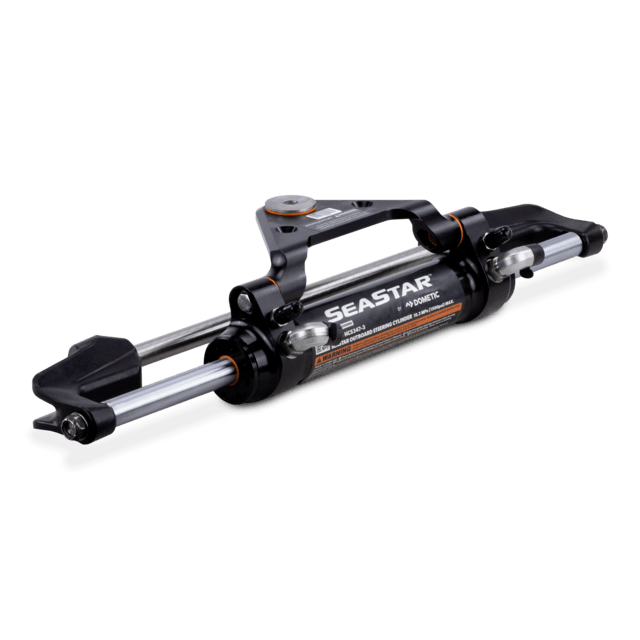

Dometic SeaStar Outboard Cylinder
Outboard Cylinder Front Mount, Honda
Available at selected dealersArt nr: 9130001026 (HC5347-3)
SeaStar Outboard Steering Cylinders offer excellent resistance to repeated compression set and is designed to better withstand the harsh marine environment. They also feature independent engine tilt for twin/triple engine installations and varying lock-to-lock turn ration dependent on helm selection. The new end gland sealing system has been redesigned with an 8-hole design for improved serviceability and updated with Positionable Stainless Steel O-Ring (ORB) Fittings for easy hose routing.
SKU number
9130001026
Model
SeaStar Outboard Cylinders
Legacy Factory Item Number
HC5347-3
Product Description
Outboard Cylinder Front Mount, Honda
Dimensions product depth, ["]
4 7/8
Dimensions product width, ["]
21 3/4
Net weight, [lbs]
9.50
Fluid volume, [oz]
8.34
Actuation Stroke Length, ["]
8
Horse Power Rating, [hp]
350
Maximum Pressure rating, [psi]
1500
Colour
Black
Allowable Fluid Type
SeaStar steering fluid
Port Type
ORB
Shaft Diameter, ["]
0.75
