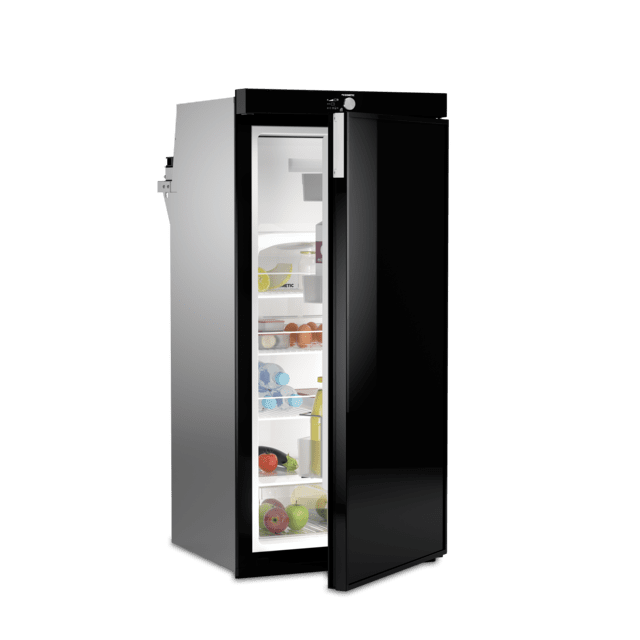

Dometic RUC 5208 X
The Dometic RUC 5208X model is an upright compressor refrigerator that features a narrow cabinet design that allows for greater flexibility in the kitchen area of recreational vehicles without compromising on the storage volume.
Product Highlights
Touch control
TFT color display with unique rotary touch control
Built-in door storage
Perfect for storing bottles and cans
Narrow storage cabinet
Optimized storage cabinet holds a generous amount of food and drink
Perfectly controlled
Full-width crisper with humidity control
Interior LED lighting
Elegant LED lighting illuminates the cabin
Narrow cabinet design with slim footprint
Dimensions (W x H x D): 550 x 1191 x 677 mm
Reversible door suits any layout
Freezer compartment with internal door
Easy-to-use control panel with colour TFT display
T-rated cooling system ensures excellent cooling performance in all conditions
Adjustable shelves and door bins
SKU number
9600028640
Model
RUC5208X
Model on label
RUC5208X
Scope of delivery
1 refrigerator, 1 bottom trim, 1 user manual
Product Description
Compressor refrigerator, 153 l
Refrigeration technology
Compressor
Dimensions product depth, [mm]
677
Dimensions product height, [mm]
1191
Dimensions product width, [mm]
550
Net weight, [kg]
43
Total volume (IEC 62552-3), [l]
146
Input voltage (AC), [V]
100-240
Input voltage (DC), [V]
12/24
Rated input current (AC), [A]
1.0/0.45
Rated input power (AC), [W]
75
Input frequency, [Hz]
50/60
Hermetically Sealed
True
Refrigerant, type
R134a
-
GWP
1430
Refrigerant amount, [g]
51
CO2 equivalent, [t]
0.073
Noise (EN60704-1 & 60704-2-14), [dB(A)]
47
Noise Class EU20192016
D
Climate class (EN62552)
N/T
Colour
Black
Thermostat control
UES
Hinge type
Right hinged
Interior light
Yes, LED
Certificates
EMCCBRCM
EAN-13
6951218418887
Dimensions parcel depth, [mm]
762
Dimensions parcel height, [mm]
1293
Dimensions parcel width, [mm]
622
Parcel weight, [kg]
47
