Description
- Attractive aerodynamic design
- Vibration isolation minimizes compressor noise
- Efficient high-capacity air conditioning and heat pump models
- Robust and durable construction
- Inside ceiling assembly and/or thermostat sold separately
- High-impact polypropylene injection-molded shroud and base pan
- High capacity output fan & motor design with 350 CFM blower
Specifications
SKU: 9105305950
| Model | 15K Btu with Control Box |
|---|---|
| Scope of delivery | 1 Air conditioner, 1 Warranty card, 1 Registration card |
| SKUCertificates | CSA |

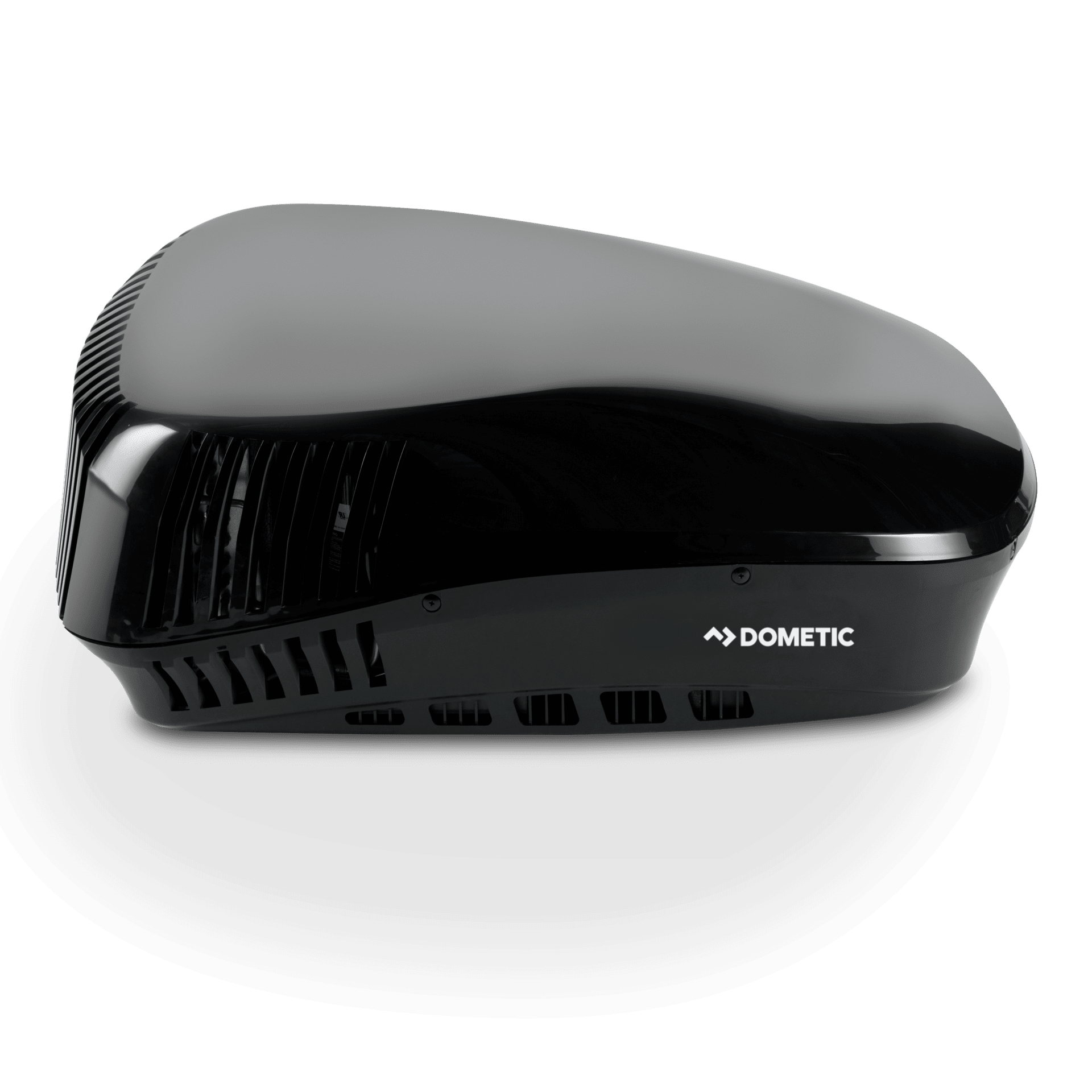

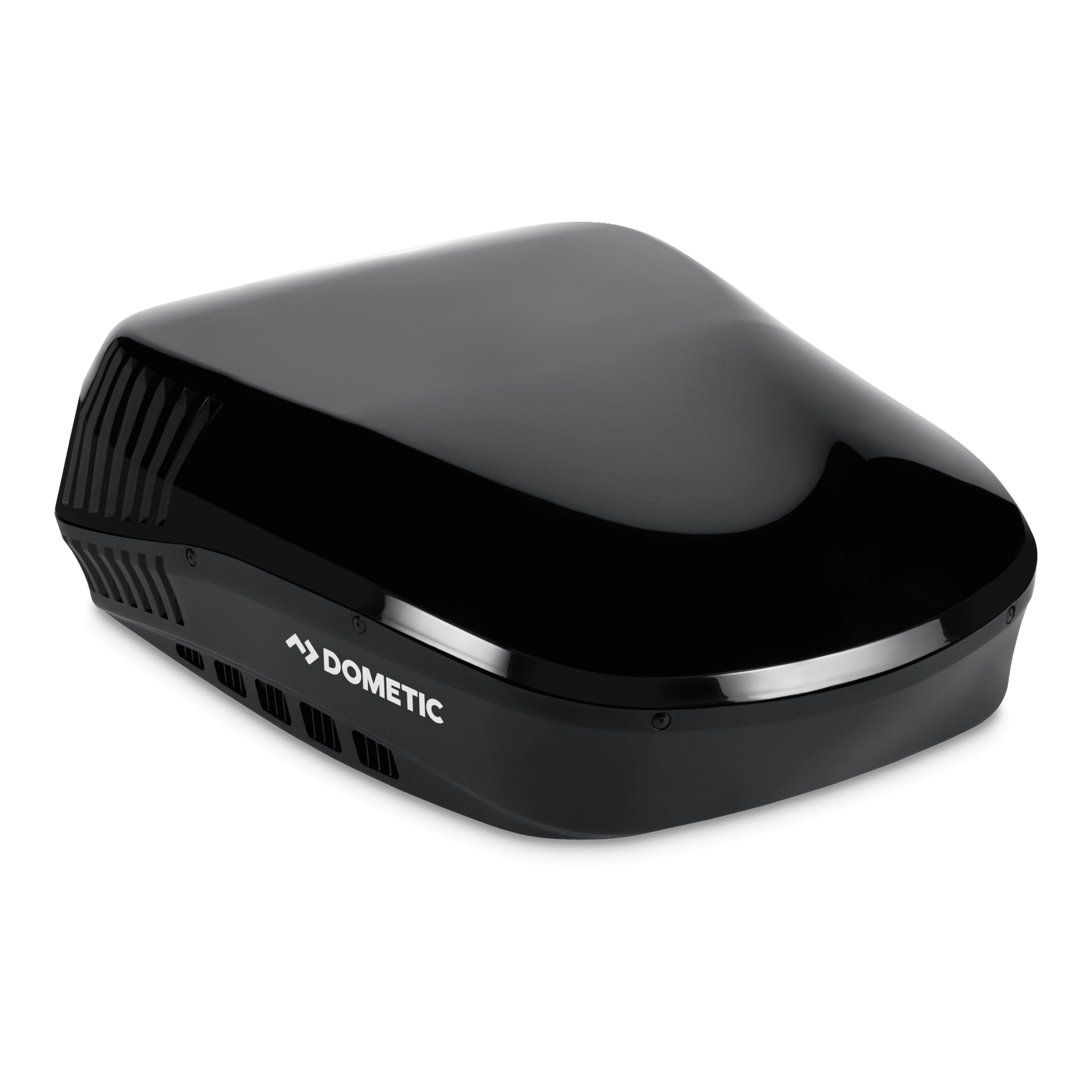

| Product Description | 15,000 BTU - Rooftop Mid-Profile Air Conditioner - Pre-installed Multi-Zone CCC II control board - Ducted application: return air grille and CCC II thermostat required - black |
| Dimensions product depth, [mm] | 1016 |
|---|---|
| Dimensions product height, [mm] | 348 |
| Dimensions product width, [mm] | 762 |
| Dimensions product width, [in] | 30 |
| Net weight, [kg] | 41.50 |
| Net weight, [lbs] | 91.51 |
| Cut out depth, [mm] | 360 |
| Cut out height, [mm] | 330 |
| Cut out width, [mm] | 330 |
| Input voltage (AC), [V] | 115 |
|---|---|
| Input voltage (DC), [V] | 12 |
| Input frequency, [Hz] | 60 |
| Required AC circuit protection min, [A] | 20 |
| Required AC circuit protection max, [A] | 25 |
| Hermetically Sealed | Yes |
|---|---|
| Refrigerant, type | R410A |
| GWP | 2088 |
| CO2 equivalent, [t] | 0.88 |
| Refrigerant, type | R410A |
| AirFlow, [m<sup>3</sup>h] | 330 |
| Cooling Capacity ISO5151 Display | 4396.07 |
| Cooling Capacity Display | 15000 |
| Thermostat control | No Thermostat |
|---|
| Dimensions parcel depth, [mm] | 1145 |
|---|---|
| Dimensions parcel height, [mm] | 390 |
| Dimensions parcel width, [mm] | 820 |
| Parcel weight, [kg] | 47.50 |
| Parcel weight, [lbs] | 104.74 |
Highlights
Industry-leading

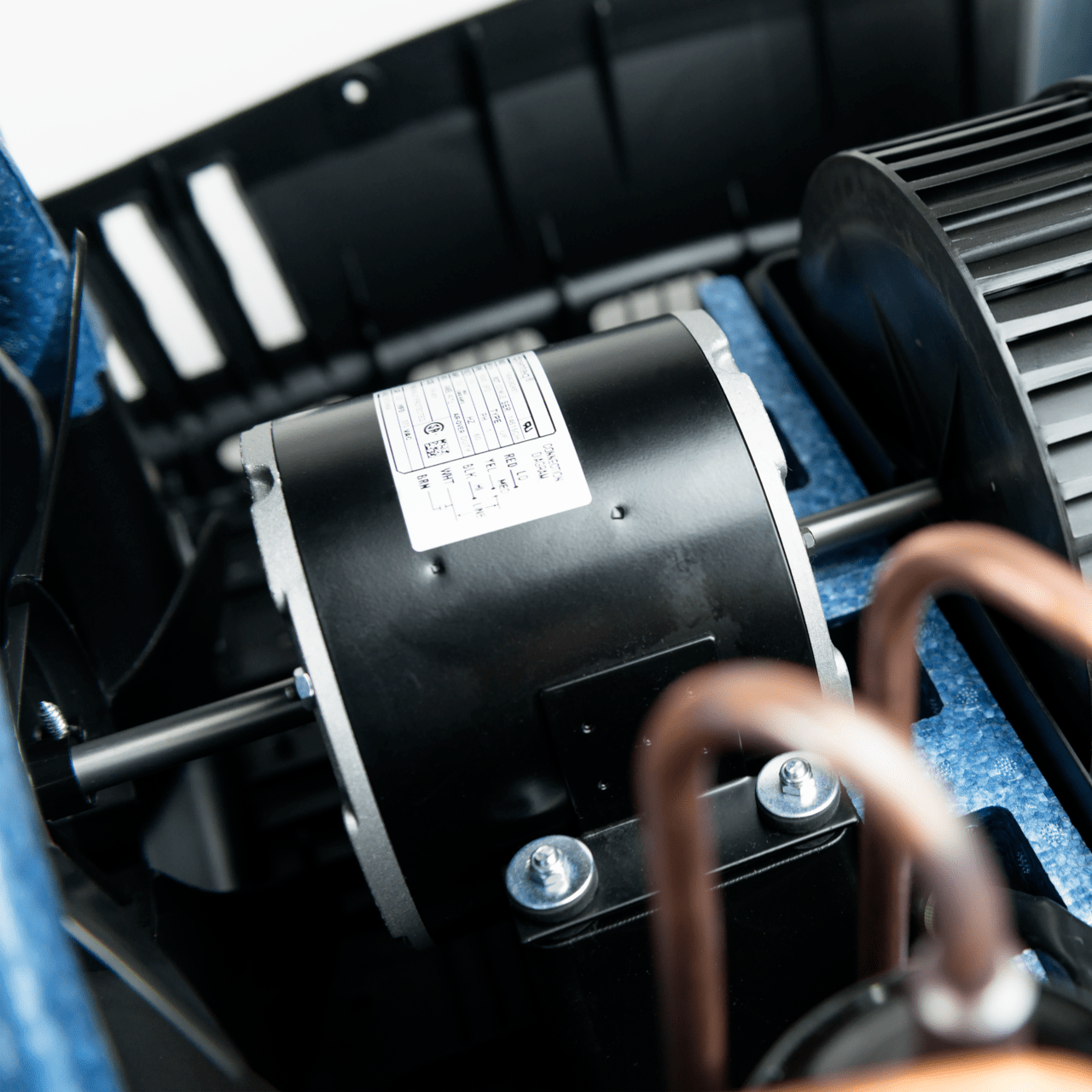

Dometic Blizzard NXT has a powerful motor providing industry-leading airflow
Innovative Design

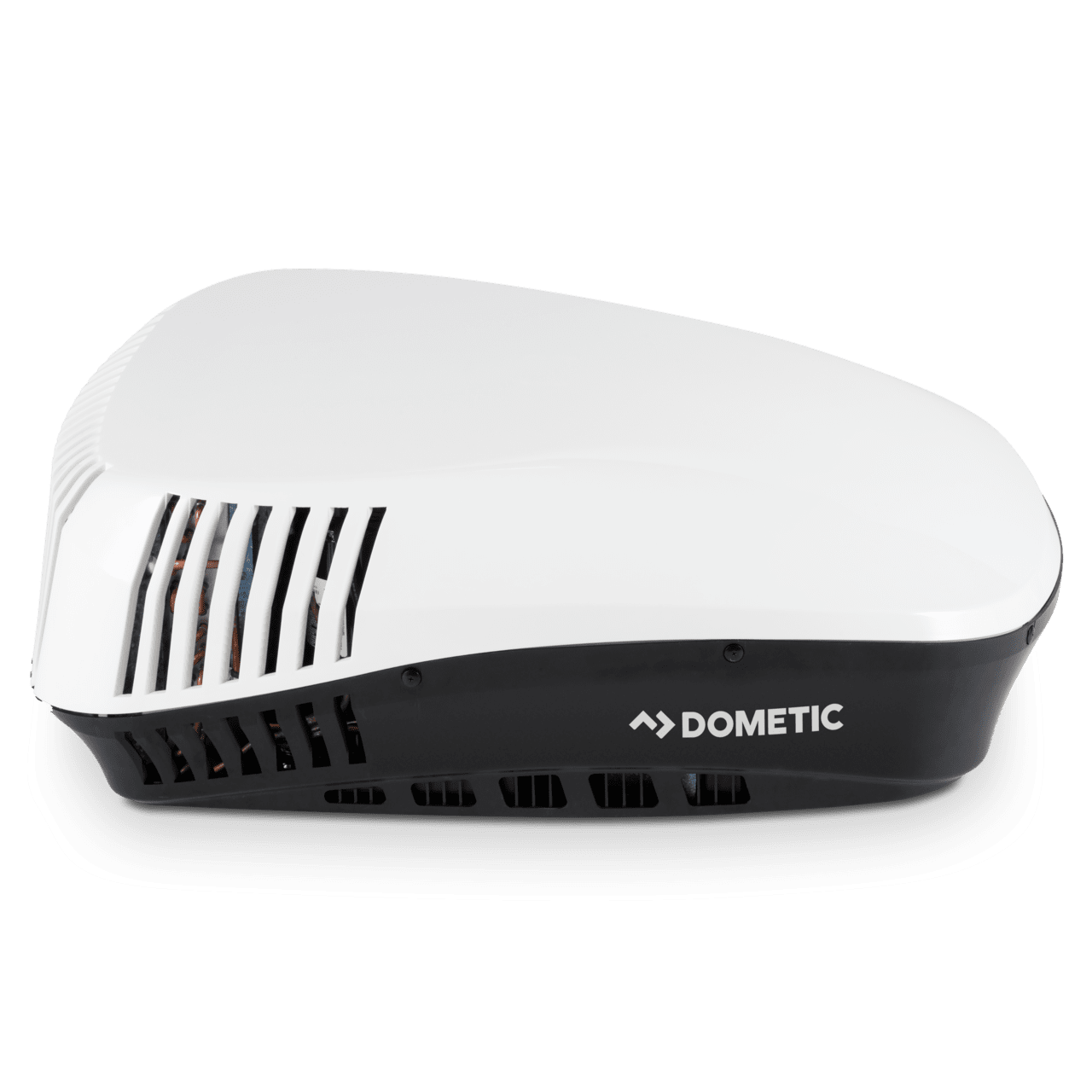

Sleek design with maximum output
High Performer

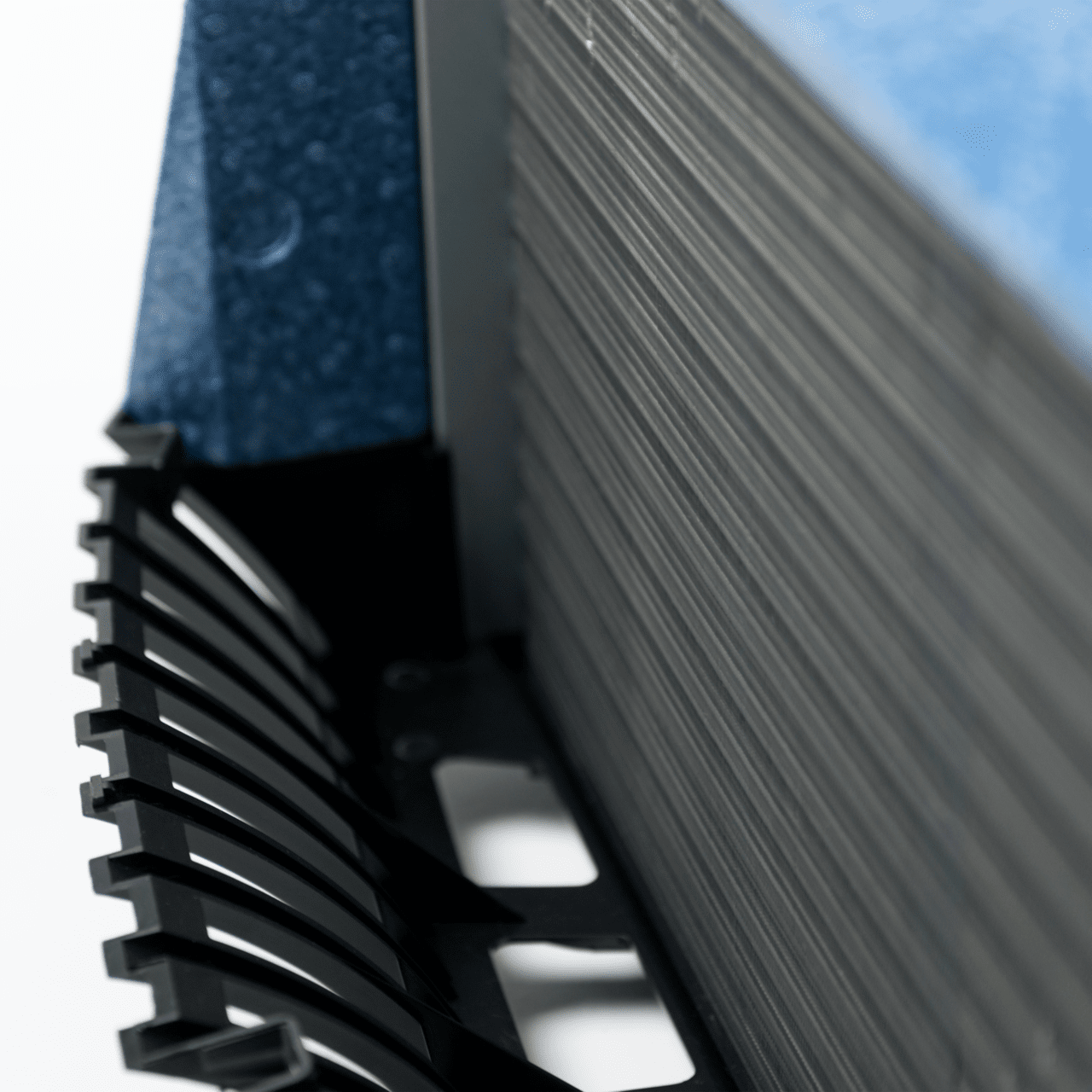

High capacity output fan
Blizzard NXT
The Blizzard NXT is sleek and aerodynamic, with a composite base pan and injection-molded shroud that are UV stable and rated for high impact. It was stringently tested for durability in the most extreme environmental conditions. Designed from the ground up, the Blizzard NXT has a powerful motor and fan, providing industry-leading 350 CFM airflow and advanced engineering that maximizes airflow around the evaporator coils for better and more efficient cooling performance. Expanded polypropylene (EPP foam) construction provides better insulation, reduces weight and unwanted condensation. Use of heavy sheet metal is minimized to improve performance and eliminate noise issues.
