Dometic BLIZZARD NXT - 15K BTU Multi-Zone Air Conditioner w/Heat Pump - White

15,000 BTU - Rooftop Mid-Profile Air Conditioner with Heat Pump - Pre-installed Multi-Zone CCC II control board - Ducted application: return air grille and CCC II thermostat required - white

US$ 1946.99
  • Industry-leading
  • Innovative Design
  • High Performer

Sleek and aerodynamic, with a composite base pan and injection-molded shroud that are both UV stable and rated for high impact resistance. The Blizzard NXT was stringently tested for durability in the most extreme environmental conditions. Keeping you cool, wherever you go!

Description

  1. Attractive aerodynamic design
  2. Vibration isolation minimizes compressor noise
  3. Efficient high-capacity air conditioning and heat pump models
  4. Robust and durable construction
  5. Inside ceiling assembly and/or thermostat sold separately
  6. High-impact polypropylene injection-molded shroud and base pan
  7. High capacity output fan & motor design with 350 CFM blower

Specifications

SKU: 9105305955

Dometic BLIZZARD NXT - 15K BTU Multi-Zone Air Conditioner w/Heat Pump - White — General specifications
Model15K Btu Heatpump with Control Box
Scope of delivery1 Air conditioner, 1 Warranty card, 1 Registration card
SKUCertificatesCSA
Product Description15,000 BTU - Rooftop Mid-Profile Air Conditioner with Heat Pump - Pre-installed Multi-Zone CCC II control board - Ducted application: return air grille and CCC II thermostat required - white

Dometic BLIZZARD NXT - 15K BTU Multi-Zone Air Conditioner w/Heat Pump - White — Dimensions specifications
Dimensions product depth, [mm]762
Dimensions product height, [mm]355.60
Dimensions product width, [mm]1016
Dimensions product width, [in]40
Net weight, [kg]41.73
Net weight, [lbs]92

Dometic BLIZZARD NXT - 15K BTU Multi-Zone Air Conditioner w/Heat Pump - White — Electrical specifications
Input voltage (AC), [V]115
Input frequency, [Hz]60

Dometic BLIZZARD NXT - 15K BTU Multi-Zone Air Conditioner w/Heat Pump - White — Performance specifications
Hermetically SealedYes
Refrigerant, typeR410A
GWP2088
CO2 equivalent, [t]1,184
AirFlow, [m<sup>3</sup>h]330
Cooling Capacity ISO5151 Display4396.07
Cooling Capacity Display15000
Power consumption - Heat pump (ISO 5151)1243

Dometic BLIZZARD NXT - 15K BTU Multi-Zone Air Conditioner w/Heat Pump - White — Logistics specifications
Dimensions parcel depth, [mm]772
Dimensions parcel height, [mm]375
Dimensions parcel width, [mm]1048
Parcel weight, [kg]43.72
Parcel weight, [lbs]96.39

Dometic H541815A, H541816A, H541916ZA, H541916A, H551816A, H551916A, 3314082, 3313192, CCC 2, LCD SZ - Installation Instructions AMER(en)
Installation And Operating Manual
Dometic 3314851 - Installation and Operating Manual AMER(pt)
Installation And Operating Manual
Dometic 3314850, CCC2, LCD SZ ADB - Installation Manual AMER(en)
Installation And Operating Manual
3315288.013 Dometic 457915 B57915 459516 B49516 540315 H540315 540316 H540316 640312 640315 3314851.000 ADB Integral Mechanical Installation and Operating Manual AMER(fr)
Installation And Operating Manual
Dometic CCC 2 LCD SZ Electronic ADB Brisk Air Penguin HP - Installation Manual AMER(fr)
Installation And Operating Manual
Dometic CCC 2 LCD SZ - Installation Instructions AMER(fr)
Installation And Operating Manual
Dometic Blizzard, NXT - Operating Manual AMER(en)
Operating Manual
Dometic 3105007, 3105935, H540315, H540316 (Blizzard NXT) - Installation Instructions AMER(en)
Installation Manual
Dometic Blizzard NXT Roof Dometic 3314850, Blizzard NXT - Installation Manual AMER(en)op Unit used with 3314850.000 Air Distribution Box - Installation Manual AMER(en)
Installation Manual
Dometic 3314850, Blizzard NXT - Installation Manual AMER(fr)
Installation Manual
Dometic Blizzard, 3316781.000 - Installation Manual AMER(en)
Installation Manual
Dometic Roof Top Unit Air Conditioner 541815A70x, 541816A70x; Heat Pump 551816A70x - Installation Manual AMER(en)
Installation Manual
Dometic 541815A, 541816A - Installation Manual AMER(en)
Installation Manual

Product size & weight

W 1016 x H 355.60 x D 762 mm

Weight: 41.73 kg

Loading products…

Highlights

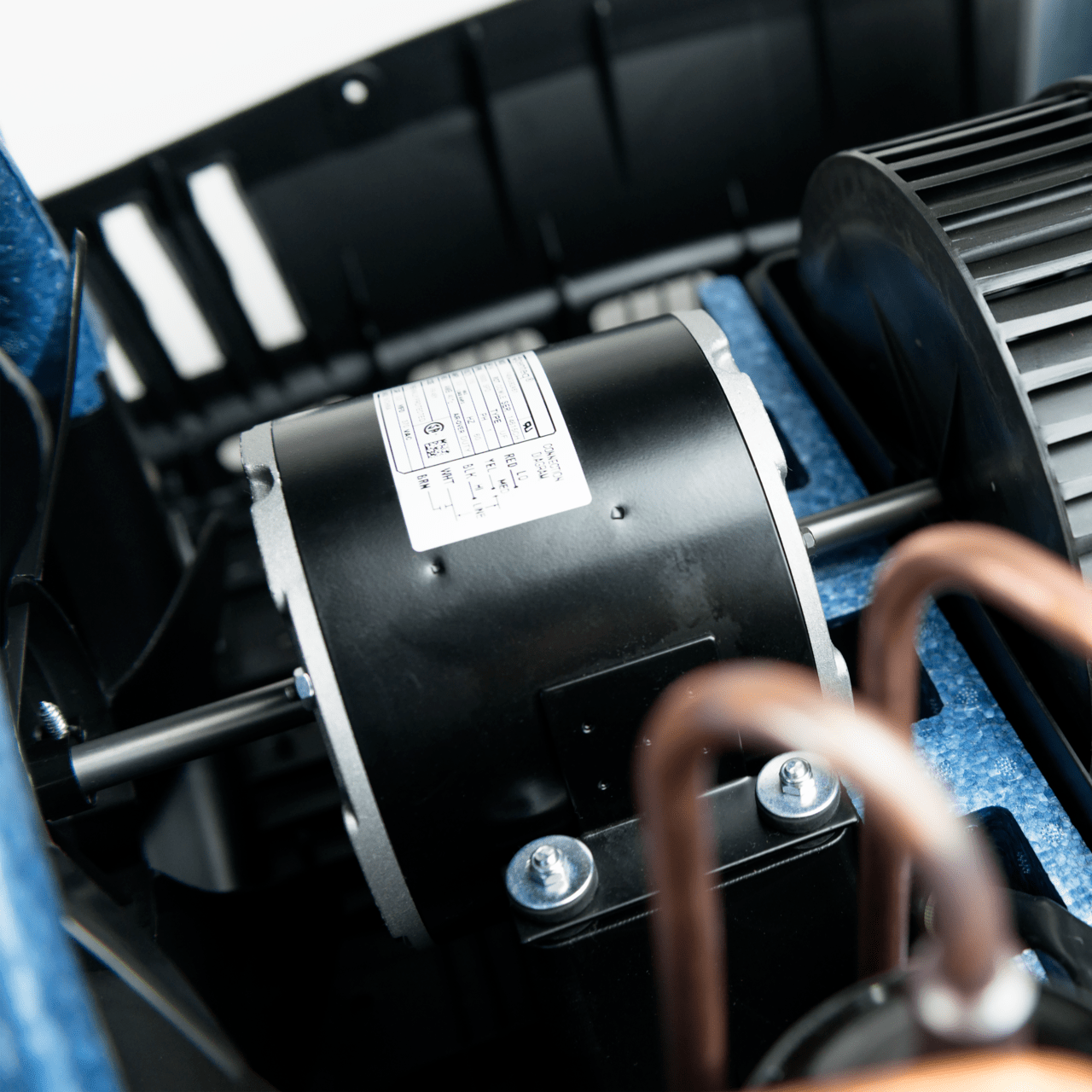

Industry-leading

Dometic Blizzard NXT has a powerful motor providing industry-leading airflow

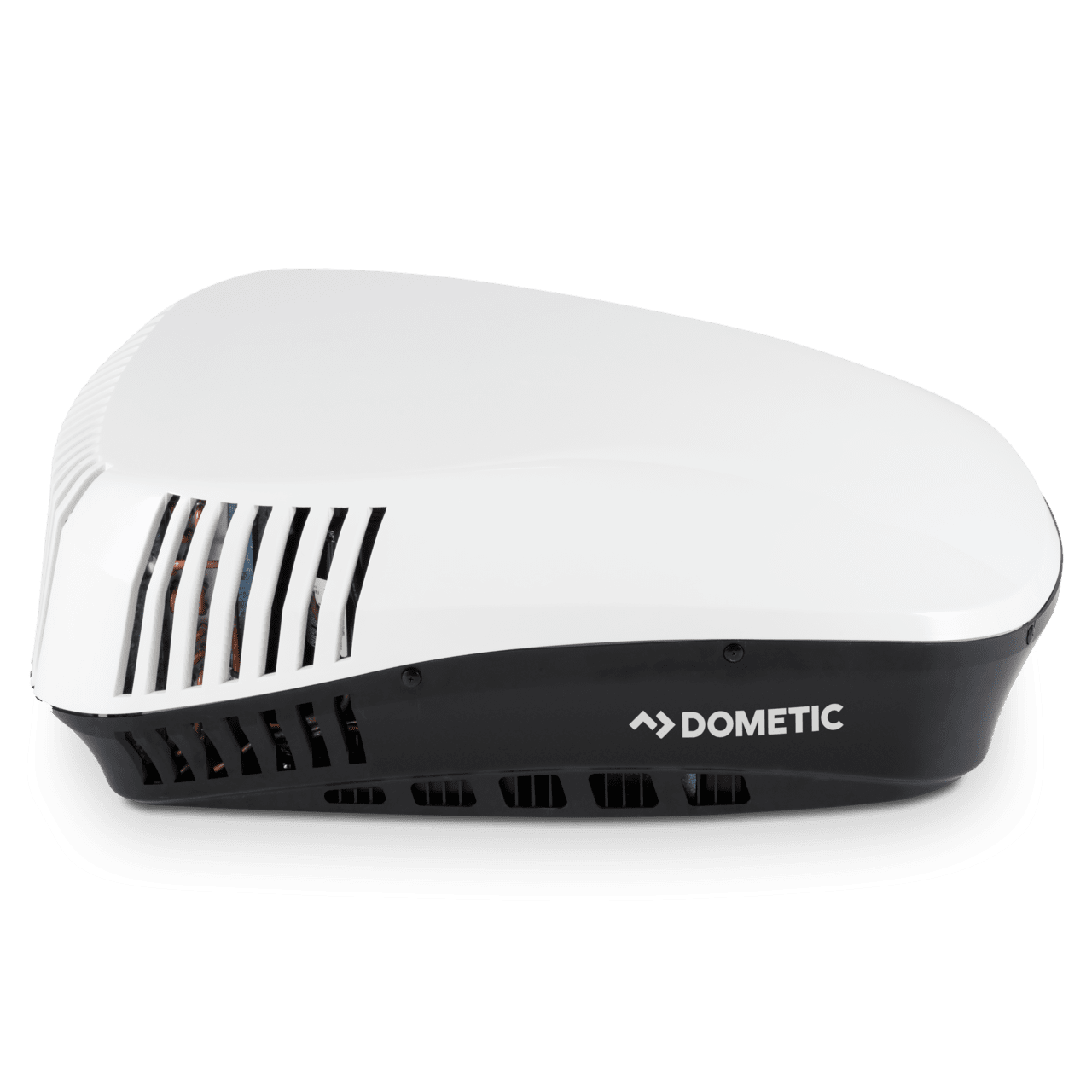

Innovative Design

Sleek design with maximum output

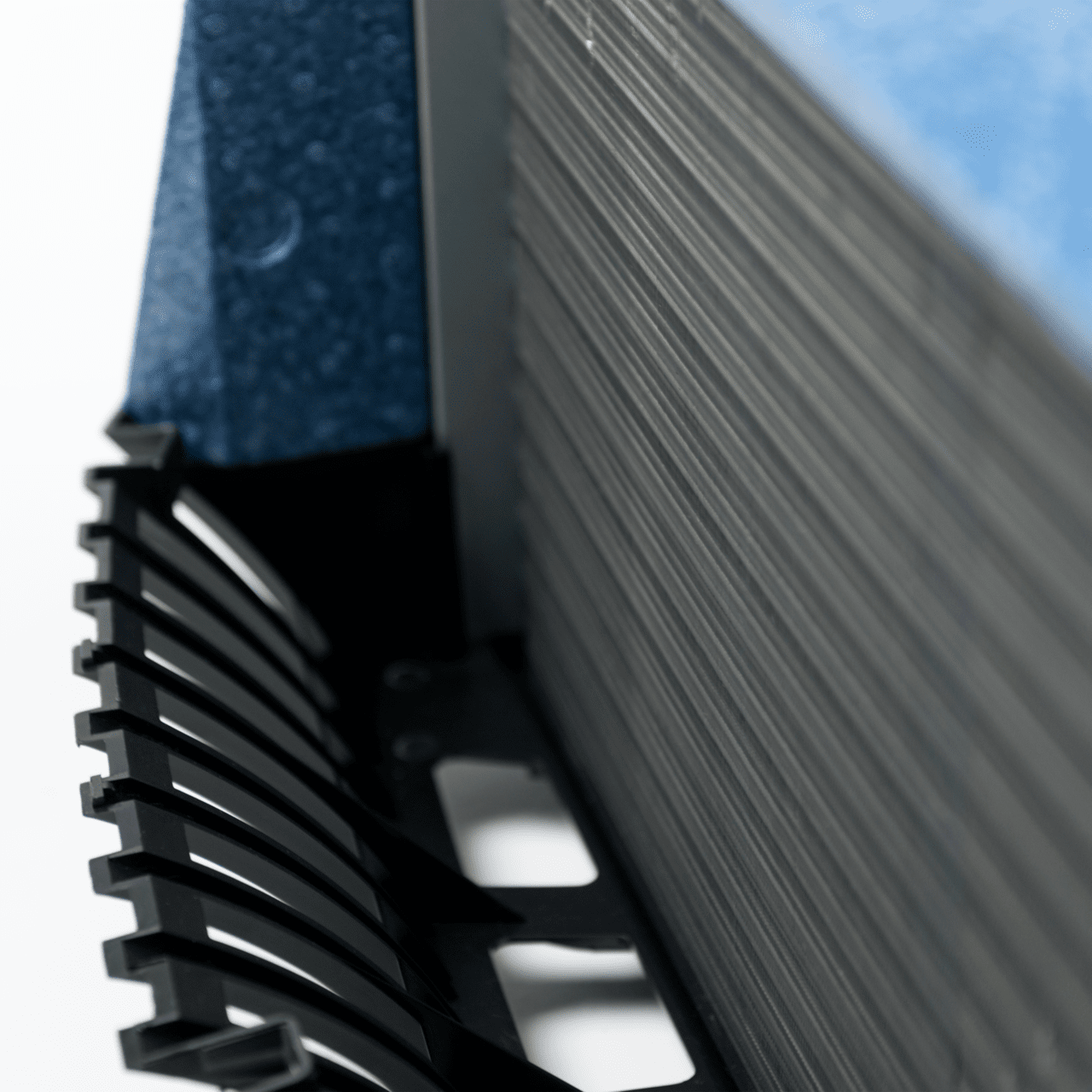

High Performer

High capacity output fan

Blizzard NXT

Blizzard NXT

The Blizzard NXT is sleek and aerodynamic, with a composite base pan and injection-molded shroud that are UV stable and rated for high impact. It was stringently tested for durability in the most extreme environmental conditions. Designed from the ground up, the Blizzard NXT has a powerful motor and fan, providing industry-leading 350 CFM airflow and advanced engineering that maximizes airflow around the evaporator coils for better and more efficient cooling performance. Expanded polypropylene (EPP foam) construction provides better insulation, reduces weight and unwanted condensation. Use of heavy sheet metal is minimized to improve performance and eliminate noise issues.

Questions, answered.

A few things worth knowing before you decide.

Still need a hand?

Contact product support

4 questions

If you are travelling to cooler climates then this will not challenge the air conditioners to the extremes, a unit with a smaller power rating will do for these types of trips. You should not save on power, though, if you regularly travel to warmer climates and even less so if you have children or pets on board as staying in a recreational vehicle can quickly become uncomfortable on a hot summer day. When the nights are not cooler either, rest and recuperation is only possible with an adequate air conditioner.

Air conditioners work on basically the same principle as the cooling units of kitchen refrigerators. Their cooling efficiency is way higher though. In either system a refrigerant extracts heat from the space to be cooled and dissipates it to the outside. An RV air conditioner should additionally reduce the humidity. AC systems most commonly used for recreational vehicles:

  • Evaporation systems: Water is vapourised in a roof-mounted unit and collected in a filter. A fan draws ambient air in through the filter, which results in a heat exchange. Benefits: low current consumption, lightweight. Drawback: The energy efficiency depends on the ambient humidity; so the performance of the system varies. It drops when the humidity is > 85% – and that's exactly the level where air conditioning is needed. Moreover, evaporation systems will, by nature increase the humidity in the vehicle, regardless of the ambient conditions.

The temperature conditions in recreational vehicles and the reasons behind them RV and caravans are no houses and they don't have thick walls, even if they are reasonably insulated they will heat up in the sun. The temperature inside can quickly rise to 30°C or more and not only in the hot and sunny south, but also in moderate climate zones. Besides insulation, the temperature conditions inside the vehicle depend on other factors, too: the size and number of windows, for instance. A caravan with small windows will heat up less quickly than a RV with generously sized glass surfaces and it does of course matter where you park your vehicle – in the blazing sun or in the shade of a tree. Do you take every opportunity to air the vehicle out? Or are all the windows closed and the heat can spread throughout the interior?

Travelling off the beaten track with all the comfort you are accustomed to – Dometic generators make it possible. They ensure reliable power supply wherever mains power is unavailable. This makes them a must-have accessory for outdoor enthusiasts striving for maximum freedom and independence.

Air conditioners have the highest start-up current of all electrical devices commonly used in recreational vehicles. However, this current level is only required for fractions of a second; the level required in continuous operation is much lower. As the mains hookups on most campsites are fitted with a delay fuse, the short-time peaks are normally no problem.
