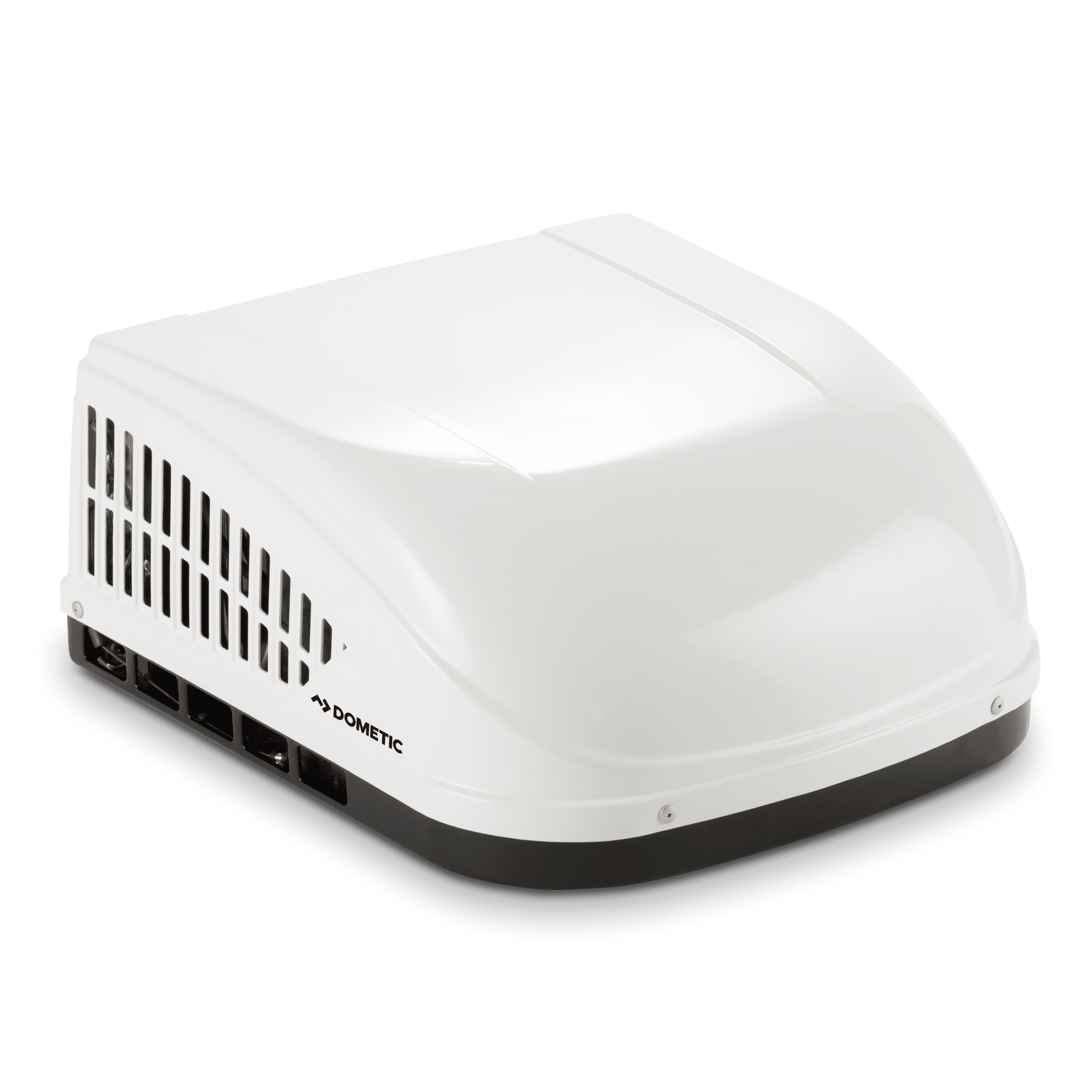

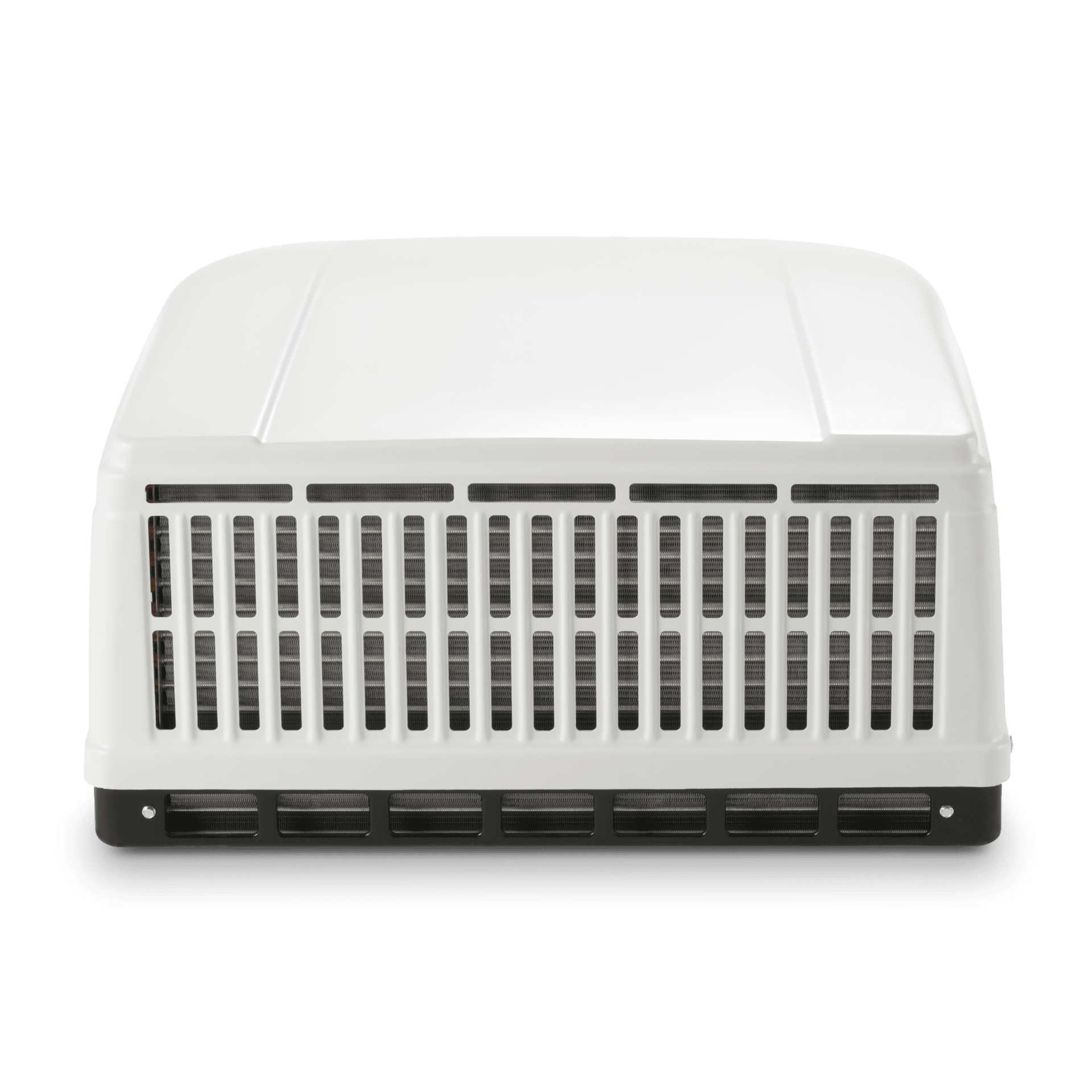

Dometic Brisk II Evolution 13.5K BTU

Specifications

General

Scope of delivery

1 Air conditioner, 1 Warranty card, 1 Registration card

SKUCertificates

CSA

Product Description

13,500 BTU - Rooftop Standard Profile Air Conditioner - No Pre-installed controls - Non-Ducted application: air distribution box required - Ducted application: return air grille and control kit required - white

Dimensions

Dimensions product depth, [mm]

701.68

Dimensions product height, [mm]

352.42

Dimensions product width, [mm]

752.47

Dimensions product width, ["] - Display

29 5/8

Net weight, [kg]

34.93

Net weight, [lbs]

77

Electrical

Input voltage (AC), [V]

115

Input frequency, [Hz]

60

Required AC circuit protection min, [A]

20.000000

Required AC circuit protection max, [A]

20.000000

Performance

Hermetically Sealed

Yes

Refrigerant, type

R410A

GWP

2088

CO2 equivalent, [t]

0,947

AirFlow, [m³h]

520.000000

Operating temperature min, [°C]

16.000000

Operating temperature max, [°C]

48.000000

Properties

Thermostat control

Manual Thermostat

Logistics

Dimensions parcel depth, [mm]

736.6

Dimensions parcel height, [mm]

381

Dimensions parcel width, [mm]

774.7

Parcel weight, [kg]

38.56

Parcel weight, [lbs]

85
