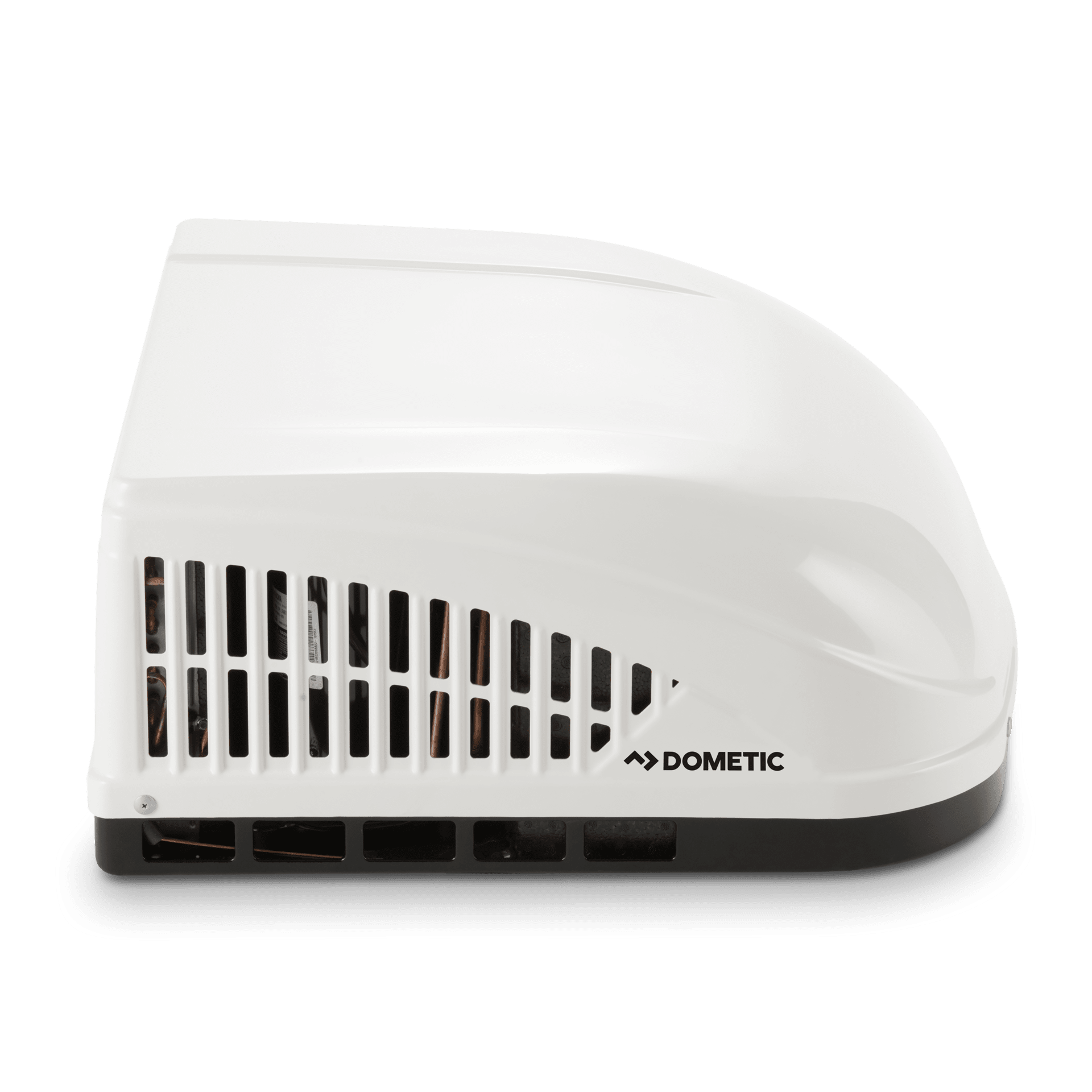

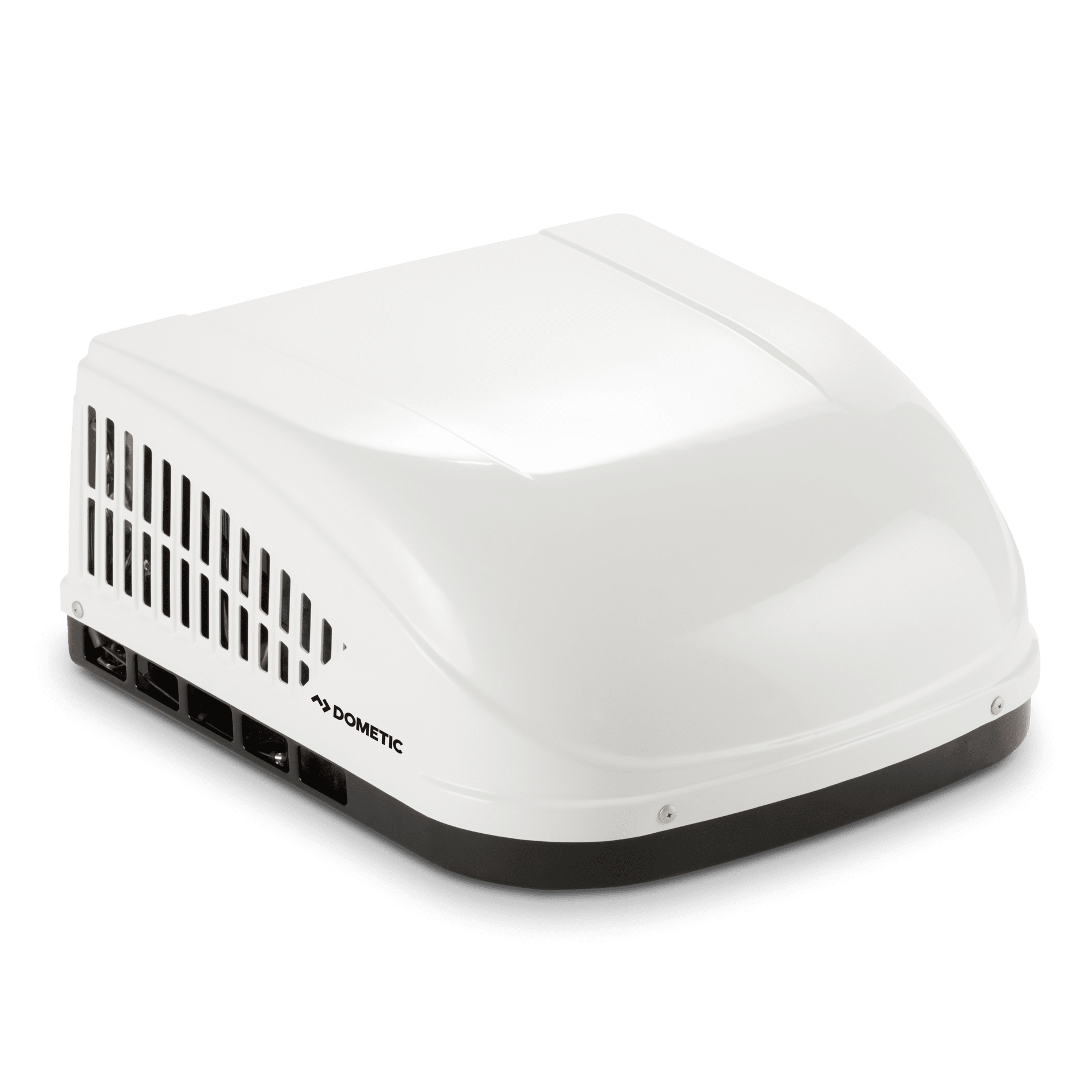

Dometic Brisk II - 11K BTU High Efficiency Air Conditioner - White

High Efficiency (Approximately 11,000 BTU) - Rooftop Standard Profile Air Conditioner - No Pre-installed controls - Non-Ducted application: air distribution box required - Ducted application: return air grille and control kit required - white

US$ 1142.99
  • High-performance design
  • Lighter weight
  • Lasting Design

The Brisk II's smart design and improved materials combine to maximize air flow and performance. It is best-in-class of any standard RV rooftop air conditioner for weight, air flow and capacity. Tested for use in extreme conditions.

Description

  1. High-performance design delivers 15 % air flow increase over previous models
  2. EPP foam housing reduces weight and increases cooling performance
  3. Heats and cools for year-round comfort
  4. Versatile design accommodates ducted or non-ducted cooling
  5. Requires air distribution box or thermostat
  6. Quiet multi-speed blower delivers interior comfort

Specifications

SKU: 9105305704

Dometic Brisk II - 11K BTU High Efficiency Air Conditioner - White — General specifications
Model11K Btu
Scope of delivery1 Air conditioner, 1 Warranty card, 1 Registration card
SKUCertificatesCSA
Product DescriptionHigh Efficiency (Approximately 11,000 BTU) - Rooftop Standard Profile Air Conditioner - No Pre-installed controls - Non-Ducted application: air distribution box required - Ducted application: return air grille and control kit required - white

Dometic Brisk II - 11K BTU High Efficiency Air Conditioner - White — Dimensions specifications
Dimensions product depth, [mm]701.68
Dimensions product height, [mm]352.43
Dimensions product width, [mm]752.48
Dimensions product width, [in]29 5/8
Net weight, [kg]34.93
Net weight, [lbs]77

Dometic Brisk II - 11K BTU High Efficiency Air Conditioner - White — Electrical specifications
Input voltage (AC), [V]115
Input frequency, [Hz]60

Dometic Brisk II - 11K BTU High Efficiency Air Conditioner - White — Performance specifications
Hermetically SealedYes
Refrigerant, typeR410A
GWP2088
CO2 equivalent, [t]1,243
AirFlow, [m<sup>3</sup>h]330
Cooling Capacity ISO5151 DisplayHi Efficiency
Cooling Capacity Display11000

Dometic Brisk II - 11K BTU High Efficiency Air Conditioner - White — Logistics specifications
Dimensions parcel depth, [mm]737
Dimensions parcel height, [mm]381
Dimensions parcel width, [mm]775
Parcel weight, [kg]38.56
Parcel weight, [lbs]85.01

Dometic 459530, 459530A, B59530, 640310 for 3314854.000 - Installation and Operating Manual AMER/APAC(en)
Installation And Operating Manual
Dometic 3314850, CCC2, LCD SZ ADB - Installation Manual AMER(en)
Installation And Operating Manual
3315288.013 Dometic 457915 B57915 459516 B49516 540315 H540315 540316 H540316 640312 640315 3314851.000 ADB Integral Mechanical Installation and Operating Manual AMER(fr)
Installation And Operating Manual
Dometic 57908, 59712, 57915, 19516, 59530, 520300,520310, 520315, 520316, 600312, 600315, 3105007, 3105935 LCD SZ - Installation Manual AMER(en)
Installation And Operating Manual
Dometic 3316155.000 LCD SZ 57908, 59712, 57915, 59516, 59530, 520300, 520310, 520315, 520316, 600312, 600315 - Installation Manual AMER(fr)
Installation And Operating Manual
Dometic 459530, B59530, 640310, 3314854.000 - Installation and Operating Manual AMER(fr)
Installation And Operating Manual
Dometic Roof Top Unit for 459146, B59146, 3314852 - Installation and Operating Manual AMER(fr)
Installation And Operating Manual
Dometic 459146, B59146, 3314852.000 - Installation and Operating Manual AMER(en)
Installation And Operating Manual

Product size & weight

W 752.48 x H 352.43 x D 701.68 mm

Weight: 34.93 kg

Loading products…

Highlights

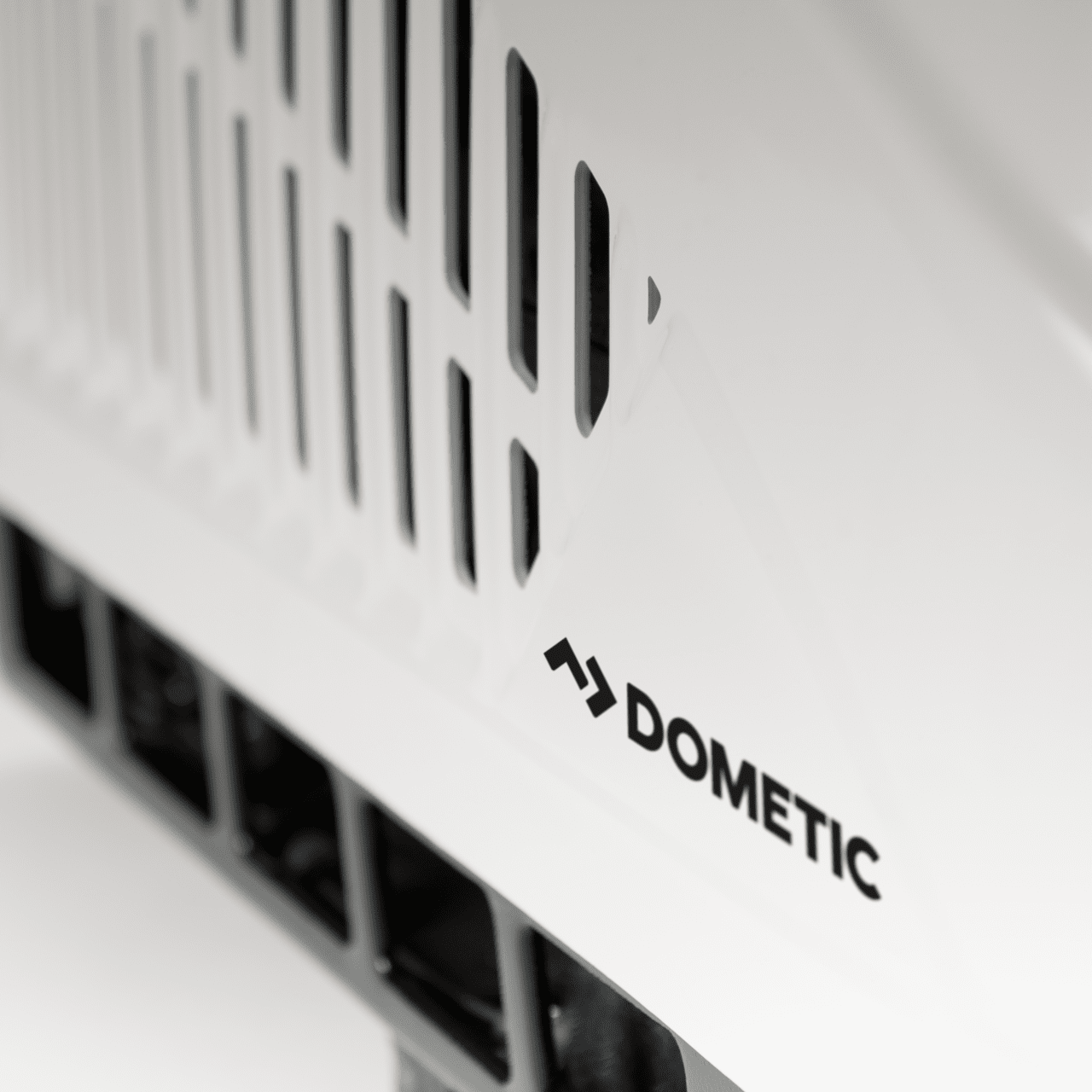

High-performance design

Larger air openings for improved air flow and cooling

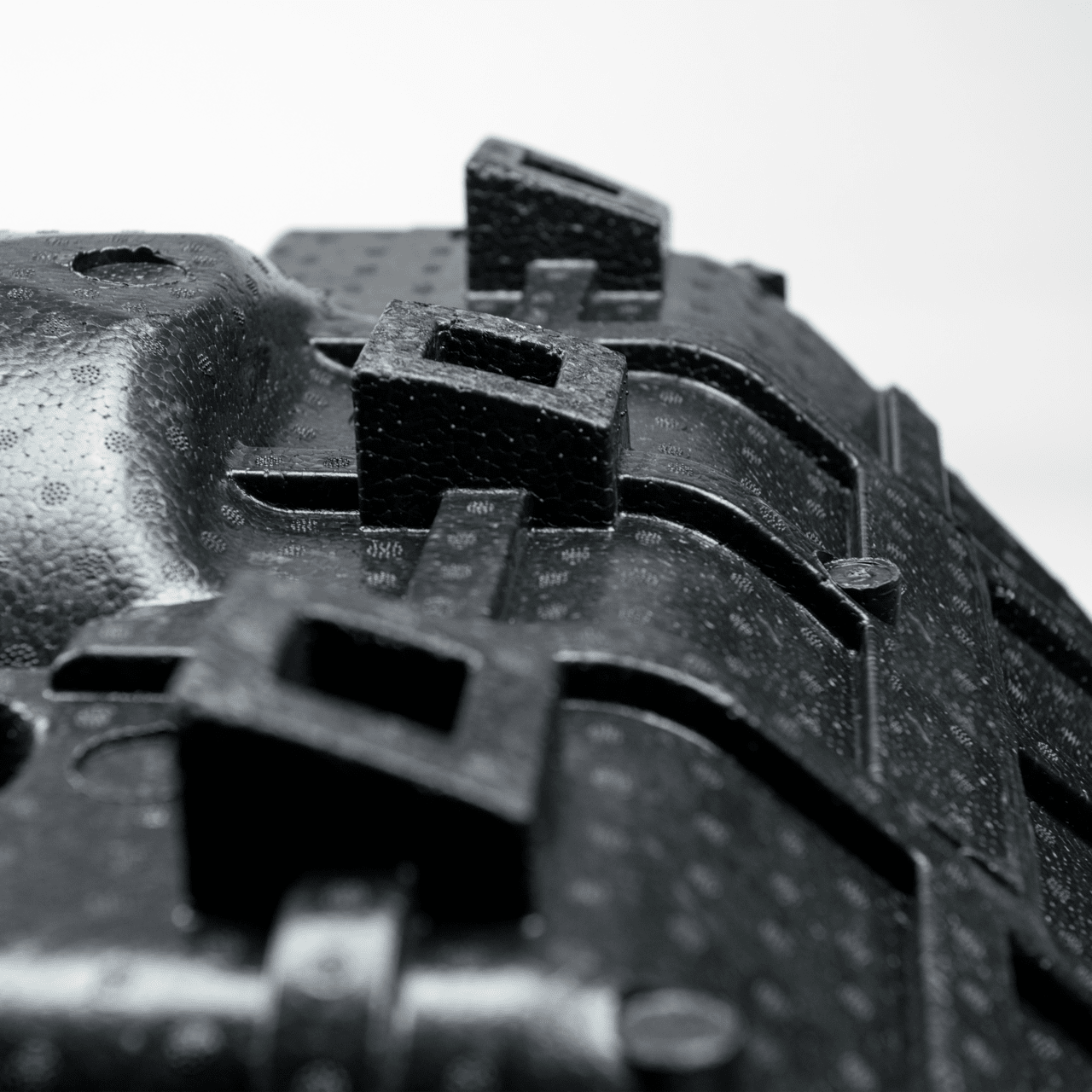

Lighter weight

EPP foam housing reduces weight and also improves cooling

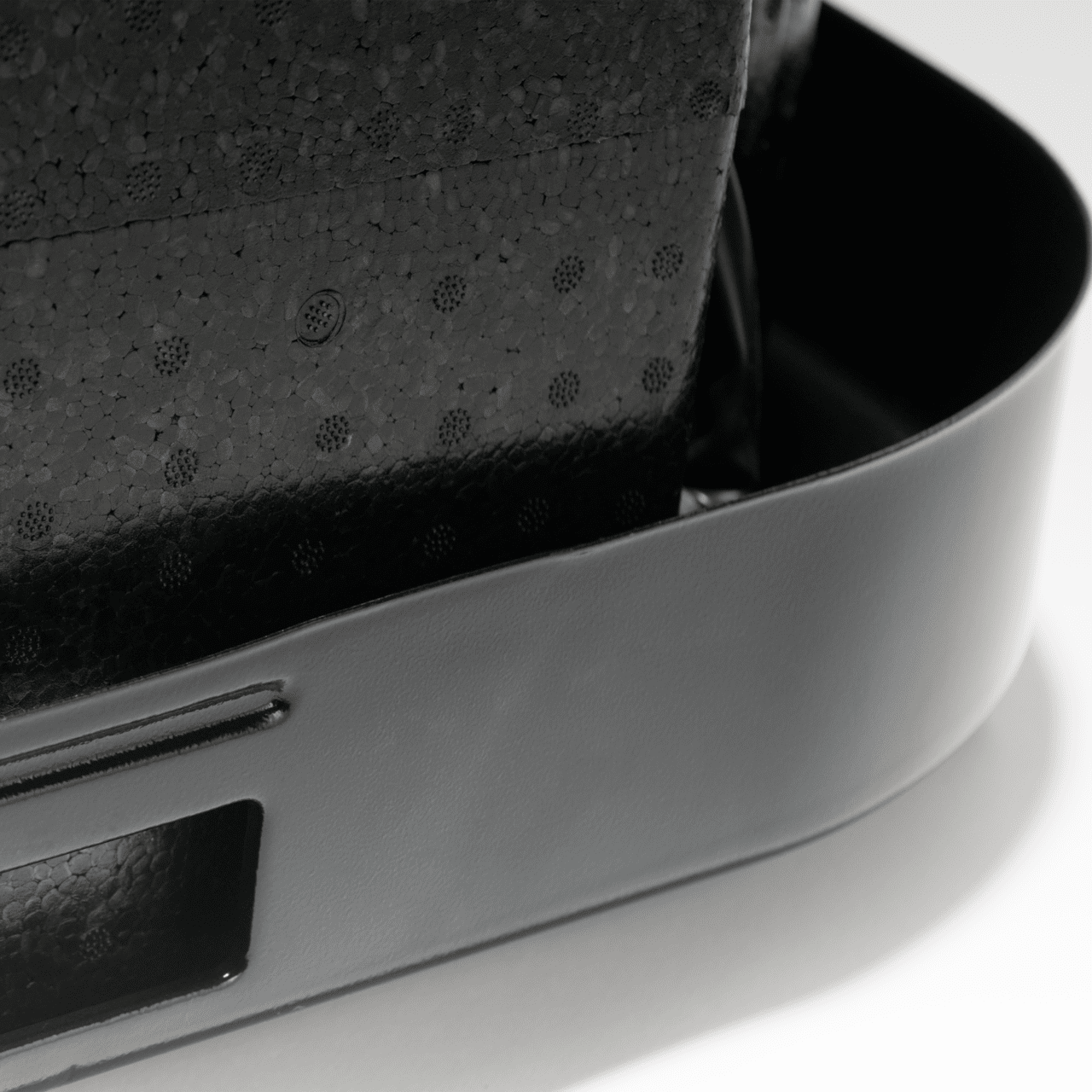

Lasting Design

Custom wrap-around shroud and carbon steel base add strength, protection and durability

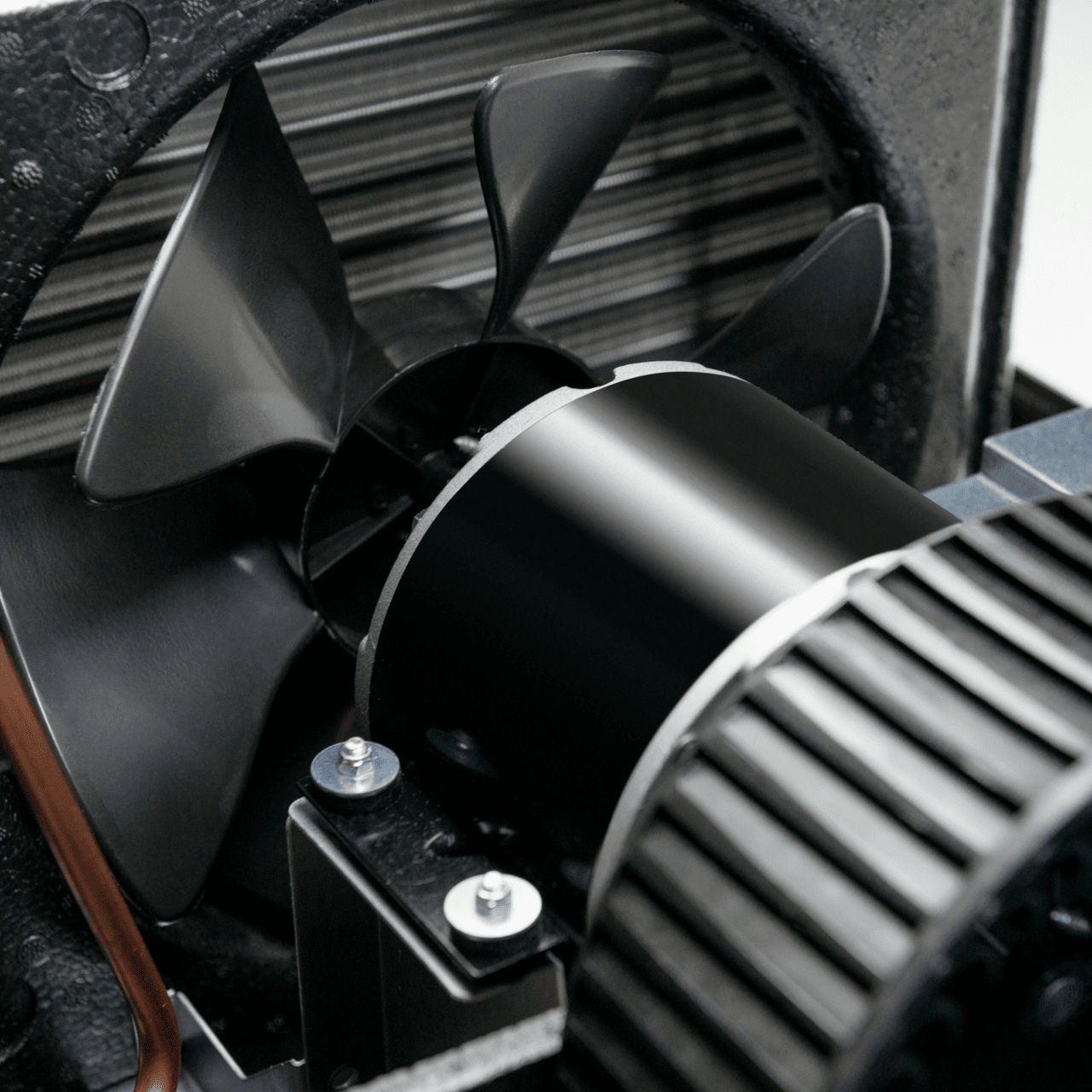

Quiet Operation

Dampening brackets reduce noise and vibration

Questions, answered.

A few things worth knowing before you decide.

Still need a hand?

Contact product support

4 questions

If you are travelling to cooler climates then this will not challenge the air conditioners to the extremes, a unit with a smaller power rating will do for these types of trips. You should not save on power, though, if you regularly travel to warmer climates and even less so if you have children or pets on board as staying in a recreational vehicle can quickly become uncomfortable on a hot summer day. When the nights are not cooler either, rest and recuperation is only possible with an adequate air conditioner.

Air conditioners work on basically the same principle as the cooling units of kitchen refrigerators. Their cooling efficiency is way higher though. In either system a refrigerant extracts heat from the space to be cooled and dissipates it to the outside. An RV air conditioner should additionally reduce the humidity. AC systems most commonly used for recreational vehicles:

  • Evaporation systems: Water is vapourised in a roof-mounted unit and collected in a filter. A fan draws ambient air in through the filter, which results in a heat exchange. Benefits: low current consumption, lightweight. Drawback: The energy efficiency depends on the ambient humidity; so the performance of the system varies. It drops when the humidity is > 85% – and that's exactly the level where air conditioning is needed. Moreover, evaporation systems will, by nature increase the humidity in the vehicle, regardless of the ambient conditions.

The temperature conditions in recreational vehicles and the reasons behind them RV and caravans are no houses and they don't have thick walls, even if they are reasonably insulated they will heat up in the sun. The temperature inside can quickly rise to 30°C or more and not only in the hot and sunny south, but also in moderate climate zones. Besides insulation, the temperature conditions inside the vehicle depend on other factors, too: the size and number of windows, for instance. A caravan with small windows will heat up less quickly than a RV with generously sized glass surfaces and it does of course matter where you park your vehicle – in the blazing sun or in the shade of a tree. Do you take every opportunity to air the vehicle out? Or are all the windows closed and the heat can spread throughout the interior?

Travelling off the beaten track with all the comfort you are accustomed to – Dometic generators make it possible. They ensure reliable power supply wherever mains power is unavailable. This makes them a must-have accessory for outdoor enthusiasts striving for maximum freedom and independence.

Air conditioners have the highest start-up current of all electrical devices commonly used in recreational vehicles. However, this current level is only required for fractions of a second; the level required in continuous operation is much lower. As the mains hookups on most campsites are fitted with a delay fuse, the short-time peaks are normally no problem.
