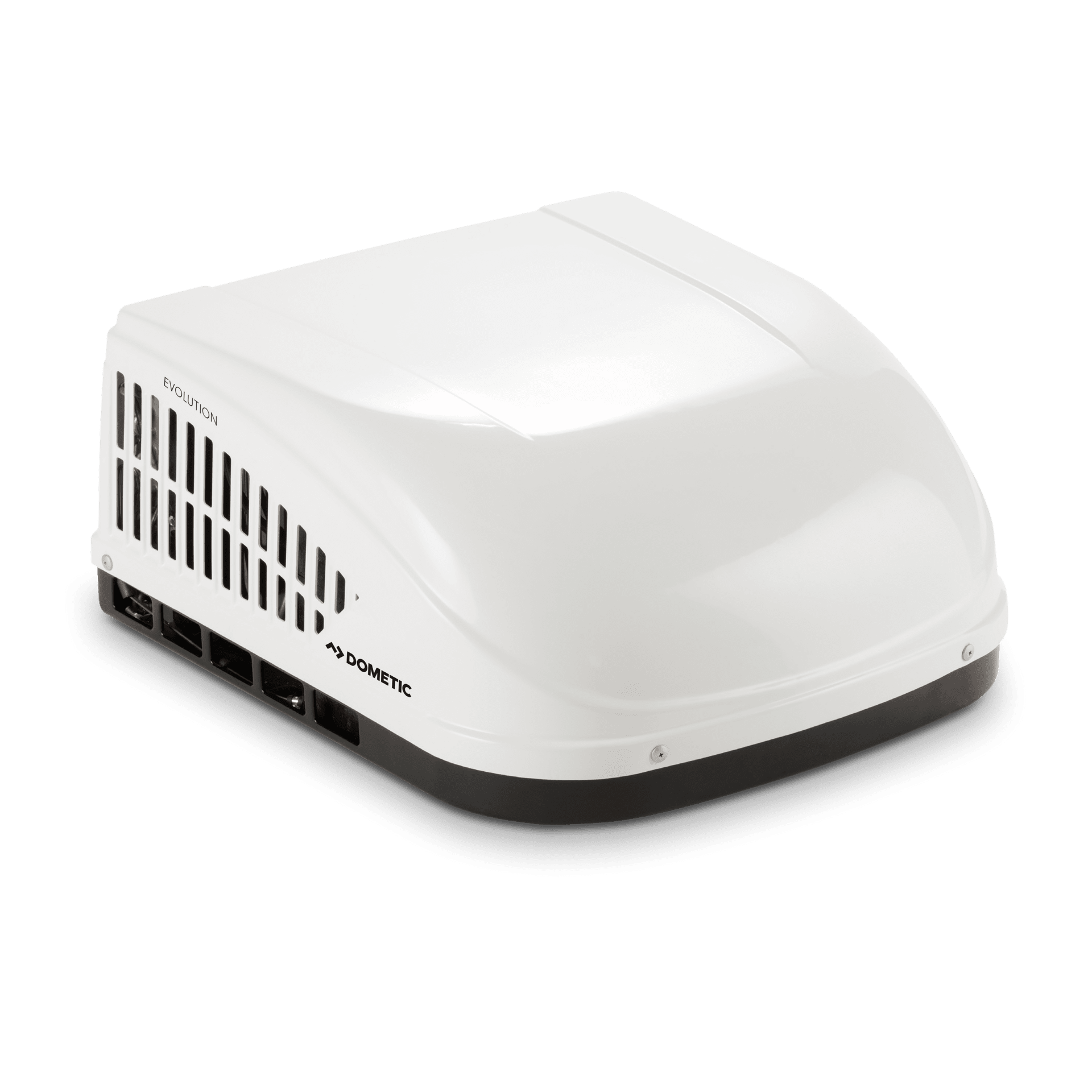

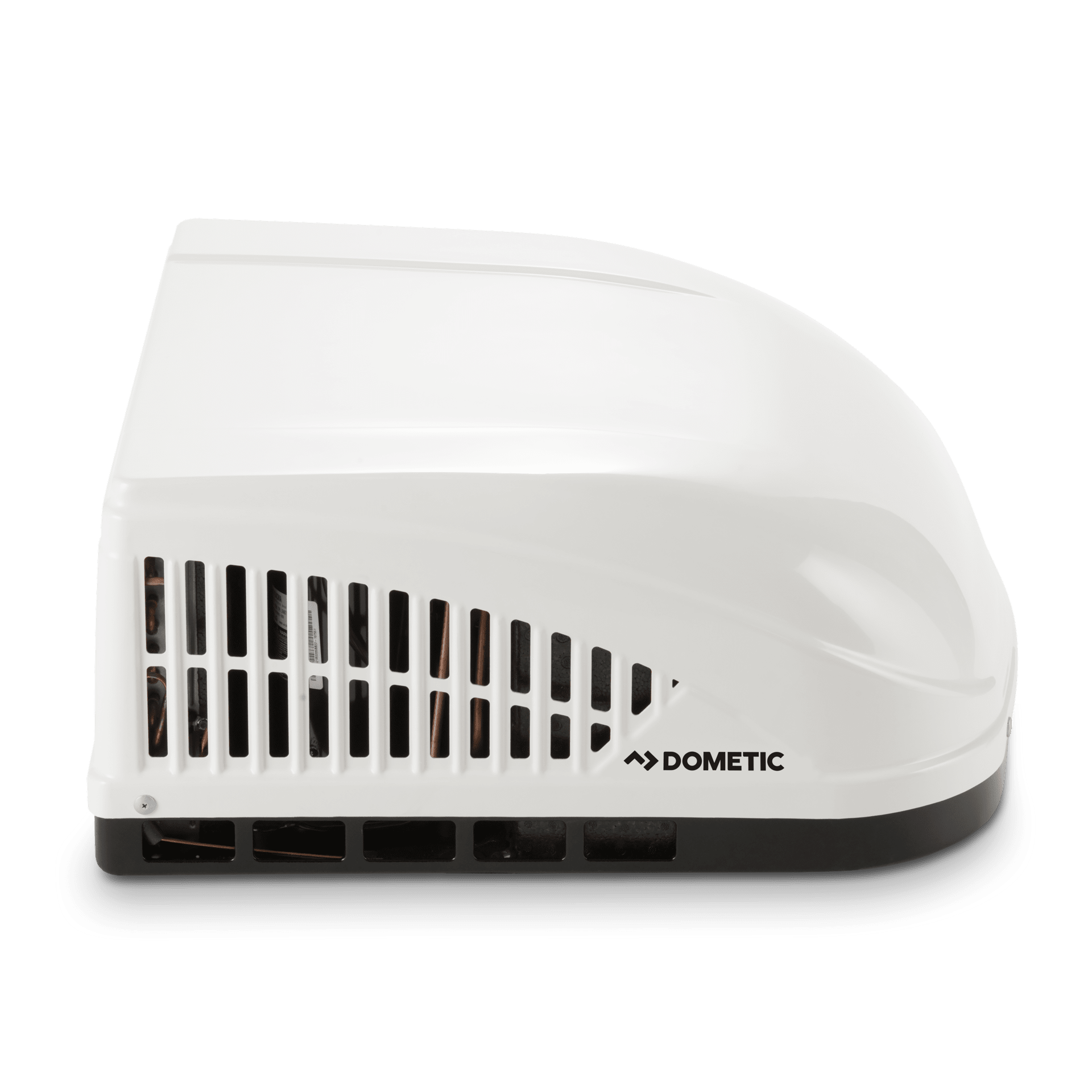

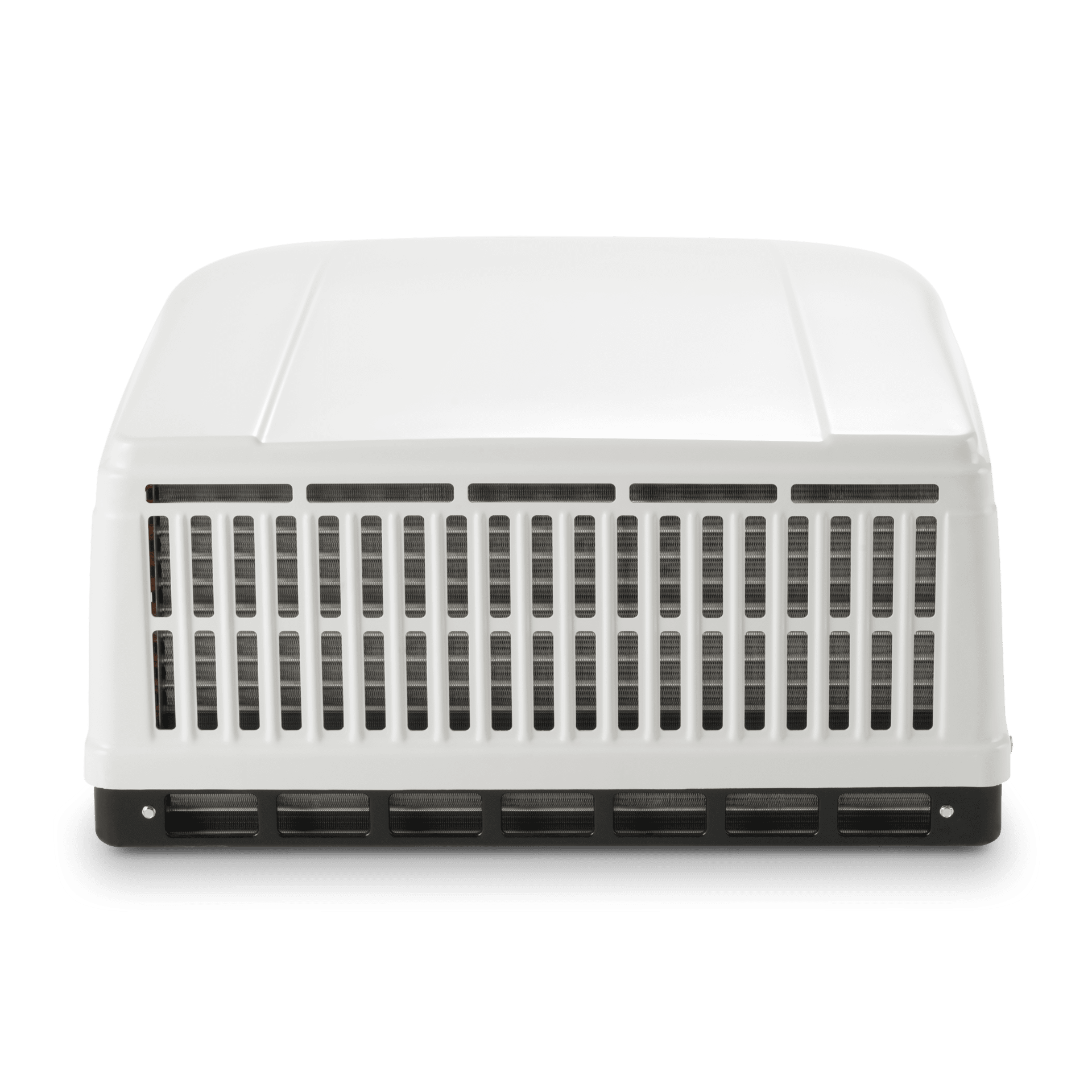

Dometic Brisk II Commercial Grade - 15K BTU Air Conditioner - White

Technical Information

Color

Black

Brand

Dometic

Model

Brisk II Commercial

Scope of delivery

1 Air conditioner, 1 warranty card

EAN-13

6951218416388

Publication Model Name

Dometic Brisk II Commercial Grade - 15K BTU Air Conditioner - White

Product Description

15,000 BTU - Rooftop Standard Profile Air Conditioner - No Pre-installed controls - Non-Ducted application: air distribution box required - Ducted application: return air grille and control kit required - white

Dimensions product depth, [mm]

701.68

Dimensions product height, [mm]

352.42

Dimensions product width, [mm]

752.47

Net weight, [kg]

35.61

Net weight, [lbs]

78.50

Dimensions parcel depth, [mm]

736.6

Dimensions parcel height, [mm]

381

Dimensions parcel width, [mm]

774.7

Parcel weight, [kg]

39.20

Parcel weight, [lbs]

86.44

GWP

2088

CO2 equivalent, [t]

1.19

Thermostat control

Manual Thermostat

SKUCertificates

CSA

Hermetically Sealed

Yes

Refrigerant, type

R410A

Input voltage (AC), [V]

115

Input frequency, [Hz]

60

Required AC circuit protection min, [A]

20.000000

Required AC circuit protection max, [A]

20.000000

AirFlow, [m³h]

510.000000

Current consumption min cooling, [A]

16.050000

Current consumption max cooling, [A]

20.000000

Operating temperature min, [°C]

16.000000

Operating temperature max, [°C]

46.000000

Cut out depth, [mm]

360.000000

Cut out width, [mm]

360.000000

Dimensions product width, ["] - Display

29 5/8

Item Description

COMMERCIAL GRADE AC PW 410A
