Description
- High-performance design delivers 15 % air flow increase over previous models
- Cooling and heating function for year-round comfort
- EPP foam housing reduces weight and increases cooling performance
- Fits standard 14 in./35.5 cm roof vent openings
- Requires Inside ceiling assembly (sold separately)
The Brisk II's smart design and improved materials combine to maximize air flow and performance. It is best-in-class of any standard RV rooftop air conditioner for weight, air flow and capacity. Tested for use in extreme conditions.
Specifications
SKU: 9105304480
| Model | 15K Btu Heat Pump |
|---|---|
| Scope of delivery | 1 Air conditioner, 1 Warranty card, 1 Registration card |
| SKUCertificates | CSA |
| Product Description | 15,000 BTU - Rooftop Standard Profile Air Conditioner with Heat Pump - No Pre-installed controls - Non-ducted application: air distribution box, CT controls and CT thermostat required - Ducted application: return air grille, CT controls and CT thermostat |

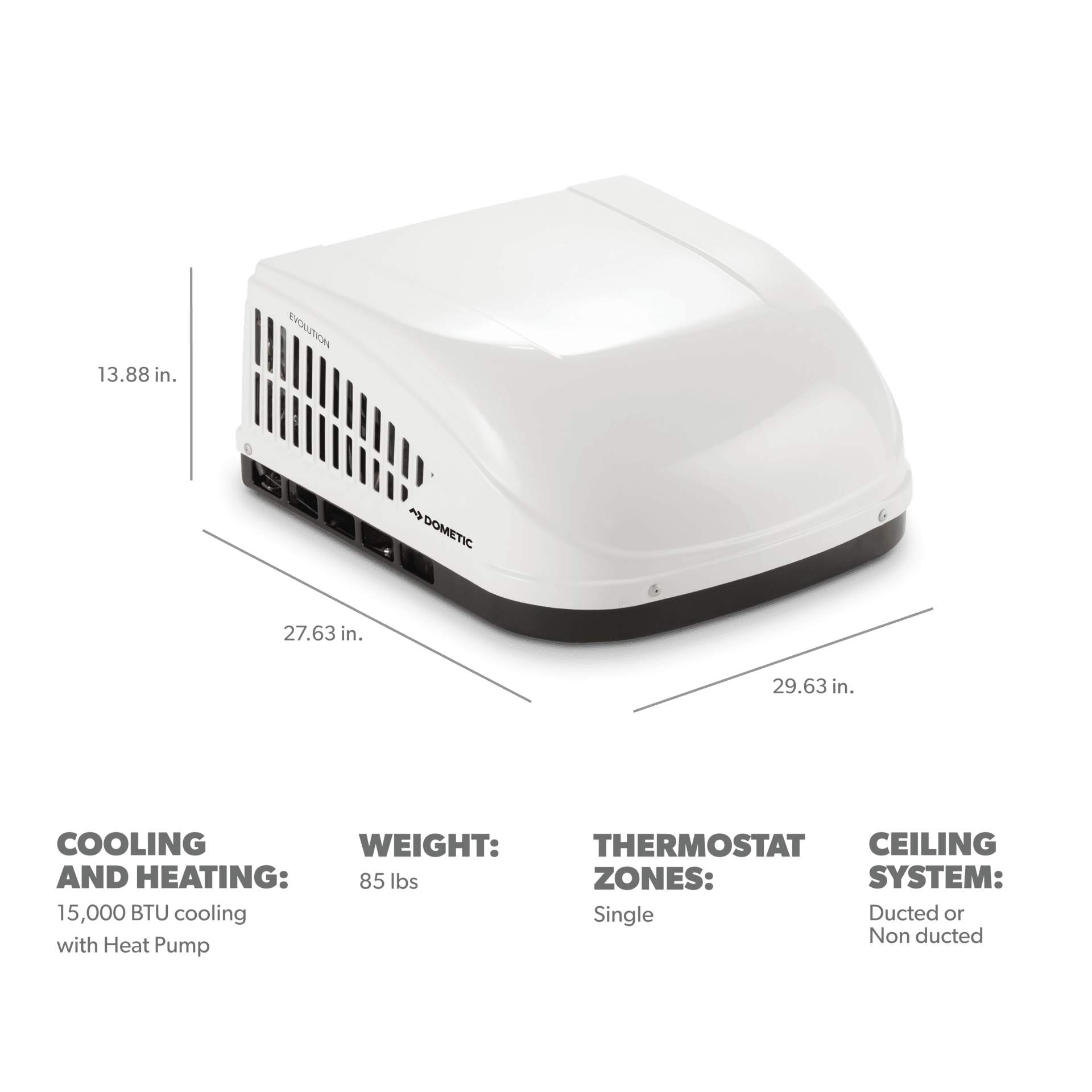

| Dimensions product depth, [mm] | 736.60 |
|---|---|
| Dimensions product height, [mm] | 381 |
| Dimensions product width, [mm] | 774.70 |
| Dimensions product width, [in] | 30 1/2 |
| Net weight, [kg] | 38.56 |
| Net weight, [lbs] | 85 |
| Cut out height, [mm] | 360 |
| Cut out width, [mm] | 360 |
| Input voltage (AC), [V] | 115 |
|---|---|
| Input frequency, [Hz] | 60 |
| Hermetically Sealed | Yes |
|---|---|
| Refrigerant, type | R410A |
| GWP | 2088 |
| CO2 equivalent, [t] | 1,302 |
| AirFlow, [m<sup>3</sup>h] | 295 |
| Power consumption - Heat pump (ISO 5151) | 1402 |
| Dimensions parcel depth, [mm] | 737 |
|---|---|
| Dimensions parcel height, [mm] | 381 |
| Dimensions parcel width, [mm] | 775 |
| Parcel weight, [kg] | 38.56 |
| Parcel weight, [lbs] | 85.01 |
Dometic DUO-THERM Penguin, Brisk Air, and Quick Cool Roof Top Air Conditioning Installation and Operation Manual
Installation And Operating Manual
Dometic 57908, 59712, 57915, 19516, 59530, 520300,520310, 520315, 520316, 600312, 600315, 3105007, 3105935 LCD SZ - Installation Manual AMER(en)
Installation And Operating Manual
Dometic 3316155.000 LCD SZ 57908, 59712, 57915, 59516, 59530, 520300, 520310, 520315, 520316, 600312, 600315 - Installation Manual AMER(fr)
Installation And Operating Manual
Dometic 459530, B59530, 640310, 3314854.000 - Installation and Operating Manual AMER(fr)
Installation And Operating Manual
Dometic Roof Top Unit for 459146, B59146, 3314852 - Installation and Operating Manual AMER(fr)
Installation And Operating Manual
Dometic 459146, B59146, 3314852.000 - Installation and Operating Manual AMER(en)
Installation And Operating Manual

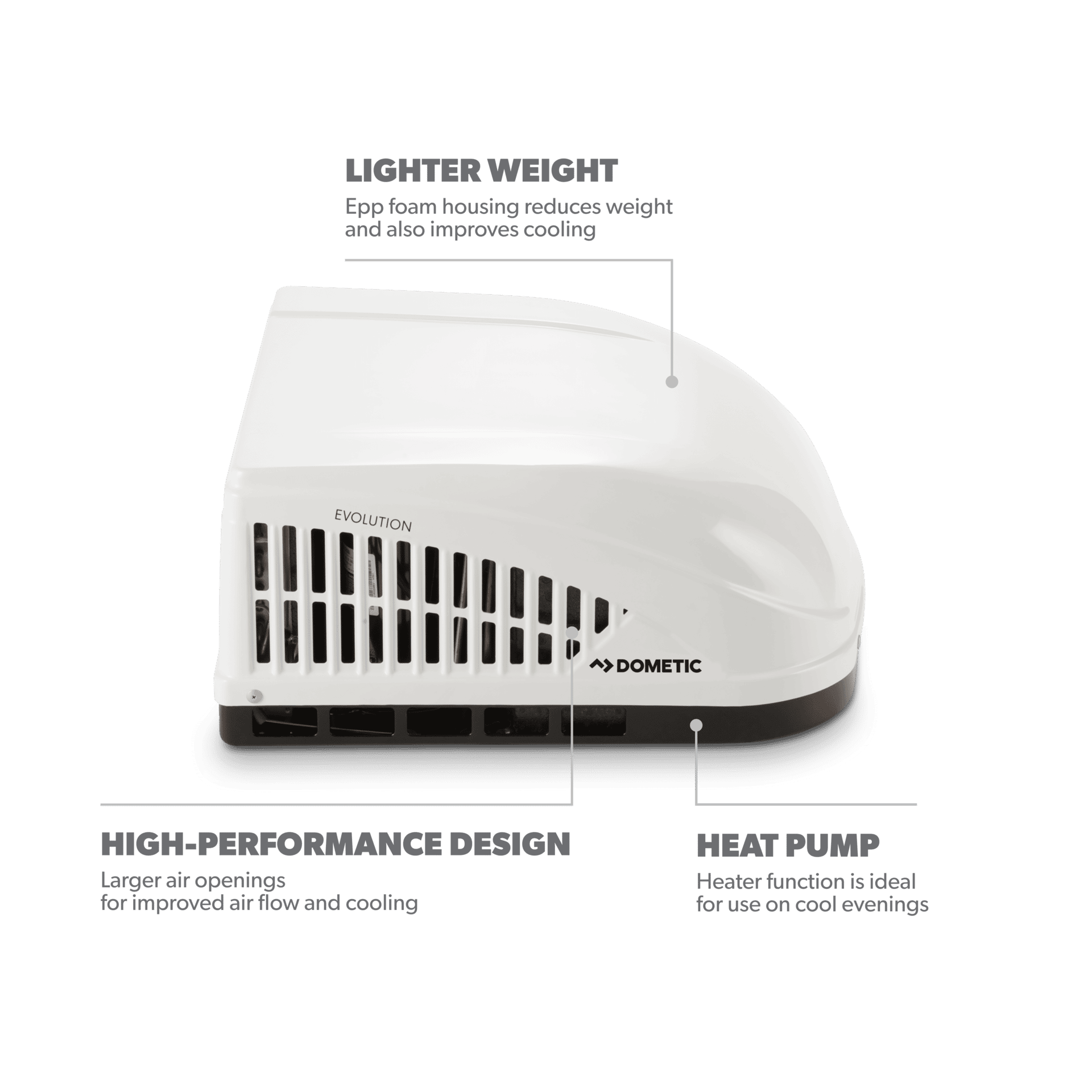

Highlights
High-performance design
Larger air openings for improved air flow and cooling
Lighter weight
EPP foam housing reduces weight and also improves cooling
Lasting Design
Custom wrap-around shroud and carbon steel base add strength, protection and durability
Quiet Operation
Dampening brackets reduce noise and vibration
US$ 1450.99
