Description
- Horizontal or vertical configuration for flexible installation
- Low-profile, compact design: 7-3/8 in. x 16-1/2 in. x 20 in. (H x W x D)
- Quiet operation thanks to reduced air turbulence
- 12 V DC powered unit
- 30,000 BTU
- Outside access door required (sold separately)

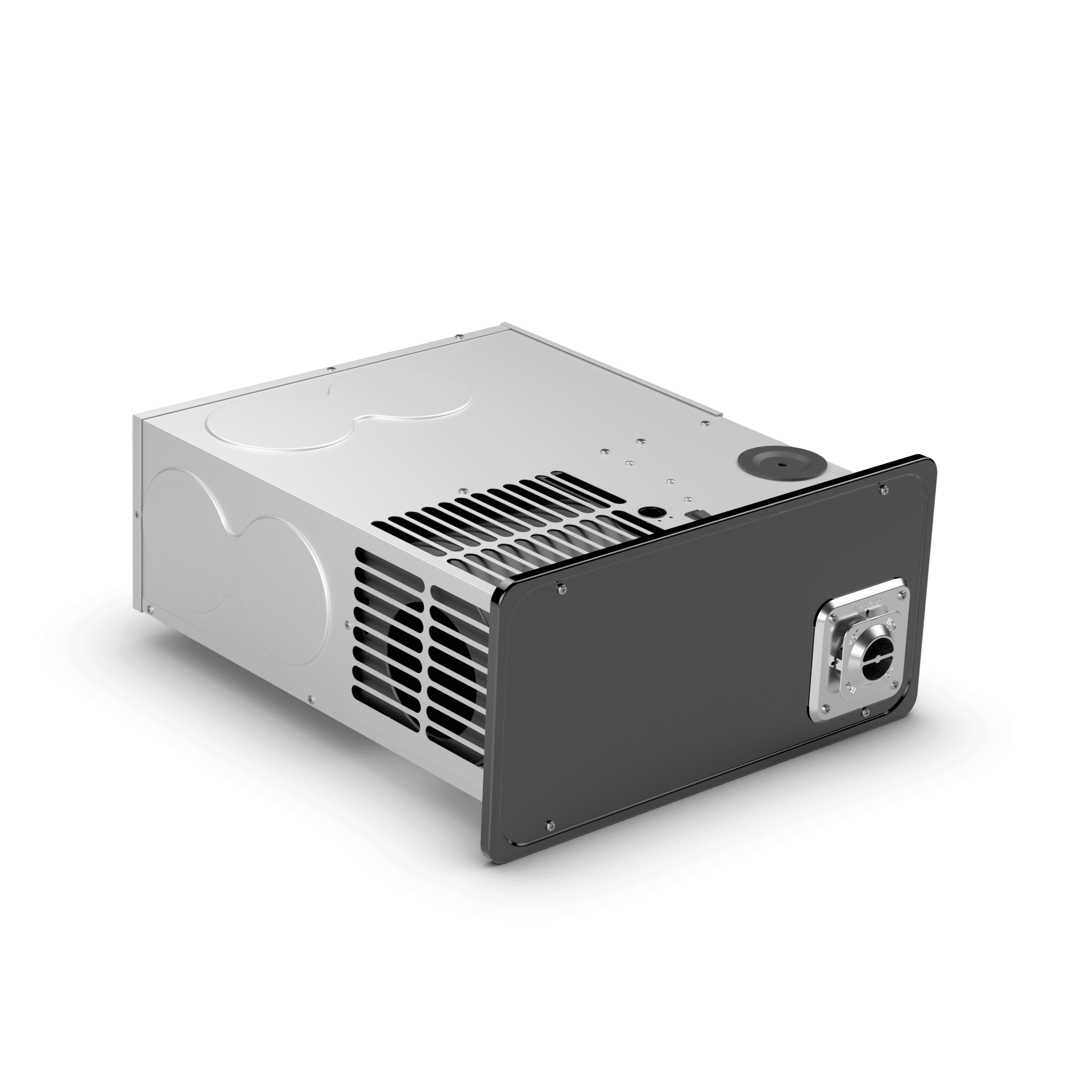

Engineered for easy maintenance and superior air delivery. Its compact size offers installation convenience. The Dometic DFMD30111 Medium Furnace has a redesigned, durable stamped steel door, sold separately (select models only).
Specifications
SKU: 9600000923
| Model | DFM |
|---|---|
| Scope of delivery | Furnace, Duct Adaptors and Manual |
| SKUCertificates | ETL |
| Product Description | Doored Furnace, 30,000 BTU, Uses LP Gas, 12 DC Voltage |
| Dimensions product depth, [mm] | 508 |
|---|---|
| Dimensions product height, [mm] | 177.8 |
| Dimensions product width, [mm] | 419.1 |
| Dimensions product width, [in] | 16 1/2 |
| Net weight, [kg] | 15.2 |
| Net weight, [lbs] | 33.5 |
| Input voltage (DC), [V] | 12 |
|---|---|
| Rated input current (DC), [A] | 7.5 |
| Fuel type | Liquid gas LPG |
|---|---|
| Energy efficiency, [%] | 76 |
| Dimensions parcel depth, [mm] | 533.40 |
|---|---|
| Dimensions parcel height, [mm] | 241.30 |
| Dimensions parcel width, [mm] | 412.75 |
| Parcel weight, [kg] | 15.25 |
| Parcel weight, [lbs] | 33.64 |
