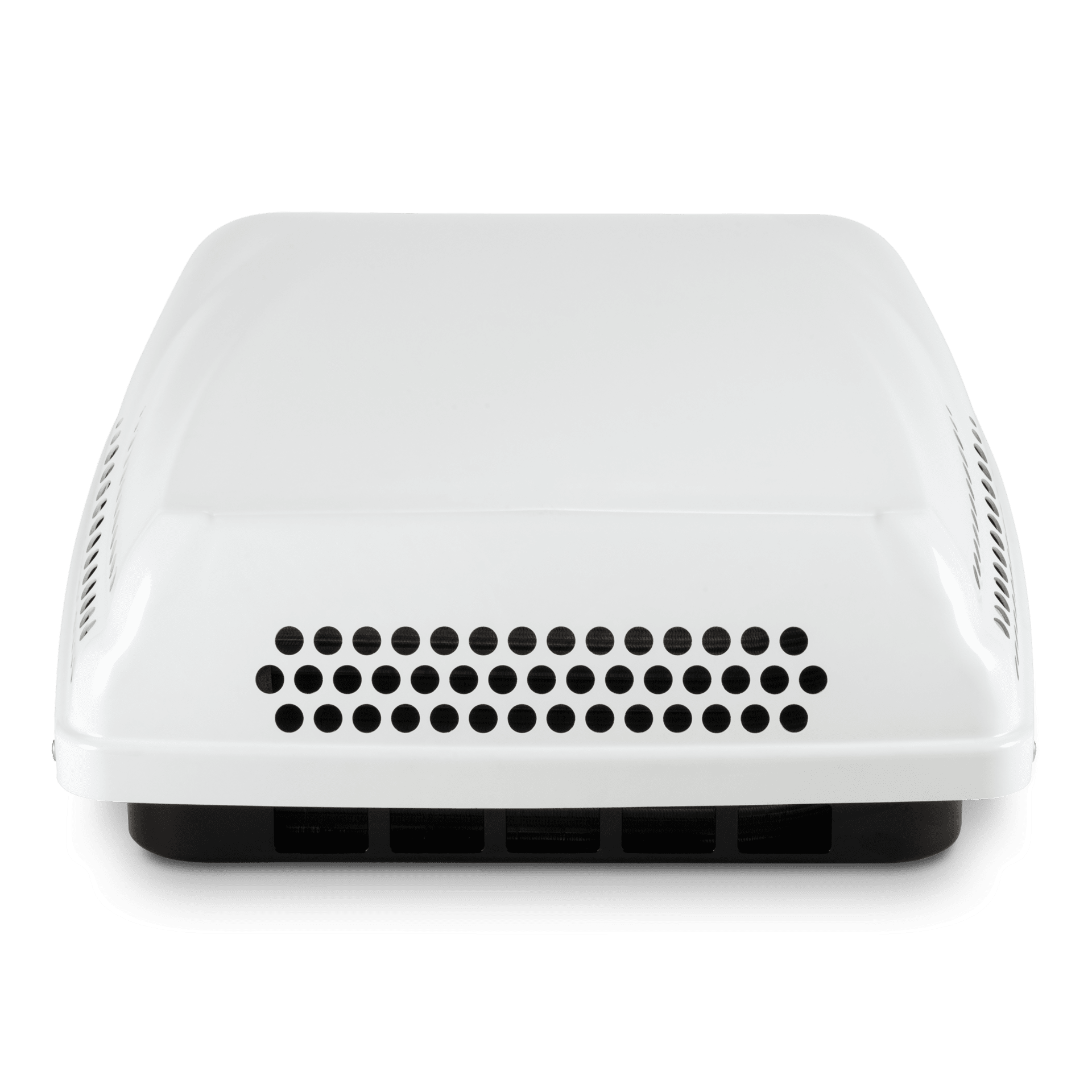

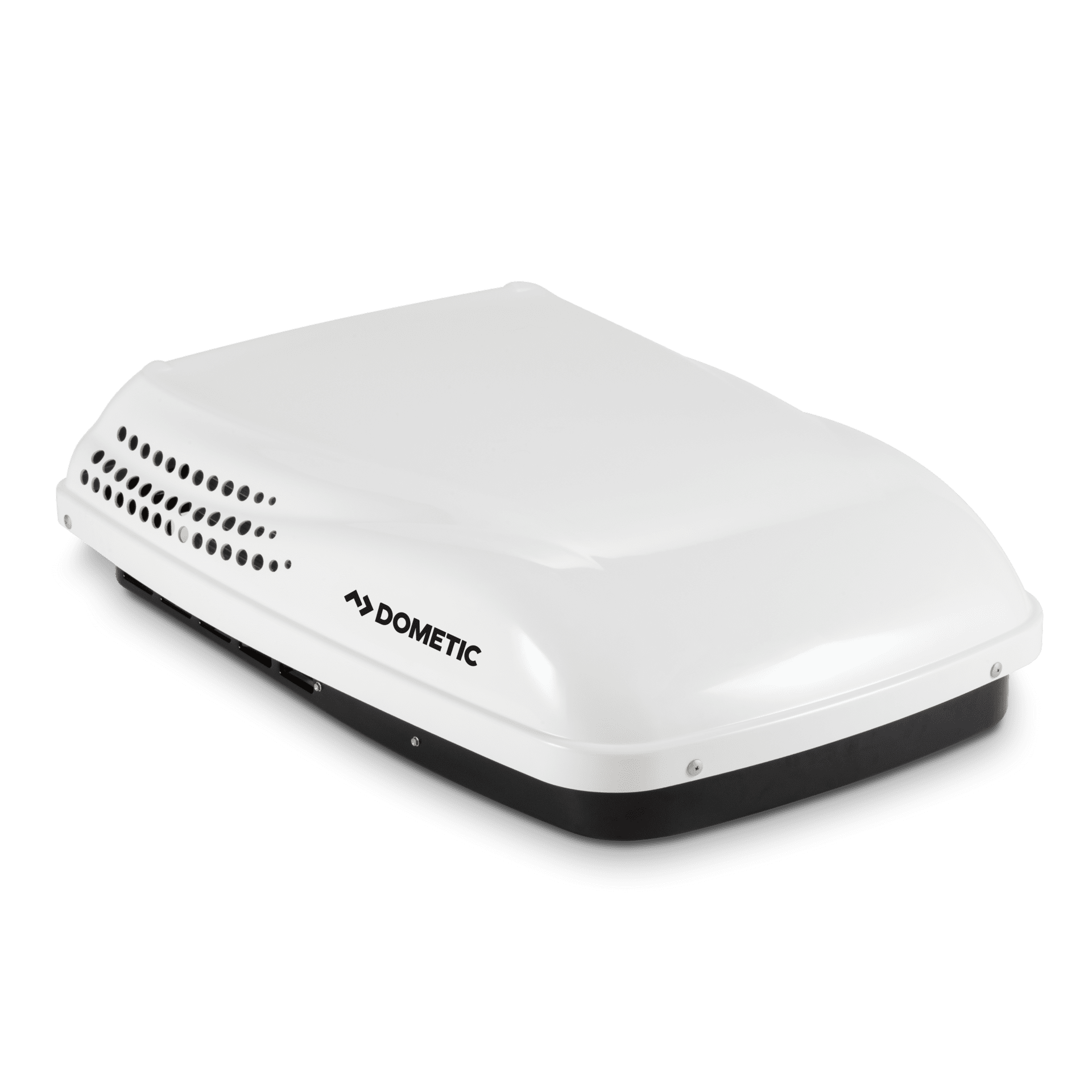

Dometic Penguin II - 13.5K BTU Multi-Zone Air Conditioner - White

Technical Information

Color

Black

Brand

Dometic

Scope of delivery

1 Air conditioner, 1 Warranty card

EAN-13

0713814200688

Publication Model Name

Dometic Penguin II - 13.5K BTU Multi-Zone Air Conditioner - White

Product Description

13,500 BTU - Rooftop Low Profile Air Conditioner with Heatstrip - Pre-installed Multi-Zone CCC II control board - Non-Ducted application: air distribution box and CCCII thermostat required - Ducted application: return air grille and CCCII thermostat requi

Dimensions product depth, [mm]

737

Dimensions product height, [mm]

285.75

Dimensions product width, [mm]

1028.70

Net weight, [kg]

44.10

Net weight, [lbs]

97.24

Dimensions parcel depth, [mm]

755

Dimensions parcel height, [mm]

310

Dimensions parcel width, [mm]

1055

Parcel weight, [kg]

49.70

Parcel weight, [lbs]

109.59

GWP

2088

CO2 equivalent, [t]

0,886

Model identifier

02 0206 020623 020623006

Thermostat control

Electronic Thermostat

SKUCertificates

CSA

Standard mount. material thickness 1 min, [mm]

25

Standard mount. material thickness 1 max, [mm]

150

Hermetically Sealed

Yes

Refrigerant, type

R410A

Input voltage (AC), [V]

115

Input frequency, [Hz]

60

AirFlow, [m³h]

253.000000

Operating temperature min, [°C]

16.000000

Operating temperature max, [°C]

52.000000

Cut out depth, [mm]

360.000000

Cut out width, [mm]

360.000000

Dimensions product width, ["] - Display

40 1/2

SKUSKURequiredAccessories

9105305719

Item Description

Dometic,PENGUIN AC CCC2 PW 410A W/HS

Pack Size

Yes
