Description
- High-performance motor and fan
- Low profile – 11 1/4" / 29 cm high
- Sleek, contemporary shroud improves aerodynamics, reduces wind resistance
- Ducted or Non-ducted cooling
- Requires inside ceiling assembly and control kit (available separately)

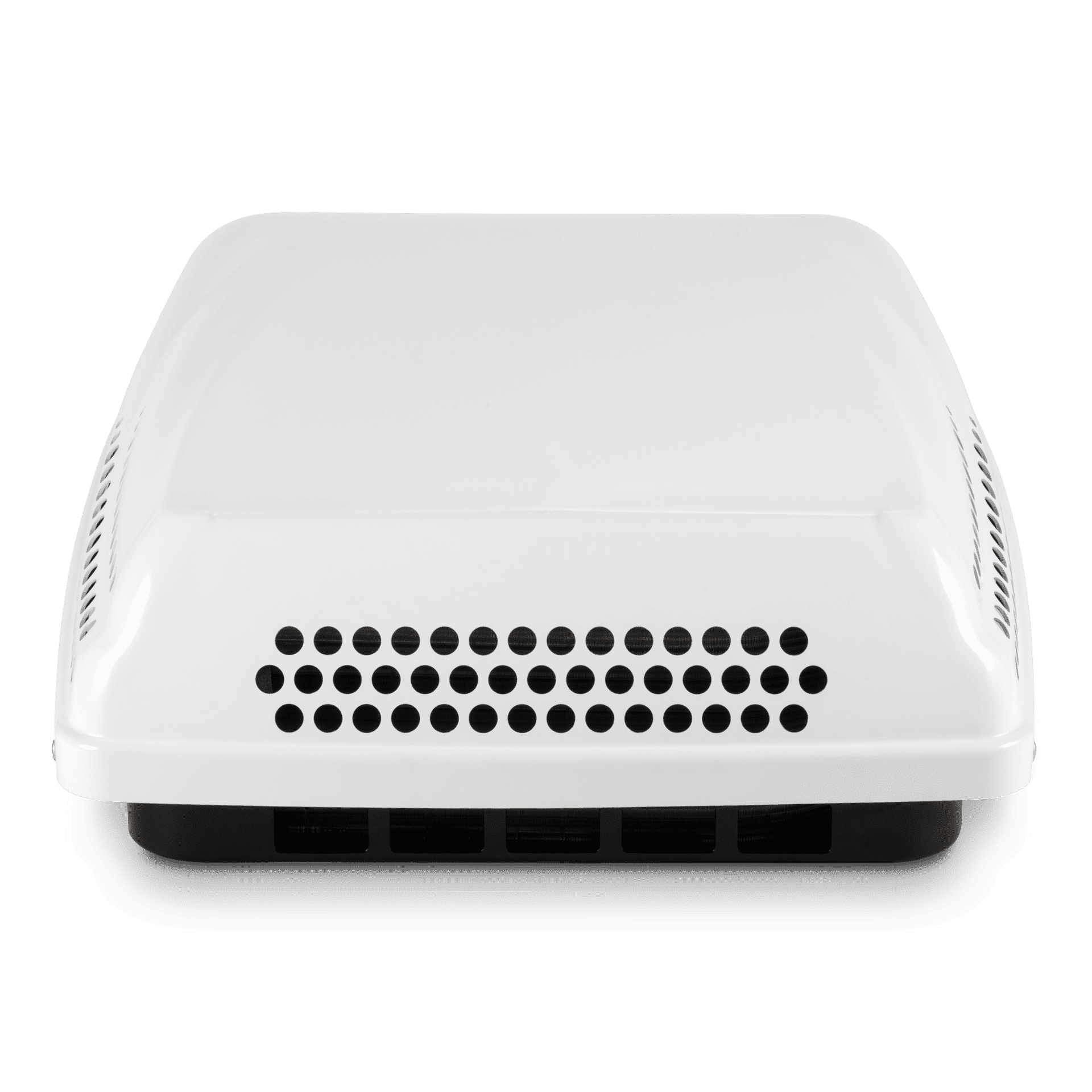

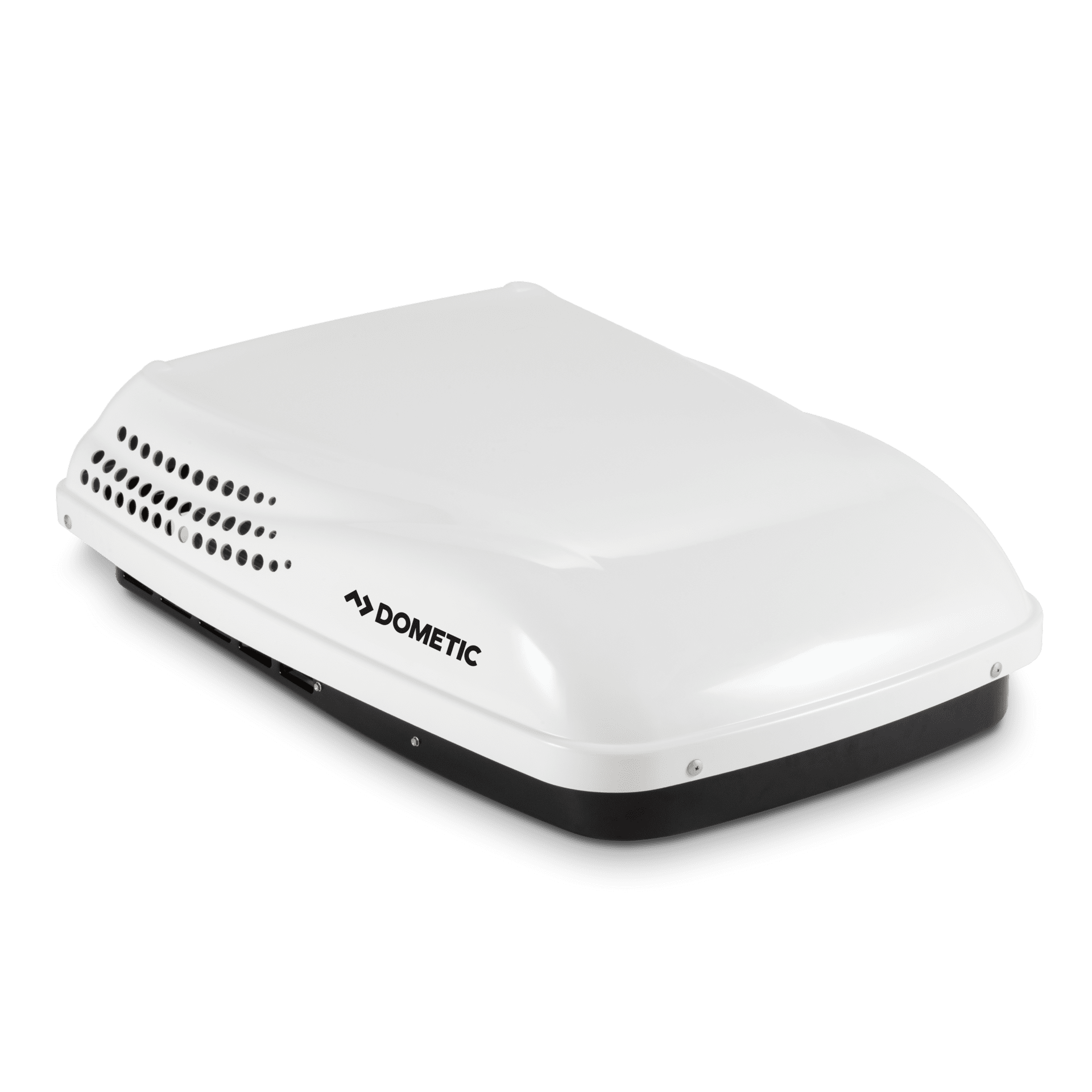

This low-profile rooftop air conditioner with sleek, futuristic styling offers premium comfort control and improved aerodynamics. A high-performance motor and fan deliver superb cooling performance.
Specifications
SKU: 9600003808
| Model | 13.5K Btu Heatpump with Control Box |
|---|---|
| Scope of delivery | 1 Air conditioner, 1 Warranty card |
| SKUCertificates | CSA |
| Product Description | 13,500 BTU - Rooftop Low Profile Air Conditioner with Heat Pump - Pre-installed Multi-Zone CCC II control board - Non-Ducted application: air distribution box and CCCII thermostat required - Ducted application: return air grille and CCCII thermostat requi |
| Dimensions product depth, [mm] | 736.60 |
|---|---|
| Dimensions product height, [mm] | 285.75 |
| Dimensions product width, [mm] | 1028.70 |
| Dimensions product width, [in] | 40 1/2 |
| Net weight, [kg] | 45.81 |
| Net weight, [lbs] | 101 |
| Standard mount. material thickness 1 min, [mm] | 25 |
| Standard mount. material thickness 1 max, [mm] | 150 |
| Cut out depth, [mm] | 360 |
| Cut out width, [mm] | 360 |
| Input voltage (AC), [V] | 115 |
|---|---|
| Input frequency, [Hz] | 60 |
| Hermetically Sealed | Yes |
|---|---|
| Refrigerant, type | R410A |
| GWP | 2088 |
| CO2 equivalent, [t] | 0.89 |
| Operating temperature min, [°C] | -7 |
| Operating temperature max, [°C] | 52 |
| Thermostat control | Electronic Thermostat |
|---|
| Dimensions parcel depth, [mm] | 755 |
|---|---|
| Dimensions parcel height, [mm] | 310 |
| Dimensions parcel width, [mm] | 1055 |
| Parcel weight, [kg] | 48.80 |
| Parcel weight, [lbs] | 107.60 |
