Description
- High-perfomance motor and fan
- Low profile (11 1/4" / 29 cm) for reduced wind-resistance and improved fuel efficiency
- Fully automated controls provide easy comfort
- Accommodates ducted or non-ducted system

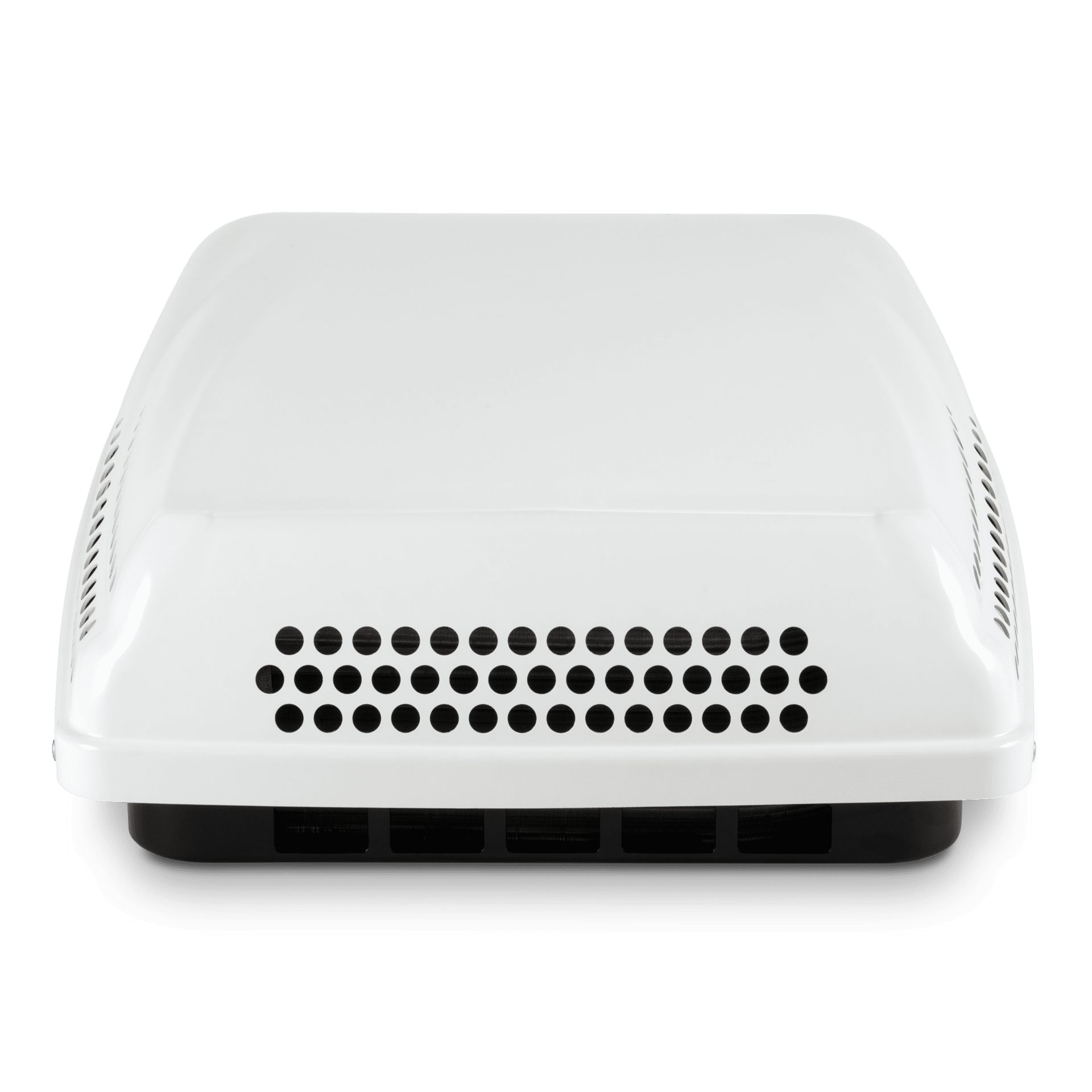

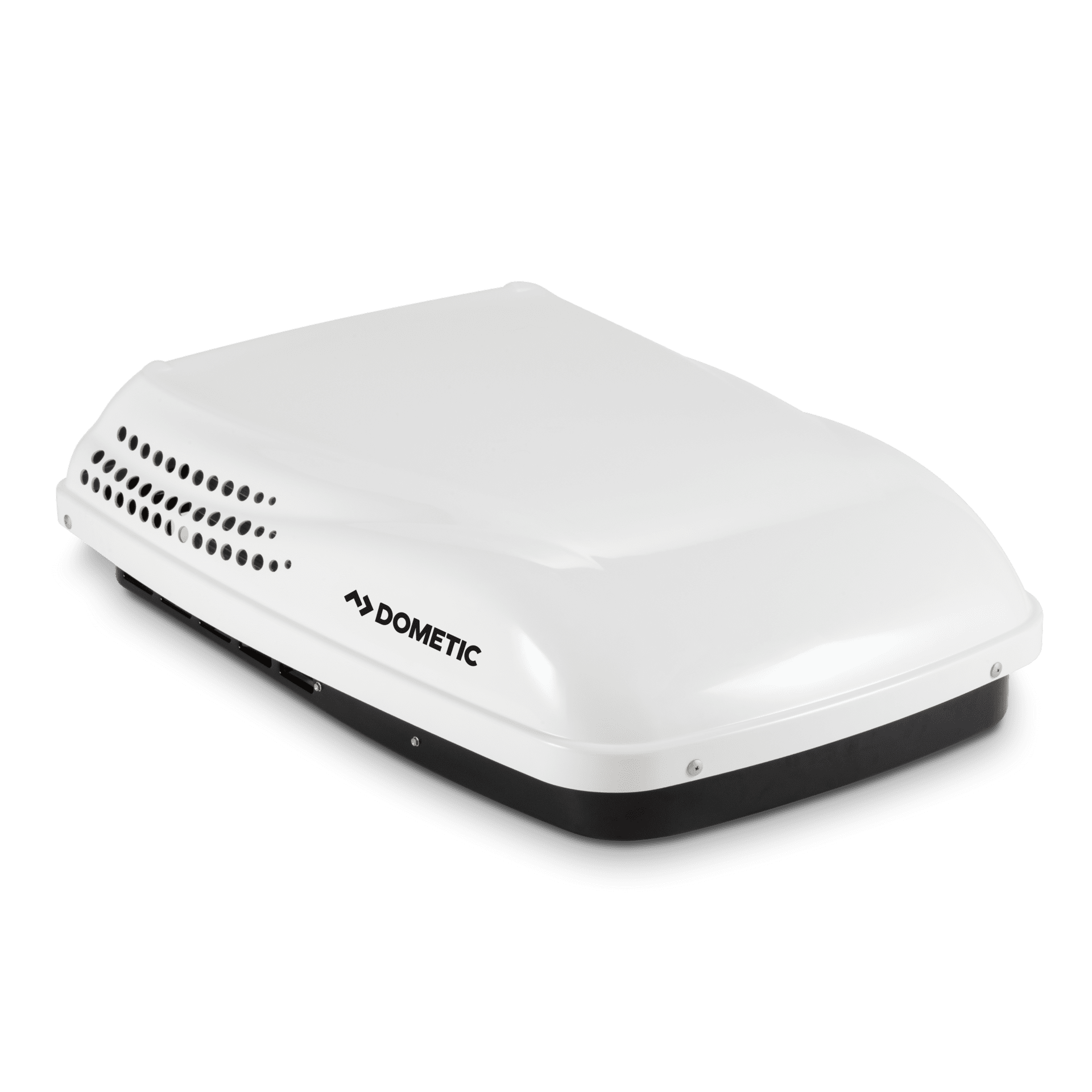

This low-profile rooftop air conditioner with sleek, futuristic styling offers premium comfort control and improved aerodynamics. A high-performance motor and fan deliver superb cooling performance.
Specifications
SKU: 9600003813
| Model | Hi Cap Heatpump with Control Box |
|---|---|
| Scope of delivery | 1 Air conditioner, 1 Warranty card |
| SKUCertificates | CSA |
| Product Description | High Capacity (Approximately 15,000 BTU) - Rooftop Low Profile Air Conditioner with Heat Pump - Pre-installed Multi-Zone CCC II control board - Non-Ducted application: air distribution box and CCCII thermostat required - Ducted application: return air gri |
| Dimensions product depth, [mm] | 736.60 |
|---|---|
| Dimensions product height, [mm] | 285.75 |
| Dimensions product width, [mm] | 1028.70 |
| Dimensions product width, [in] | 40 1/2 |
| Net weight, [kg] | 44.91 |
| Net weight, [lbs] | 99 |
| Standard mount. material thickness 1 min, [mm] | 25 |
| Standard mount. material thickness 1 max, [mm] | 150 |
| Cut out depth, [mm] | 360 |
| Cut out width, [mm] | 360 |
| Input voltage (AC), [V] | 115 |
|---|---|
| Input frequency, [Hz] | 60 |
| Hermetically Sealed | Yes |
|---|---|
| Refrigerant, type | R410A |
| GWP | 2088 |
| CO2 equivalent, [t] | 1.36 |
| Operating temperature min, [°C] | -7 |
| Operating temperature max, [°C] | 52 |
| Thermostat control | Electronic Thermostat |
|---|
| Dimensions parcel depth, [mm] | 755 |
|---|---|
| Dimensions parcel height, [mm] | 310 |
| Dimensions parcel width, [mm] | 1055 |
| Parcel weight, [kg] | 50.06 |
| Parcel weight, [lbs] | 110.38 |
