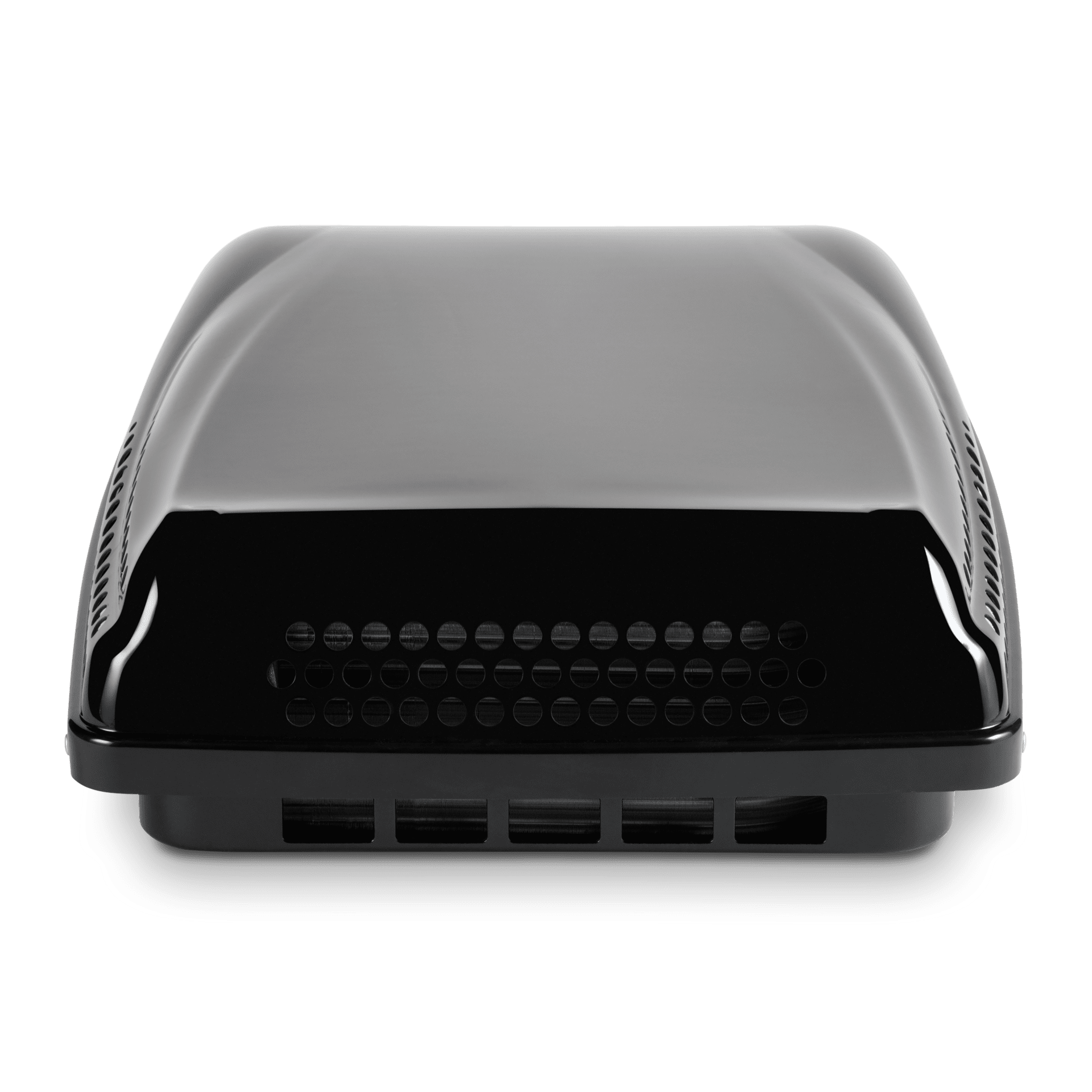

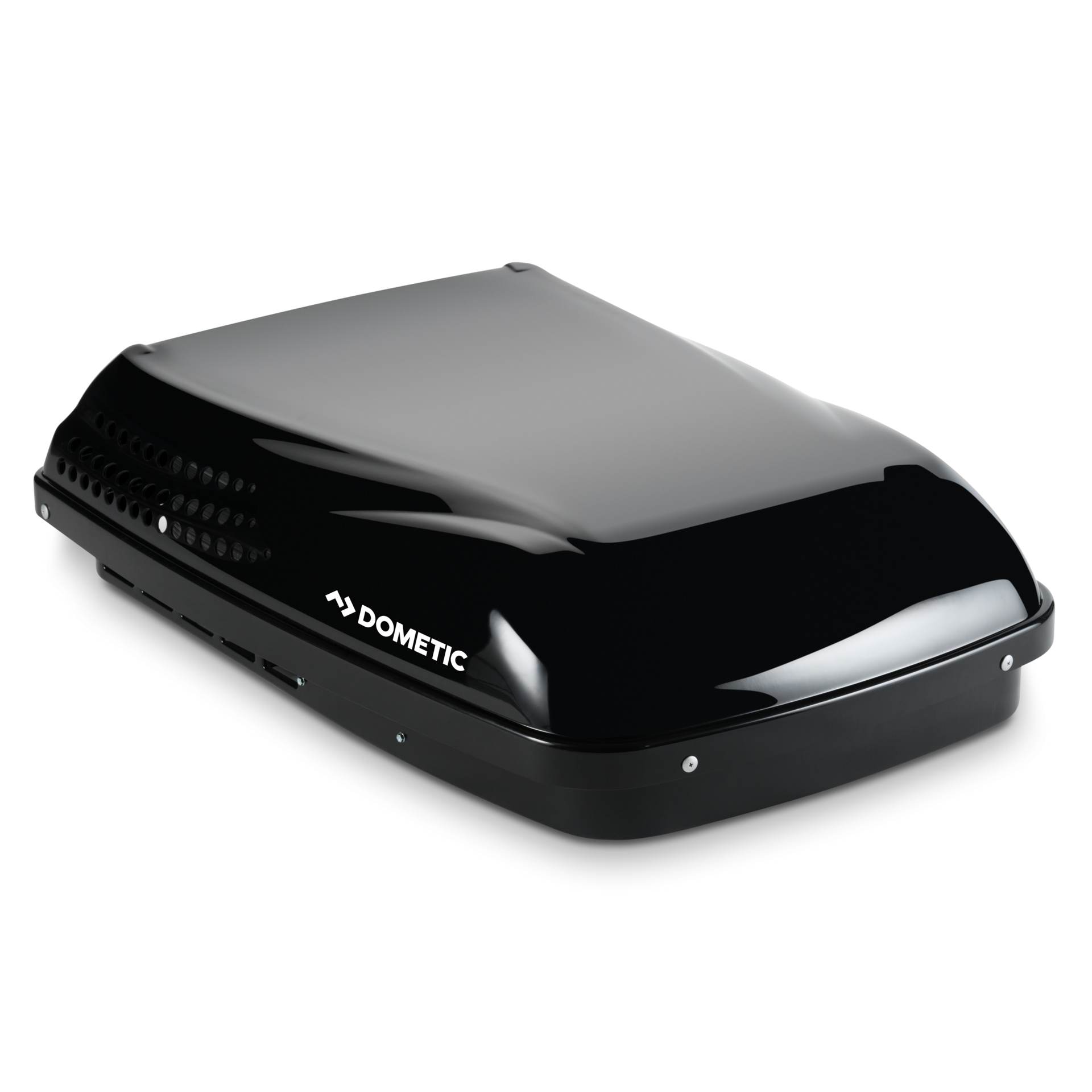

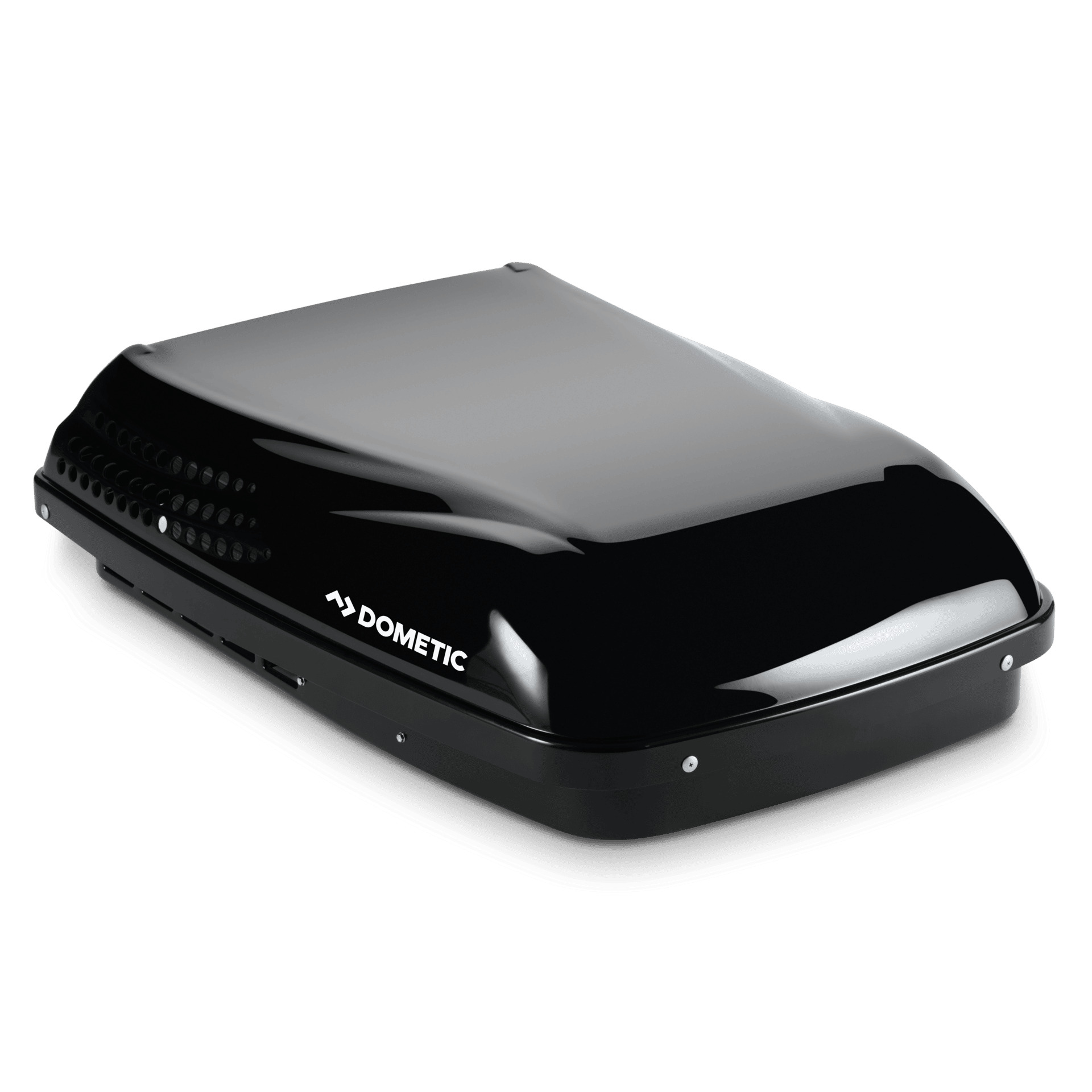

Dometic Penguin II High Capacity

Name: Dometic Penguin II High Capacity
Brand: Dometic
SKU: dometic-penguin-ii-high-capacity-4
Price: 1458.99 USD
Availability: InStock

High Capacity (Approximately 15,000 BTU) - Rooftop Low Profile Air Conditioner - Pre-installed Multi-Zone CCC II control board - Non-Ducted application: air distribution box and CCCII thermostat required - Ducted application: return air grille and CCCII t

This low-profile rooftop air conditioner with sleek, futuristic styling offers premium comfort control and improved aerodynamics. A high-performance motor and fan deliver superb cooling performance.

Description

High-perfomance motor and fan
Low profile (11 1/4" / 29 cm) for reduced wind-resistance and improved fuel efficiency
Fully automated controls provide easy comfort
Accommodates ducted or non-ducted system

This low-profile rooftop air conditioner with sleek, futuristic styling offers premium comfort control and improved aerodynamics. A high-performance motor and fan deliver superb cooling performance.

Specifications

SKU: 9105305511

Dometic Penguin II - Hi Cap Multi-Zone Air Conditioner - Black — General specifications
Model	Hi Cap with Control Box
Scope of delivery	1 Air conditioner, 1 Warranty card
SKUCertificates	CSA
Product Description	High Capacity (Approximately 15,000 BTU) - Rooftop Low Profile Air Conditioner - Pre-installed Multi-Zone CCC II control board - Non-Ducted application: air distribution box and CCCII thermostat required - Ducted application: return air grille and CCCII t

Dometic Penguin II - Hi Cap Multi-Zone Air Conditioner - Black — Dimensions specifications
Dimensions product depth, [mm]	736.6
Dimensions product height, [mm]	285.75
Dimensions product width, [mm]	1028.7
Dimensions product width, [in]	40 1/2
Net weight, [kg]	45.81
Net weight, [lbs]	101
Standard mount. material thickness 1 min, [mm]	25
Standard mount. material thickness 1 max, [mm]	150
Cut out depth, [mm]	360
Cut out width, [mm]	360

Dometic Penguin II - Hi Cap Multi-Zone Air Conditioner - Black — Electrical specifications
Input voltage (AC), [V]	115
Input frequency, [Hz]	60

Dometic Penguin II - Hi Cap Multi-Zone Air Conditioner - Black — Performance specifications
Hermetically Sealed	Yes
Refrigerant, type	R410A
GWP	2088
CO2 equivalent, [t]	1,304
AirFlow, [m<sup>3</sup>h]	252
Operating temperature min, [°C]	16
Operating temperature max, [°C]	52

Dometic Penguin II - Hi Cap Multi-Zone Air Conditioner - Black — Properties specifications
Thermostat control	Electronic Thermostat

Dometic Penguin II - Hi Cap Multi-Zone Air Conditioner - Black — Logistics specifications
Dimensions parcel depth, [mm]	755
Dimensions parcel height, [mm]	310
Dimensions parcel width, [mm]	1055
Parcel weight, [kg]	50.06
Parcel weight, [lbs]	110.38

Dometic 641415, 641416, 641515, 641516, 641715, 641716, 641815, 641816, 641915, 641916, 641432, 64135, 641535, 641732, 641735, 641835, 641932, 641935, 651515, 651516, 651815, 651816, 651915, 651916 - Installation Manual AMER(en)
