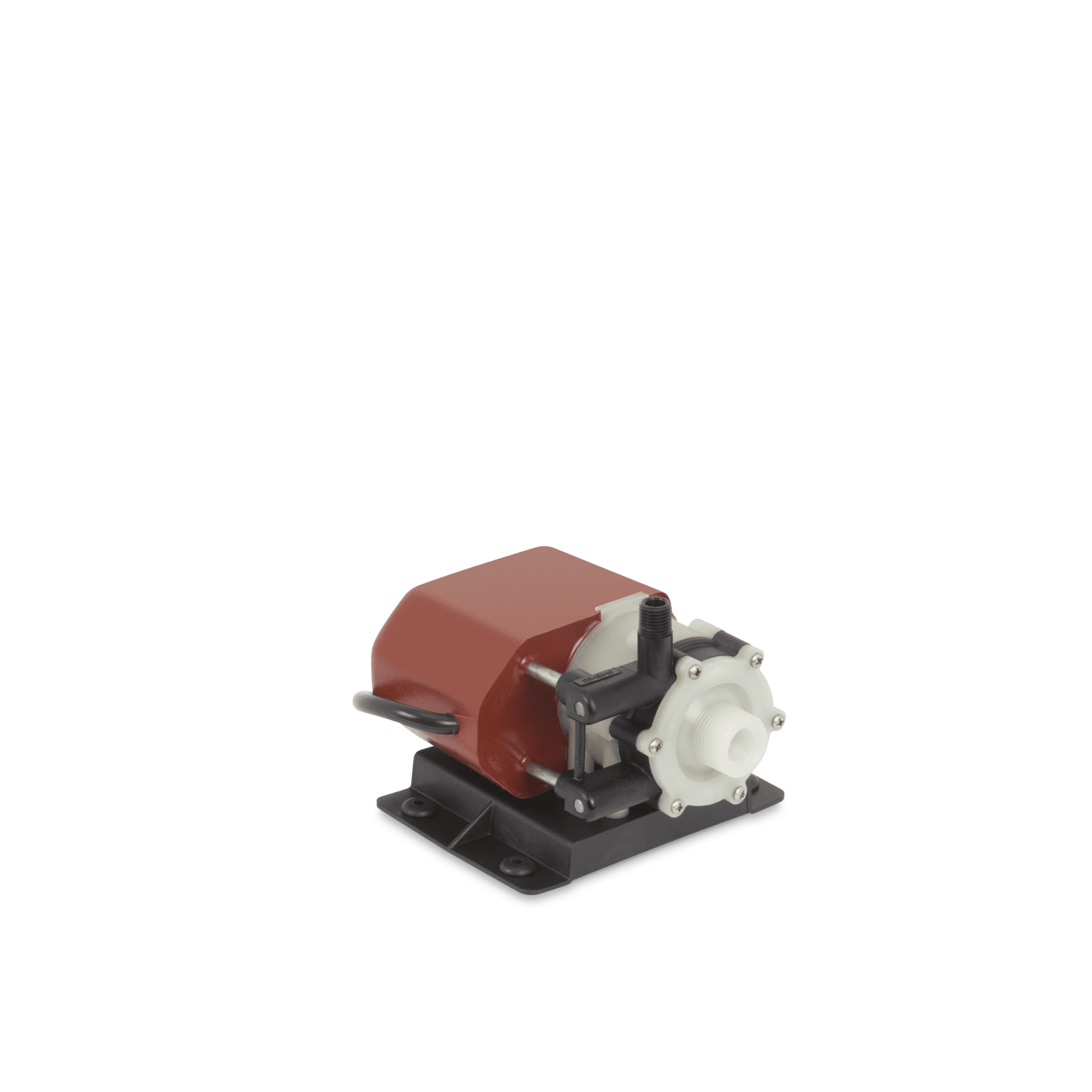

Dometic PML250C

Centrifugal seawater pump for marine A/C systems, 230 V - 3 GPM, 7 ft. of head

This highly reliable and durable seawater pump has an energy-efficient motor to provide optimum seawater circulation for marine air conditioning systems.

Description

  1. Efficient motor with low power consumption
  2. Magnetic-drive impeller means there is no seal to wear, leak or repair
  3. Marine-grade base and corrosion-resistant components that are in contact with water ensure durability
  4. Three-phase ignition-protected motors
  5. Quiet operation

Specifications

SKU: 9108549752

Dometic PML250C — General specifications
ModelMagnetic Drive
Product DescriptionCentrifugal seawater pump for marine A/C systems, 230 V - 3 GPM, 7 ft. of head

Dometic PML250C — Dimensions specifications
Dimensions product depth, [mm]157.48
Dimensions product height, [mm]119.38
Dimensions product width, [mm]142.24
Dimensions product width, [in]5 9/16
Net weight, [kg]2.09
Net weight, [lbs]4.60

Dometic PML250C — Electrical specifications
Input voltage (AC), [V]230
Input frequency, [Hz]50/60

Dometic PML250C — Performance specifications
Current consumption max cooling, [A]0.5
Flow Rate Imperial3

Dometic PML250C — Logistics specifications
Dimensions parcel depth, [mm]285.75
Dimensions parcel height, [mm]177.80
Dimensions parcel width, [mm]152.40
Parcel weight, [kg]2.38
Parcel weight, [lbs]5.25

Dometic Service Event Request & Claim Reimbursement Form for Marine Air Conditioning - Warranty Document AMER(en)
Warranty Document
Dometic Marine Warranty Policy (Air Condition and Refrigeration) - Owner’s Limited Warranty Policy AMER(en)
Warranty Document
Dometic Marine Warranty Card for Marine Air Conditioning, Marine Refrigeration - Warranty Document AMER3/APAC1
Warranty Document
Dometic Marine Warranty Claim Guidelines for Marine Air Conditioning, Marine Refrigeration, Marine Ice machines - Warranty Document AMER(en)/APAC
Warranty Document

Product size & weight

W 142.24 x H 119.38 x D 157.48 mm

Weight: 2.09 kg
