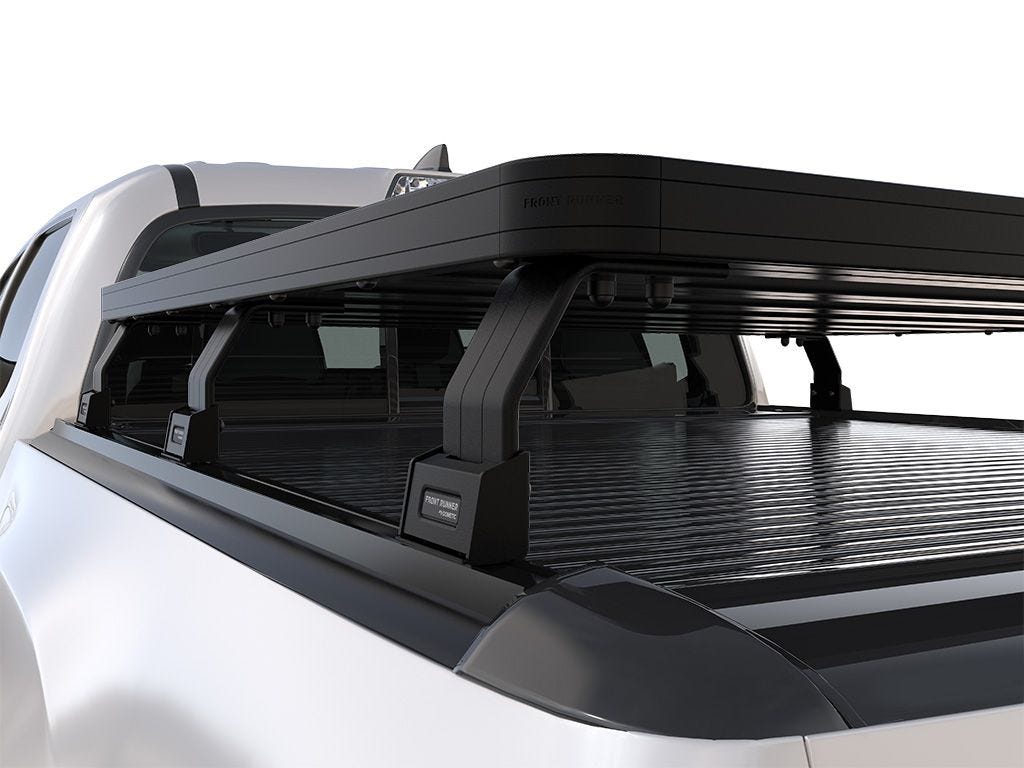

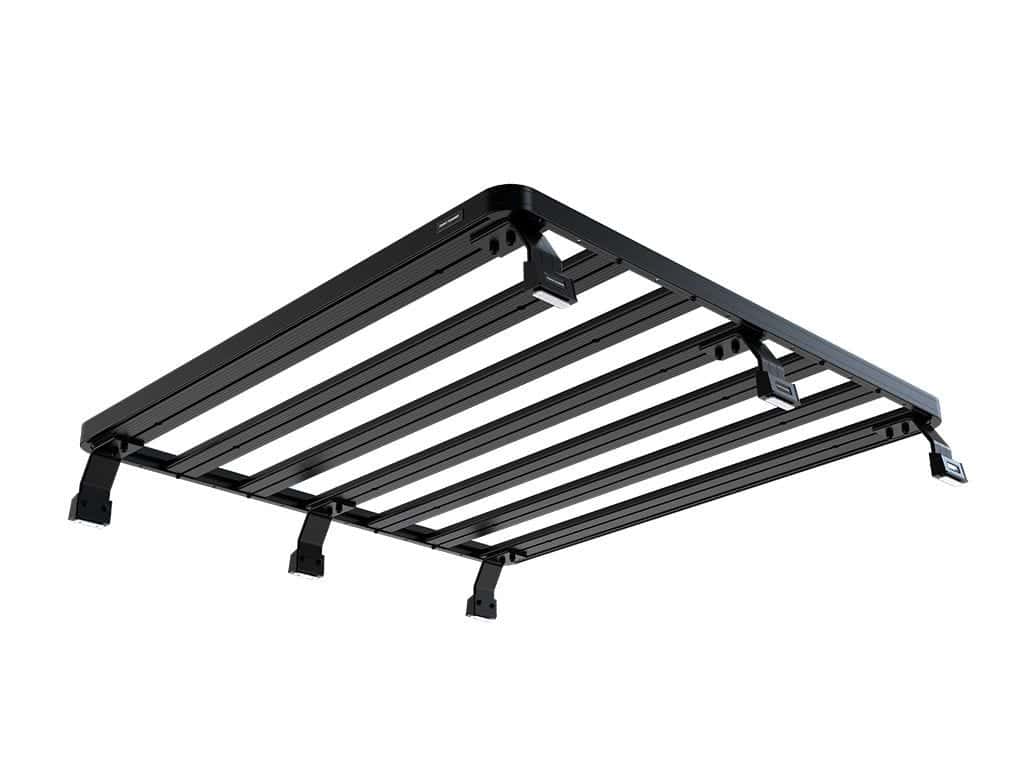

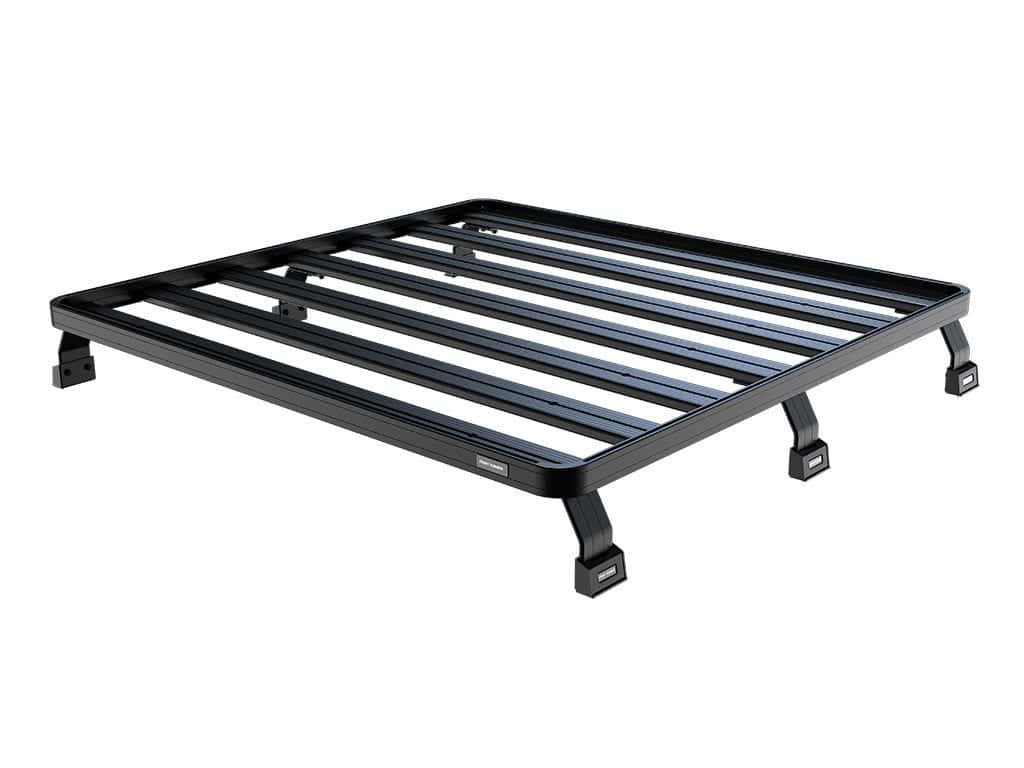

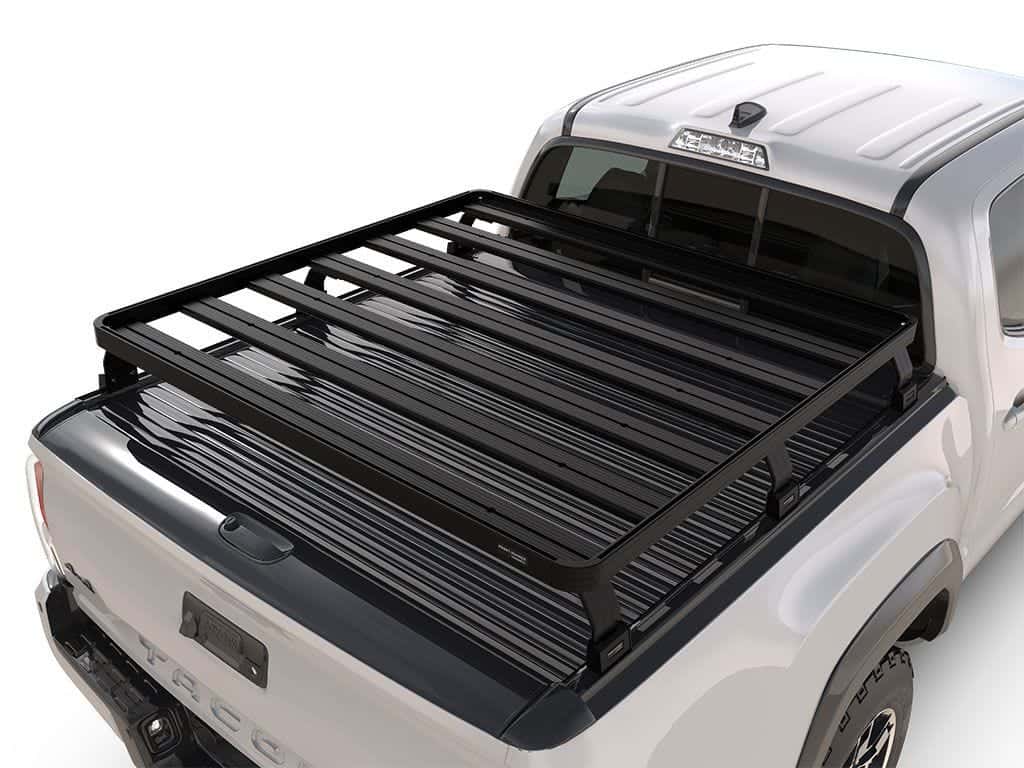

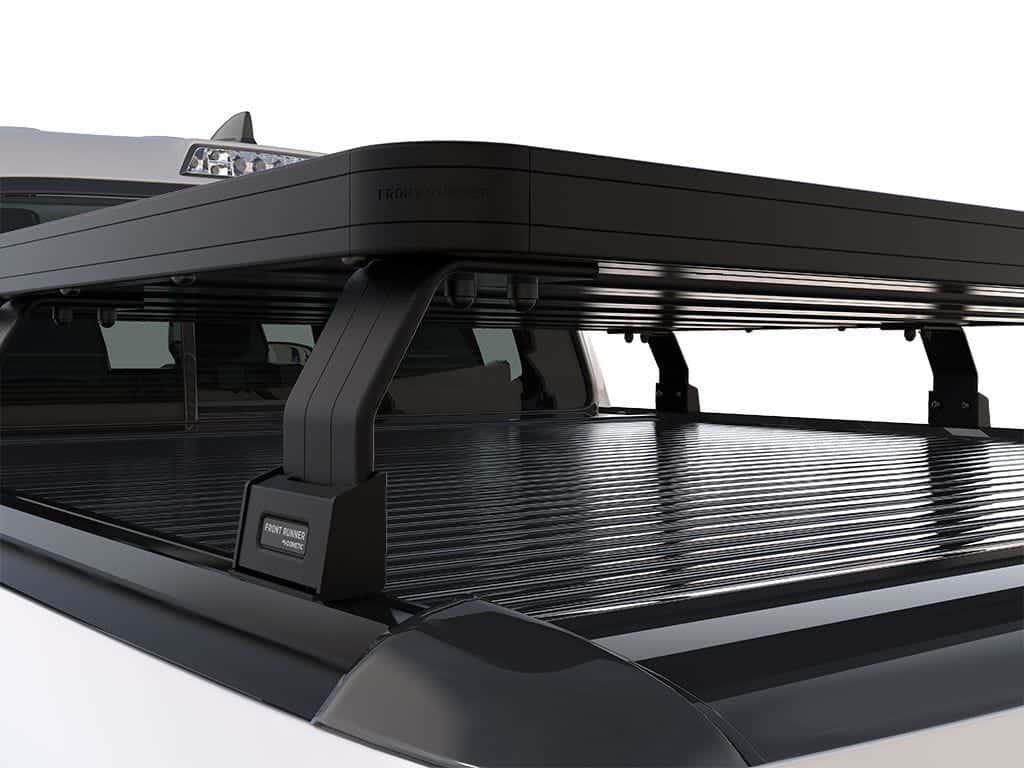

Toyota Tacoma (2005-Current) Retrax Slimline II Load Bed Rack Kit
-25%
US$ 1,161.75US$ 1,549
Loading...
[]
Front Runner joins Dometic
[]
Front Runner joins Dometic
[]
Front Runner joins Dometic
[]
Front Runner joins Dometic
[]
Front Runner joins Dometic
[]
Front Runner joins Dometic
[]
Front Runner joins Dometic
SKU: KRTT958T
Technical Information
Technical Information
KRTT958T - Toyota Tacoma (2005-Current) Retrax Slimline II Load Bed Rack Kit
Consisting of:
3x LASS028 - Pick-Up Roll Top Leg Mount
1x RRSTJ07 - SLII Tray - 1425mm(W)X1358mm(L)
Material Used:
Black epoxy powder - coated T6 aluminium
High strength steel
Approximate Installed Weight: 25.54kg (56.31lbs)
The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.
To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2") to the height of the Foot or Grab-on Foot listed above.
If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2") to the height of the Legs to determine the height of the rack from your vehicle's rain gutters.
If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.
Shipping Dimensions:
Width: 445mm (18")
Length: 1735mm (68")
Height: 245mm (10")
Shipping Weight:
Weight: 28.6kg (63lbs)
Consisting of:
3x LASS028 - Pick-Up Roll Top Leg Mount
1x RRSTJ07 - SLII Tray - 1425mm(W)X1358mm(L)
Material Used:
Black epoxy powder - coated T6 aluminium
High strength steel
Approximate Installed Weight: 25.54kg (56.31lbs)
The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.
To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2") to the height of the Foot or Grab-on Foot listed above.
If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2") to the height of the Legs to determine the height of the rack from your vehicle's rain gutters.
If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.
Shipping Dimensions:
Width: 445mm (18")
Length: 1735mm (68")
Height: 245mm (10")
Shipping Weight:
Weight: 28.6kg (63lbs)
