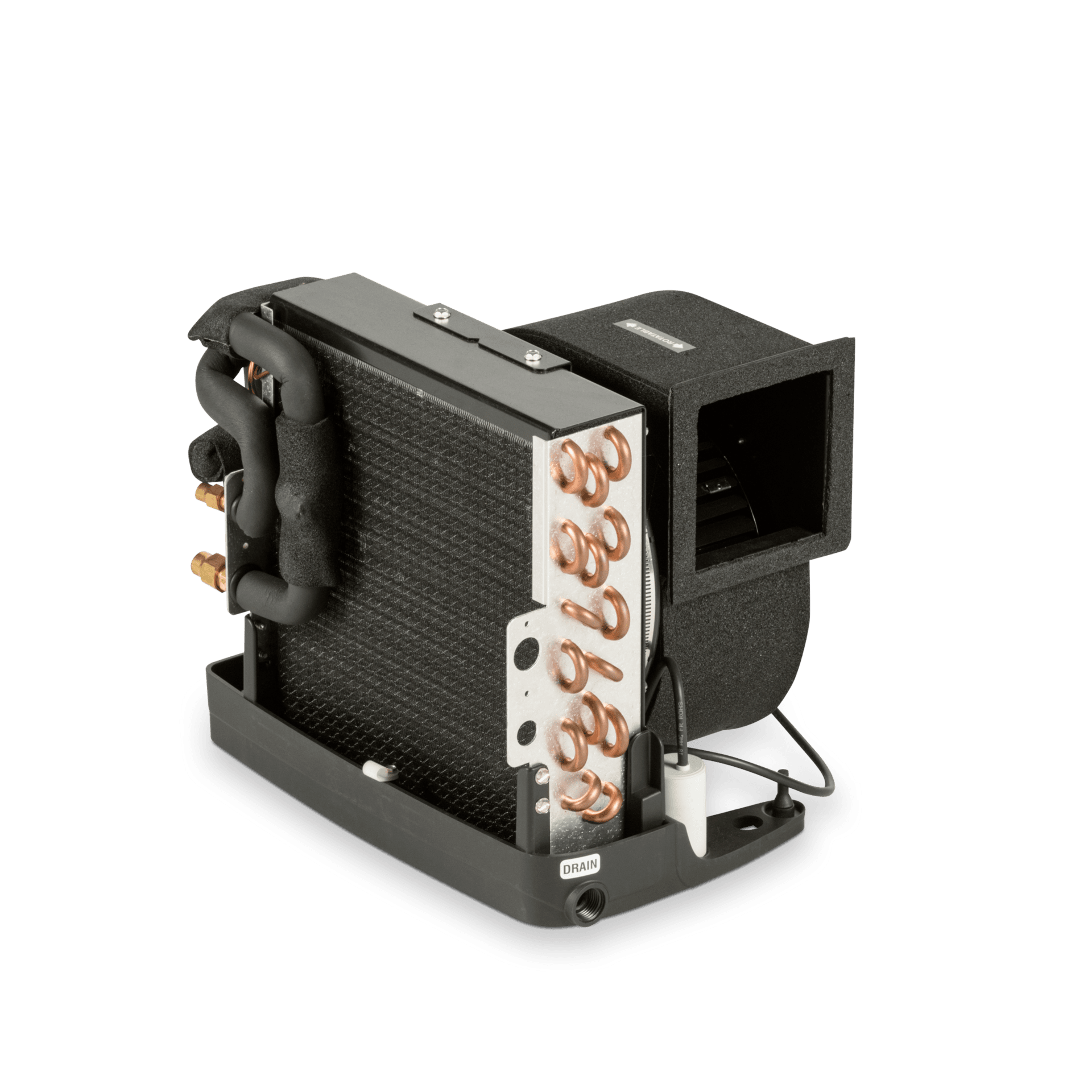

Direct Expansion Evaporating Unit from 4,000 to 16,000 BTU/h--410A
SKU: 9108548603
The Dometic Emerald (TVE) direct expansion (DX) split-gas evaporator is based on the innovative engineering advancements of the award-winning Dometic Turbo selfcontained air conditioning system. TVE units work with Dometic Emerald R410A condensing units.
[]
Square chassis for easy installation in tight spaces
Technical Information
Technical Information
Color
Black
Brand
Dometic
EAN-13
7315091236478
Publication Model Name
Dometic TVE Turbovap
Product Description
Direct Expansion Evaporating Unit from 4,000 to 16,000 BTU/h--410A
Dimensions product depth, [mm]
294.64
Dimensions product height, [mm]
345.44
Dimensions product width, [mm]
363.22
Net weight, [kg]
9.53
Net weight, [lbs]
21
Dimensions parcel depth, [mm]
622.3
Dimensions parcel height, [mm]
482.6
Dimensions parcel width, [mm]
444.5
Parcel weight, [kg]
12.98
Parcel weight, [lbs]
28.62
Input voltage (AC), [V]
230
Input frequency, [Hz]
50/60
Required AC circuit protection min, [A]
1.000000
Required AC circuit protection max, [A]
5.000000
Current consumption min cooling, [A]
0.780000
Current consumption max cooling, [A]
0.780000
Dimensions product width, ["] - Display
14 4/16
Cooling Capacity Display
16000
Item Description
TVE16 410A 230V
Dimensions Product Width Metric Display
363.22
Marketing Product Description
Direct Expansion Evaporating Unit from 4,000 to 16,000 BTU/h--410A
