Description
- Up to 40 A charging power while travelling
- Excellent yield for all leisure batteries thanks to OPTICHARGE technology
- Buck Booster technology
- Suitable for vehicles with smart alternator (EURO 6 emission standard)
- Specific charging curve for all battery technologies: LiFePO4, AGM, gel, flooded
- Prevents the alternator from overloading and the engine battery from running out of power
- For direct connection of extra loads to the alternator
Maximum charging power while travelling, even with EURO 6 and smart alternator! Your PSB Power Service charging booster ensures your batteries are recharged quickly, anywhere. Charge while you travel, arrive at your destination with 100% batteries, don’t run out of power, avoid all generators and extra fuel, travel lighter and above all enjoy your holidays!
Specifications
SKU: 9620017504
| Model | MT LB24-40 |
|---|---|
| Scope of delivery | Batery Charger, Fuse 80A, Fuse 110A |
| SKUCertificates | ECER10;UKCA;CE |
| Product Description | DC/DC charging booster, 24 V, 40 A |
| Dimensions product depth, [mm] | 210 |
|---|---|
| Dimensions product width, [mm] | 191 |
| Dimensions product width, [in] | 7.52 |
| Net weight, [kg] | 1.28 |
| Net weight, [lbs] | 2.82 |
| Input voltage (DC), [V] | 24 |
|---|---|
| Battery type | AGM |
| IP class | IP21 |
| Operating temperature min, [°C] | -20 |
|---|---|
| Operating temperature max, [°C] | 60 |
| Connectivity Type | CIBUS |
|---|
| Dimensions parcel depth, [mm] | 225 |
|---|---|
| Dimensions parcel height, [mm] | 85 |
| Dimensions parcel width, [mm] | 195 |
| Parcel weight, [kg] | 1.48 |
| Parcel weight, [lbs] | 3.26 |

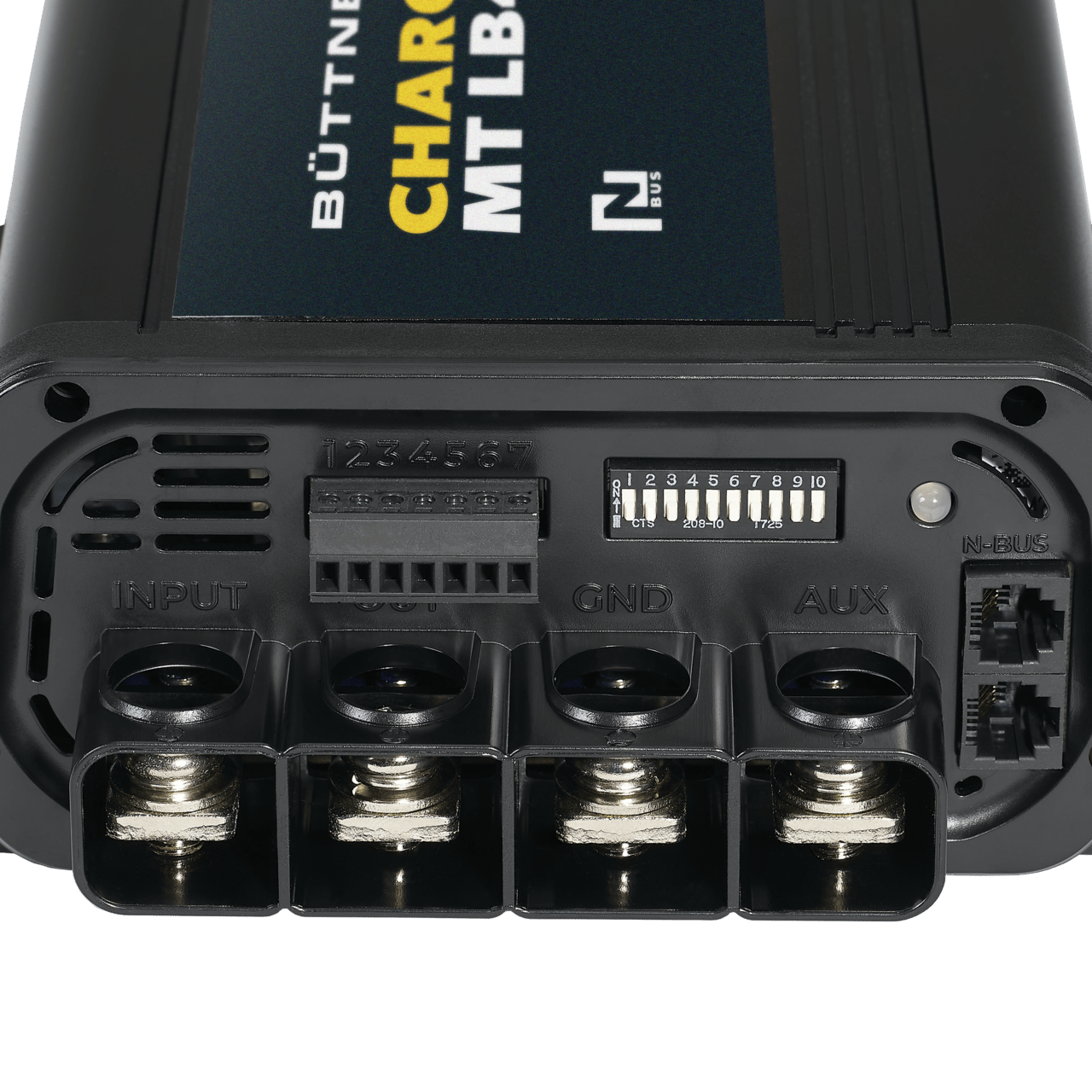

Unique AUX connection
MT LB is the only device on the market with an AUX connection, allowing it to be installed easely in vehicles with existing charging systems. When the vehicle is in motion, the AUX relay shifts all the loads connected in the control unit to the engine battery, thus bypassing the existing parallel connection, so the leisure battery will be recharged directly, at maximum performance.
