Description
- Monocrystalline cells with high-quality glass coating – withstand harshest conditions
- Lightweight, weather-resistant and aesthetically pleasing
- Mounting brackets integrated in the panel frame for safe and easy installation
- Solar panel continues working even in the event of shading and accidental breakage
- Energy efficiency of 18 % thanks to state-of-the-art photovoltaic technology
- 6 m bipolar connection cable with an all-weather protective outer sheath
- Meets stringent quality and safety standards: IEC61215, IEC61730, ISO9001/ISO14001
This 175 Wp solar panel is made from high-performance monocrystalline cells with a high-quality glass coating. The multilayer construction withstands the harshest environmental conditions. Special by-pass diodes protect the cells from overvoltage and allow the solar panel to continue working even in the event of shading and accidental breakage of the photovoltaic cells.
Specifications
SKU: 9620008484
| Model | SIL175 |
|---|---|
| Scope of delivery | Solar panel, installation and operating manual |
| Product Description | Aluminum frame solar panel, 175 Wp |
| Dimensions product depth, [mm] | 1625 |
|---|---|
| Dimensions product height, [mm] | 60 |
| Dimensions product width, [mm] | 676 |
| Dimensions product width, [in] | 26.61 |
| Net weight, [kg] | 13.69 |
| Net weight, [lbs] | 30.18 |
| Dimensions parcel depth, [mm] | 1645 |
|---|---|
| Dimensions parcel height, [mm] | 70 |
| Dimensions parcel width, [mm] | 696 |
| Parcel weight, [kg] | 15.92 |
| Parcel weight, [lbs] | 35.10 |

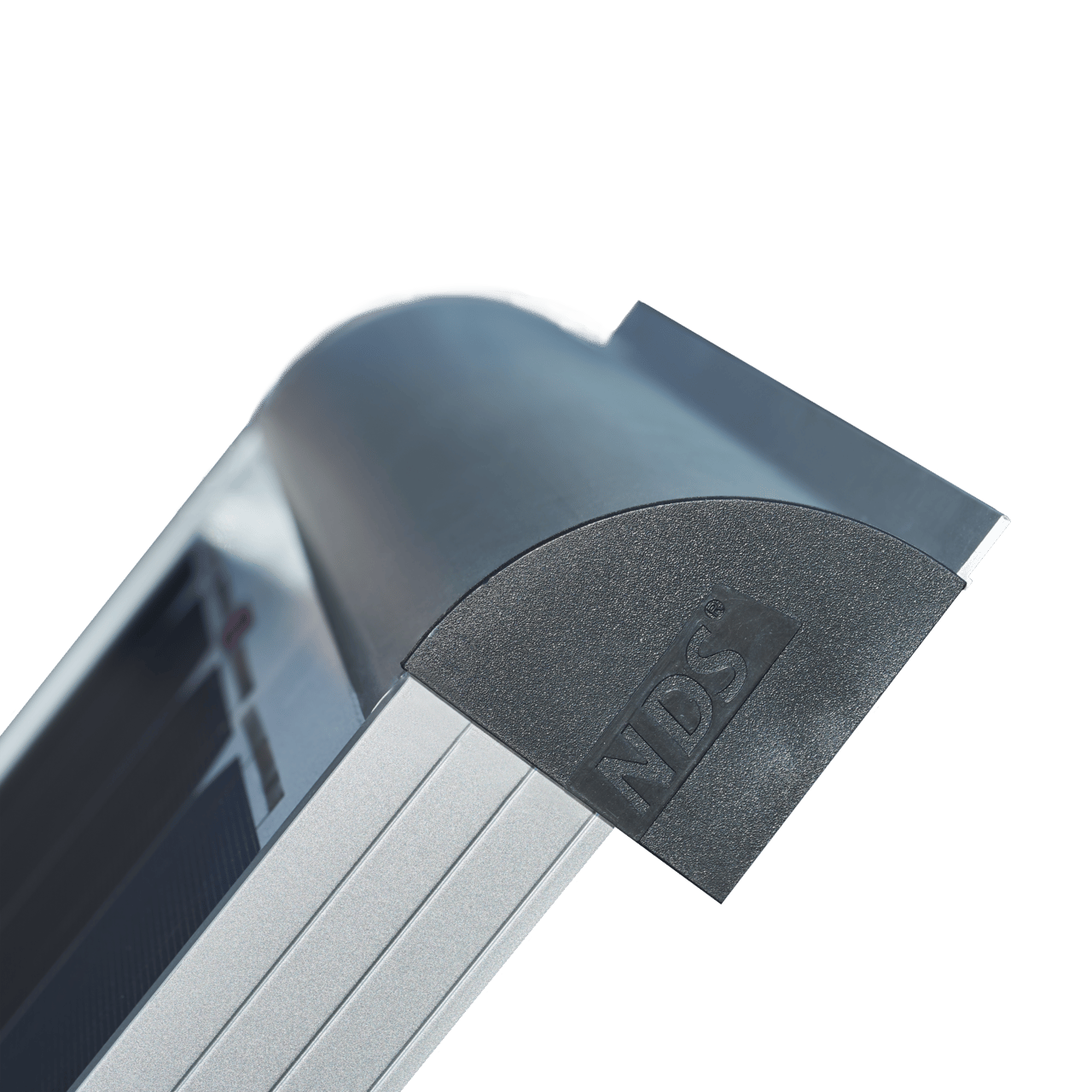

Built-in mounting bracket
The mounting brackets integrated in the frame of the solar panel facilitate installation. They also allow the optimum distance from the mounting surface to be maintained at all times. This ensures proper ventilation of the cells and avoids any loss of performance even at high operating temperatures. Adequate aerodynamics is guaranteed by the rounded corners of the mounting brackets. These solar panels have a 5-year warranty and a TUV certification.
